Fuse And Relay Information

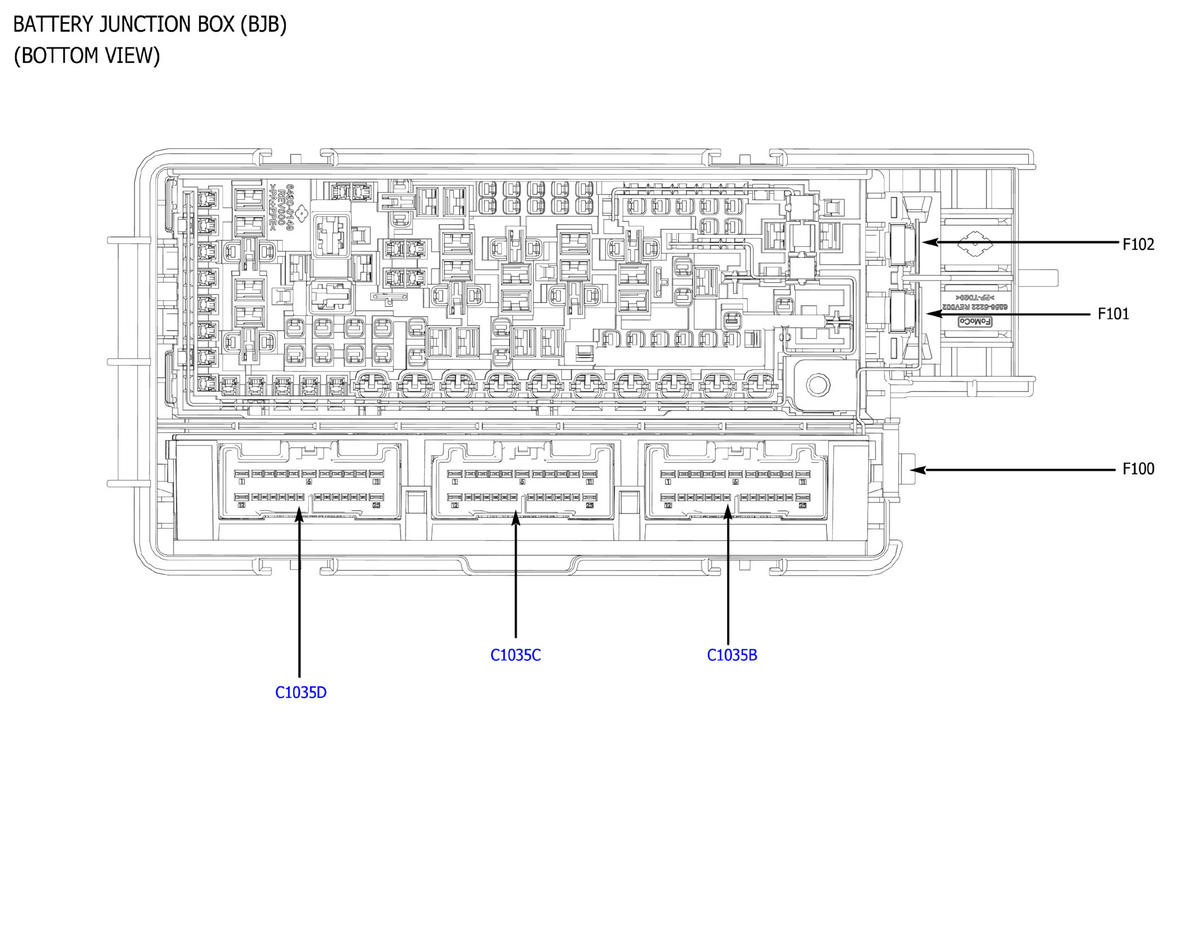

Fig 1: Fuse And Relay Information Wiring Diagram (1 Of 6)
GFDWR63868Courtesy of FORD MOTOR COMPANY

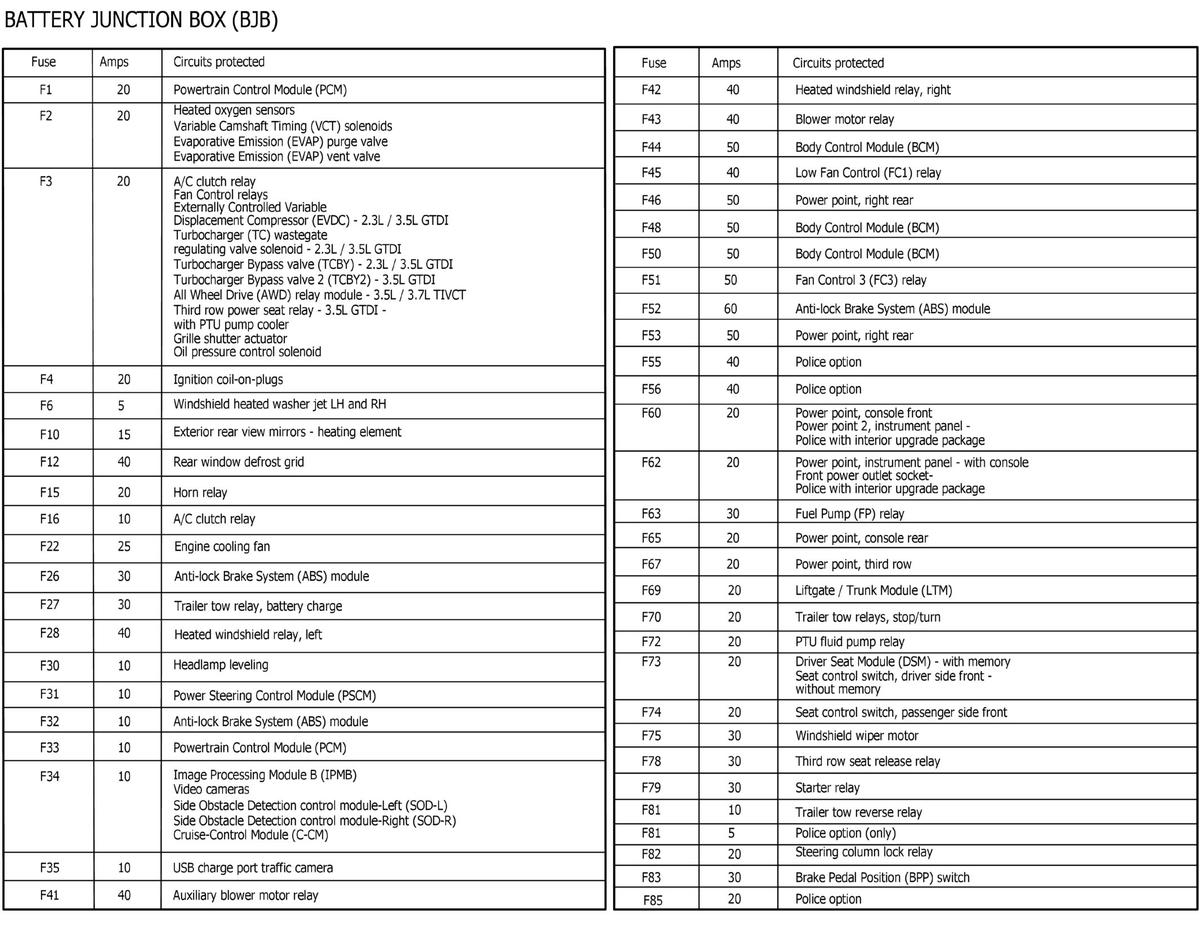

Fig 2: Fuse And Relay Information Wiring Diagram (2 Of 6)
GFDWR63869Courtesy of FORD MOTOR COMPANY

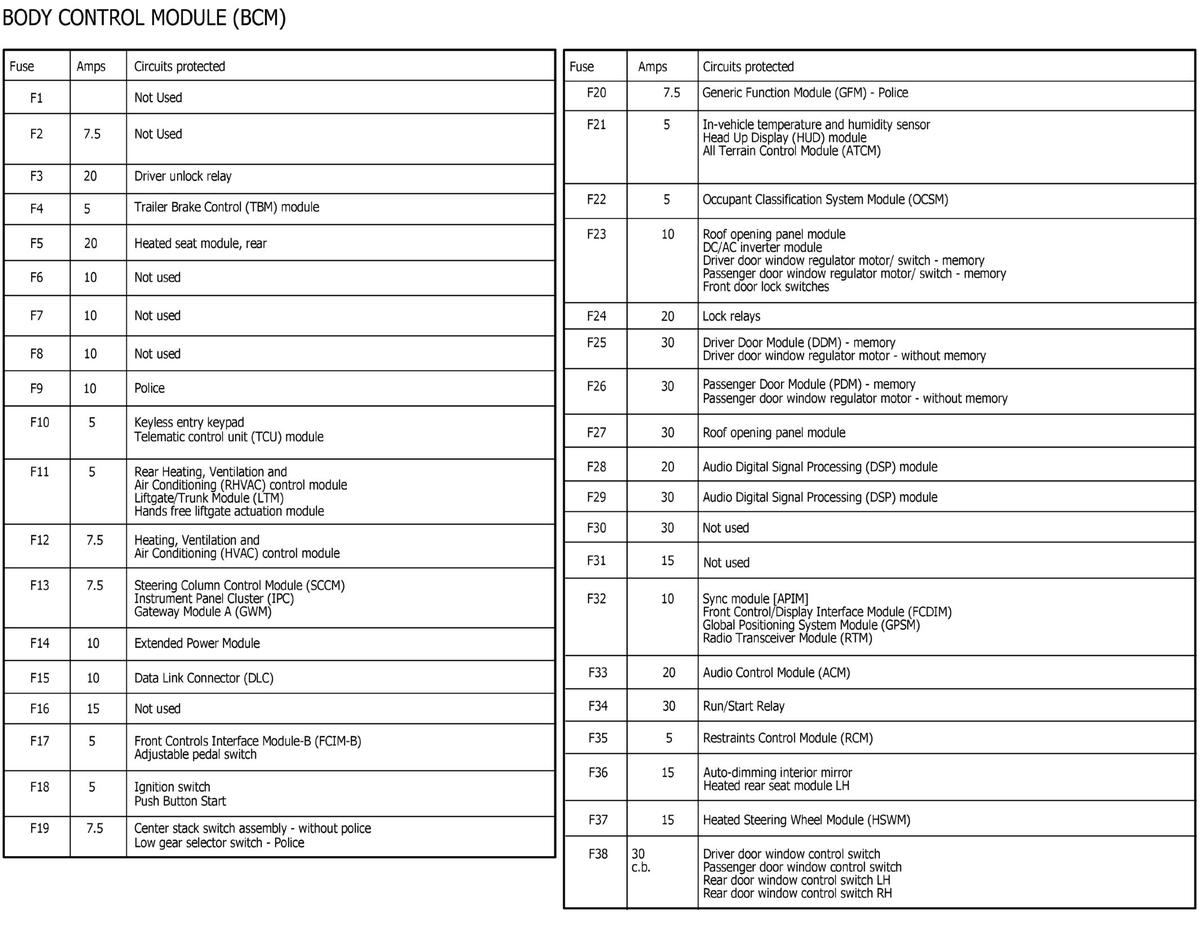

Fig 3: Fuse And Relay Information Wiring Diagram (3 Of 6)
GFDWR63870Courtesy of FORD MOTOR COMPANY

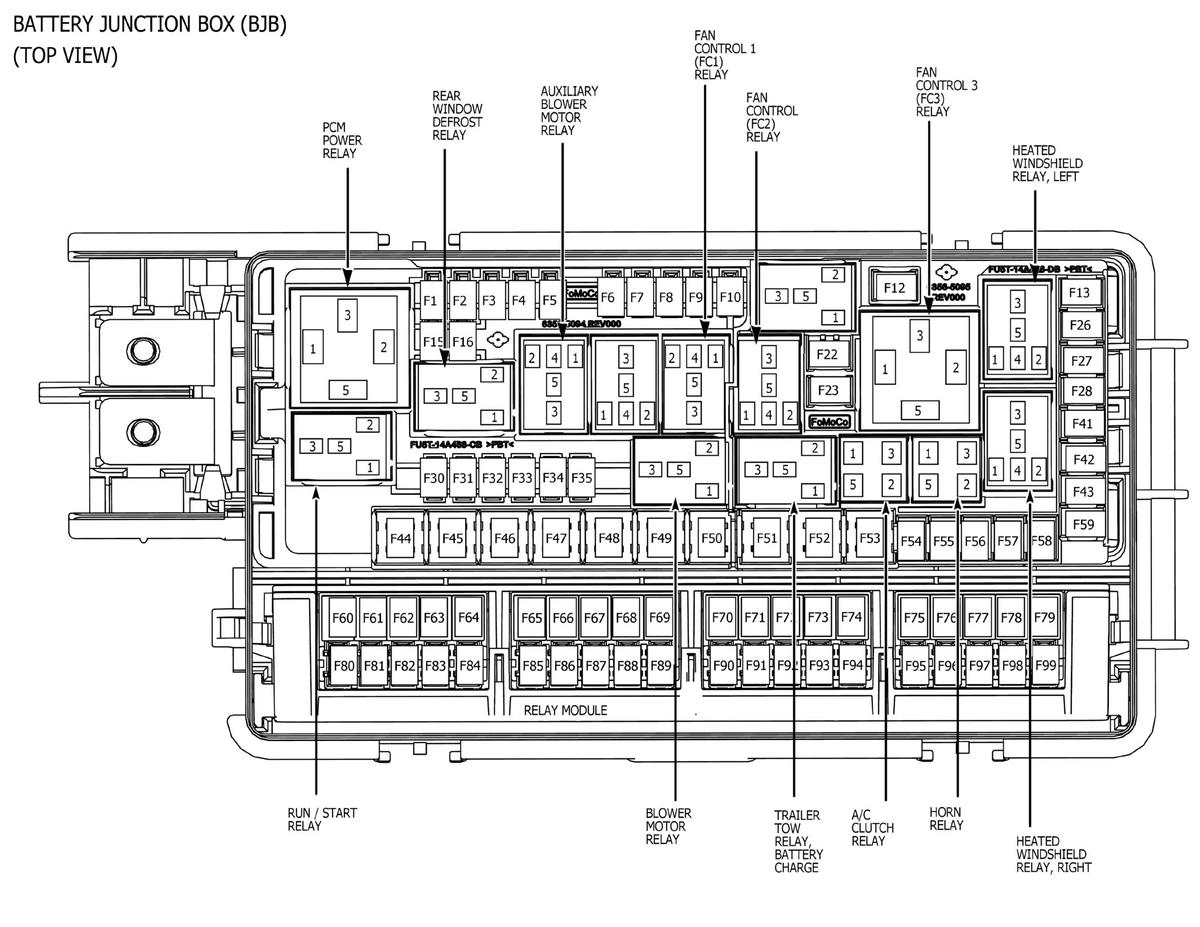

Fig 4: Fuse And Relay Information Wiring Diagram (4 Of 6)
GFDWR63871Courtesy of FORD MOTOR COMPANY

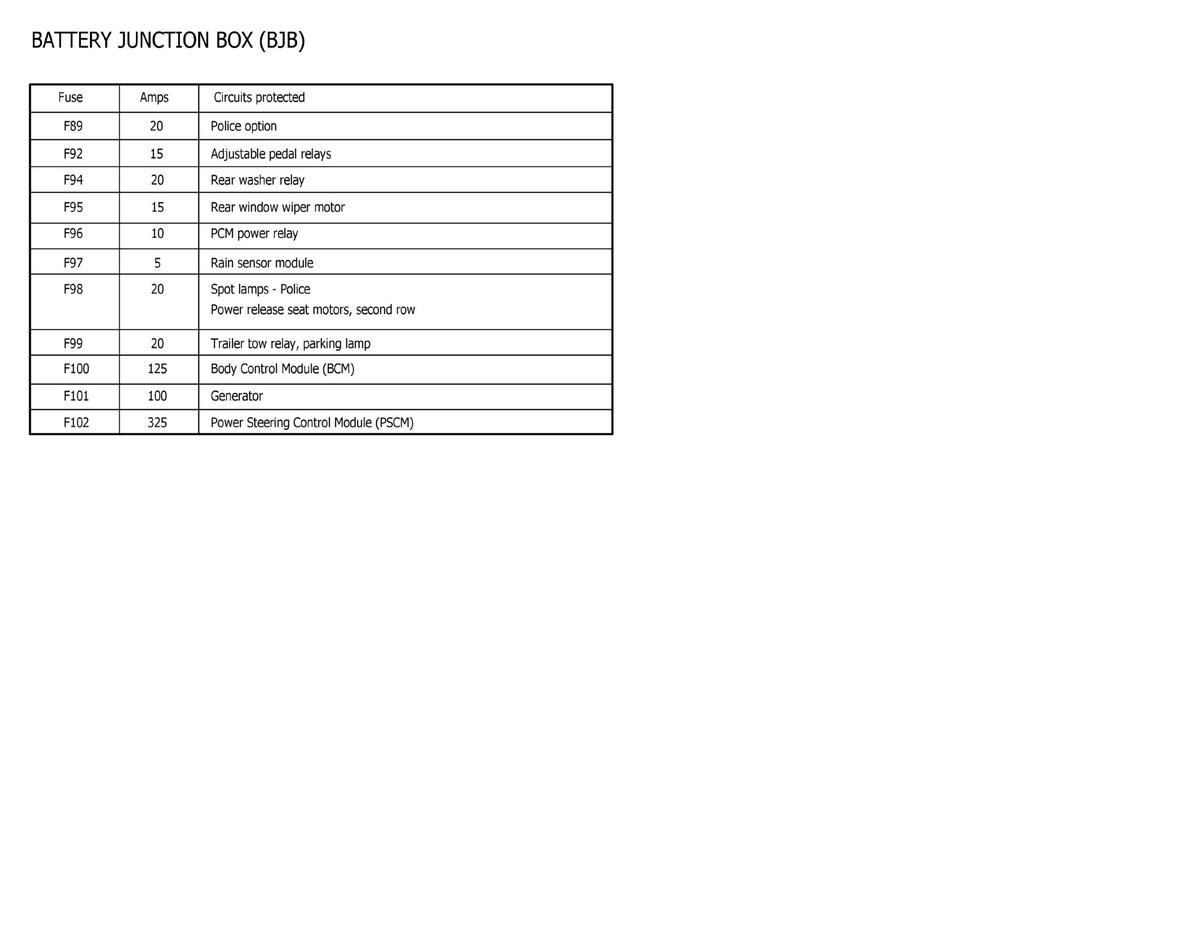

Fig 5: Fuse And Relay Information Wiring Diagram (5 Of 6)
GFDWR63872Courtesy of FORD MOTOR COMPANY

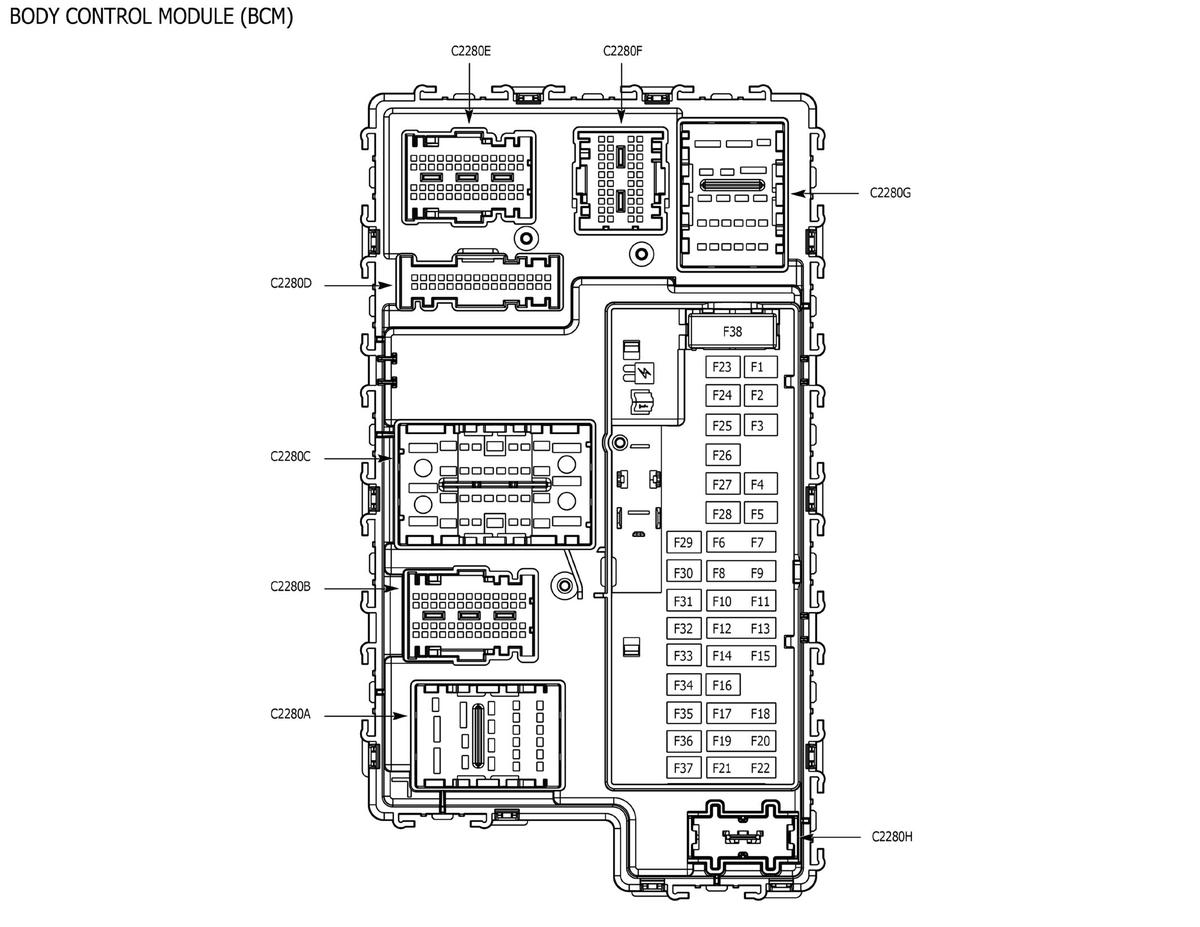

Fig 6: Fuse And Relay Information Wiring Diagram (6 Of 6)
GFDWR63873Courtesy of FORD MOTOR COMPANY
