Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
The FPDM is located behind the RH C-pillar trim panel.
- Remove the C-Pillar Trim Panel. Refer to: C-Pillar Trim Panel . Refer to: C-Pillar Trim Panel - Vehicles With: Inflatable Seatbelts .

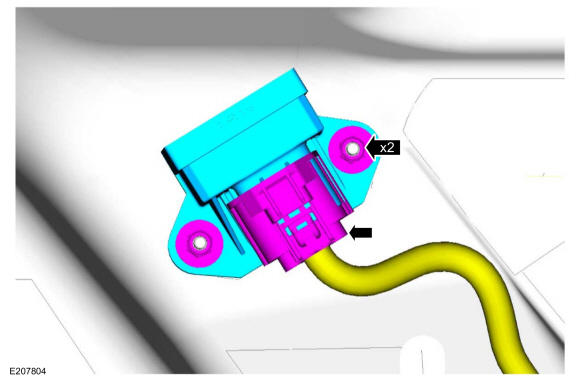

- Disconnect the FPDM electrical connector. Remove the FPDM nuts and then remove the FPDM.
