Liftgate Alignment

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

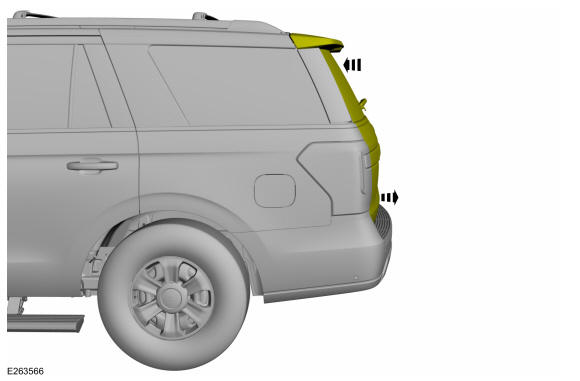

1. Check liftgate-to-body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

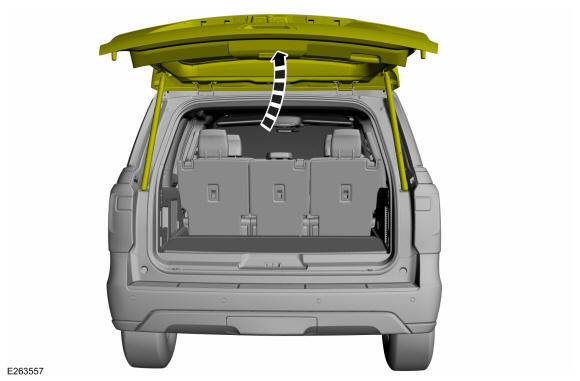

1. Open the liftgate.

   Courtesy of FORD MOTOR COMPANY

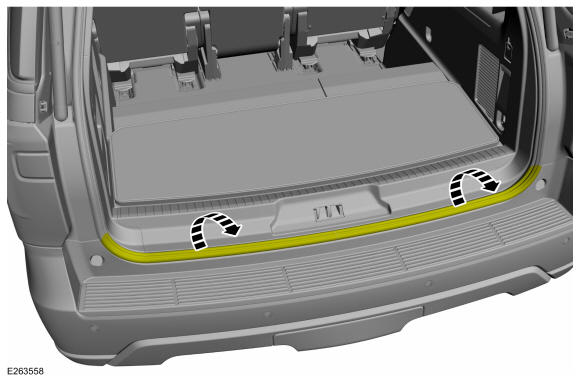

2. Position aside the liftgate weatherstrip.

   Courtesy of FORD MOTOR COMPANY

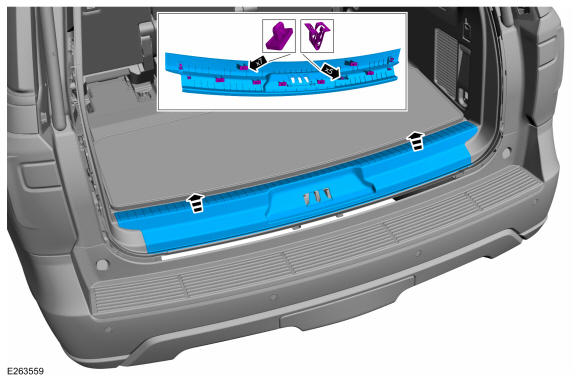

3. Release the clips and remove the liftgate scuffplate trim panel.

   Courtesy of FORD MOTOR COMPANY

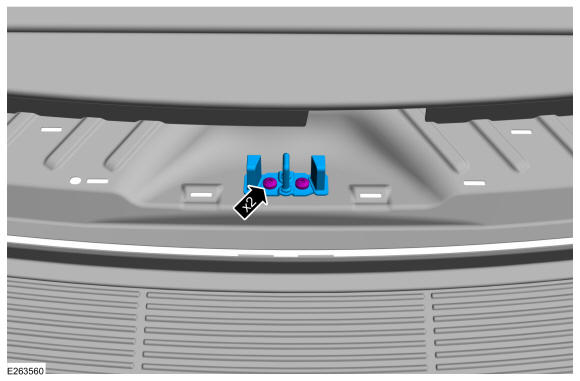

4. Remove the liftgate striker.

   Courtesy of FORD MOTOR COMPANY

   Liftgate left and right, up and down alignment

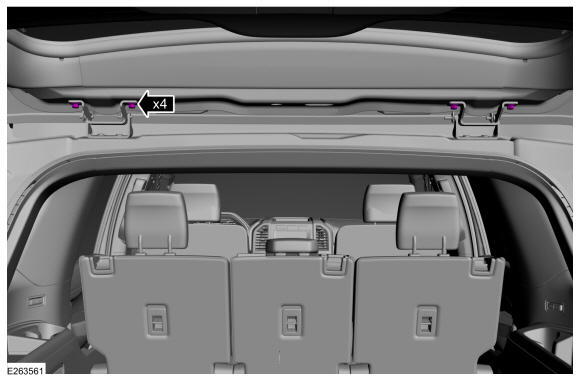

5. Loosen the bolts to permit movement of the liftgate.

   Courtesy of FORD MOTOR COMPANY

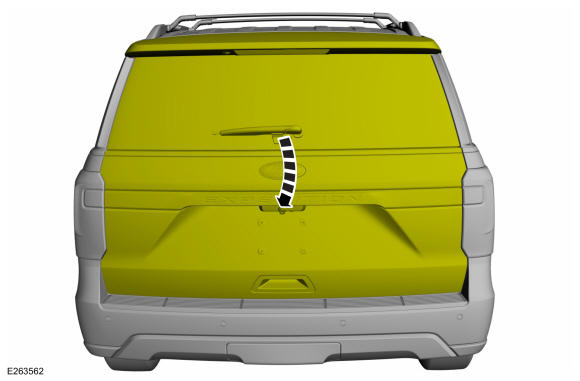

6. Carefully close the liftgate.

   Courtesy of FORD MOTOR COMPANY

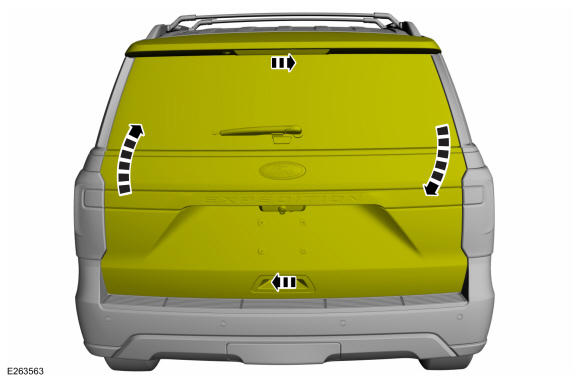

7. Adjust the liftgate to specification. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

8. Carefully open the liftgate.

   Courtesy of FORD MOTOR COMPANY

9. Tighten the bolts.

   Torque

   18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

   Liftgate in and out alignment

10. Remove the D-Pillar trim panel. Refer to: D-Pillar Trim Panel - Short Wheelbase . Refer to: D-Pillar Trim Panel - Long Wheelbase .

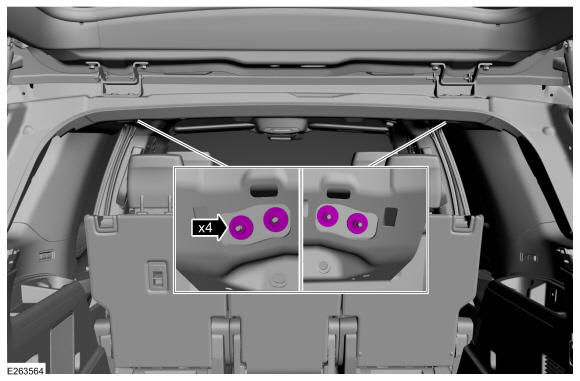

11. Loosen the nuts to permit movement of the liftgate.

    Courtesy of FORD MOTOR COMPANY

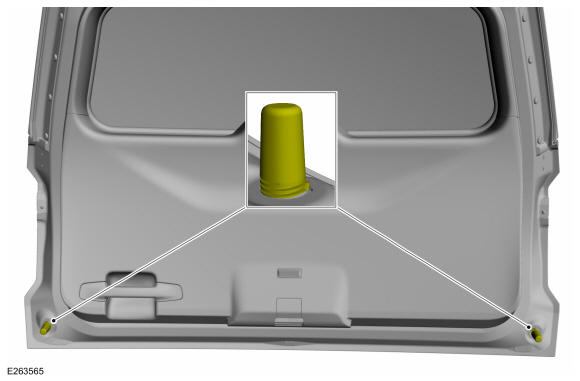

12. Set the liftgate rubber stoppers to nominal position. The tab on the stopper should touch the liftgate surface.

    Courtesy of FORD MOTOR COMPANY

13. Carefully close the liftgate.

    Courtesy of FORD MOTOR COMPANY

14. Adjust the liftgate to specification. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

15. Carefully open the liftgate.

    Courtesy of FORD MOTOR COMPANY

16. Tighten the nuts.

    Torque

    26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

    All alignments

17. Install the liftgate striker.

    Torque

    18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

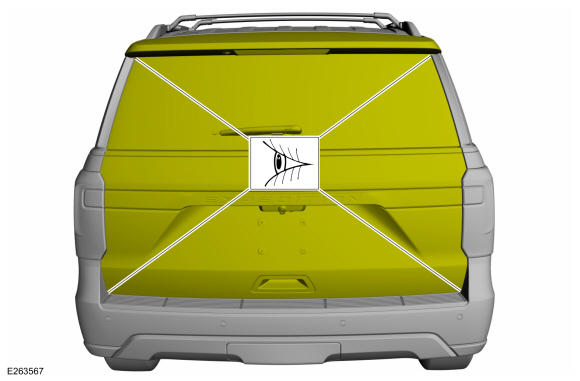

18. Inspect the body-to-liftgate door dimensions. Refer to: Body and Frame .

    Courtesy of FORD MOTOR COMPANY

19. Install the removed components.
20. If equipped. Carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
