Transfer Case Shift Motor: Removal

For information on Ford Color Coded Illustrations refer toOEM COLOR CODING

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .

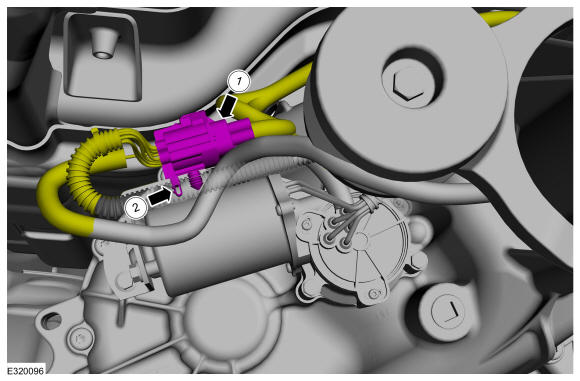

2. 1. Disconnect the wiring harness connector.
   2. Detach wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

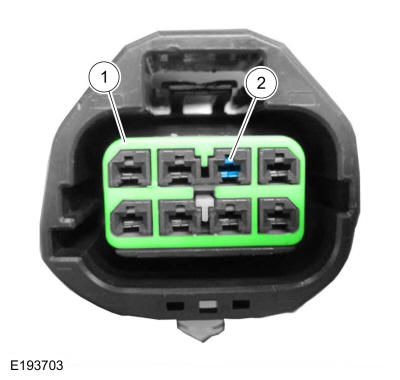

3. Remove the coil wire pin from the electrical connector.
   1. Remove the inner retainer from the wire connector.
   2. Press the release tab and remove the coil wire pin.

   Courtesy of FORD MOTOR COMPANY

4. Remove the transfer case shift motor bracket bolt.

   Courtesy of FORD MOTOR COMPANY

5. Remove the mounting bolts and the transfer case shift motor.

   Courtesy of FORD MOTOR COMPANY

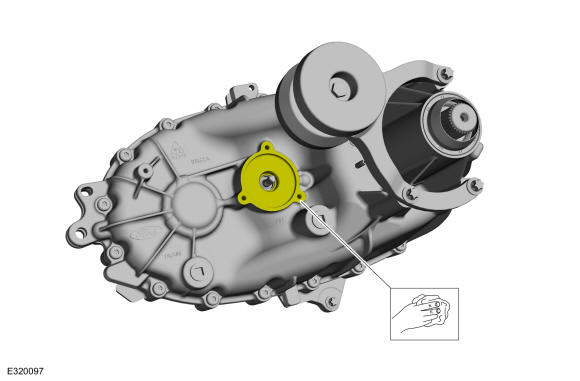

6. Clean the transfer case shift motor mating surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
