Steering Column: Removal

For information on Ford Color Coded Illustrations Refer toOEM COLOR CODING

1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

   If a SRS fault is present, continue to Step 2. Otherwise, turn the ignition off, wait at least one minute and continue to Step 3.

2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
3. NOTE: This step is only necessary when installing a new component.

   Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .

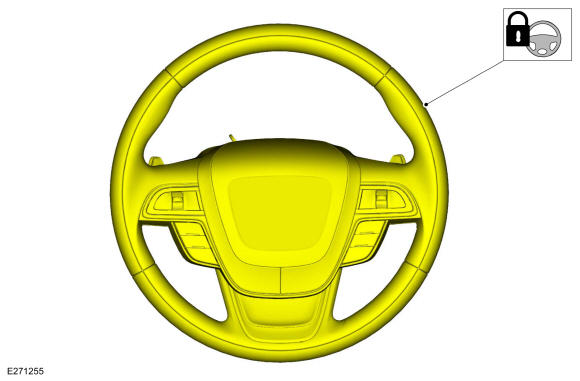

4. NOTE: Make sure that the steering wheel does not rotate or damage to the clockspring may occur.

   Secure the steering wheel.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

5. NOTE: Push button start vehicle shown in illustration, all others similar.

   Lower the steering column opening trim panel.

   Courtesy of FORD MOTOR COMPANY

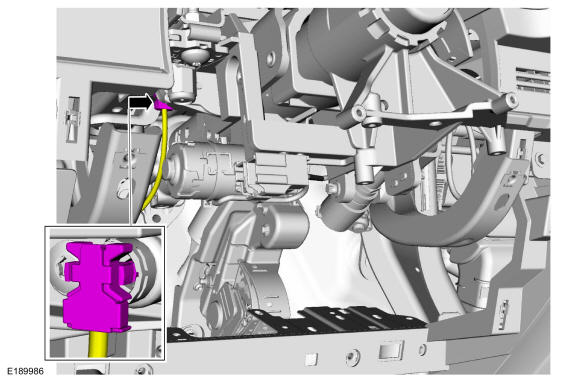

6. NOTE: Any time the parking brake switch electrical connector has been disconnected, the EPB system is deactivated and a DTC is stored in the ABS module. Perform the following step to restore the EPB system and clear the ABS module DTC.

   Apply and release the parking brake twice, pausing with the switch in the NEUTRAL (AT REST) position between apply and release. Disconnect the electrical connector(s).

   Courtesy of FORD MOTOR COMPANY

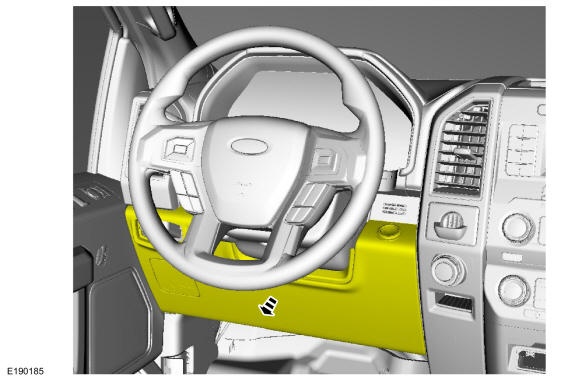

7. NOTE: Push button start vehicle shown in illustration, all others similar.

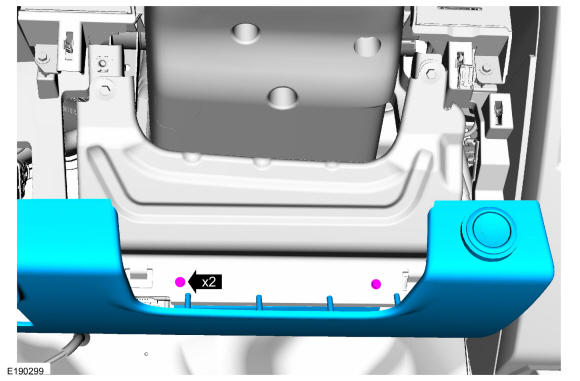

   Remove the screws and the steering column opening trim panel.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

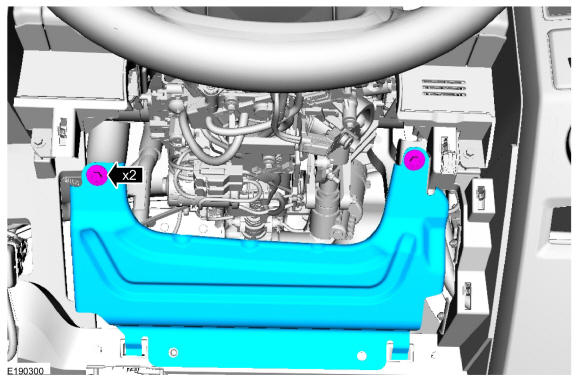

8. Remove the bolts and the steering column reinforcement panel.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with selector lever

9. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

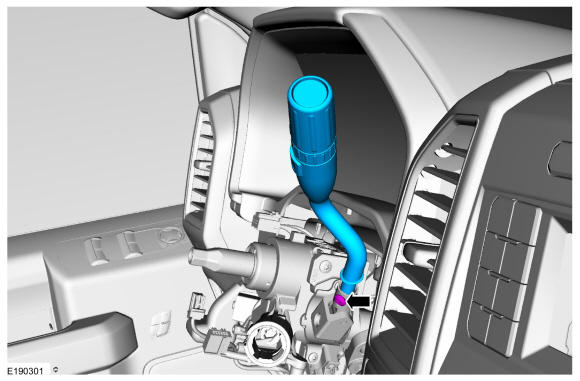

10. Remove the screw and the selector lever.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

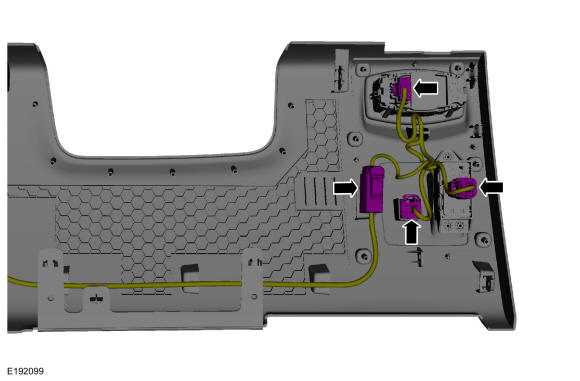

11. NOTE: Vehicles equipped with power adjustable steering column shown in illustration, all others similar.

    Release the retainers and position the wire harness aside.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with power adjustable steering column

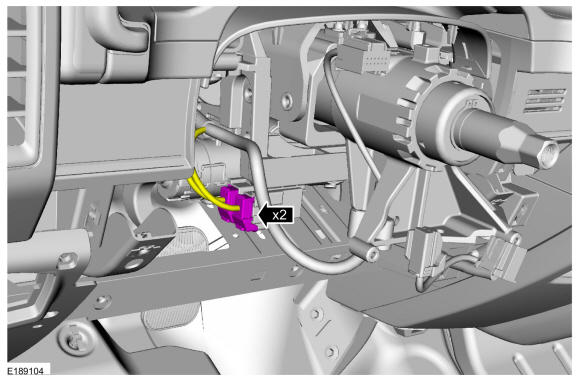

12. Disconnect the power tilt motor and power telescopic motor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

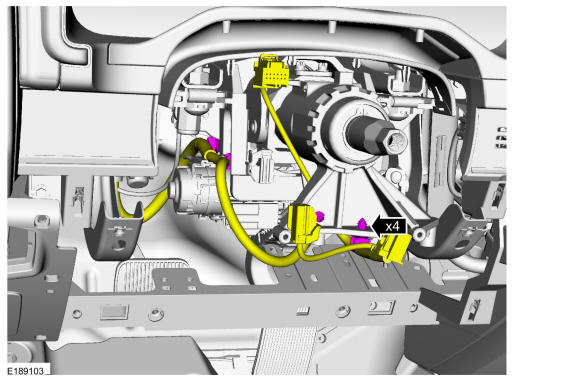

13. NOTE: The deployable steering column electrical connector retaining tabs are not easily accessible. Using an inspection mirror and needle-nose pliers may help in viewing and releasing the electrical connector retaining tabs.

    Disconnect the deployable column electrical connector.

    Courtesy of FORD MOTOR COMPANY

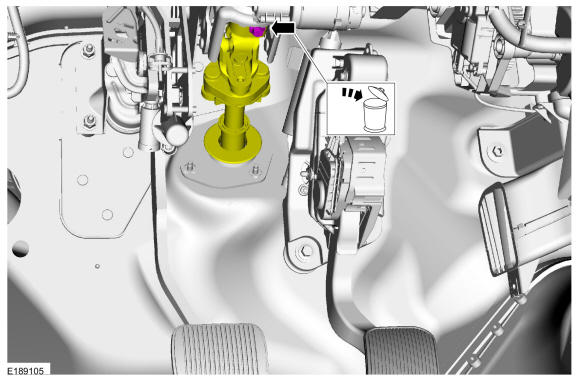

14. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

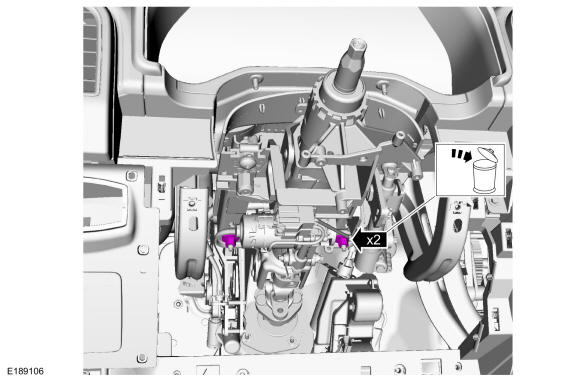

15. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the nuts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

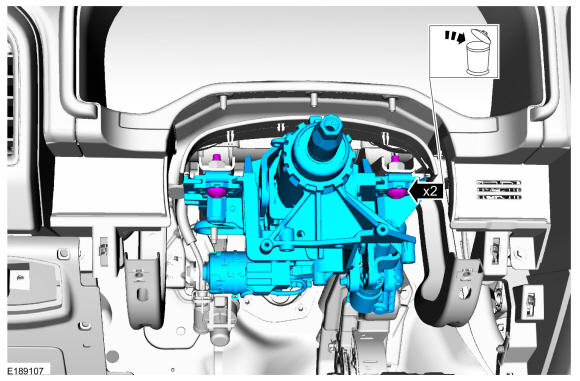

16. Remove and discard the bolts and remove the steering column.

    Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
