Transfer Case Vent: Removal

  1. With the vehicle in NUETRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the PTU (Power Transfer Unit) vent hose and position it aside.
    GFD373327Courtesy of FORD MOTOR COMPANY

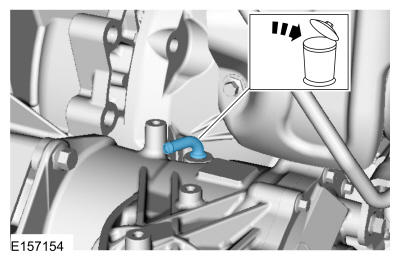

  3. Remove and discard the PTU vent.
GFD373328Courtesy of FORD MOTOR COMPANY
