Intermediate Shaft Bushing: Removal
- Remove the intermediate shaft seal. Refer to: Intermediate Shaft Seal .

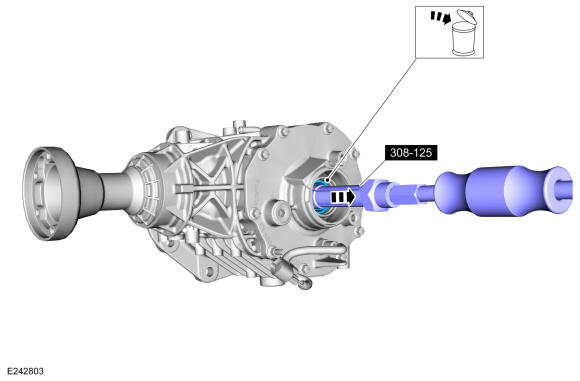

- Using the special tool and a slide hammer, remove and discard the intermediate shaft bushing. Use Special Service Tool: 308-125 Remover, Transfer Case Bearing.Use the General Equipment: Slide Hammer
