Trough Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the roof opening panel glass. REFER to: Roof Opening Panel Glass .
-
NOTE: Note the spring orientation during removal. If installing a new drain trough, the spring will need to be transferred to the new drain trough and placed in the same position during installation.

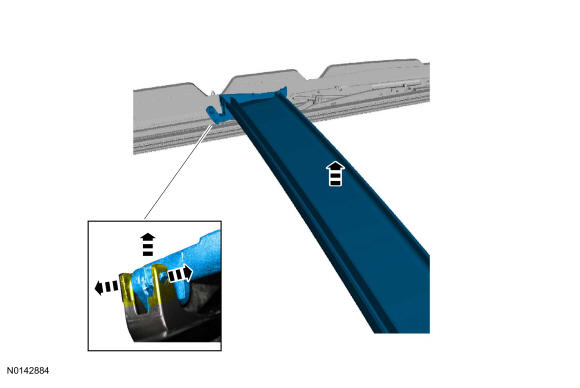

On both sides.Spread the trough assembly retaining tabs on the guide, lift to release the trough assembly from the guide and carefully remove the trough assembly.
