Roof Opening Panel Control Switch: Removal
WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

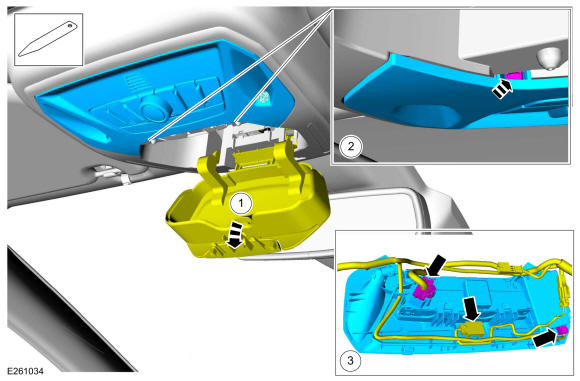

- Remove the overhead console switch panel.
- Open the sunglass bin.
- Release the retaining tabs.
Use the General Equipment: Interior Trim Remover
- Disconnect the electrical connectors, position the mic housing aside and remove the overhead console switch panel.

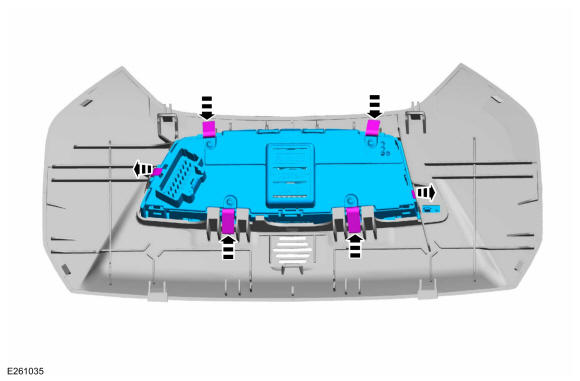

- Release the retaining tabs and remove the roof opening panel control switch.
