Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

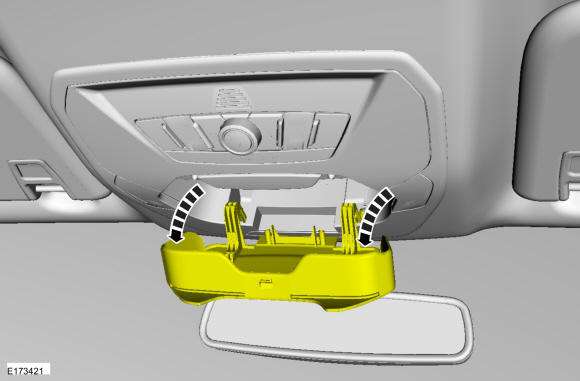

  1. Open the sunglass bin.
    GFD374648Courtesy of FORD MOTOR COMPANY
  2. NOTE: Sunglass bin shown removed for clarity.

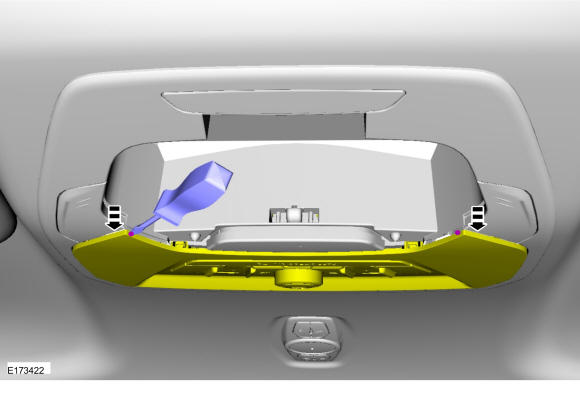

    Using a suitable tool pry both corners of the switch bezel down.

    GFD374649Courtesy of FORD MOTOR COMPANY

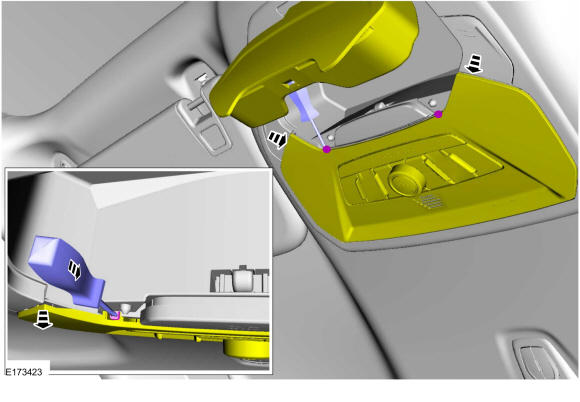

  3. Using a suitable tool push inward on both sides on the switch panel inner tabs to release the switch panel.
    GFD374650Courtesy of FORD MOTOR COMPANY
  4. NOTE: High level overhead console shown.

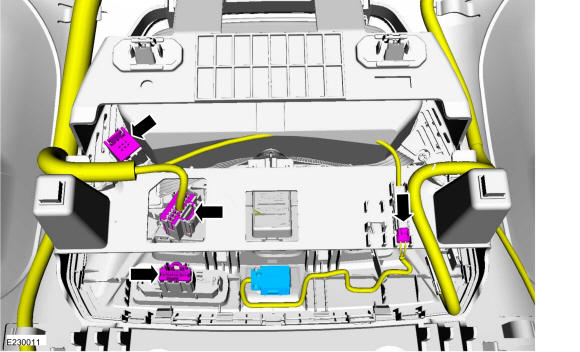

    Disconnect the electrical connectors.

    GFD374651Courtesy of FORD MOTOR COMPANY

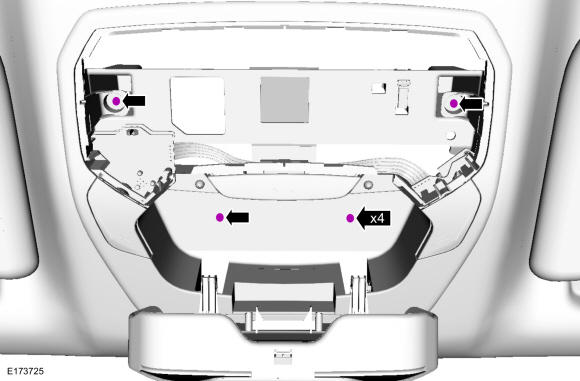

  5. If equipped, remove the 4 torx screws.
    GFD374652Courtesy of FORD MOTOR COMPANY

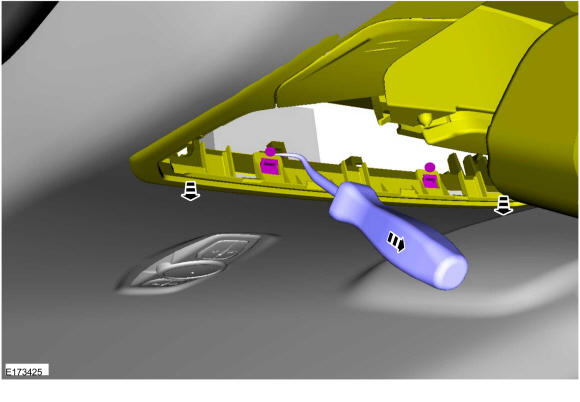

  6. Using a suitable tool release the snap tabs facing the rear of vehicle on both sides.
    GFD374653Courtesy of FORD MOTOR COMPANY

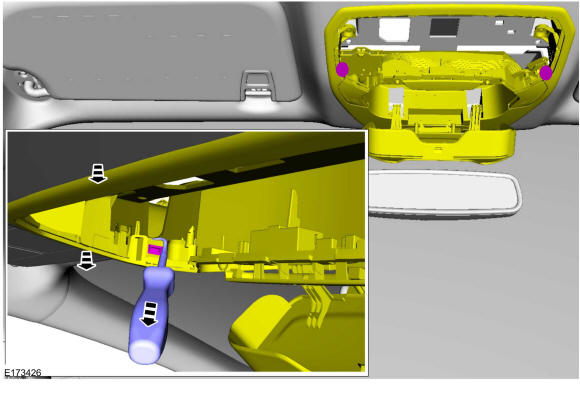

  7. Using a suitable tool release the side snap tabs on both sides.
    GFD374654Courtesy of FORD MOTOR COMPANY

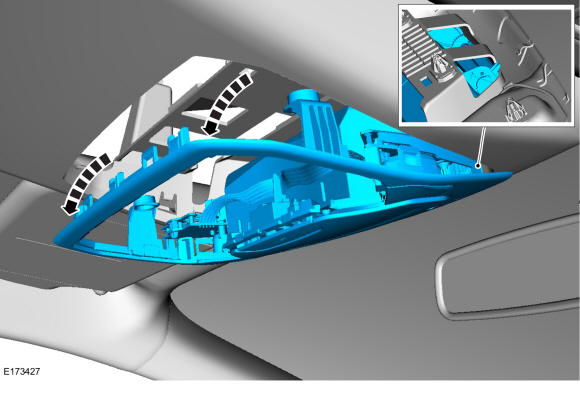

  8. Rotate the overhead console assembly downward and pull rearward to release the clip tabs and remove the overhead console assembly.
GFD374655Courtesy of FORD MOTOR COMPANY
