Axle Assembly: Removal
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear subframe. Refer to: Rear Subframe .

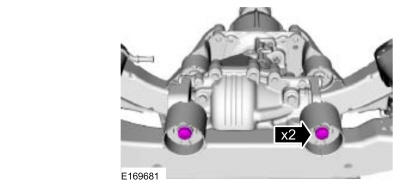

- Remove the front RDU mounting bolts. Use the General Equipment: Transmission Jack
Torque: 66 lb.ft (90 Nm)
- Remove the rear RDU mounting bolts.
Torque: 66 lb.ft (90 Nm)

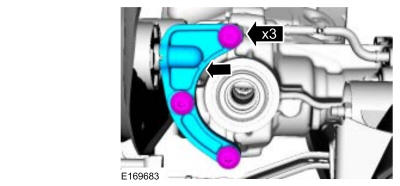

- Remove the RDU mounting bracket bolts and mounting bracket.
Torque: 66 lb.ft (90 Nm)

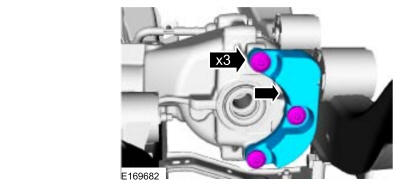

- Remove the RDU mounting bracket bolts and mounting bracket.
Torque: 66 lb.ft (90 Nm)

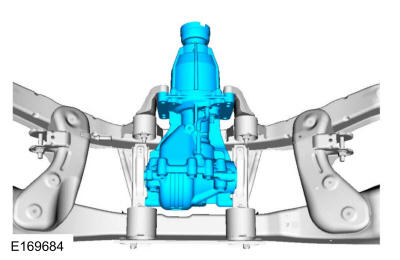

- Remove the RDU.
