Steering Angle Sensor Module (SASM): Removal

WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the clockspring. Refer to: Clockspring .

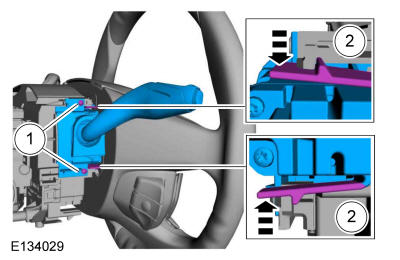

1. Remove the retainers.
2. Release the tabs and the LH steering column multifunction switch.
Courtesy of FORD MOTOR COMPANY

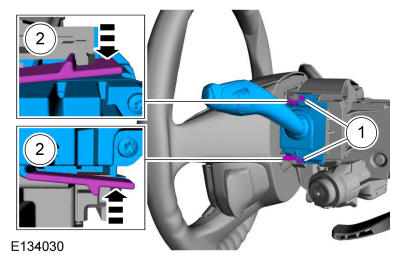

1. Remove the retainers.
2. Release the tabs and the RH steering column multifunction switch.
Courtesy of FORD MOTOR COMPANY

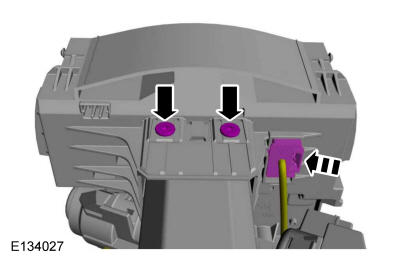

Disconnect the electrical connector and remove the SASM upper screws.
Torque: 25 lb.in (2.8 Nm)

Courtesy of FORD MOTOR COMPANY

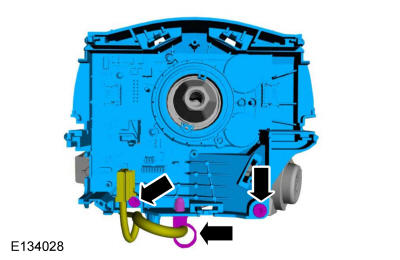

Remove the lower screws, detach the wiring harness pin-type retainer and remove the SASM.
Torque: 12 lb.in (1.4 Nm)

Courtesy of FORD MOTOR COMPANY
