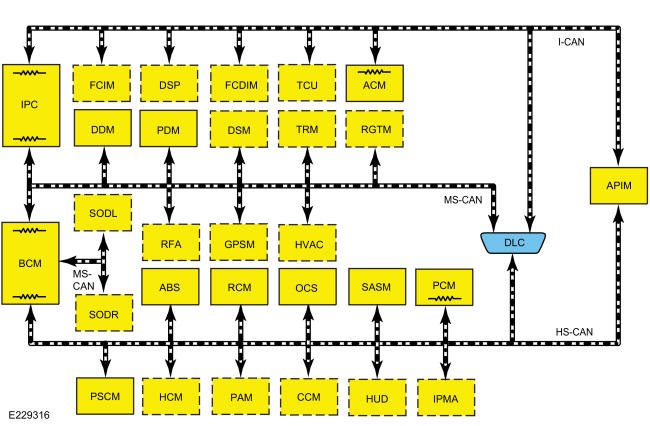

System Diagram
WARNING: This page is about a different car, the 2017 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Module Network Chart
| Module Name | Network Type | Terminating Module |
|---|---|---|
| APIM | HS-CAN | No |
| I-CAN | No | |
| ABS module | HS-CAN | No |
| ACM | I-CAN | Yes |
| Audio DSP (if equipped) | I-CAN | No |
| BCM | HS-CAN | Yes |
| MS-CAN | Yes | |
| CCM (if equipped) | HS-CAN | No |
| DDM | MS-CAN | No |
| DSM (if equipped) | MS-CAN | No |
| FCIM (if equipped) | I-CAN | No |
| FCDIM (if equipped) | I-CAN | No |
| GPSM (without touchscreen) | MS-CAN | No |
| HCM (if equipped) | HS-CAN | No |
| HUD module (if equipped) | HS-CAN | No |
| IPC | MS-CAN | Yes |
| I-CAN | Yes | |
| IPMA (if equipped) | HS-CAN | No |
| OCS | HS-CAN | No |
| PAM (if equipped) | HS-CAN | No |
| PSCM | HS-CAN | No |
| PCM | HS-CAN | Yes |
| PDM | MS-CAN | No |
| RFA (if equipped) | MS-CAN | No |
| RGTM (if equipped) | MS-CAN | No |
| RCM | HS-CAN | No |
| SODL (if equipped) | Extended MS-CAN | No |
| SODR (if equipped) | Extended MS-CAN | No |
| SASM | HS-CAN | No |
| TRM (if equipped) | MS-CAN | No |
| TCU (if equipped) | I-CAN | No |
