Driver Front Seat Module (DSM): Removal

NOTE: LHD driver seat shown, RHD driver seat similar.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

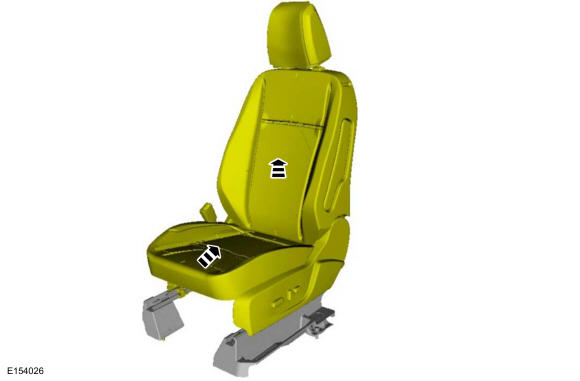

Position the driver front seat to the full rearward and full upward position.

Courtesy of FORD MOTOR COMPANY

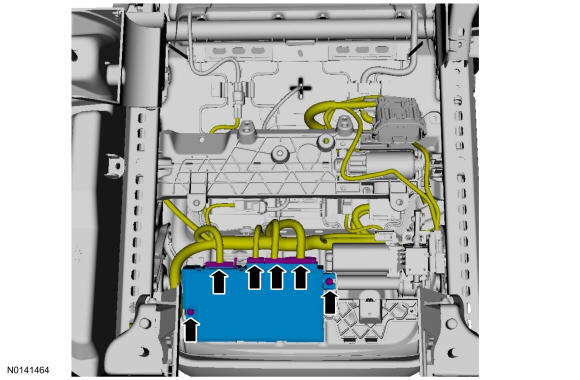

Disconnect the DSM electrical connectors, remove the screws and the DSM.

Courtesy of FORD MOTOR COMPANY
