Window Control Switch - With Door Modules

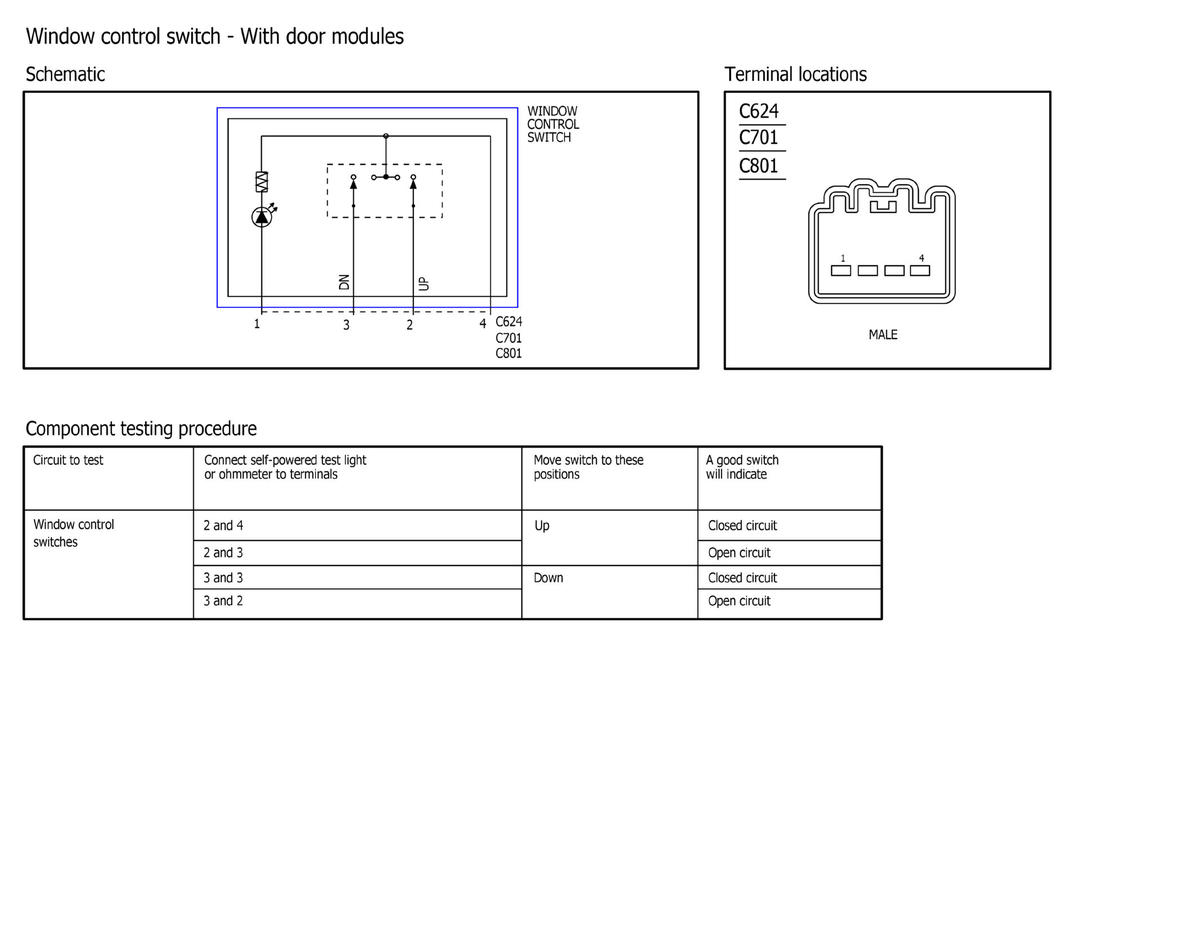

Fig 1: Window Control Switch - With Door Modules

GFDWR47408

Courtesy of FORD MOTOR COMPANY
