Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

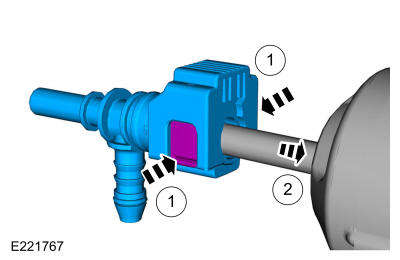

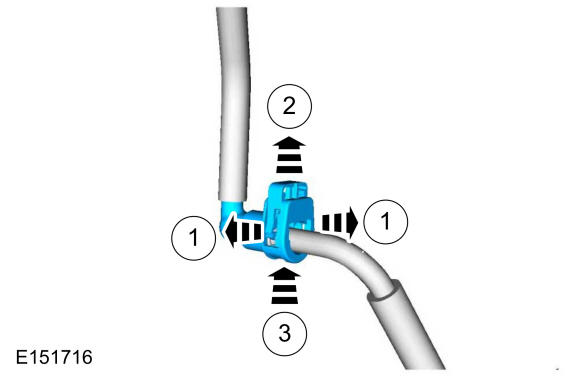

GFD384830Courtesy of FORD MOTOR COMPANY
GFD384831Courtesy of FORD MOTOR COMPANY

Connect

  1. Push the quick release coupling onto the tube.
    GFD384832Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

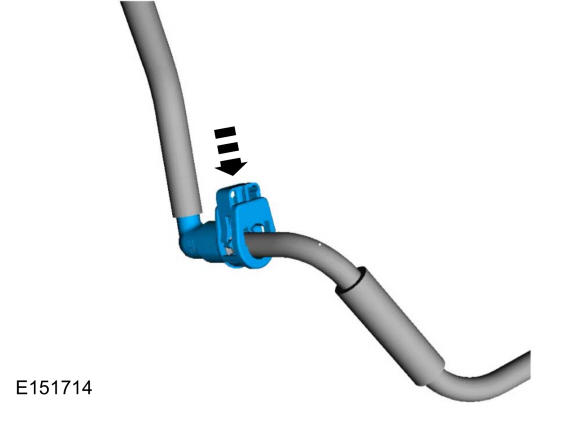

    GFD384833Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD384834Courtesy of FORD MOTOR COMPANY
    GFD384835Courtesy of FORD MOTOR COMPANY

    Connect

    GFD384836Courtesy of FORD MOTOR COMPANY
    GFD384837Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

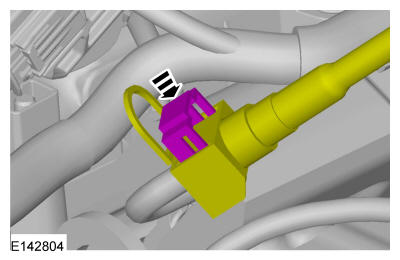

    GFD384838Courtesy of FORD MOTOR COMPANY

    Connect

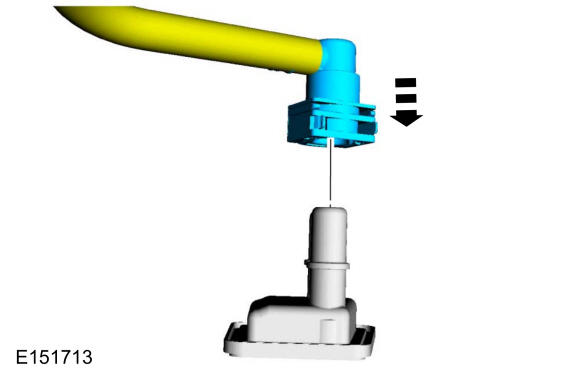

    GFD384839Courtesy of FORD MOTOR COMPANY
    GFD384840Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

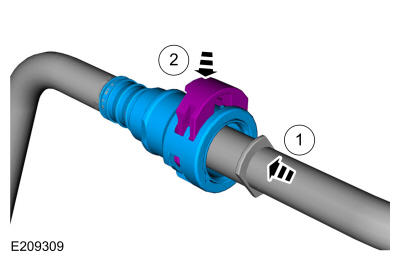

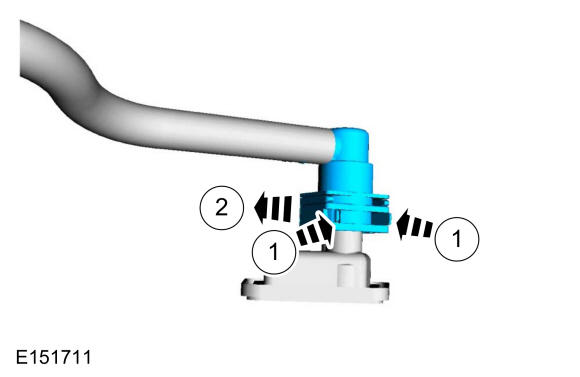

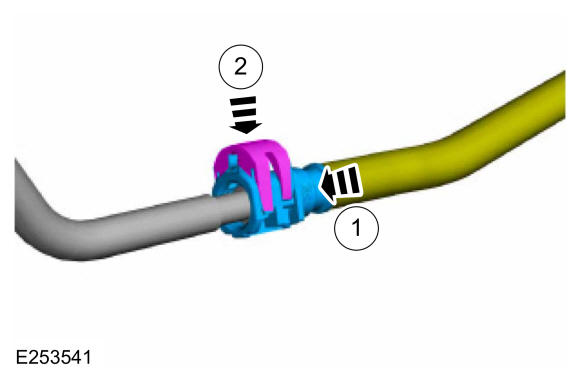

    GFD384841Courtesy of FORD MOTOR COMPANY
    GFD384842Courtesy of FORD MOTOR COMPANY

    Connect

    GFD384843Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

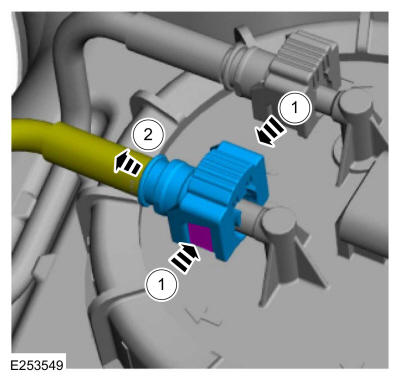

    GFD384844Courtesy of FORD MOTOR COMPANY
    GFD384845Courtesy of FORD MOTOR COMPANY

    Connect

    GFD384846Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.

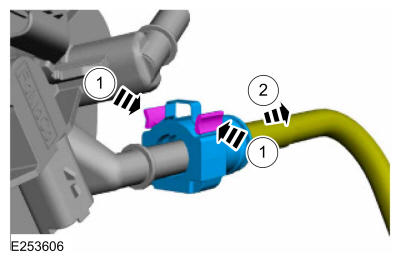

GFD384847Courtesy of FORD MOTOR COMPANY
GFD384848Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD384849Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

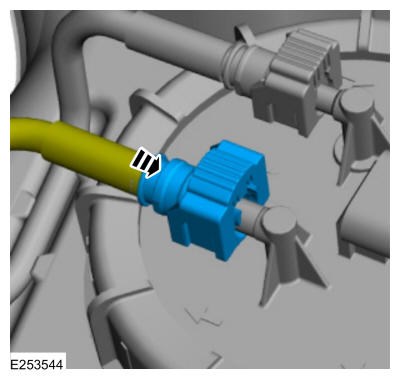

GFD384850Courtesy of FORD MOTOR COMPANY

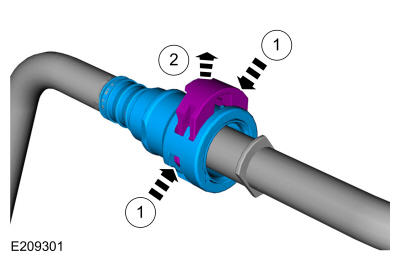

GFD384851Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD384852Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD384844Courtesy of FORD MOTOR COMPANY
    GFD384845Courtesy of FORD MOTOR COMPANY

    Connect

    GFD384846Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.

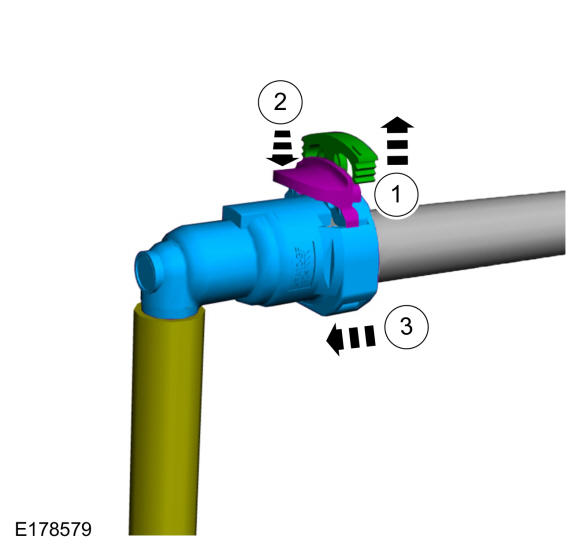

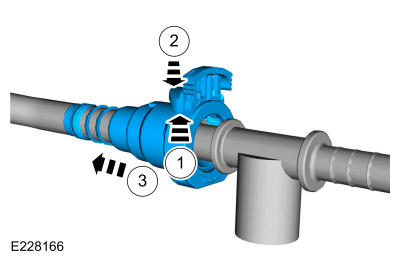

GFD384853Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

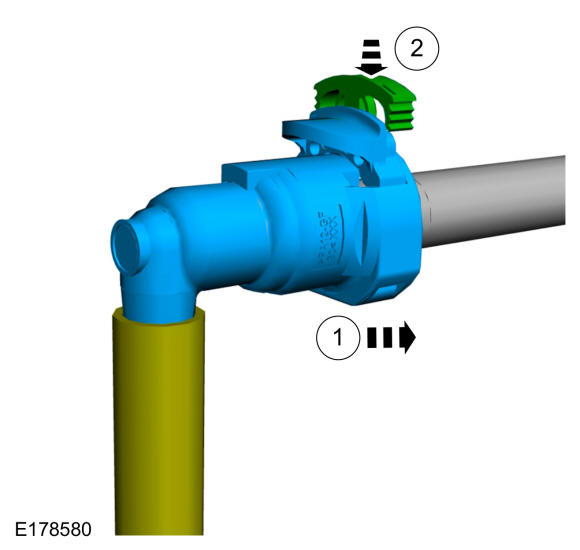

    GFD384854Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Push on the locking tab.
    2. Lift the clip.

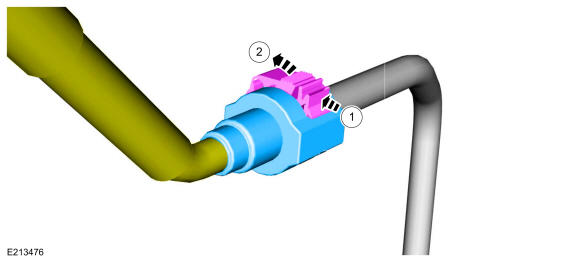

    GFD384855Courtesy of FORD MOTOR COMPANY
    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.

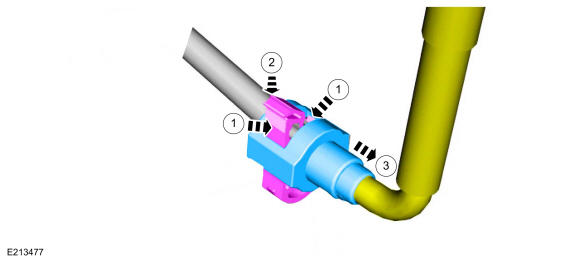

GFD384856Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

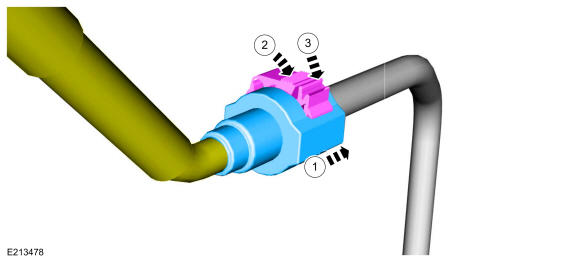

    GFD384857Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

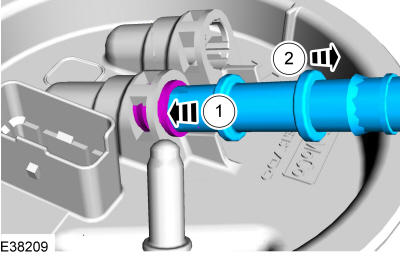

GFD384858Courtesy of FORD MOTOR COMPANY

Connect

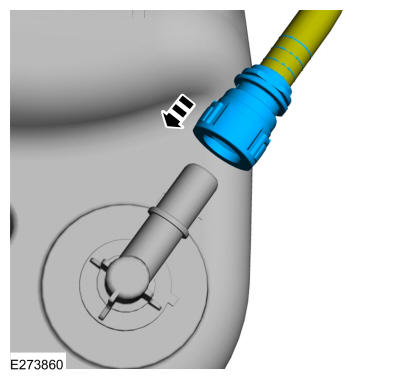

  1. GFD384858Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

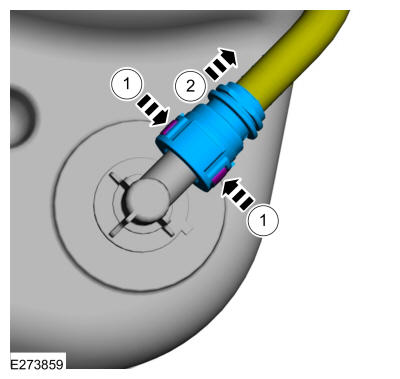

GFD384859Courtesy of FORD MOTOR COMPANY
GFD384860Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384861Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

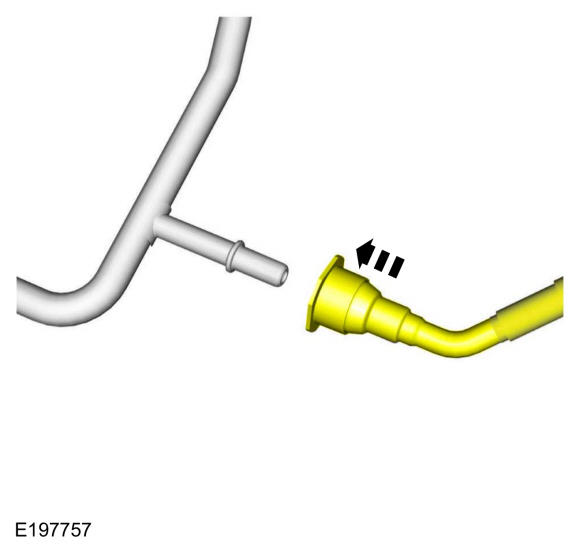

GFD384862Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384863Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    GFD384864Courtesy of FORD MOTOR COMPANY

    Connect

    GFD384865Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
GFD384866Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD384867Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

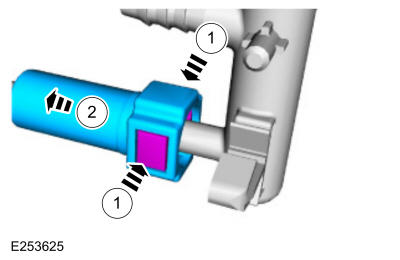

GFD384868Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384868Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384869Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384870Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384871Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384872Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384873Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384874Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384875Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384876Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

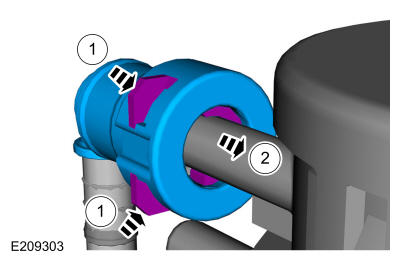

GFD384877Courtesy of FORD MOTOR COMPANY

Connect

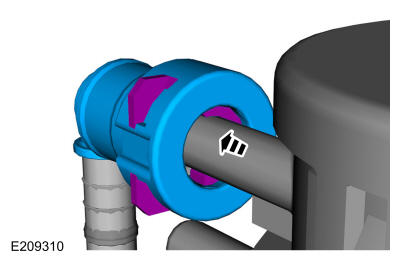

  1. GFD384878Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

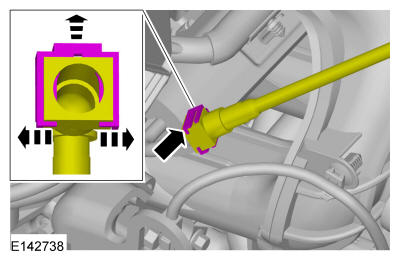

    GFD384879Courtesy of FORD MOTOR COMPANY

    Connect

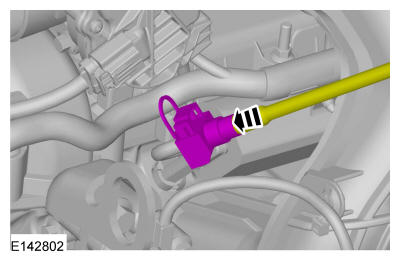

    GFD384880Courtesy of FORD MOTOR COMPANY
  3. GFD384881Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

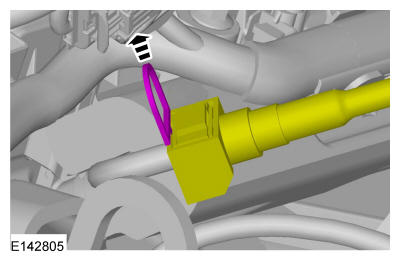

    GFD384882Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384883Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD384884Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
GFD384885Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384886Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
GFD384887Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384888Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Quick Release Coupling  / Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
    1. Remove the quick release coupling from the tube.
GFD384889Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD384890Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
scientia non olet · About LEMON Manuals
