Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Check
NOTE:
Refer to the appropriate service information in the ENGINE - 2.0L ECOBOOST (184KW/250PS) - MI4
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (1 OF 2)
/ ENGINE - 2.7L ECOBOOST (238KW/324PS) (2 OF 2)
for the specification.

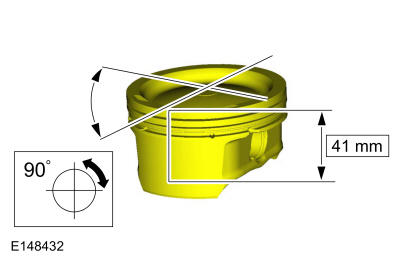

- Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
