Adjustable Steering Column
Adjustable Steering Column
Fig 1: Adjustable Steering Column Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY

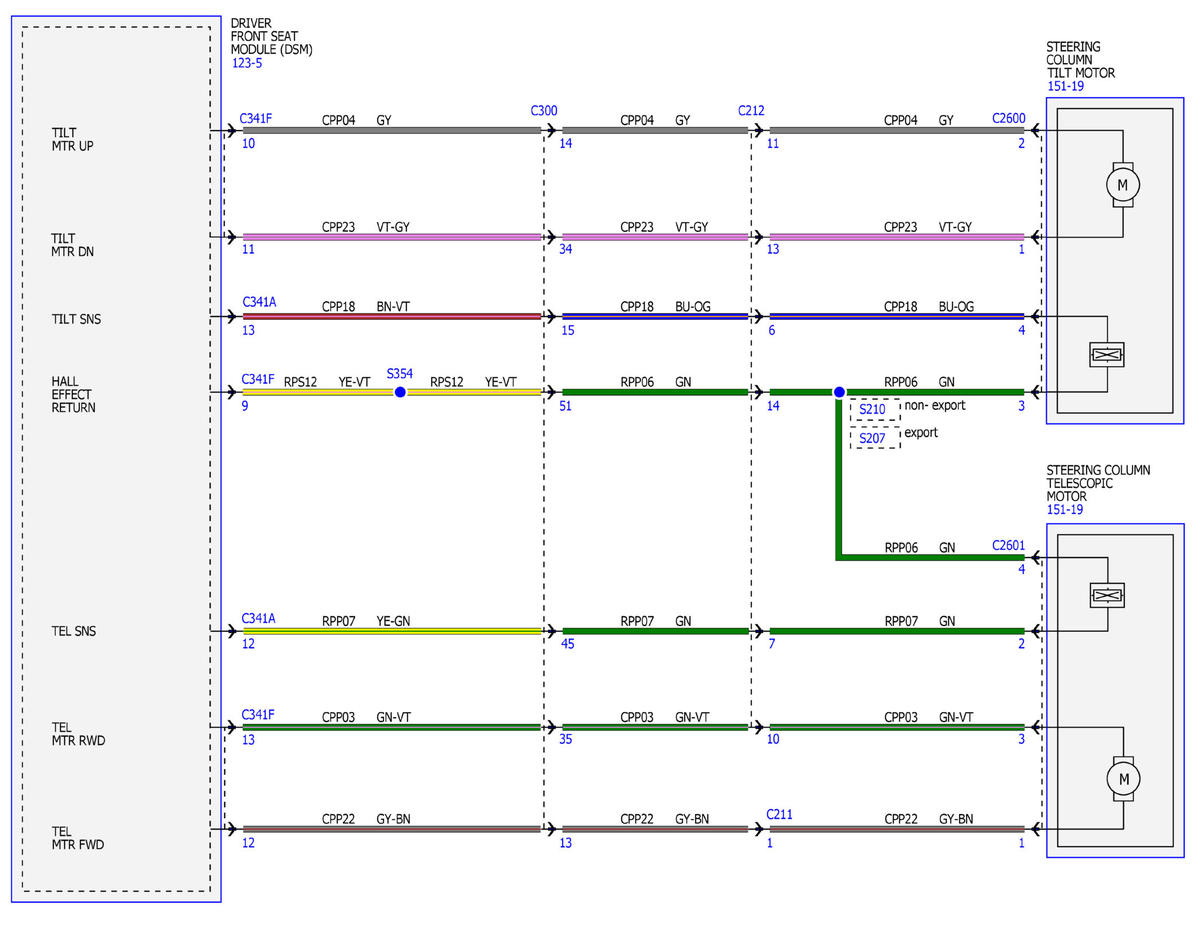

Fig 2: Adjustable Steering Column Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Steering Column Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY

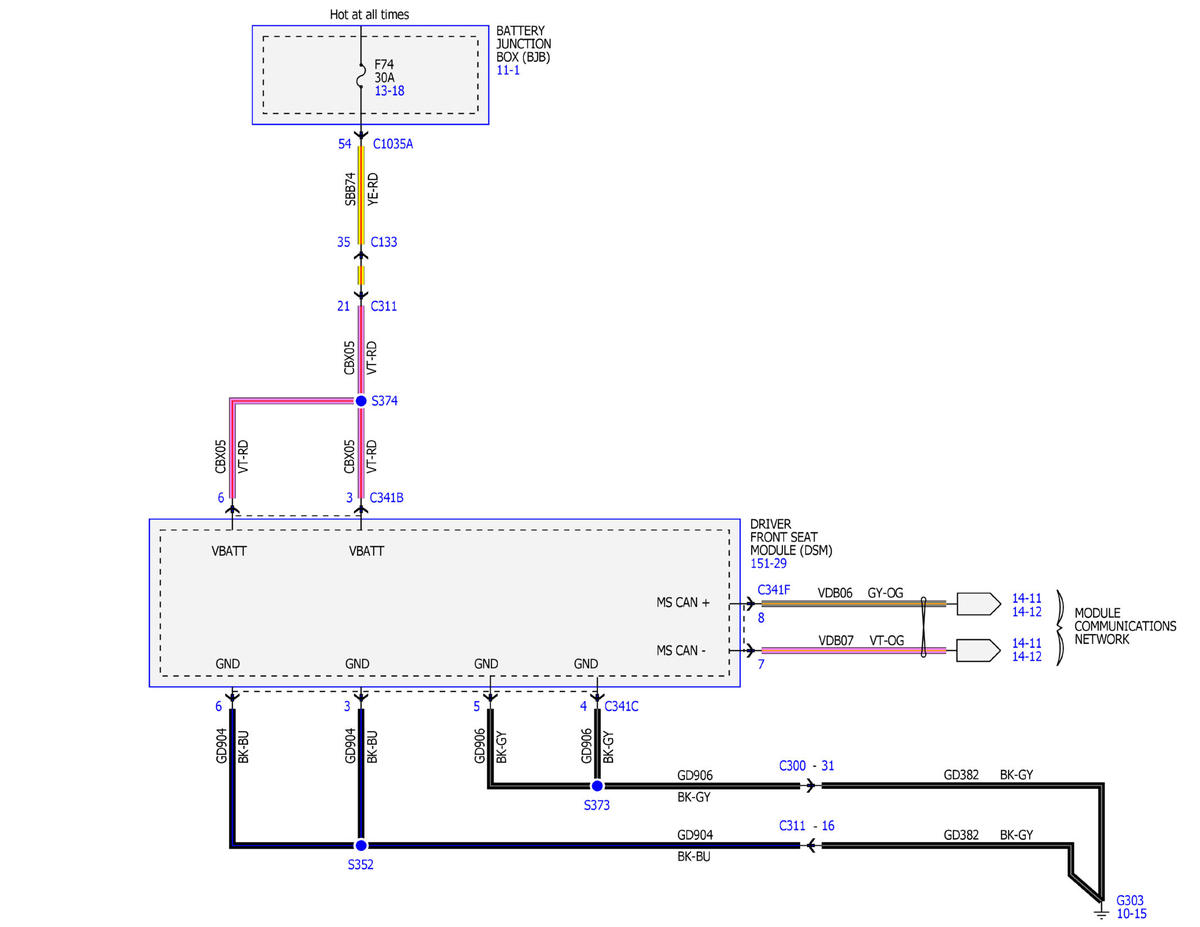

Fig 4: Adjustable Steering Column Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 5: Adjustable Steering Column Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
