Floor Console: Removal

All vehicles

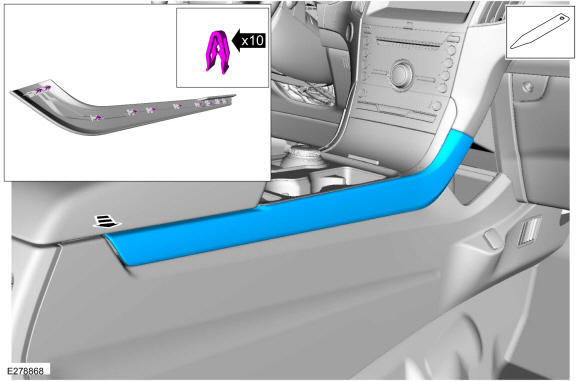

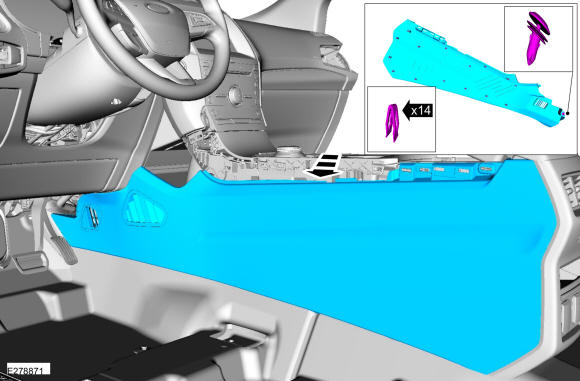

1. Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

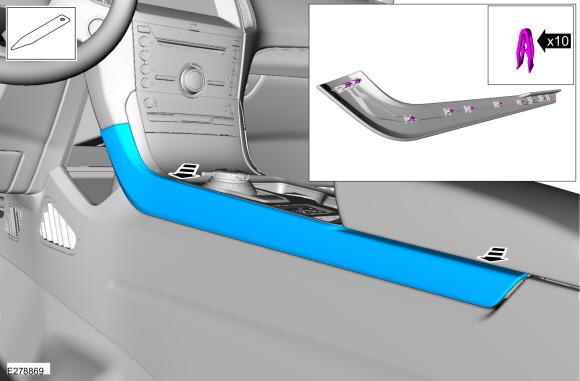

2. Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

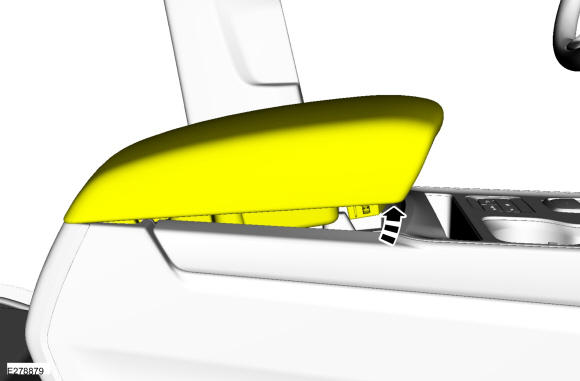

3. Open floor console armrest.

   Courtesy of FORD MOTOR COMPANY

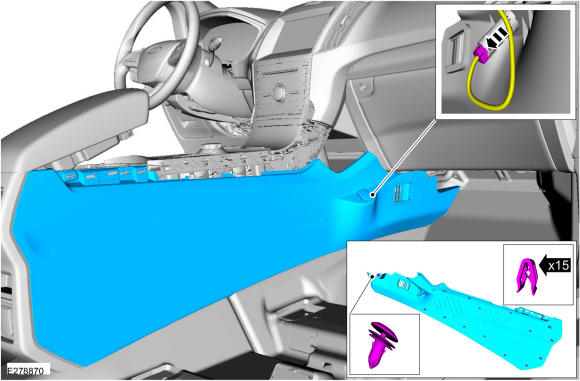

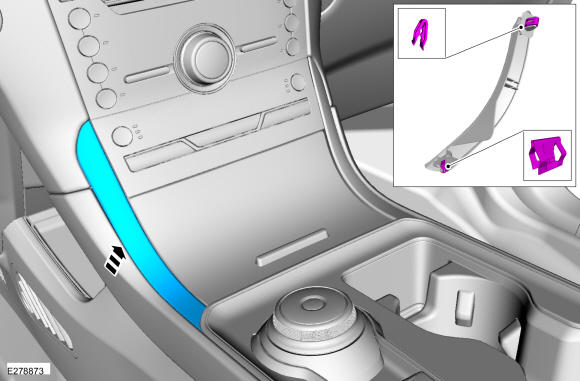

4. Release the clips, push pin and remove the RH floor console side trim panel.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

5. Release the clips, push pin and remove the LH floor console side trim panel.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with automatic transmission

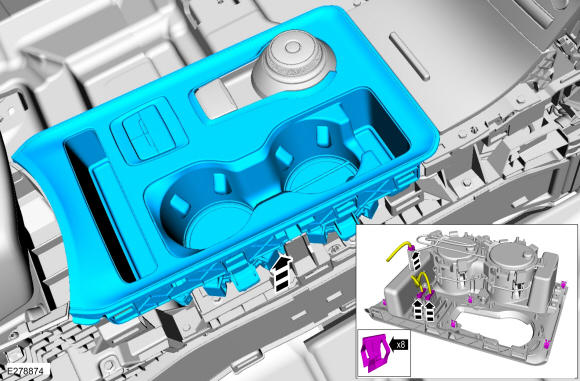

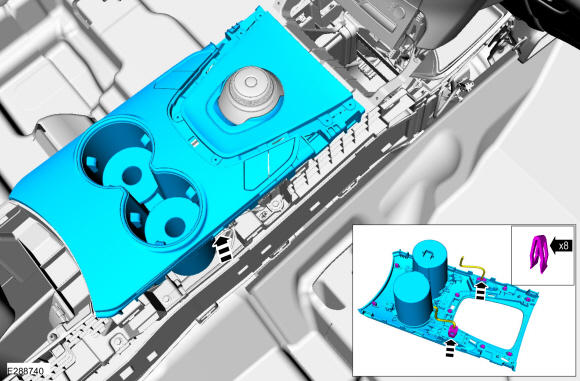

6. Release the clips and remove the floor console upper trim panel.
   • Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

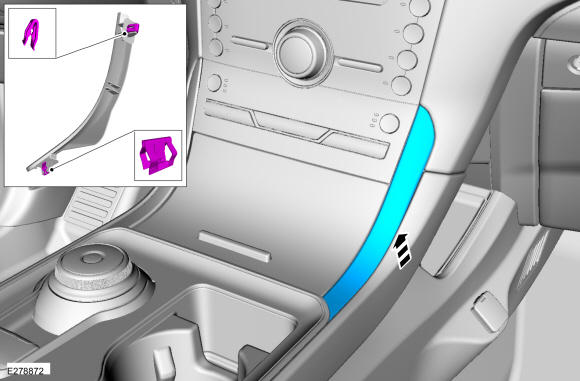

7. Release the clips and remove the RH finish panel.

   Courtesy of FORD MOTOR COMPANY

8. Release the clips and remove the LH finish panel.

   Courtesy of FORD MOTOR COMPANY

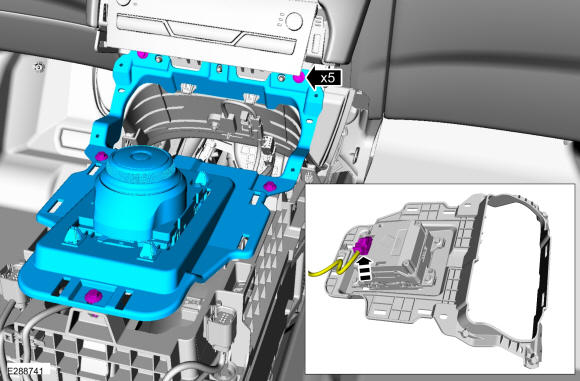

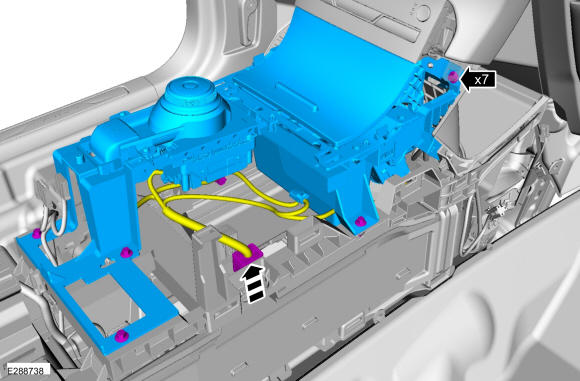

9. Remove the bolts and the transmission selector bracket.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

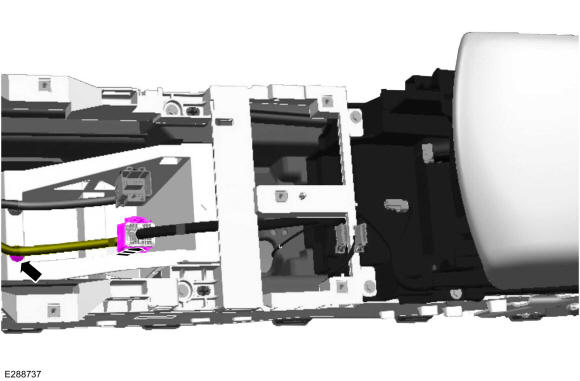

10. Disconnect the electrical connector and release the harness retainer.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with automatic transmission

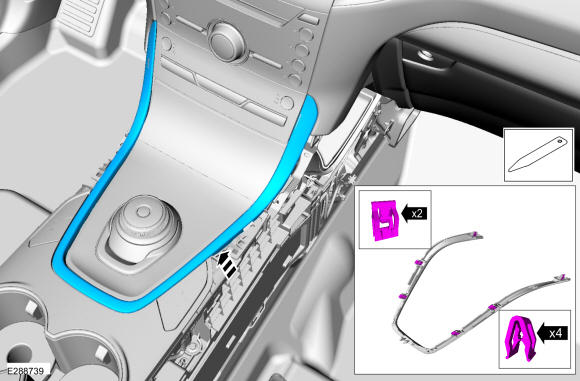

11. Release the clips and remove the upper floor console finish panel.

    Courtesy of FORD MOTOR COMPANY

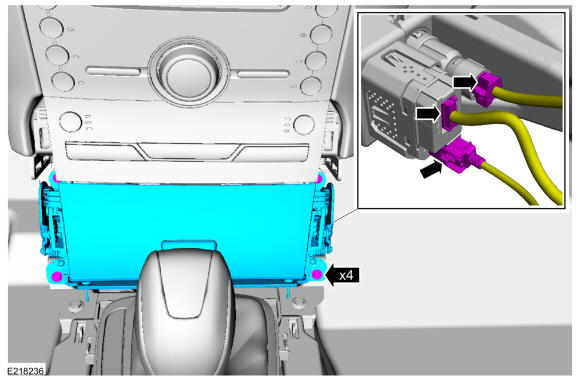

12. Remove the bolts and the media bin.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

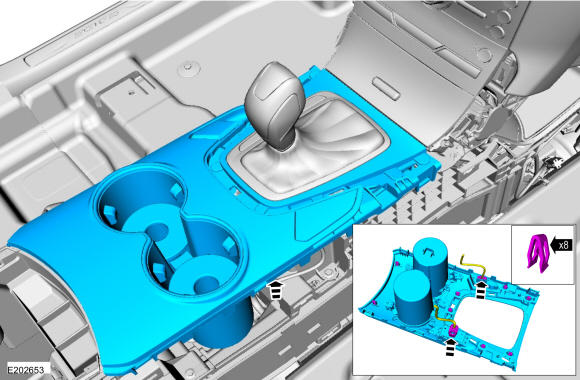

13. Release the clips and remove the floor console upper trim panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

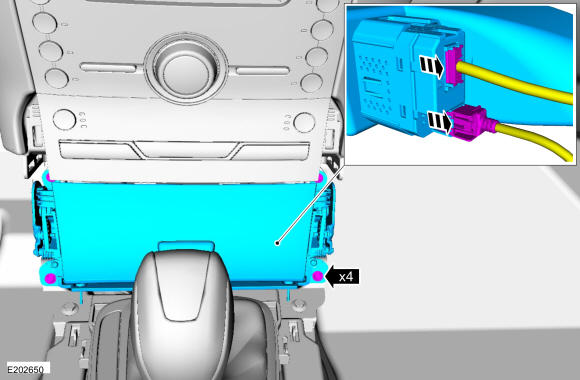

14. Remove the bolts and the bracket.
    • Disconnect the electrical connector.

      Torque

      : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

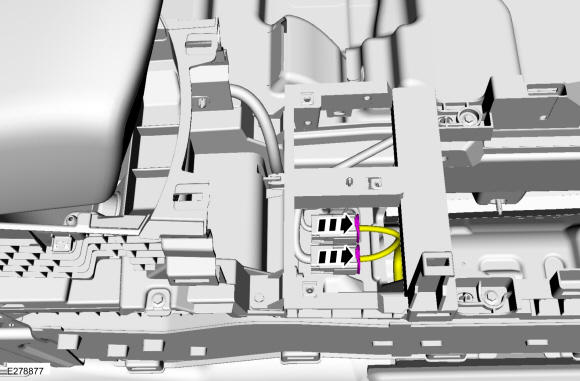

15. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with manual transmission

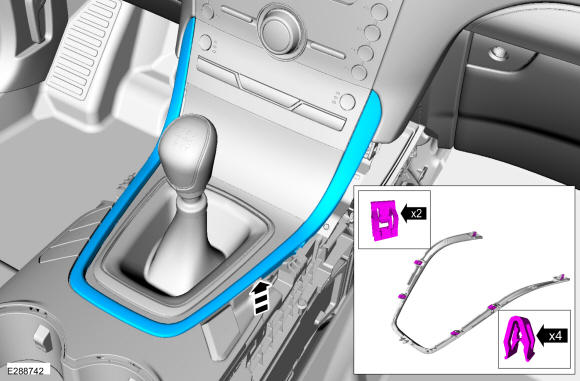

16. Release the clips and remove the upper floor console finish panel.

    Courtesy of FORD MOTOR COMPANY

17. Release the clips and remove the floor console upper trim panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

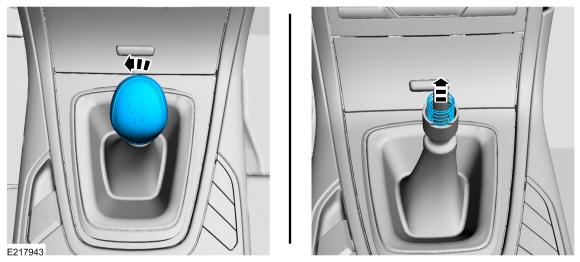

18. Remove the gearshift lever knob.

    Courtesy of FORD MOTOR COMPANY

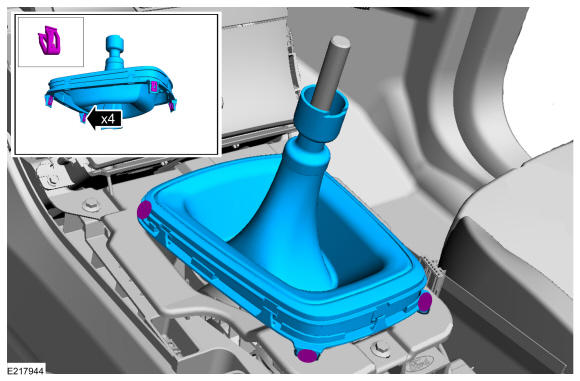

19. Release the clips and remove the gearshift lever boot.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolts and the media bin.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

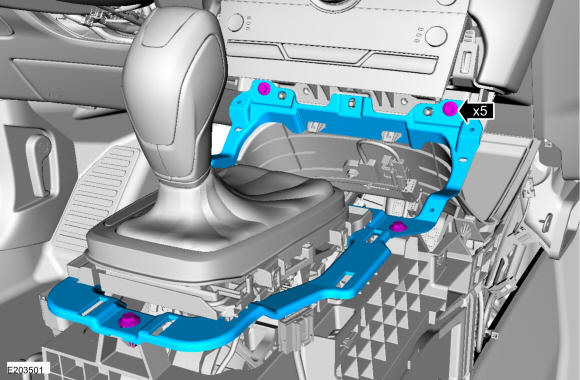

21. Remove the bolts and the bracket.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

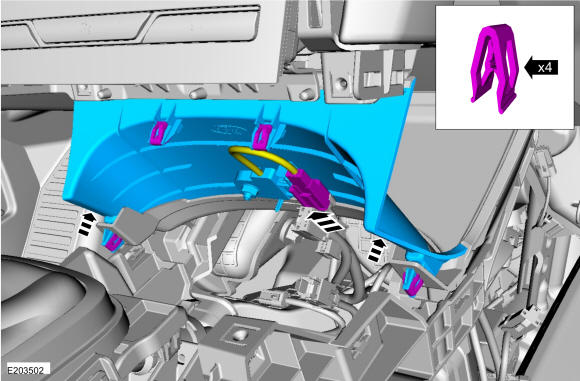

23. Release the clips and remove the floor console storage bin upper trim panel.
    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

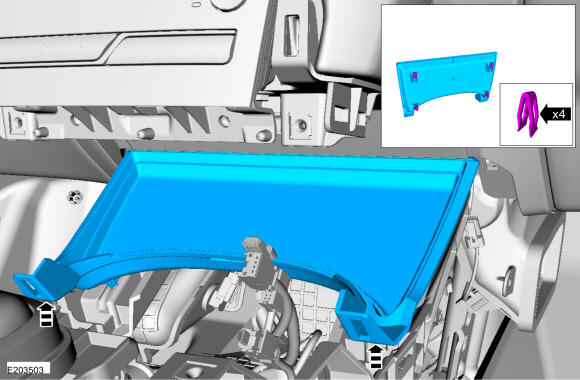

24. Release the clips and remove the storage bin lower trim panel.

    Courtesy of FORD MOTOR COMPANY

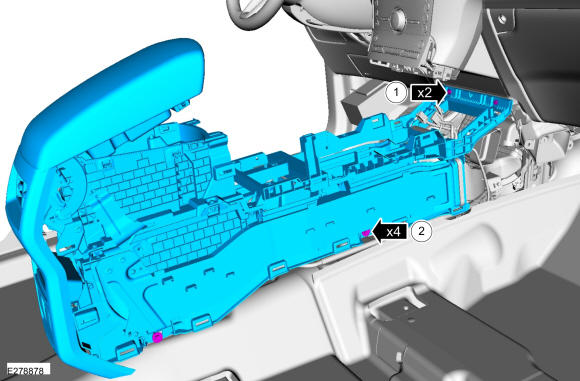

25. 1. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

    2. Remove the bolts.

       Torque

       : 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY
