Auxiliary Power Point: Removal

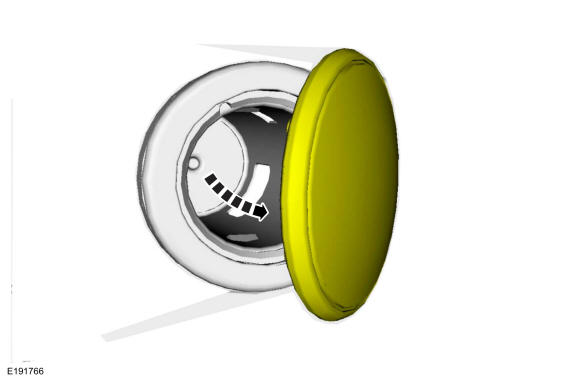

  1. Open the power point cover
    GFD385914Courtesy of FORD MOTOR COMPANY

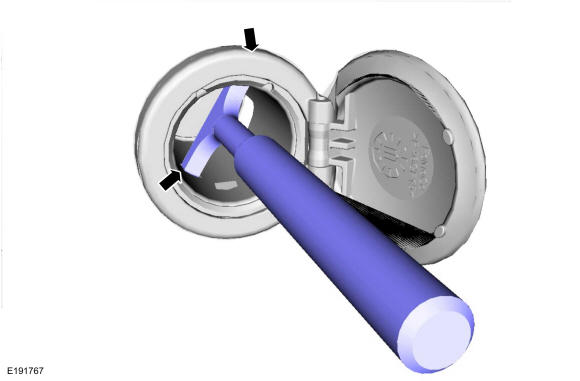

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD385915Courtesy of FORD MOTOR COMPANY

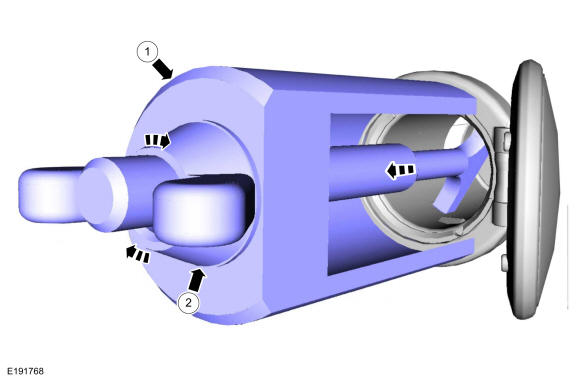

    1. Install the receiver cup
    2. Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.
    GFD385916Courtesy of FORD MOTOR COMPANY

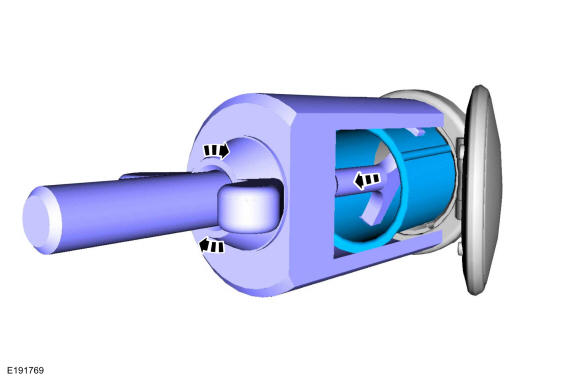

  4. Tighten the wing nut to pull the power point socket out of the retainer.
    GFD385917Courtesy of FORD MOTOR COMPANY

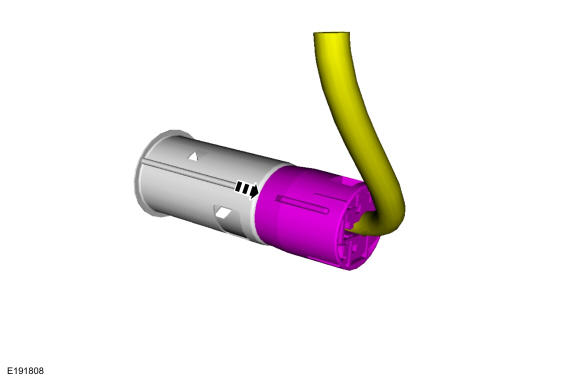

  5. Disconnect the electrical connector.
GFD385918Courtesy of FORD MOTOR COMPANY
