6th Gear: Powerflow

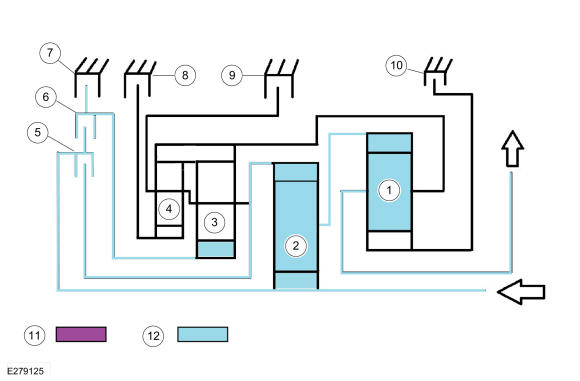

GFD383771Courtesy of FORD MOTOR COMPANY
Item  Description
1 Output planetary
2 Input planetary
3 Reaction planetary
4 Overdrive planetary
5 E (5, 6, 7, 8) clutch
6 B (4, 6, R) clutch
7 C (3, 7) clutch
8 F (2, 8) clutch
9 Electronic Selectable One-Way Clutch (SOWC)/One-Way clutch
10 Held components
11 Driven components
