Fuel Pump Driver Module (FPDM): Installation

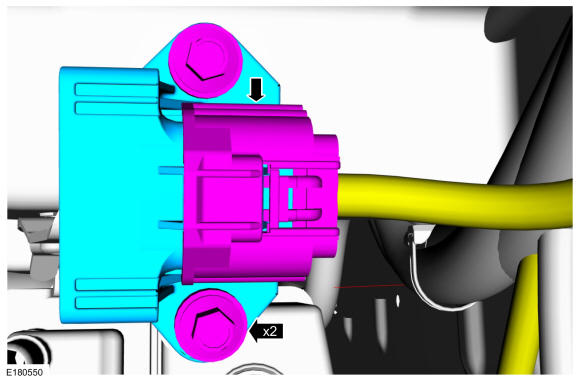

Gas engine

1. Install the FPDM and the FPDM mounting bolts.

   Torque: 93 lb.in (10.5 Nm)

   Courtesy of FORD MOTOR COMPANY

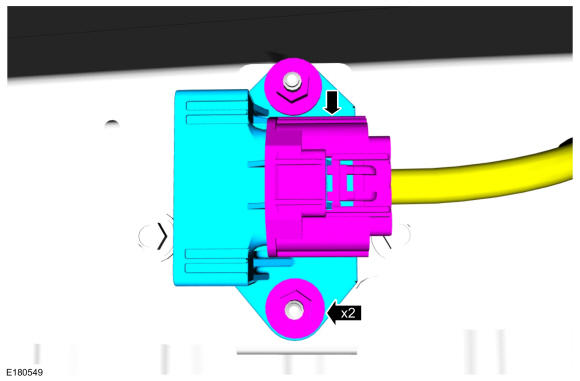

   Diesel engine

2. Install the FPDM and the FPDM mounting nuts.

   Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
