Pinpoint Tests E: Manifold Absolute Pressure (Map) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: MAP, SIGRTN, and VREF
MAP sensor (14A464)
PCM (12A650)

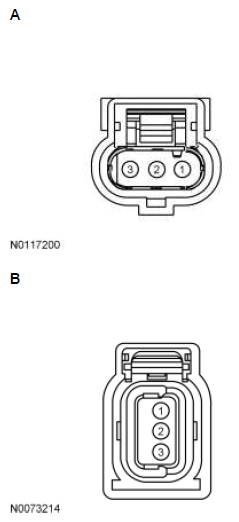

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-150	A	1 2 3	MAP SIGRTN VREF
All other vehicles	B	2 1 3	MAP SIGRTN VREF

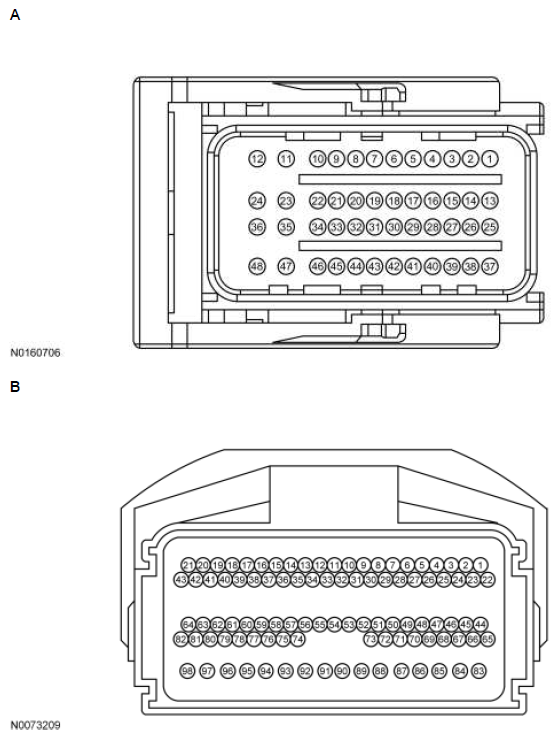

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	28	MAP
All other vehicles	B	59	MAP
