Anti-Lock Brake System (ABS) Module: Removal

  1. Remove the HCU. Refer to: Hydraulic Control Unit (HCU) .

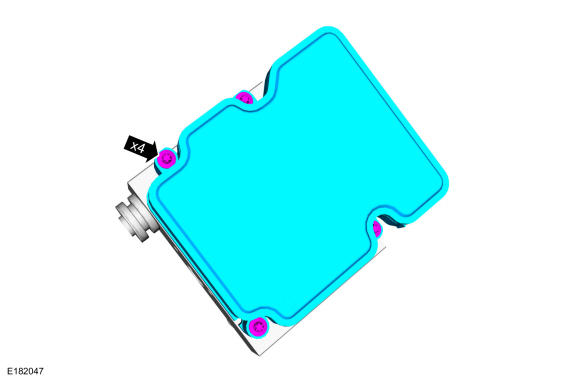

  2. Remove the 4 screws and the ABS module.
GFD307647Courtesy of FORD MOTOR COMPANY
