Starting System

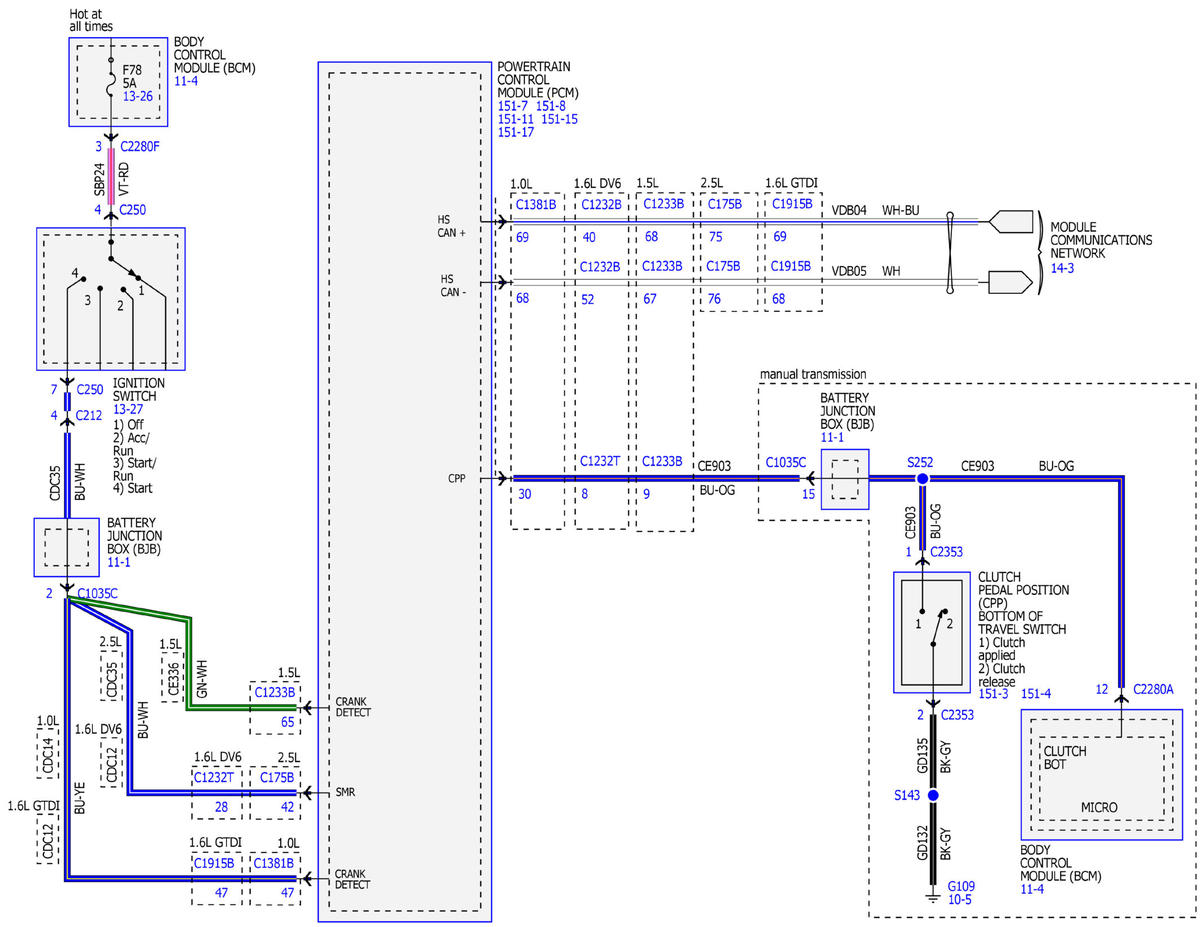

Fig 1: Starting System Wiring Diagram (1 of 3)
GFDWR19834Courtesy of FORD MOTOR COMPANY

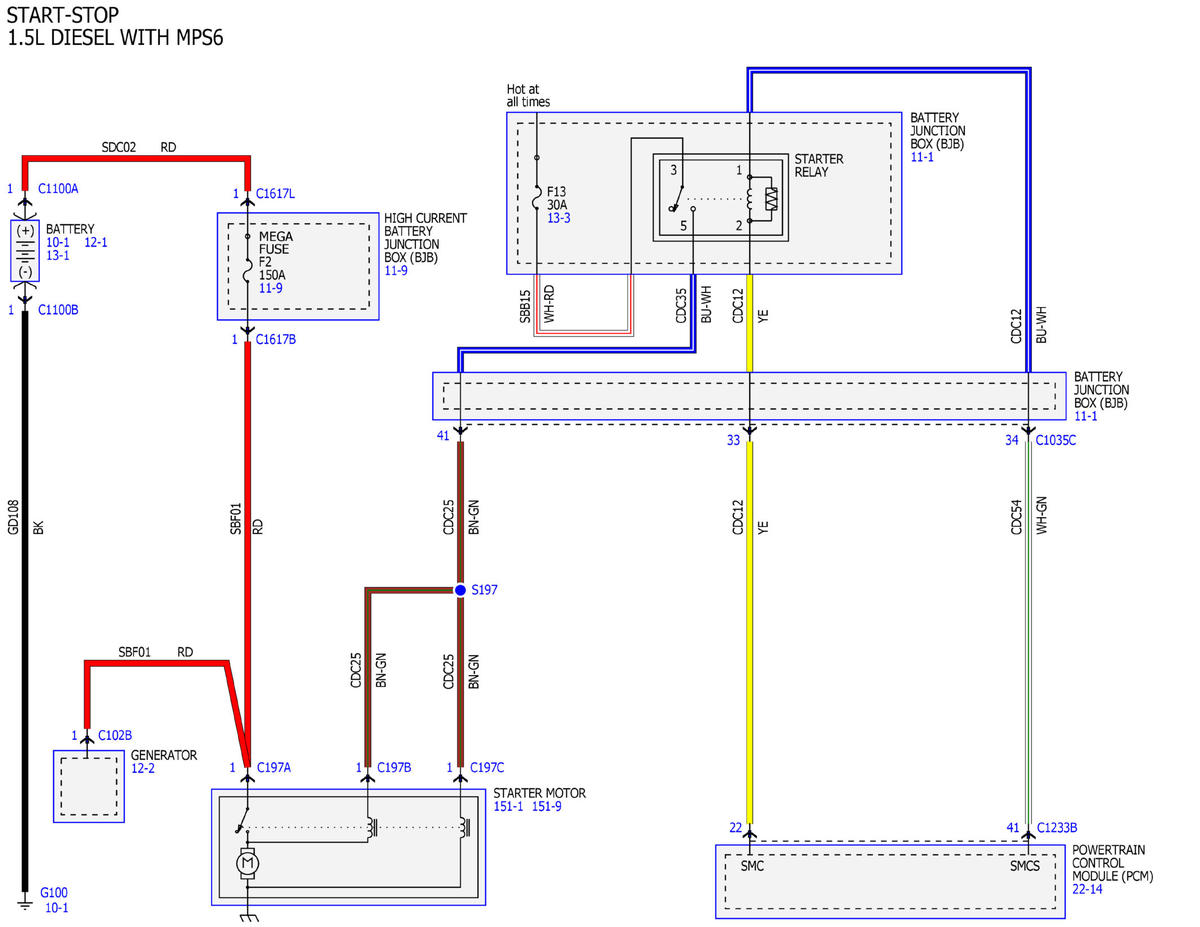

Fig 2: Starting System Wiring Diagram (2 of 3)
GFDWR19835Courtesy of FORD MOTOR COMPANY

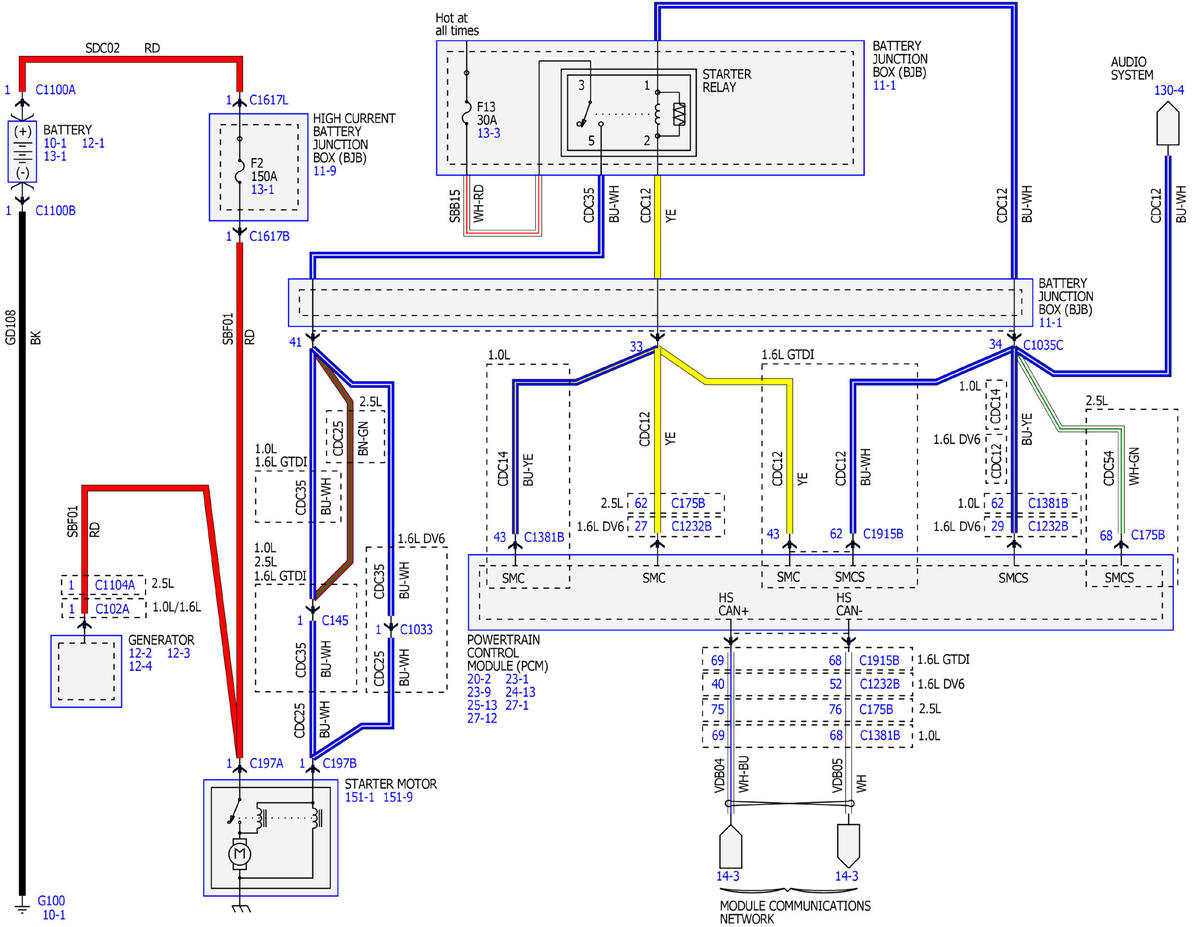

Fig 3: Starting System Wiring Diagram (3 of 3)
GFDWR19836Courtesy of FORD MOTOR COMPANY
