OEM Electrical Wiring Diagram Introduction: Introduction

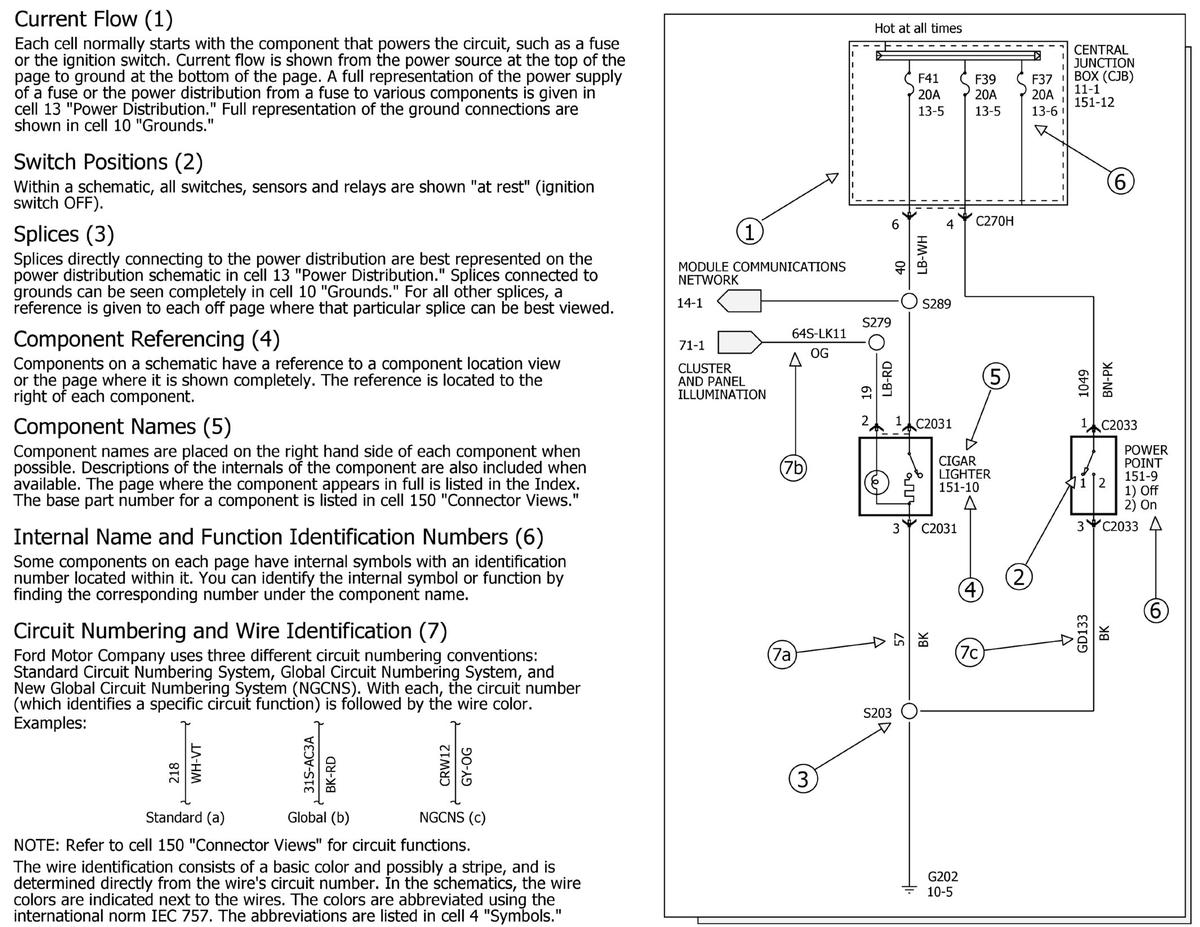

GFDWR19549Courtesy of FORD MOTOR COMPANY

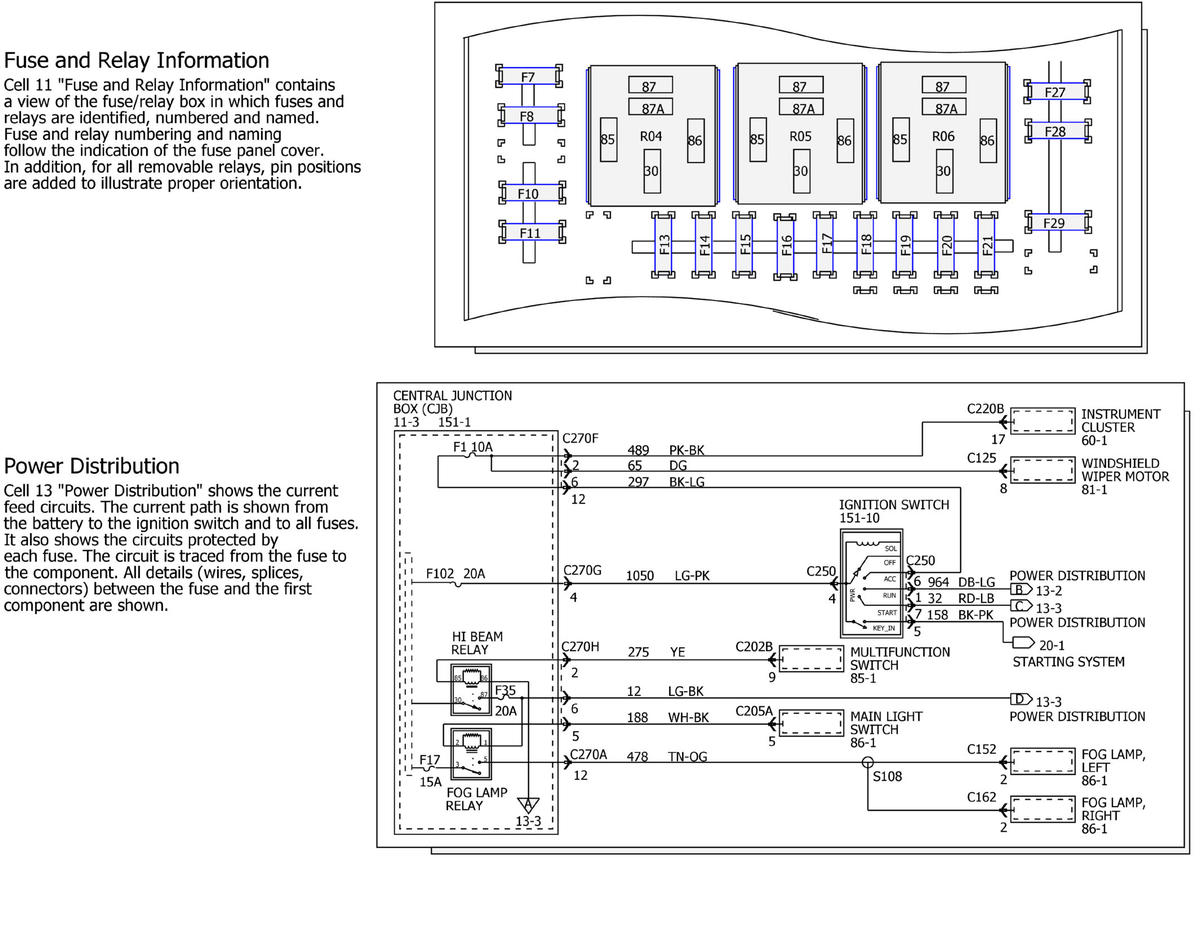

GFDWR19550Courtesy of FORD MOTOR COMPANY

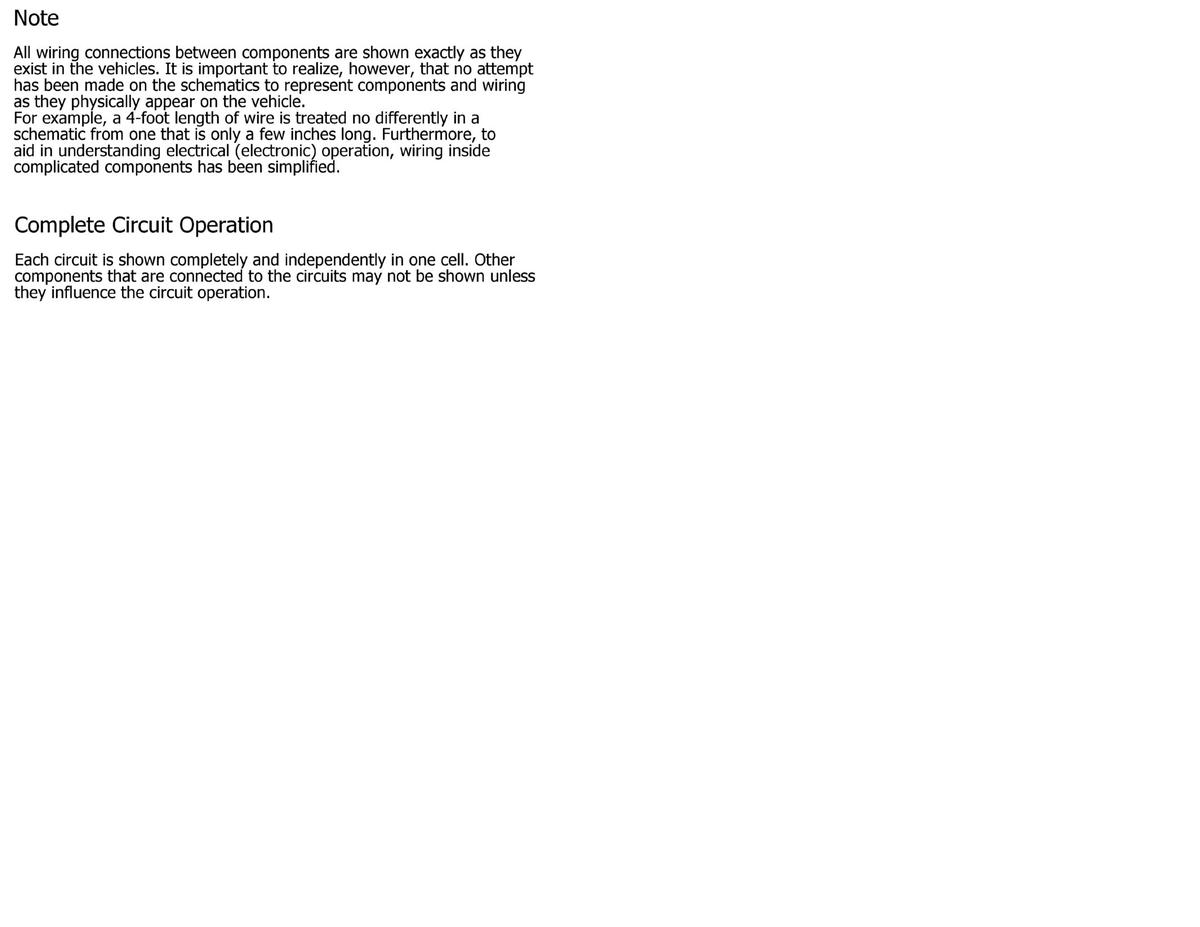

GFDWR19551Courtesy of FORD MOTOR COMPANY

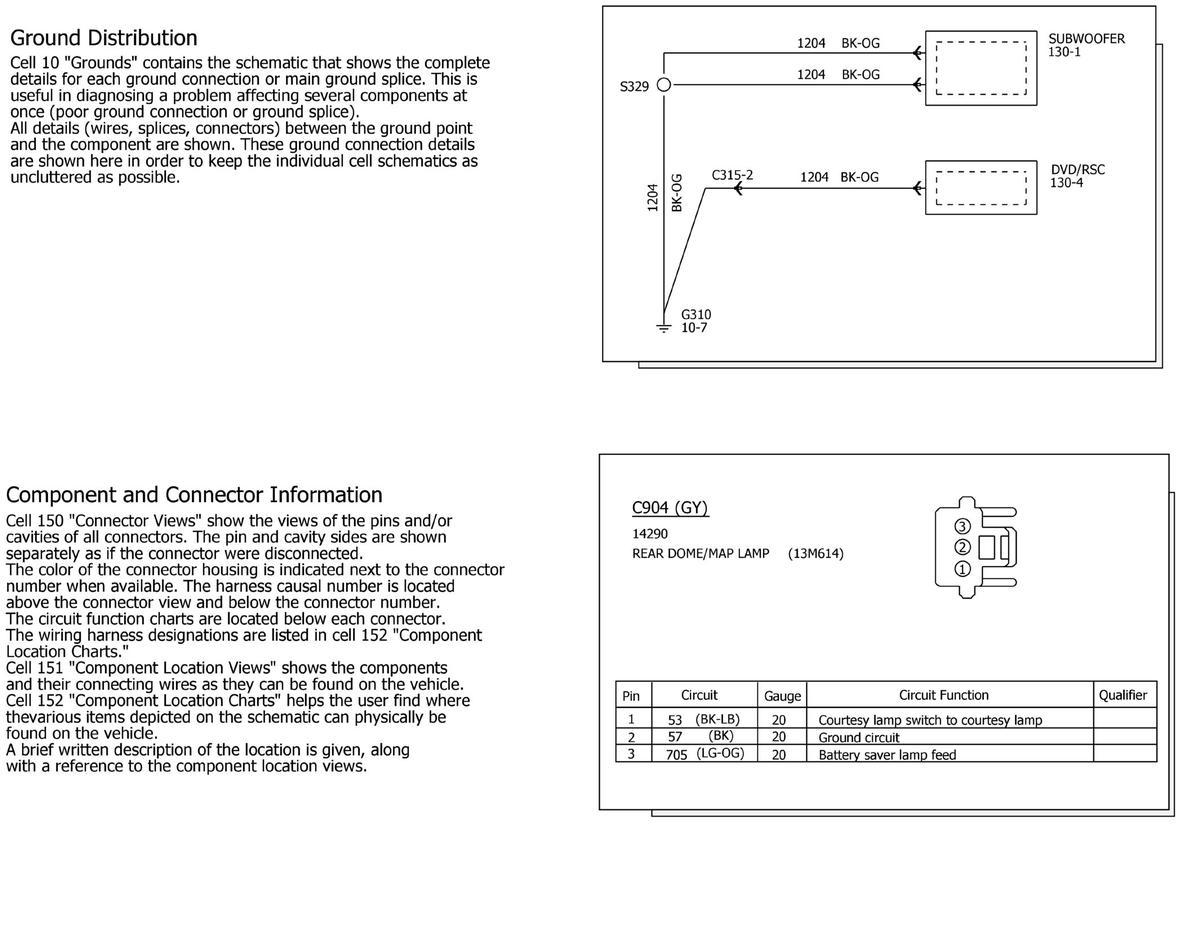

GFDWR19552Courtesy of FORD MOTOR COMPANY

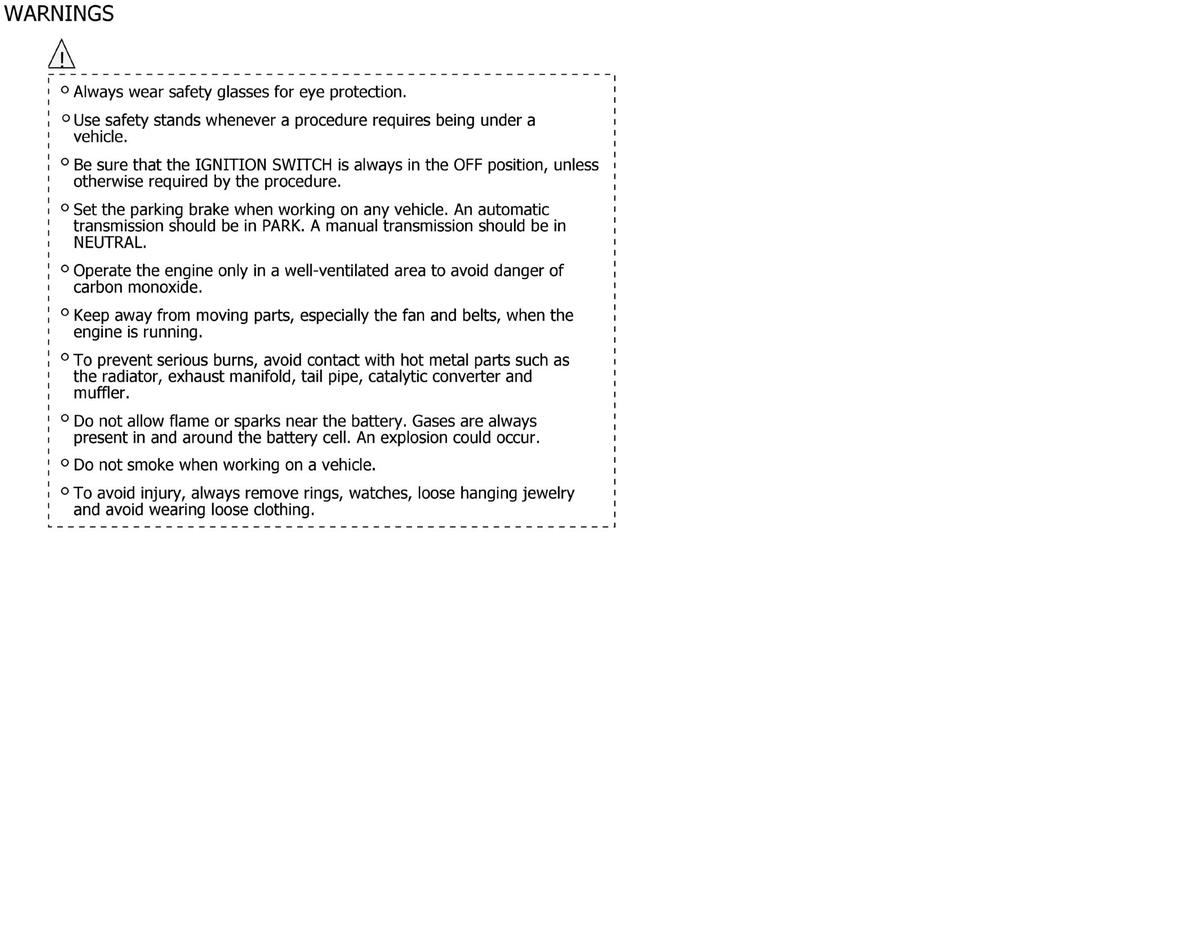

GFDWR19553Courtesy of FORD MOTOR COMPANY
