Automatic Climate Control System

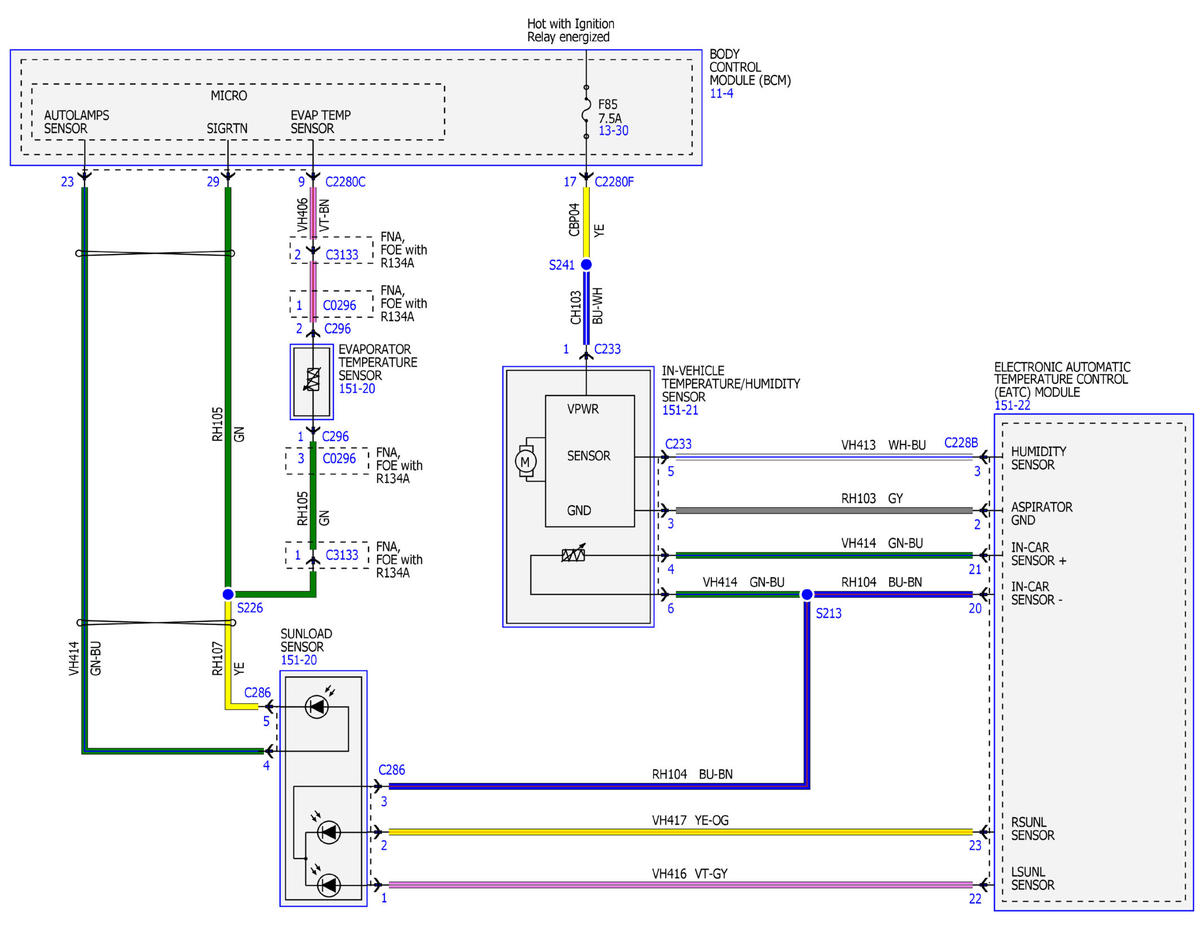

Fig 1: Automatic Climate Control System Wiring Diagram (1 of 10)
GFDWR19603Courtesy of FORD MOTOR COMPANY

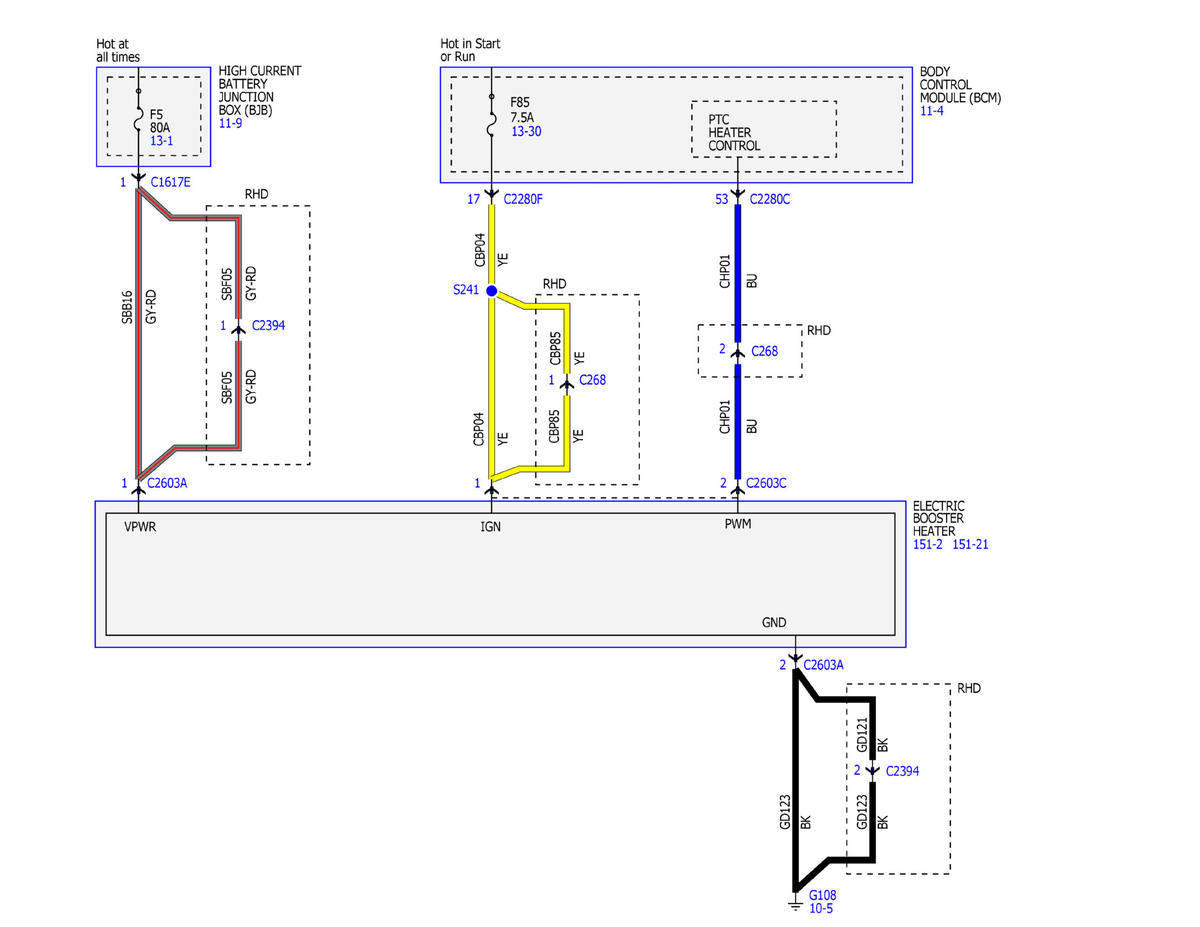

Fig 2: Automatic Climate Control System Wiring Diagram (2 of 10)
GFDWR19604Courtesy of FORD MOTOR COMPANY

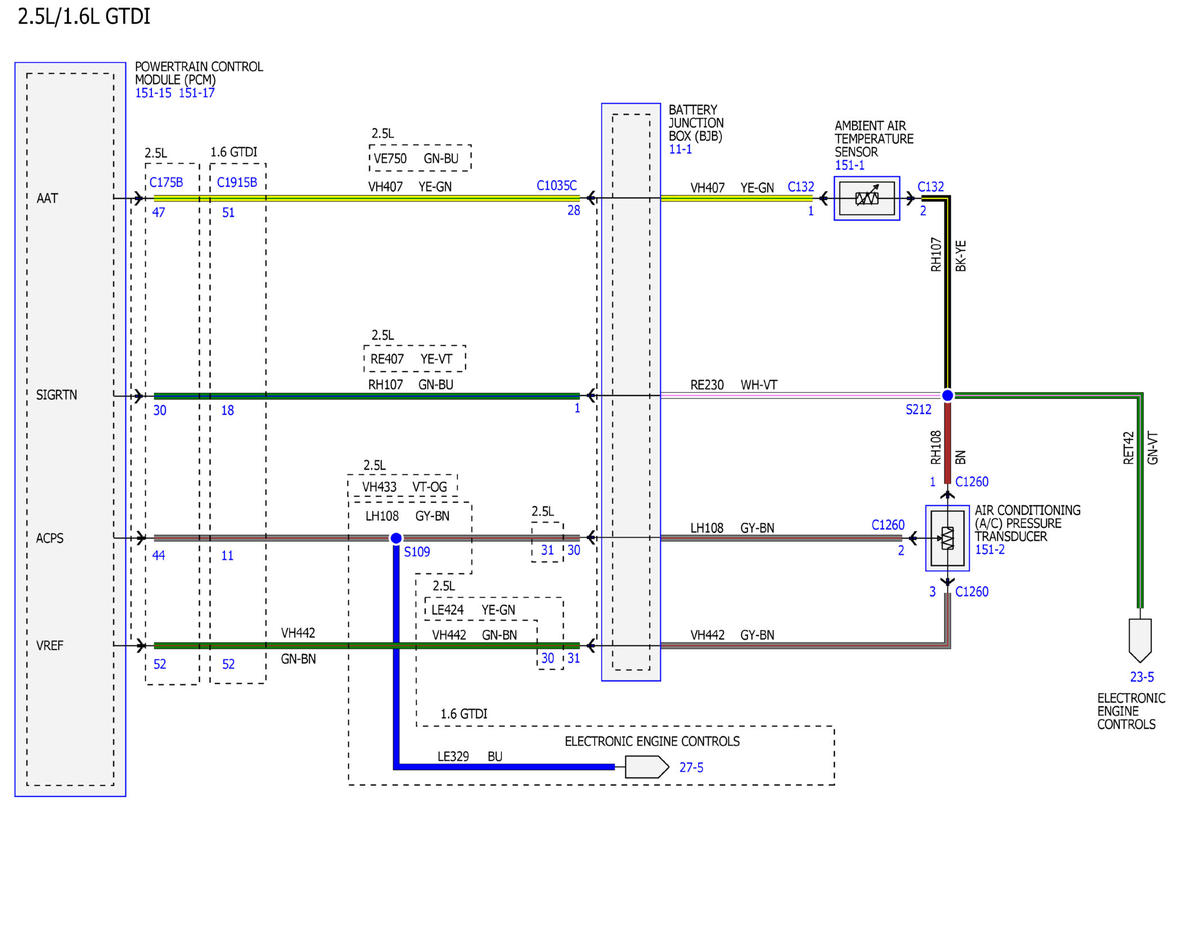

Fig 3: Automatic Climate Control System Wiring Diagram (3 of 10)
GFDWR19605Courtesy of FORD MOTOR COMPANY

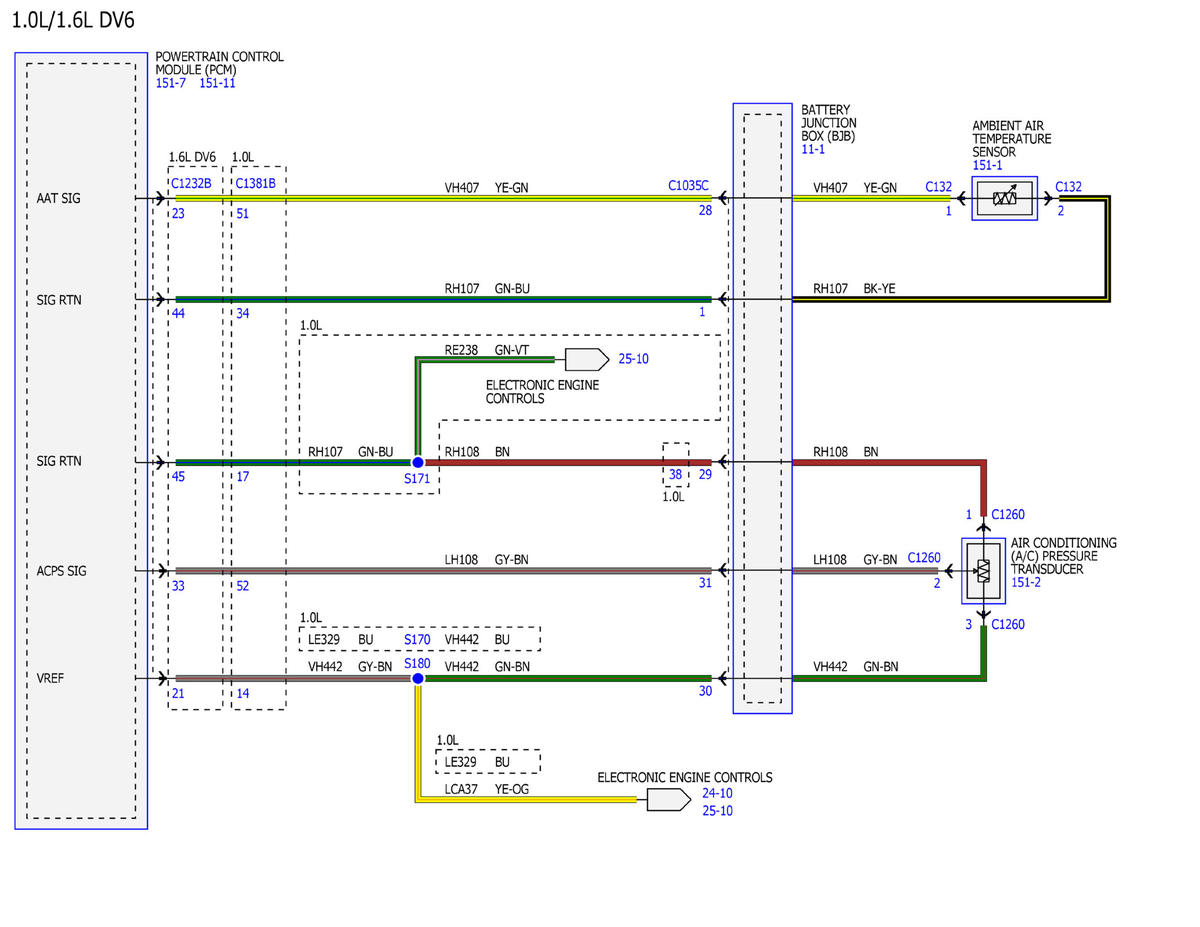

Fig 4: Automatic Climate Control System Wiring Diagram (4 of 10)
GFDWR19606Courtesy of FORD MOTOR COMPANY

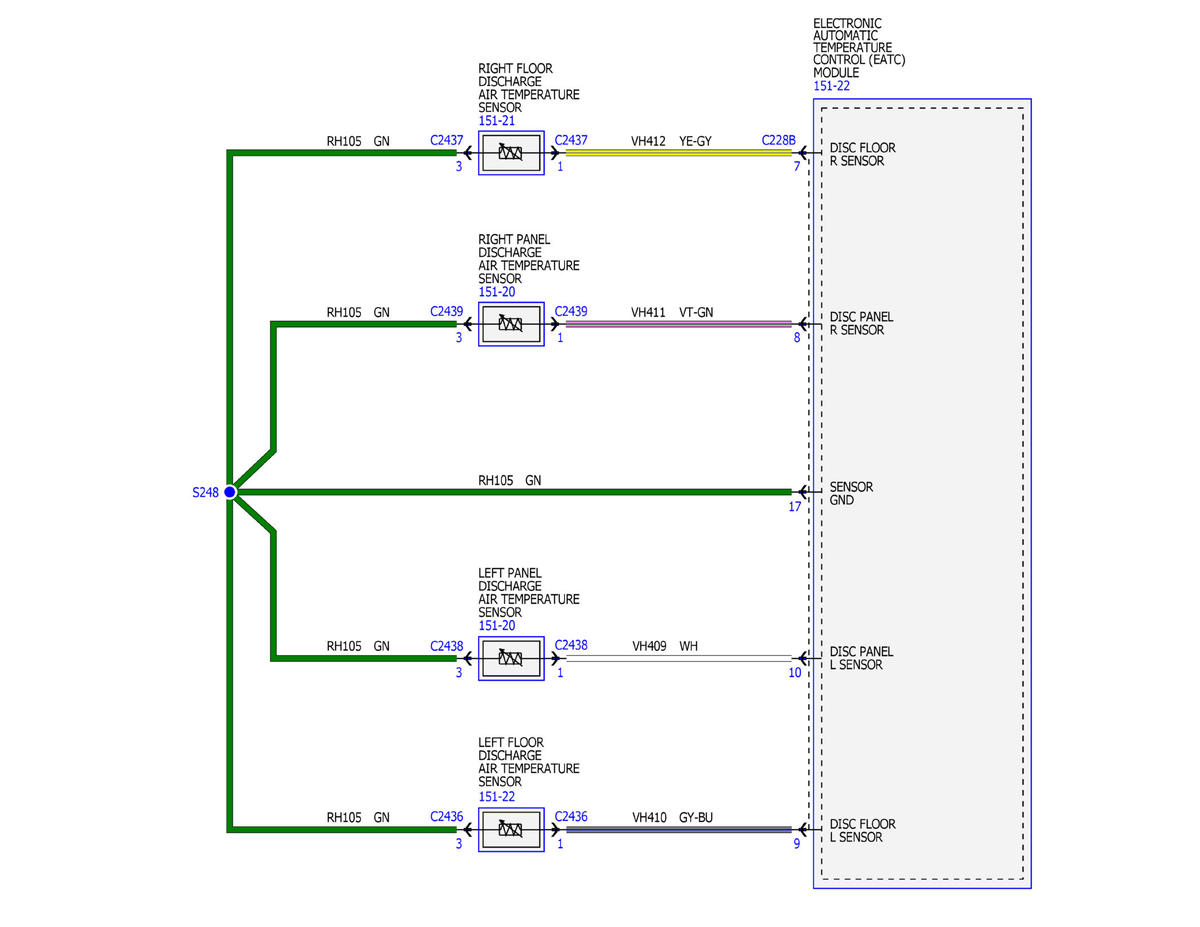

Fig 5: Automatic Climate Control System Wiring Diagram (5 of 10)
GFDWR19607Courtesy of FORD MOTOR COMPANY

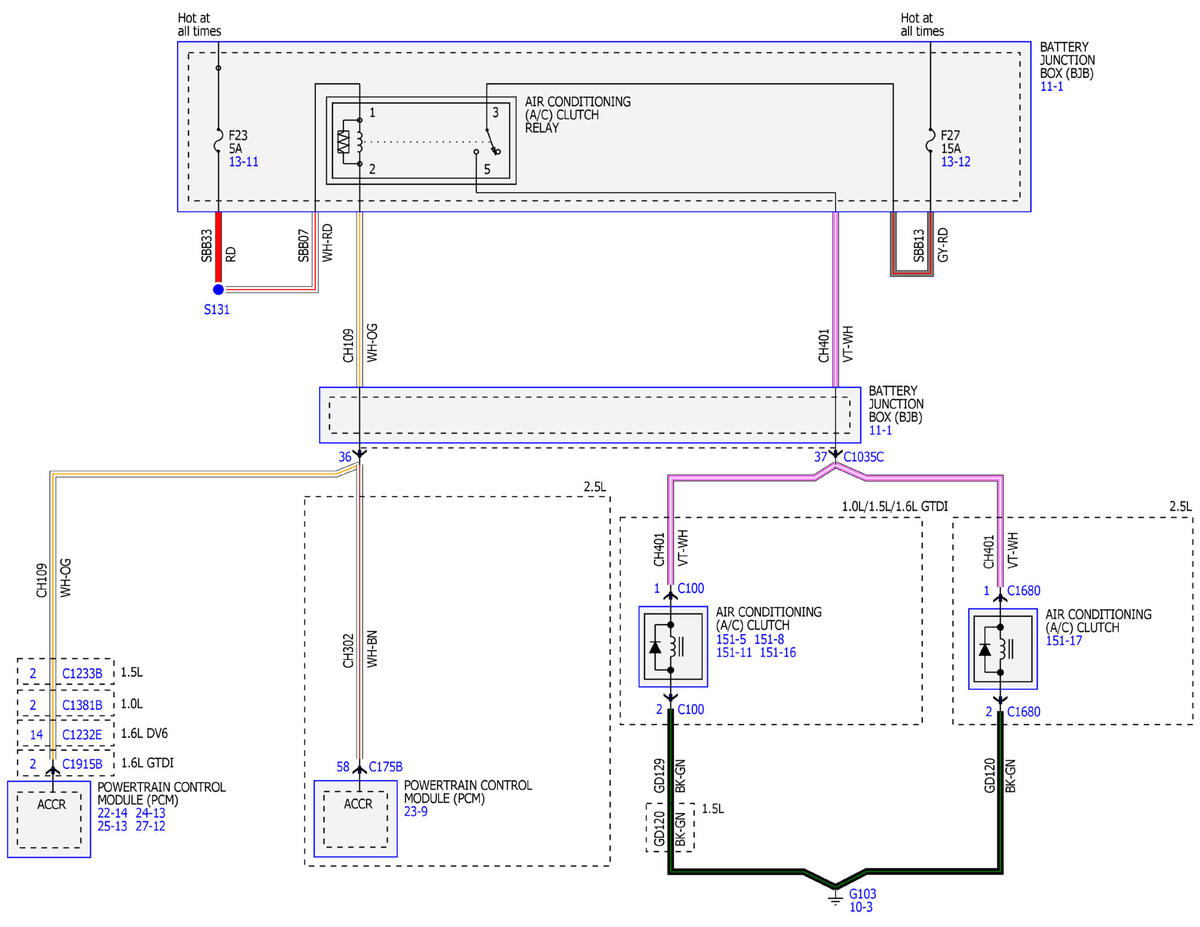

Fig 6: Automatic Climate Control System Wiring Diagram (6 of 10)
GFDWR19608Courtesy of FORD MOTOR COMPANY

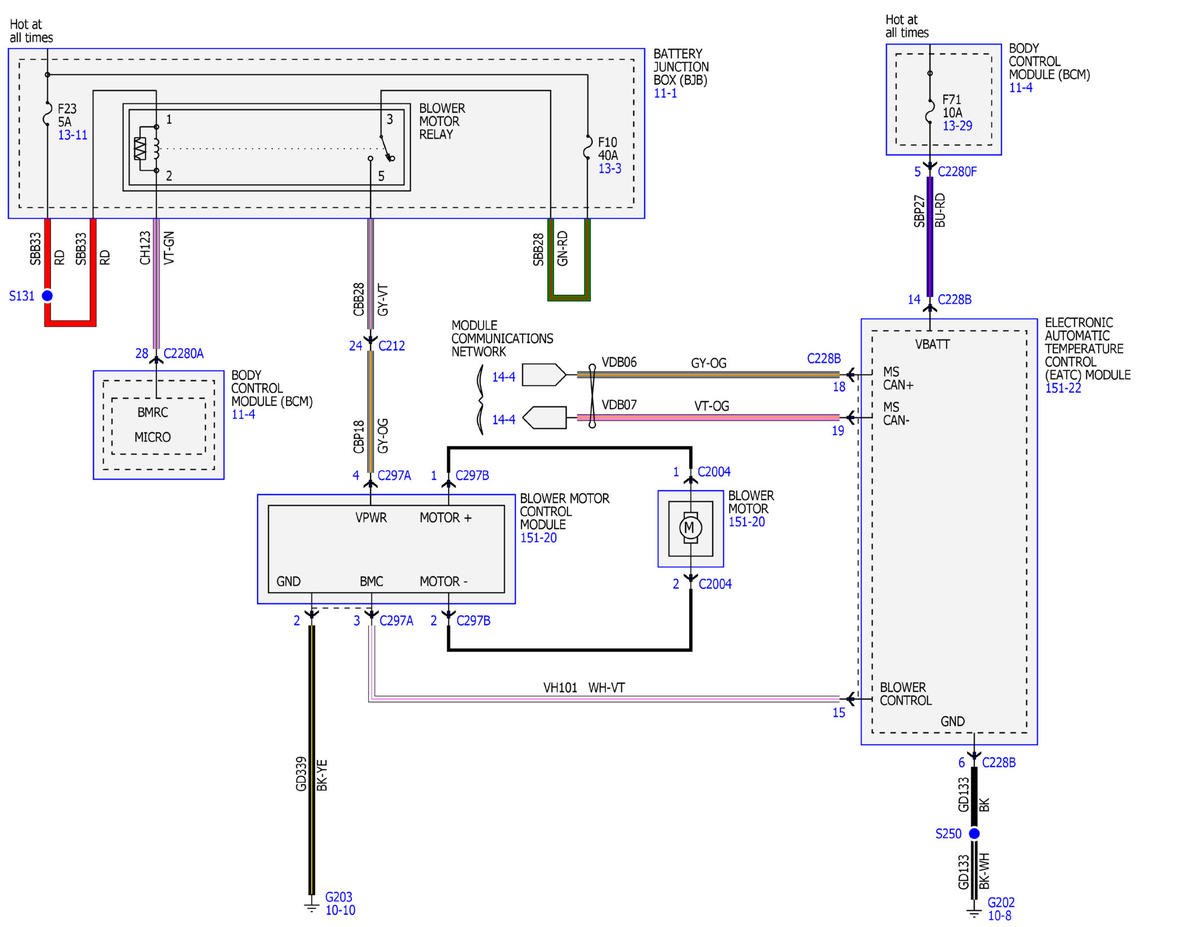

Fig 7: Automatic Climate Control System Wiring Diagram (7 of 10)
GFDWR19609Courtesy of FORD MOTOR COMPANY

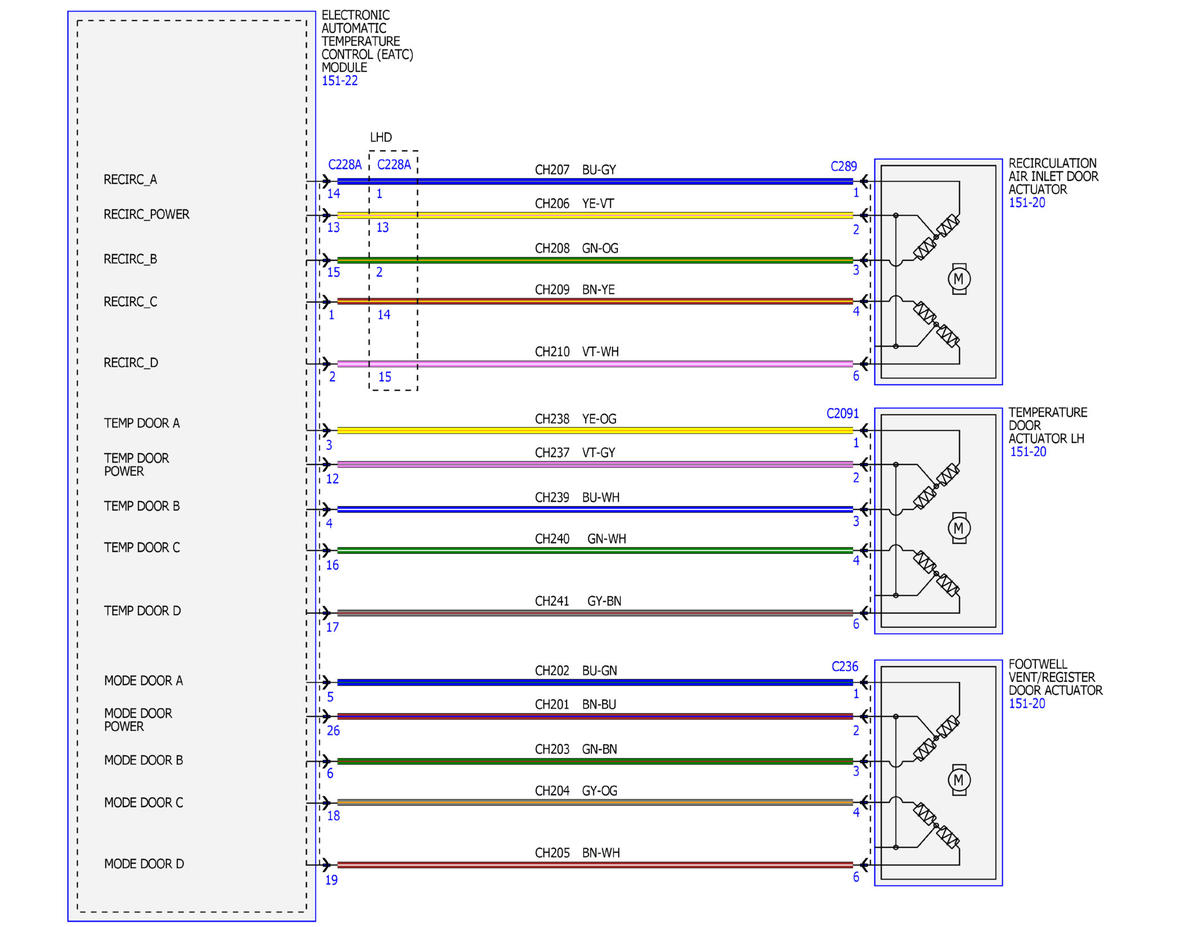

Fig 8: Automatic Climate Control System Wiring Diagram (8 of 10)
GFDWR19610Courtesy of FORD MOTOR COMPANY

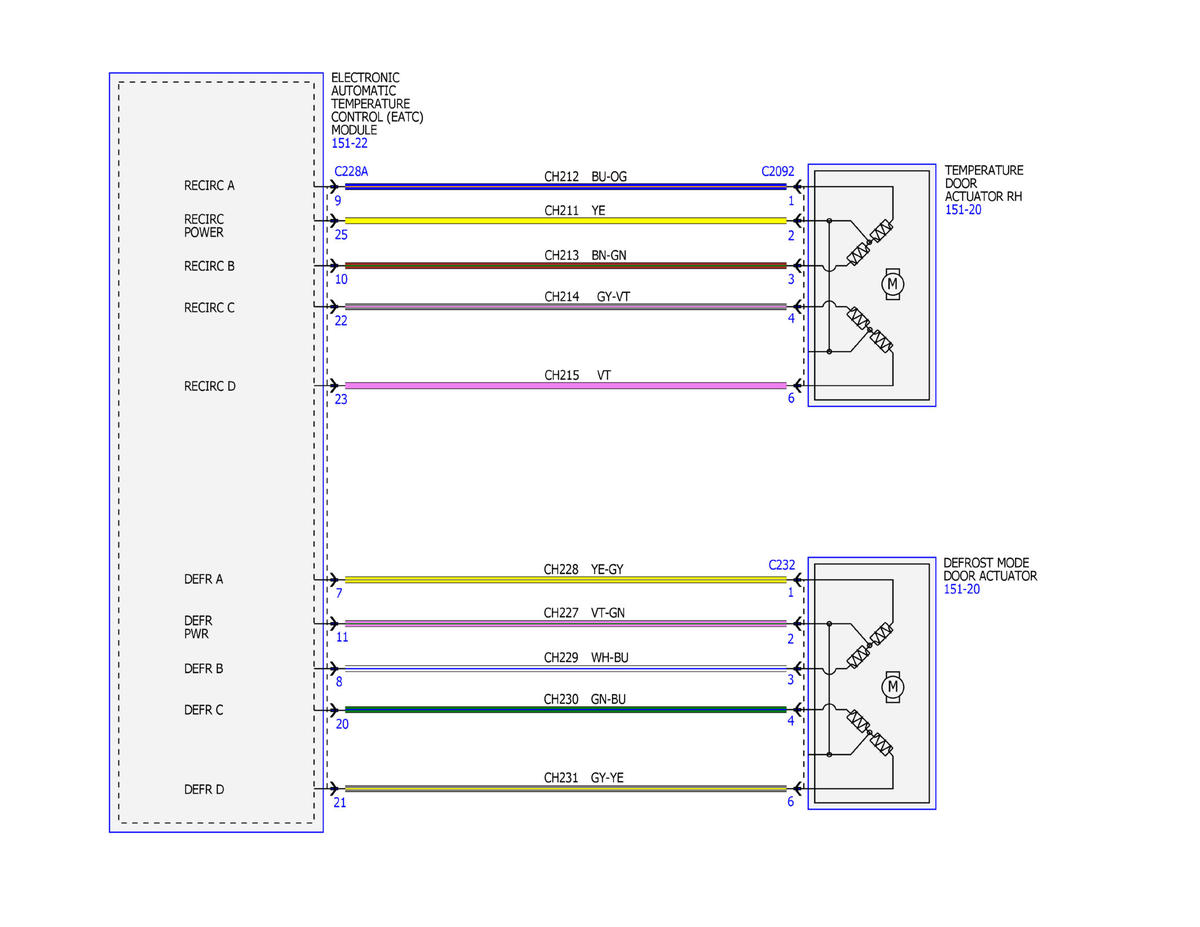

Fig 9: Automatic Climate Control System Wiring Diagram (9 of 10)
GFDWR19611Courtesy of FORD MOTOR COMPANY

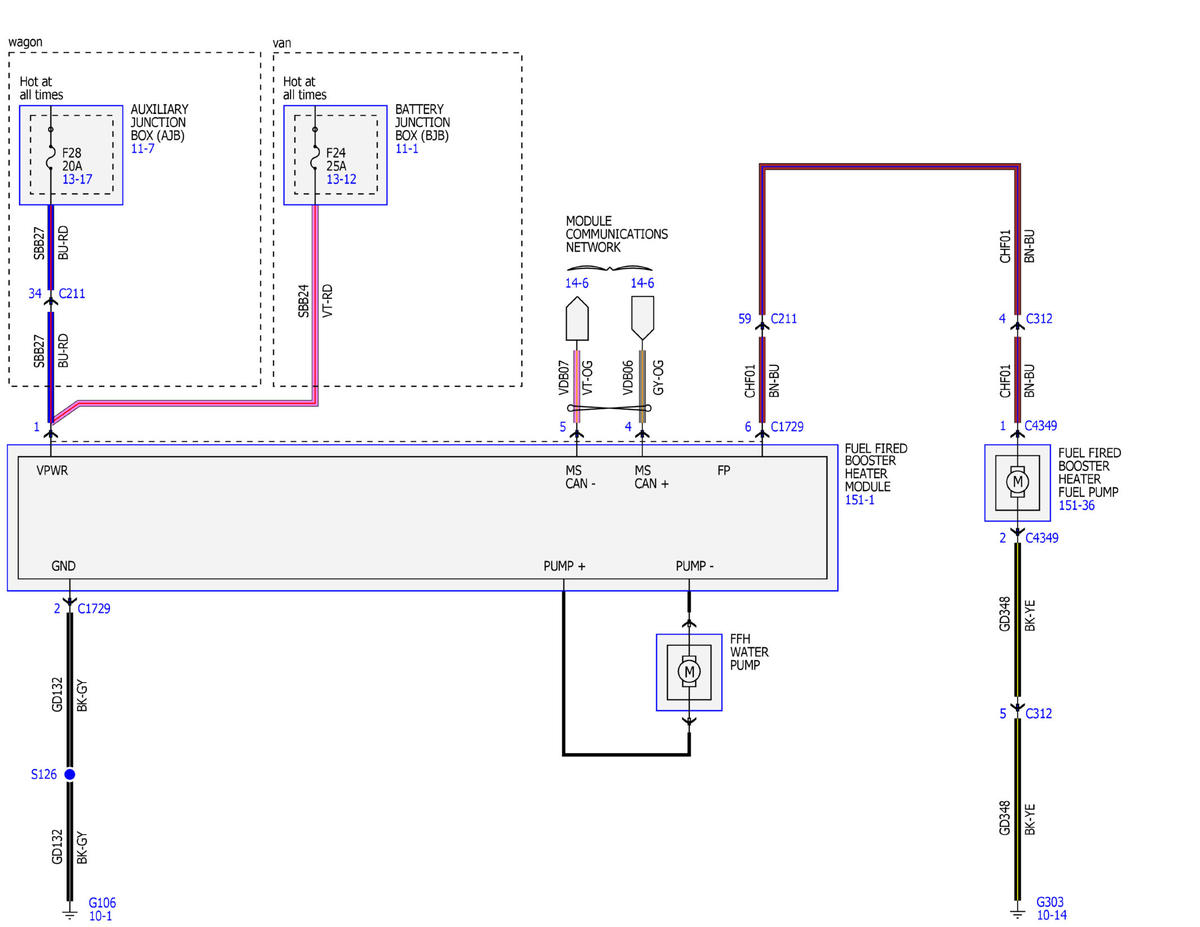

Fig 10: Automatic Climate Control System Wiring Diagram (10 of 10)
GFDWR19612Courtesy of FORD MOTOR COMPANY
