Driver Seat Track: Installation

  1. To install, reverse the removal procedure.

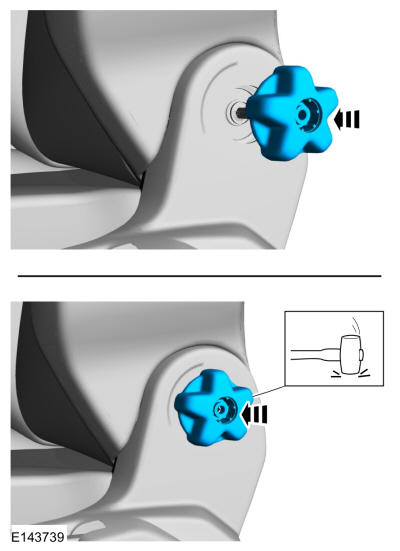

  2. Using rubber mallet, install the recliner handle knob. Use the General Equipment: Rubber Mallet
    GFD306210Courtesy of FORD MOTOR COMPANY

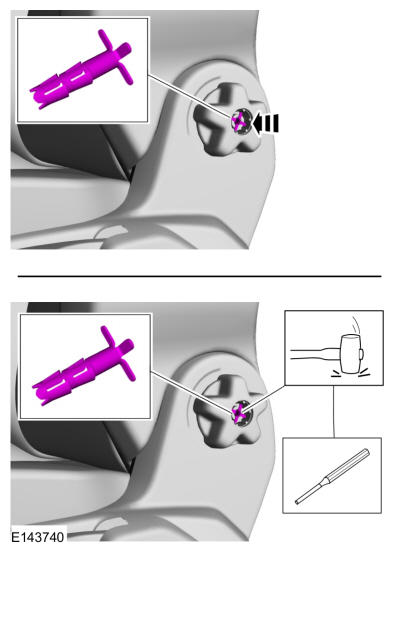

  3. Using rubber mallet, install the retaining clip. Use the General Equipment: Punch. Use the General Equipment: Rubber Mallet
    GFD306211Courtesy of FORD MOTOR COMPANY

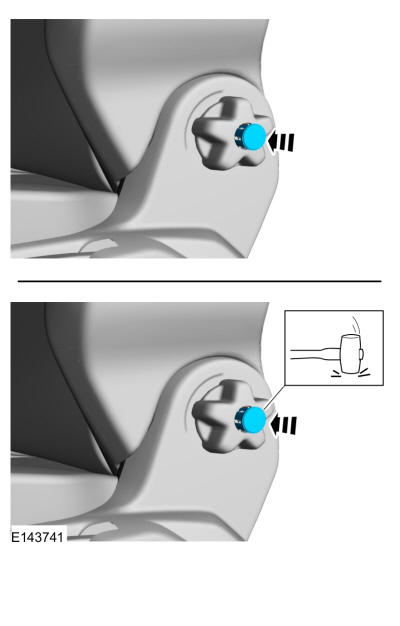

  4. Using rubber mallet, install the lumbar handle knob cap. Use the General Equipment: Rubber Mallet
GFD306212Courtesy of FORD MOTOR COMPANY
