Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.

All cylinder heads

  1. Install the valve.
    GFD338093Courtesy of FORD MOTOR COMPANY
  2. NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

    Using the Valve Stem Oil Seal Installer, install a new valve stem seal.

    GFD338097Courtesy of FORD MOTOR COMPANY

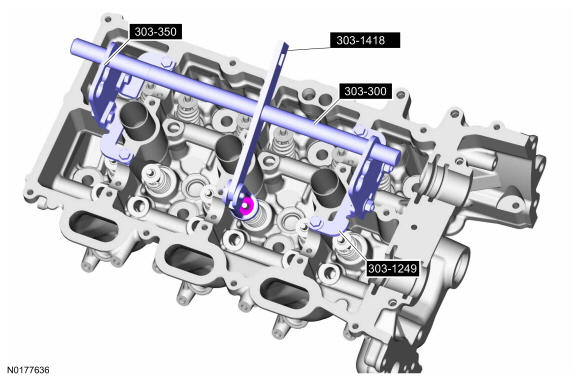

  3. Using the Valve Spring Compressors, install the valve spring, retainer and key.
    GFD338091Courtesy of FORD MOTOR COMPANY
  4. Repeat the above steps for each valve.
  5. Install the timing chain guide pin.

    • Tighten to 10 Nm (89 lb-in).

    GFD338094Courtesy of FORD MOTOR COMPANY

    RH cylinder head

  6. Install the timing chain tensioner arm pin.

    • Tighten to 10 Nm (89 lb-in).

    GFD338095Courtesy of FORD MOTOR COMPANY
  7. Install a new CHT sensor.

    • Tighten to 10 Nm (89 lb-in).

GFD338096Courtesy of FORD MOTOR COMPANY
