Hood Alignment

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

NOTE: Removal steps in this procedure may contain installation details.

Inspect the hood-to-body dimensions. Refer to: Body and Frame .
All alignments
Remove the hood latch. Refer to: Hood Latch .

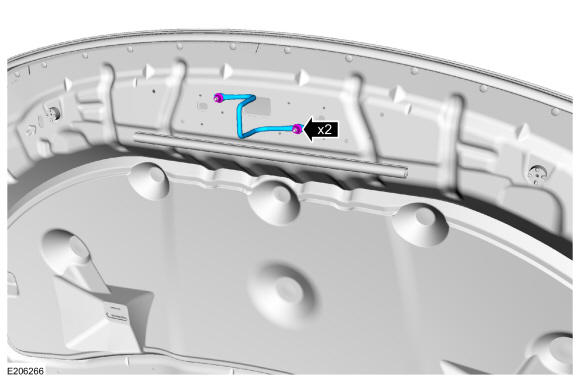

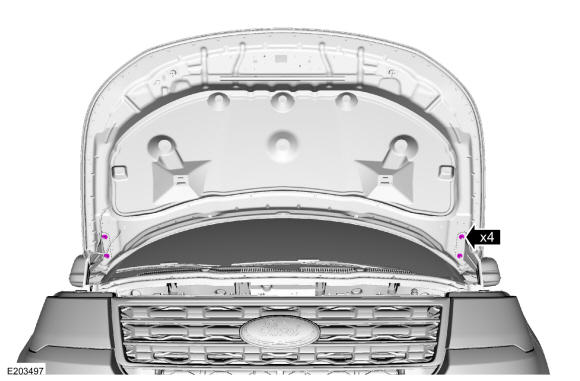

Remove the nuts and the striker assembly.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

Hood fore and aft, left and right alignments

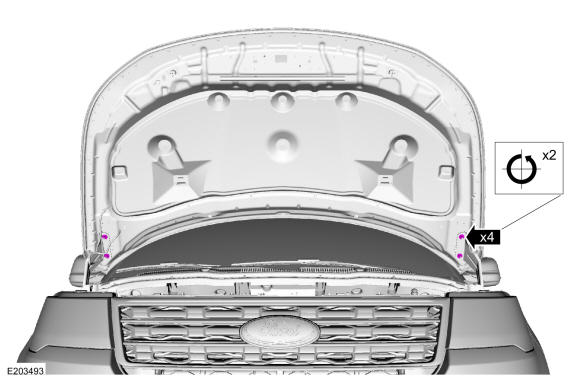

Loosen the nuts to permit movement of the hood. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

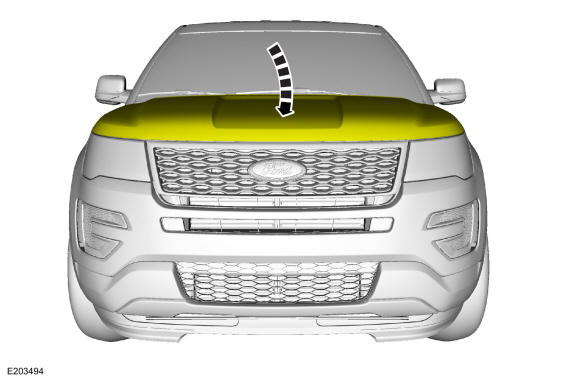

Carefully close the hood.

Courtesy of FORD MOTOR COMPANY

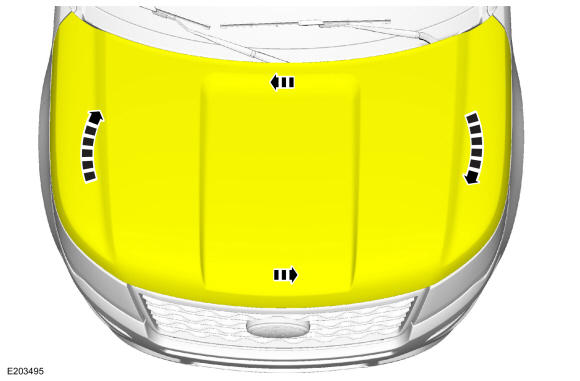

Adjust the hood to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

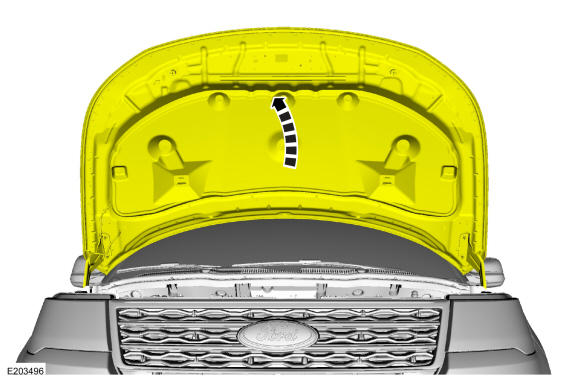

Carefully open the hood.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

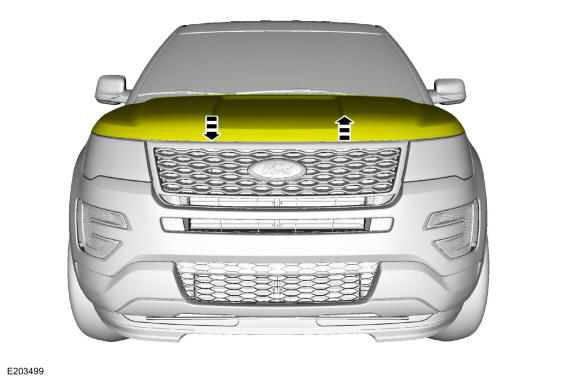

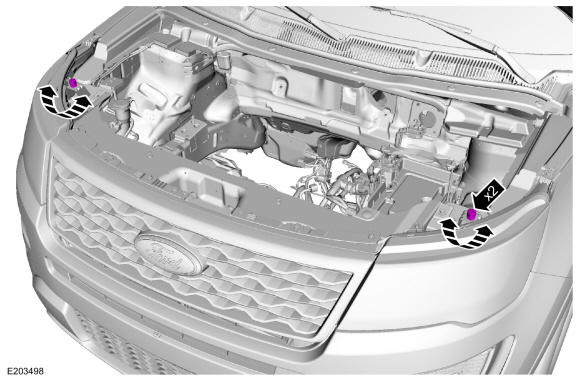

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY
Adjust the hood to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

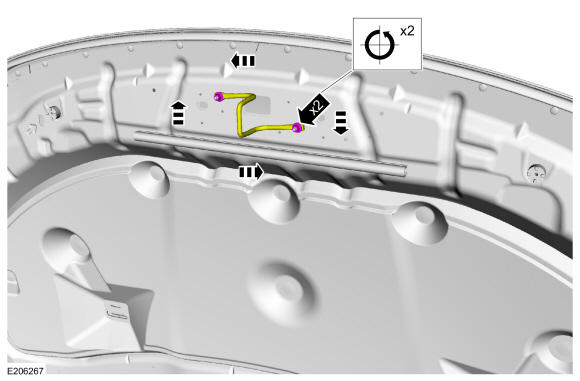

Loosen the nuts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

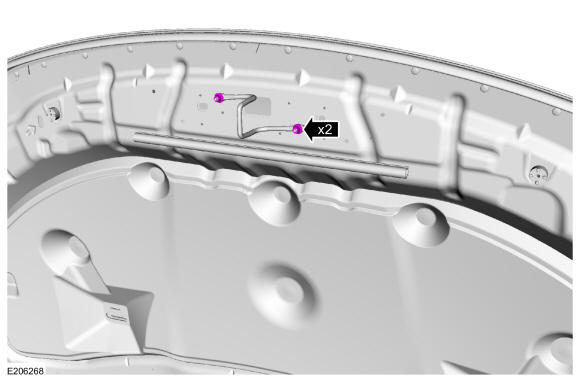

Tighten the nuts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

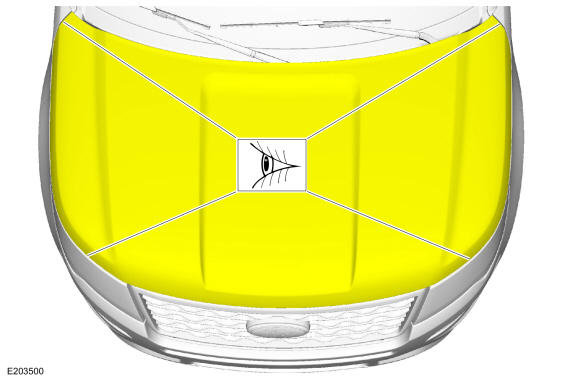

Inspect the body-to-hood dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Install the removed components.
