Section 15 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2018 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

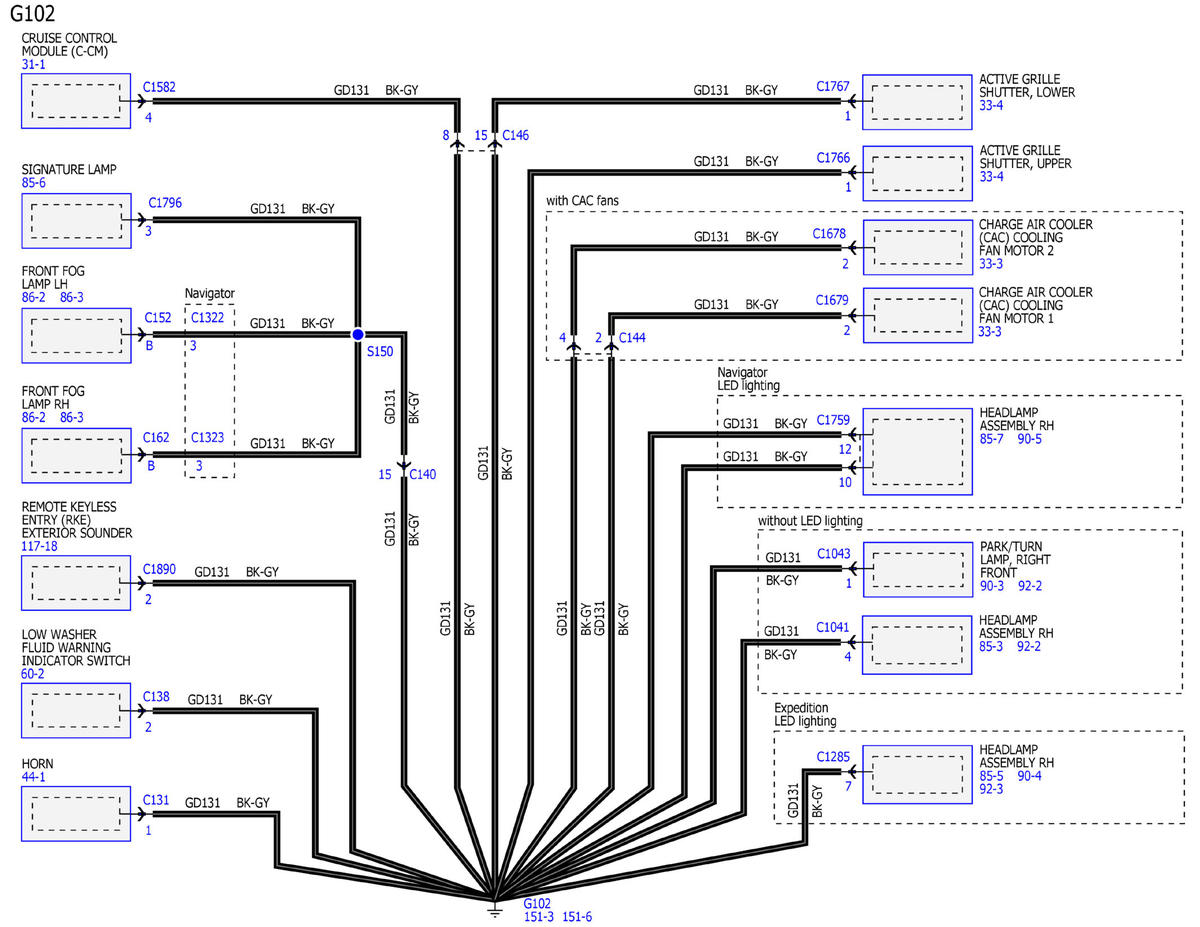

GFDWR13685Courtesy of FORD MOTOR COMPANY

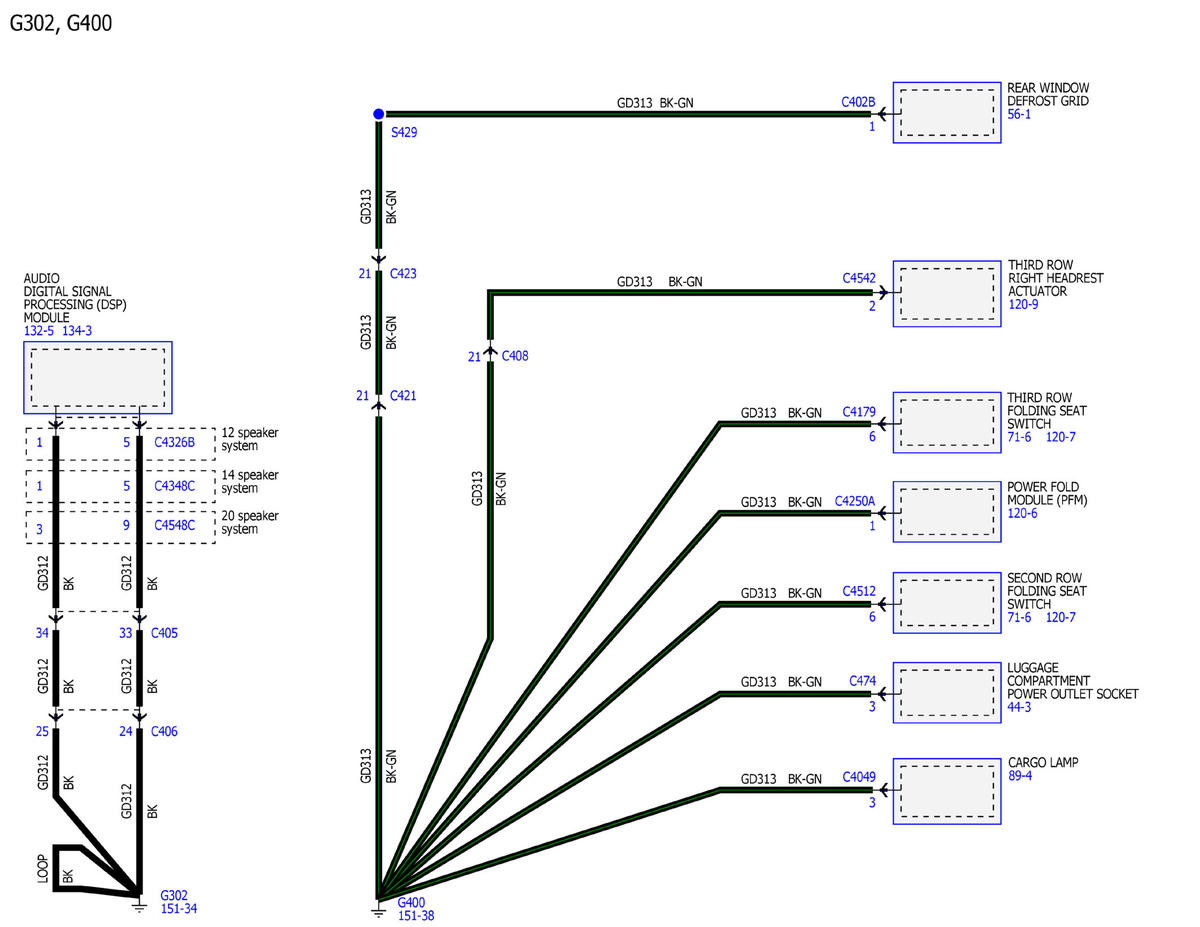

GFDWR13686Courtesy of FORD MOTOR COMPANY

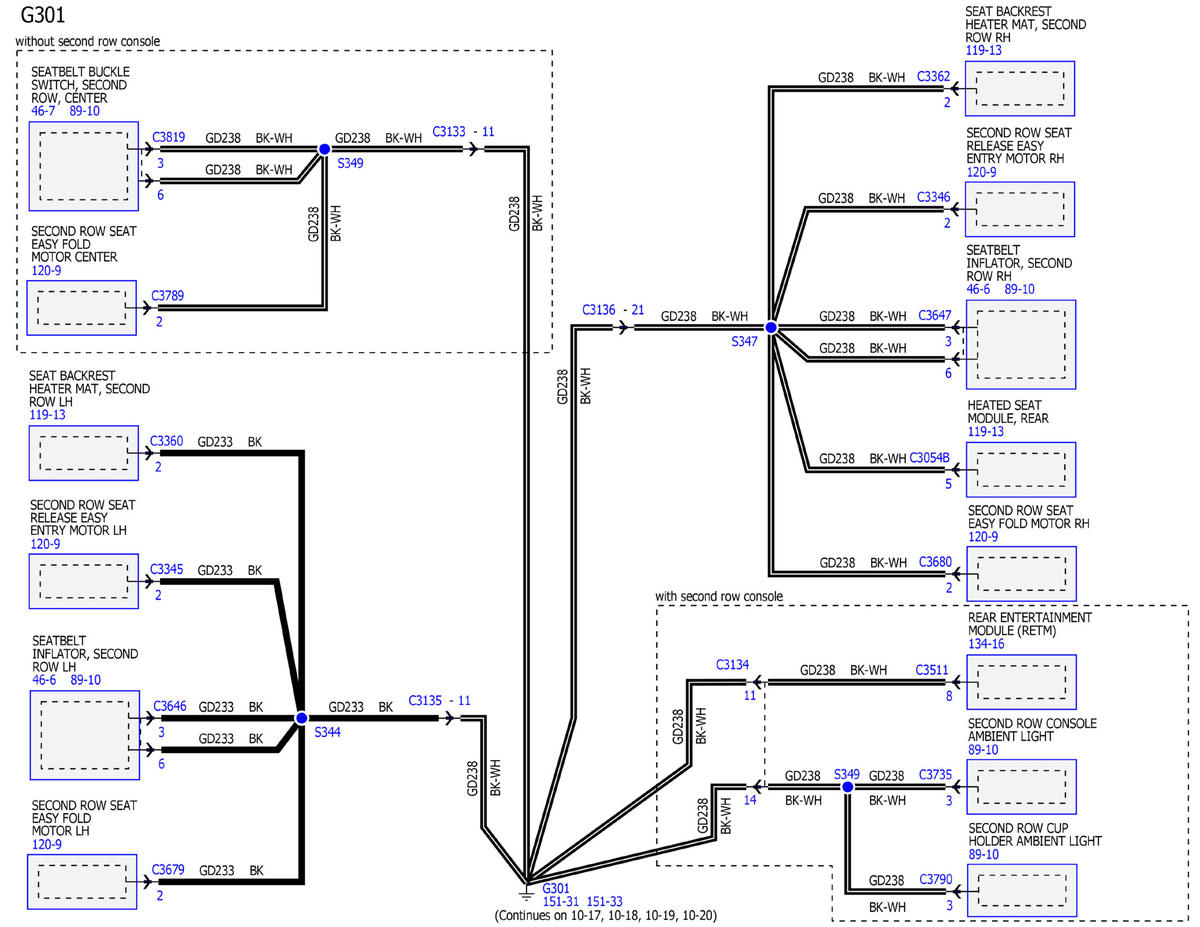

GFDWR13687Courtesy of FORD MOTOR COMPANY

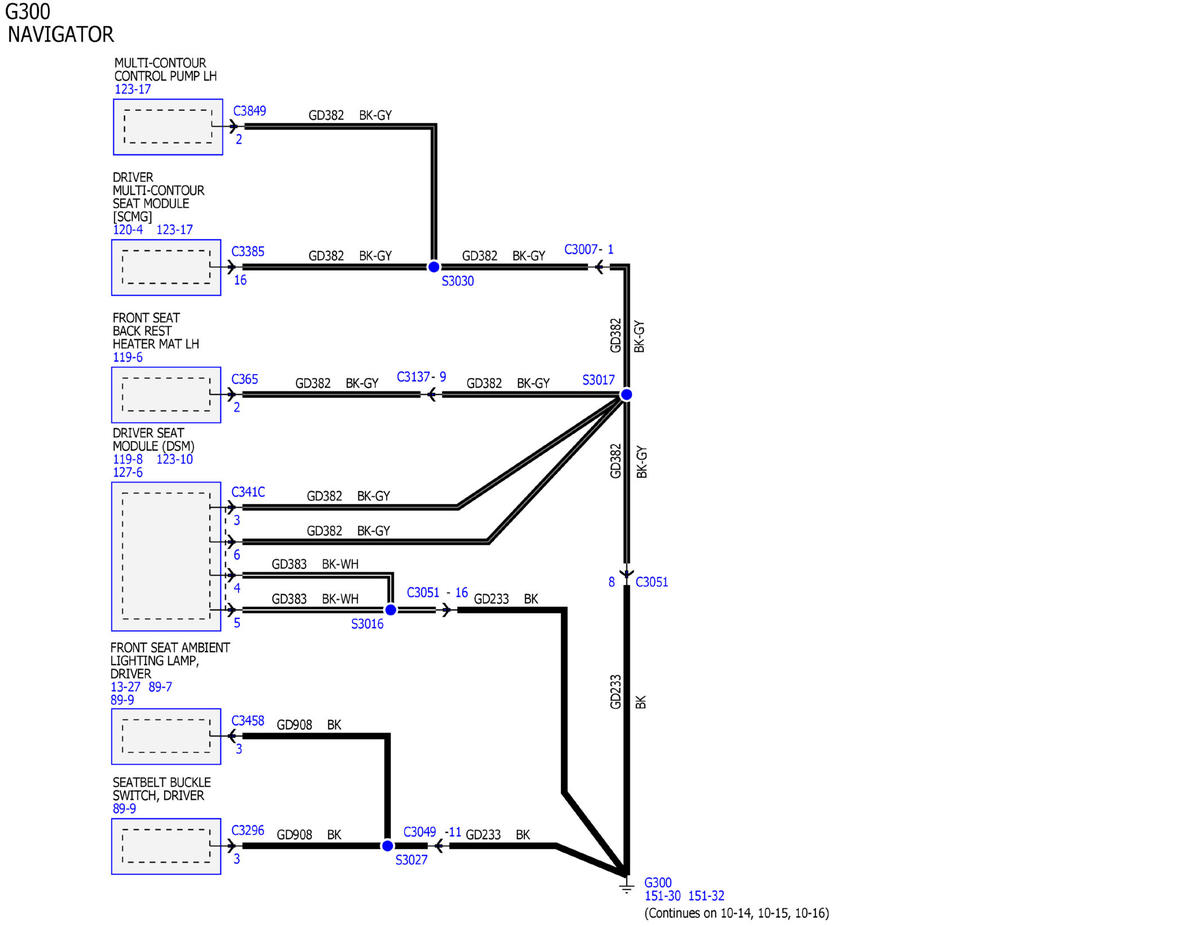

GFDWR13688Courtesy of FORD MOTOR COMPANY

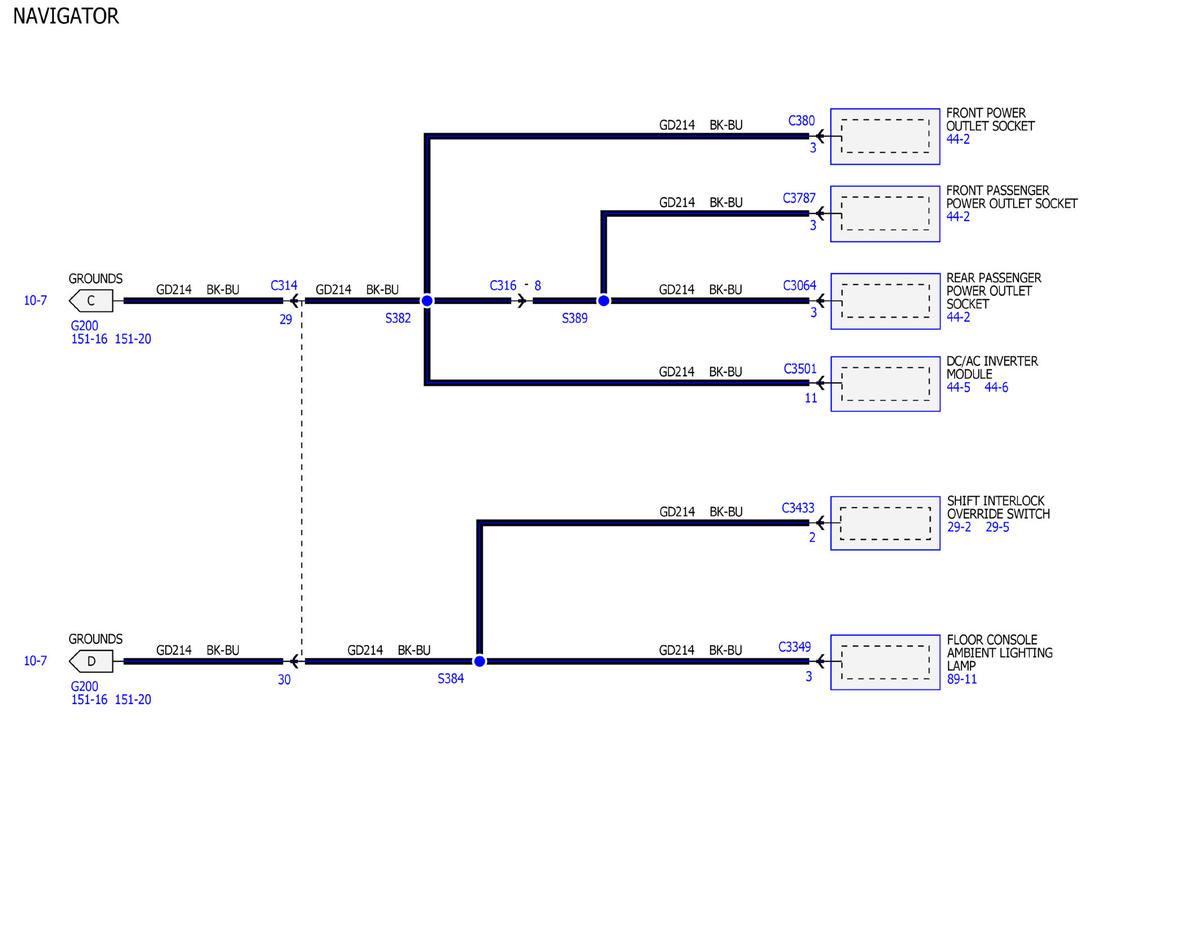

GFDWR13689Courtesy of FORD MOTOR COMPANY

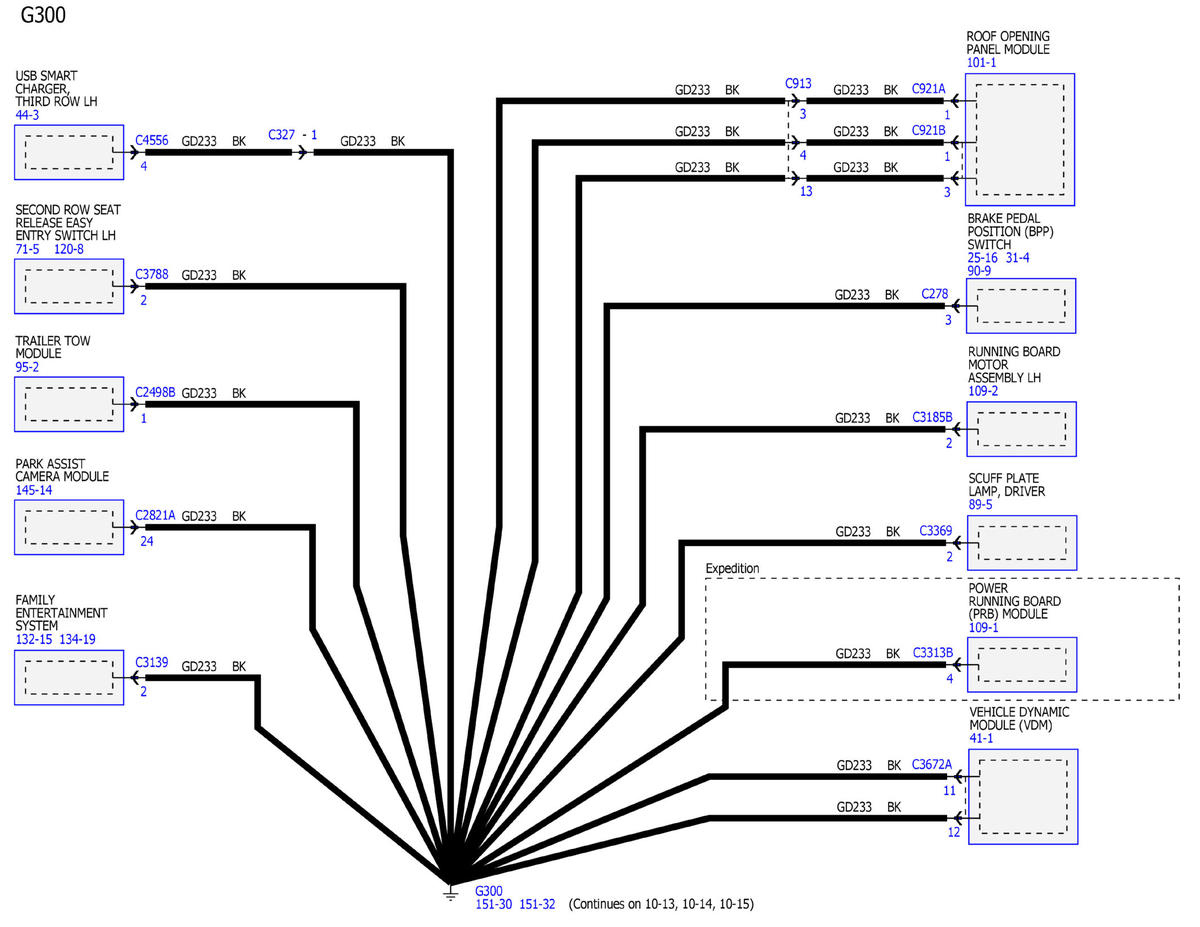

GFDWR13690Courtesy of FORD MOTOR COMPANY

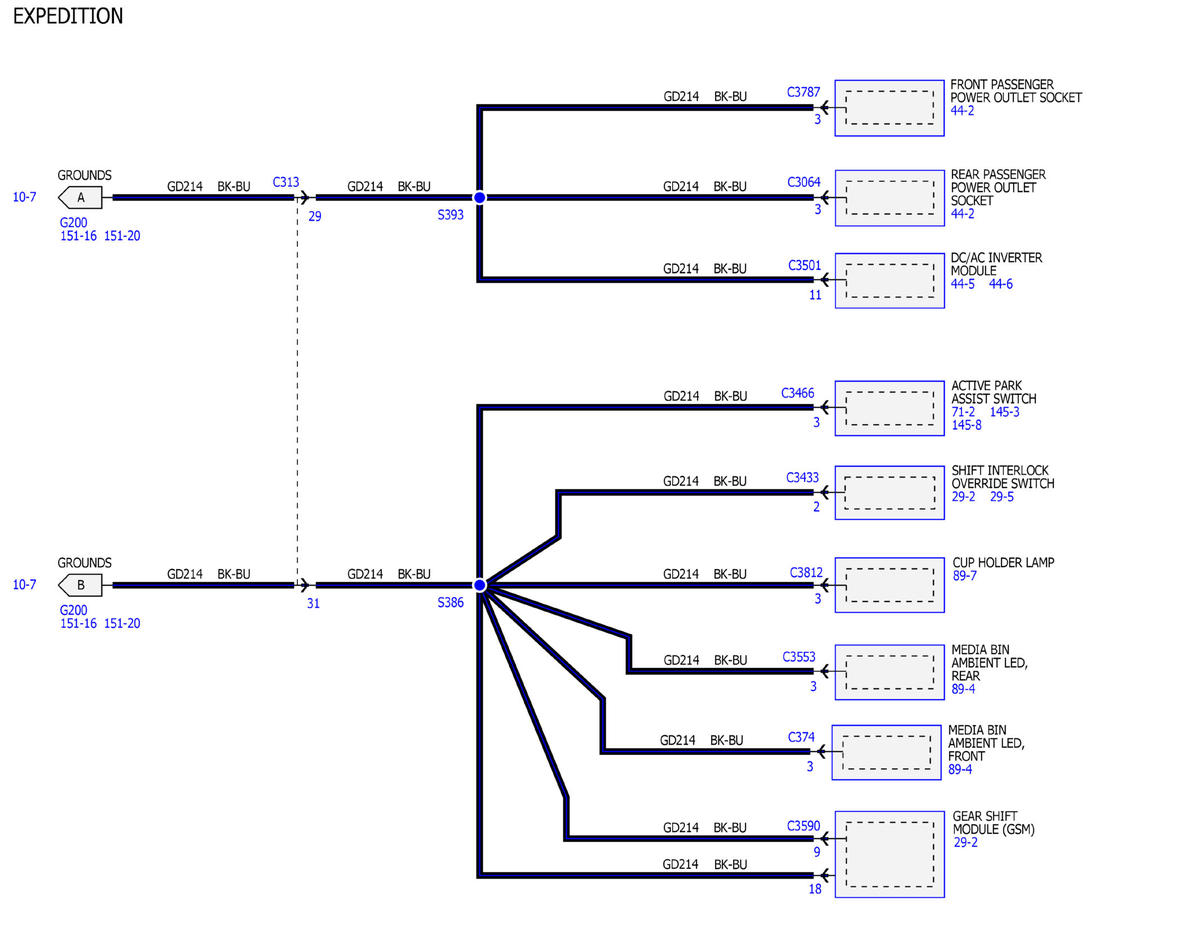

GFDWR13691Courtesy of FORD MOTOR COMPANY

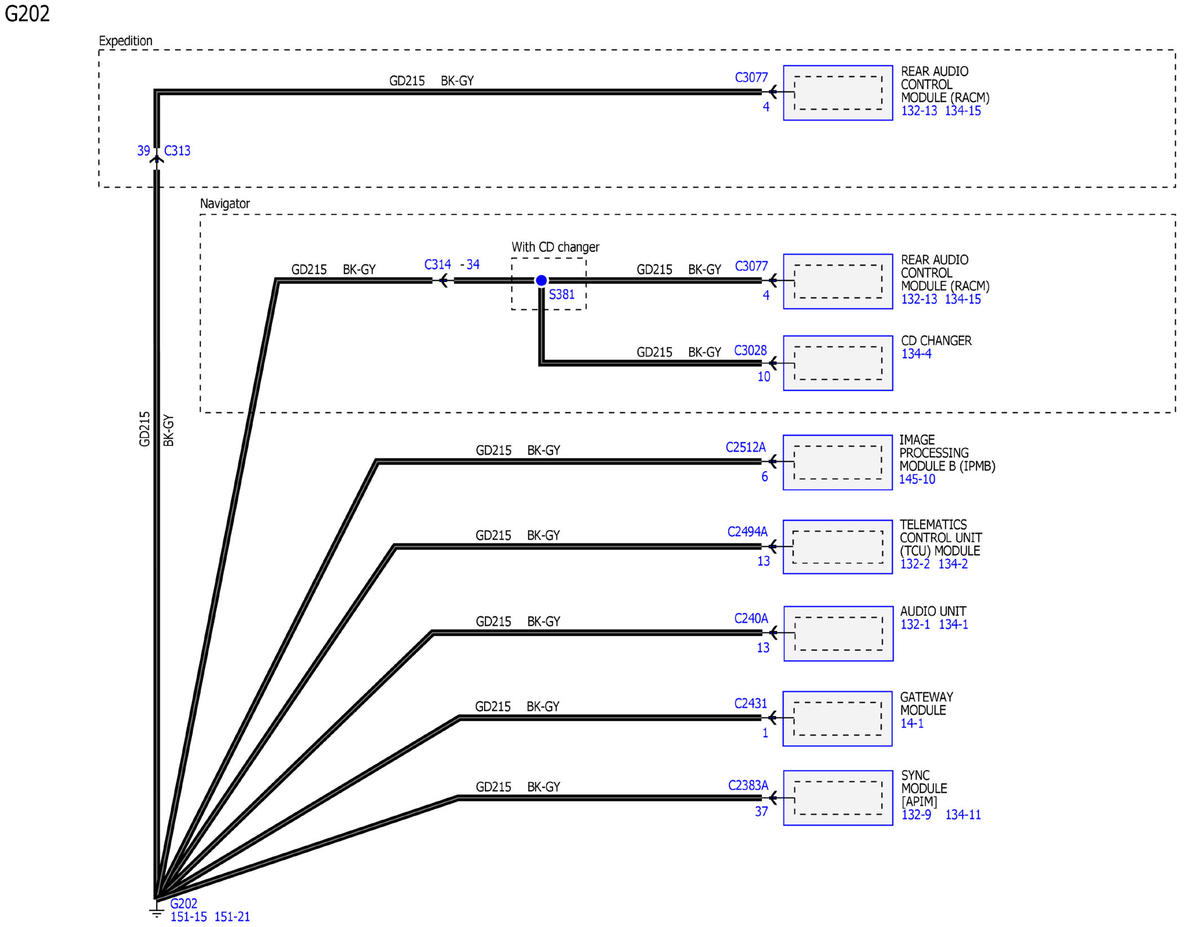

GFDWR13692Courtesy of FORD MOTOR COMPANY

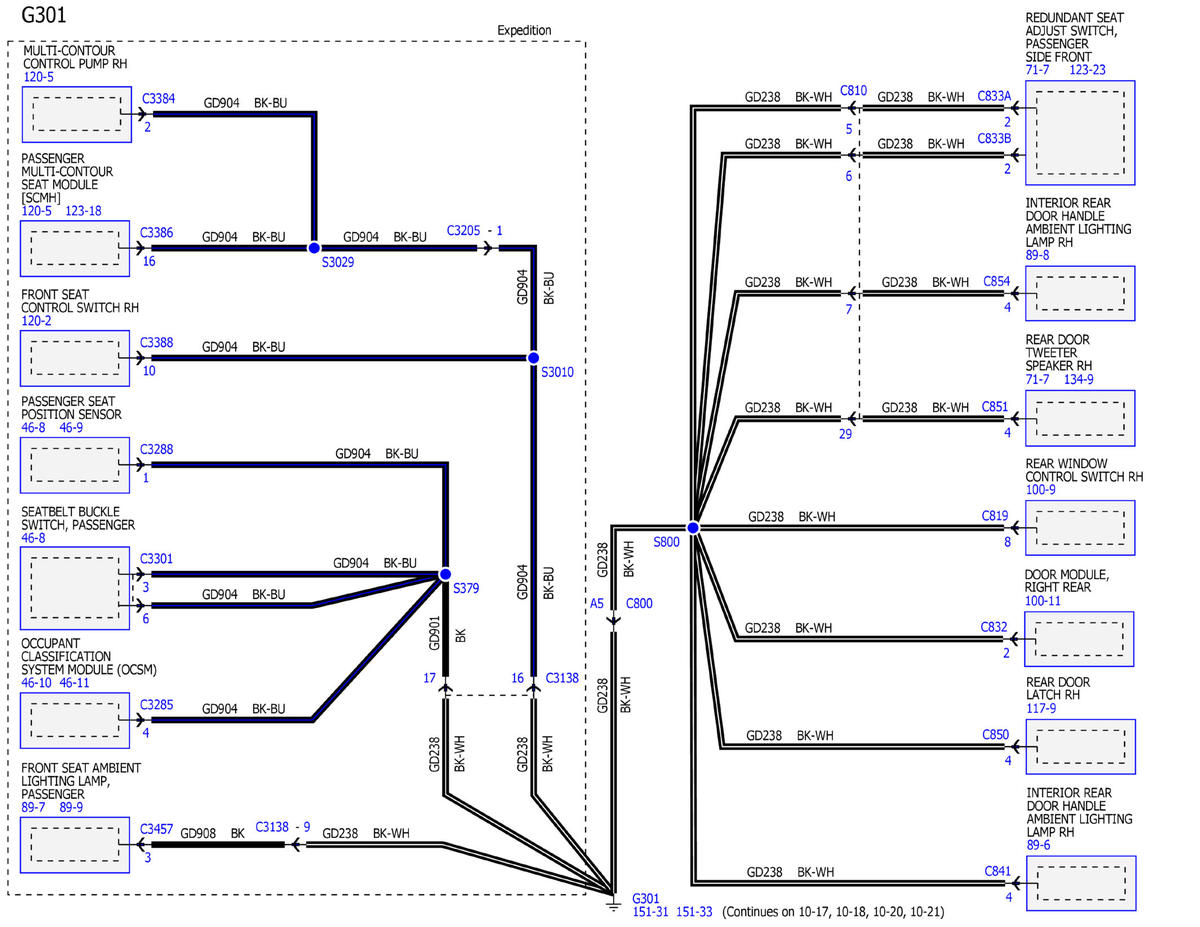

GFDWR13693Courtesy of FORD MOTOR COMPANY

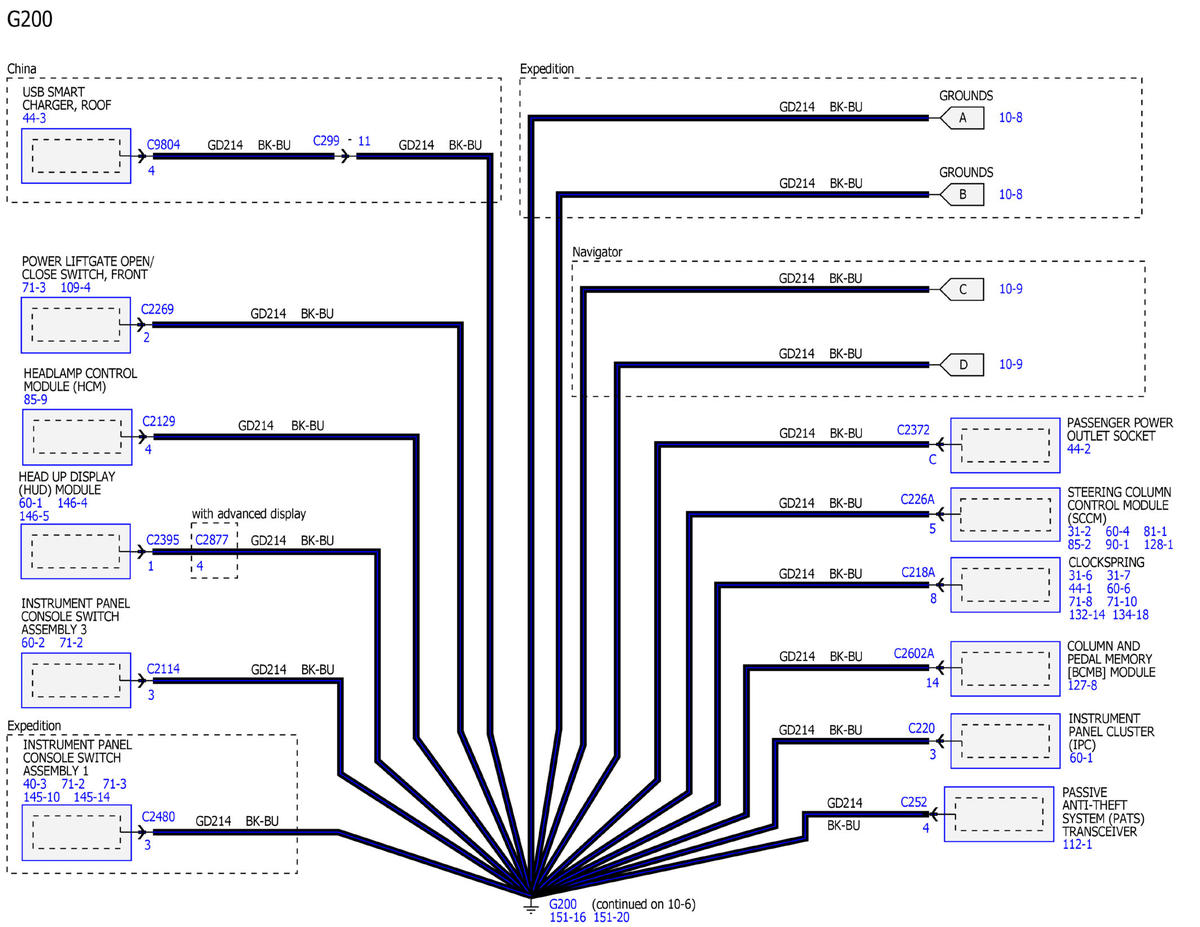

GFDWR13694Courtesy of FORD MOTOR COMPANY

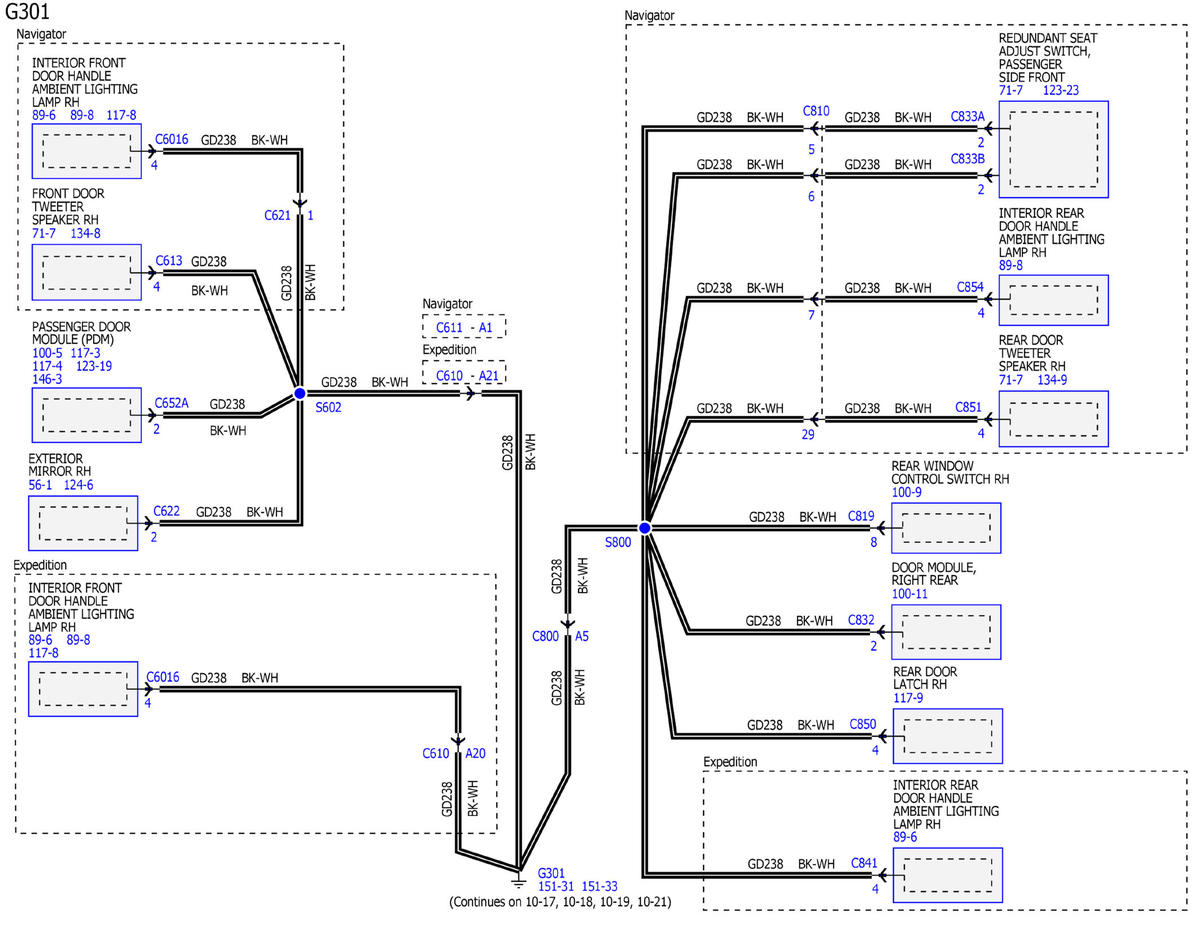

GFDWR13695Courtesy of FORD MOTOR COMPANY

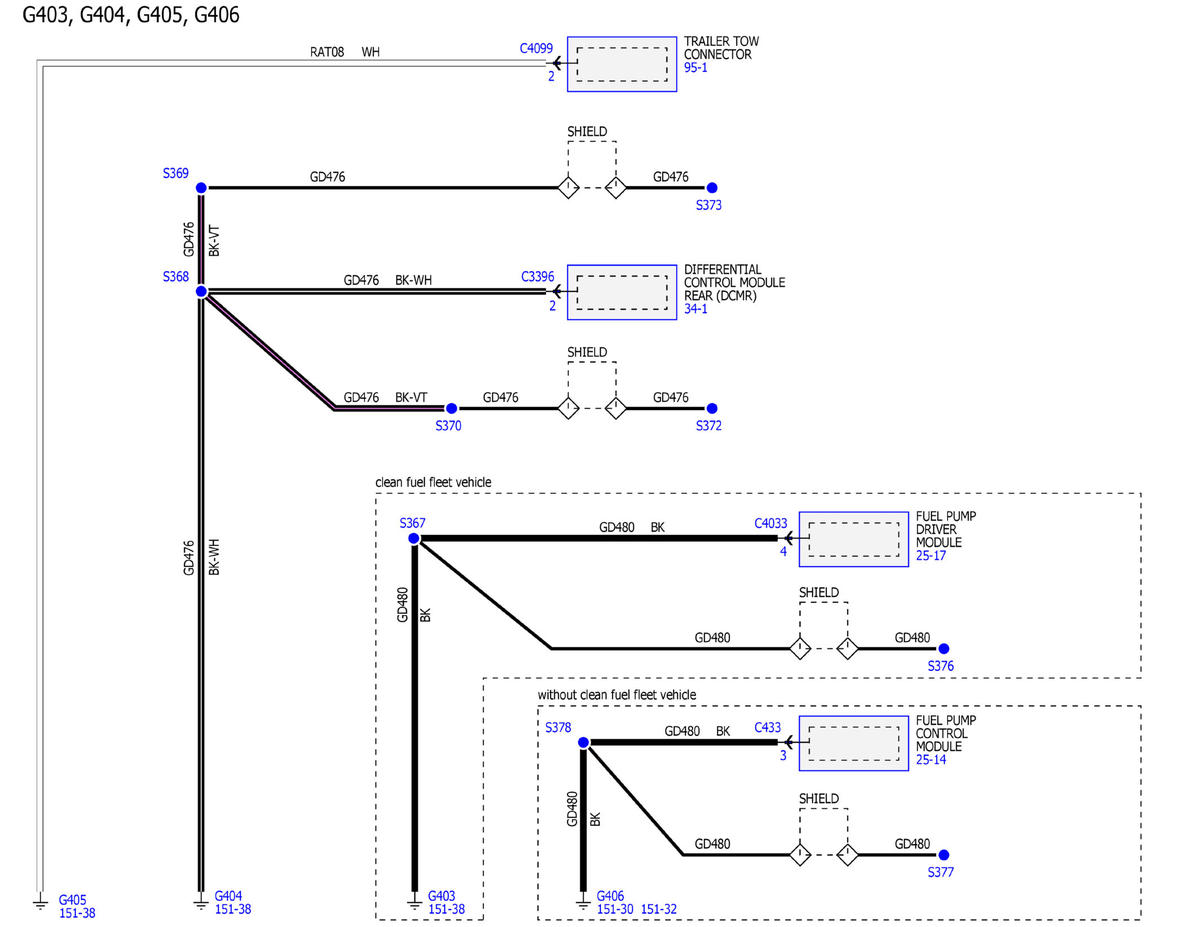

GFDWR13696Courtesy of FORD MOTOR COMPANY

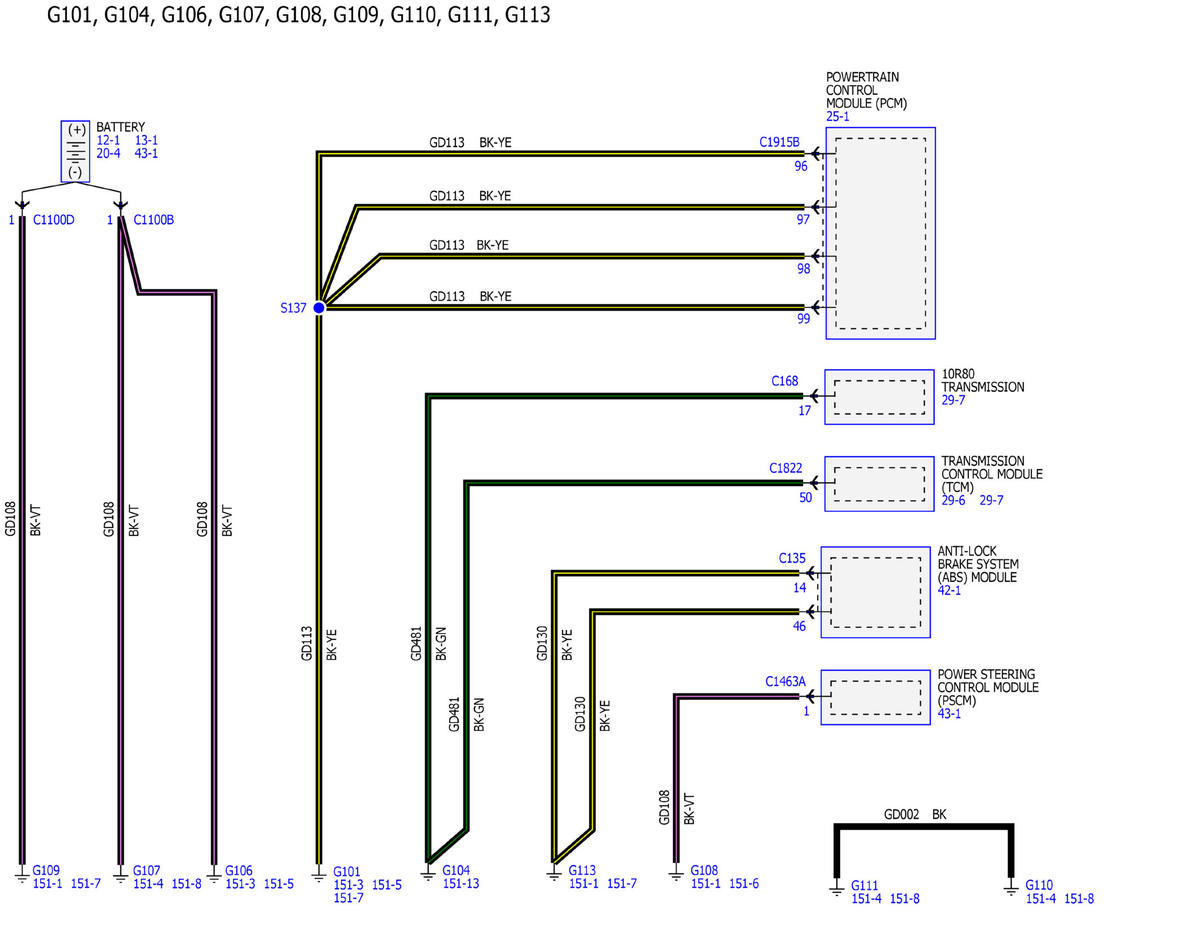

GFDWR13697Courtesy of FORD MOTOR COMPANY

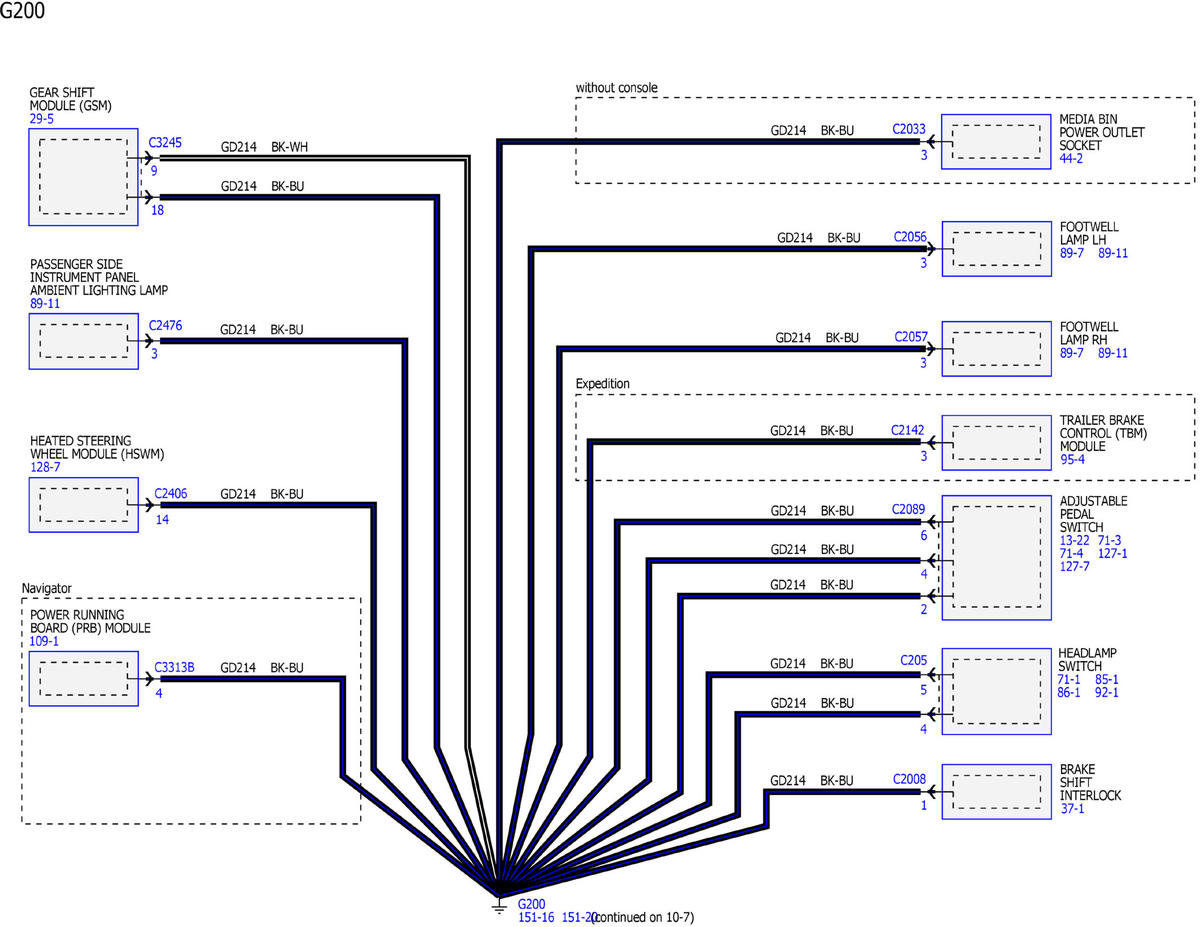

GFDWR13698Courtesy of FORD MOTOR COMPANY

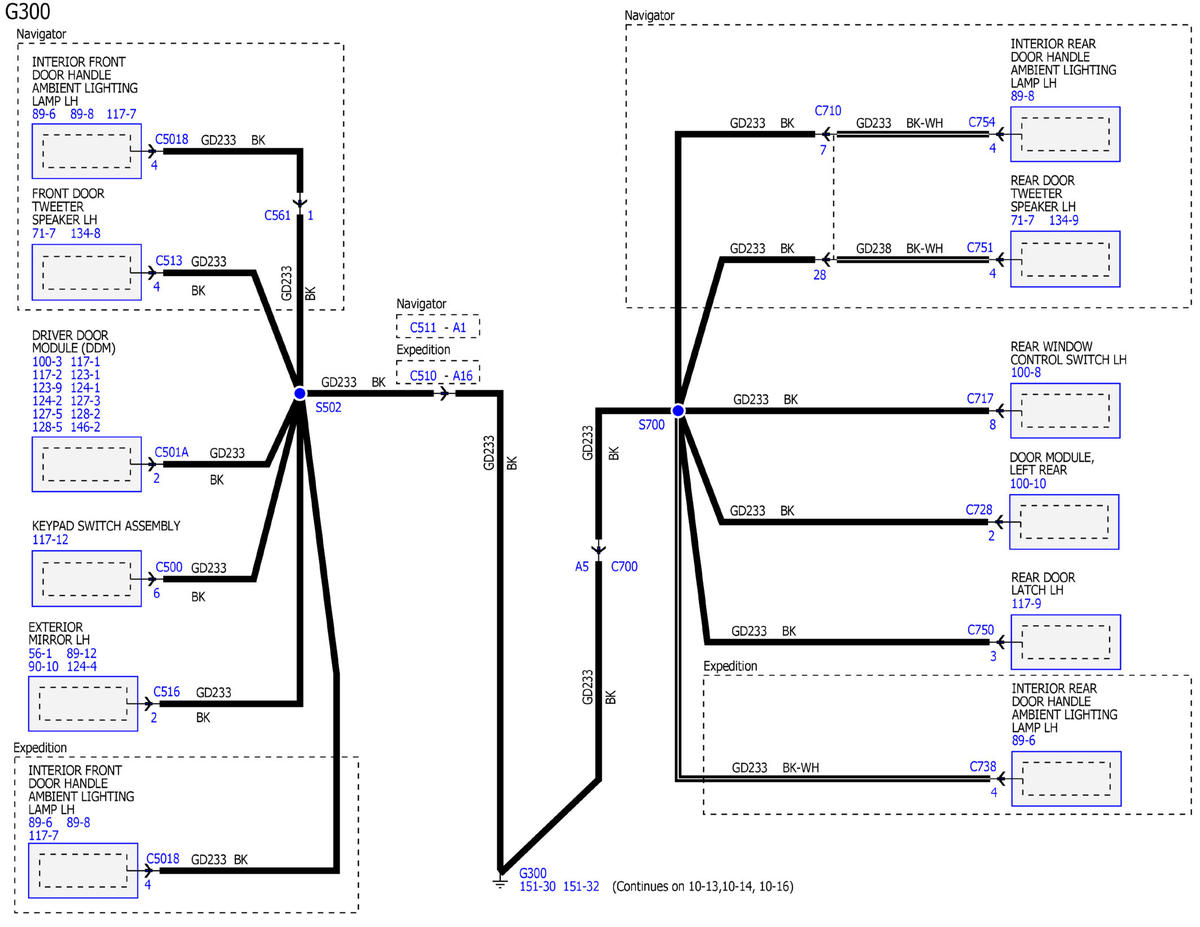

GFDWR13699Courtesy of FORD MOTOR COMPANY

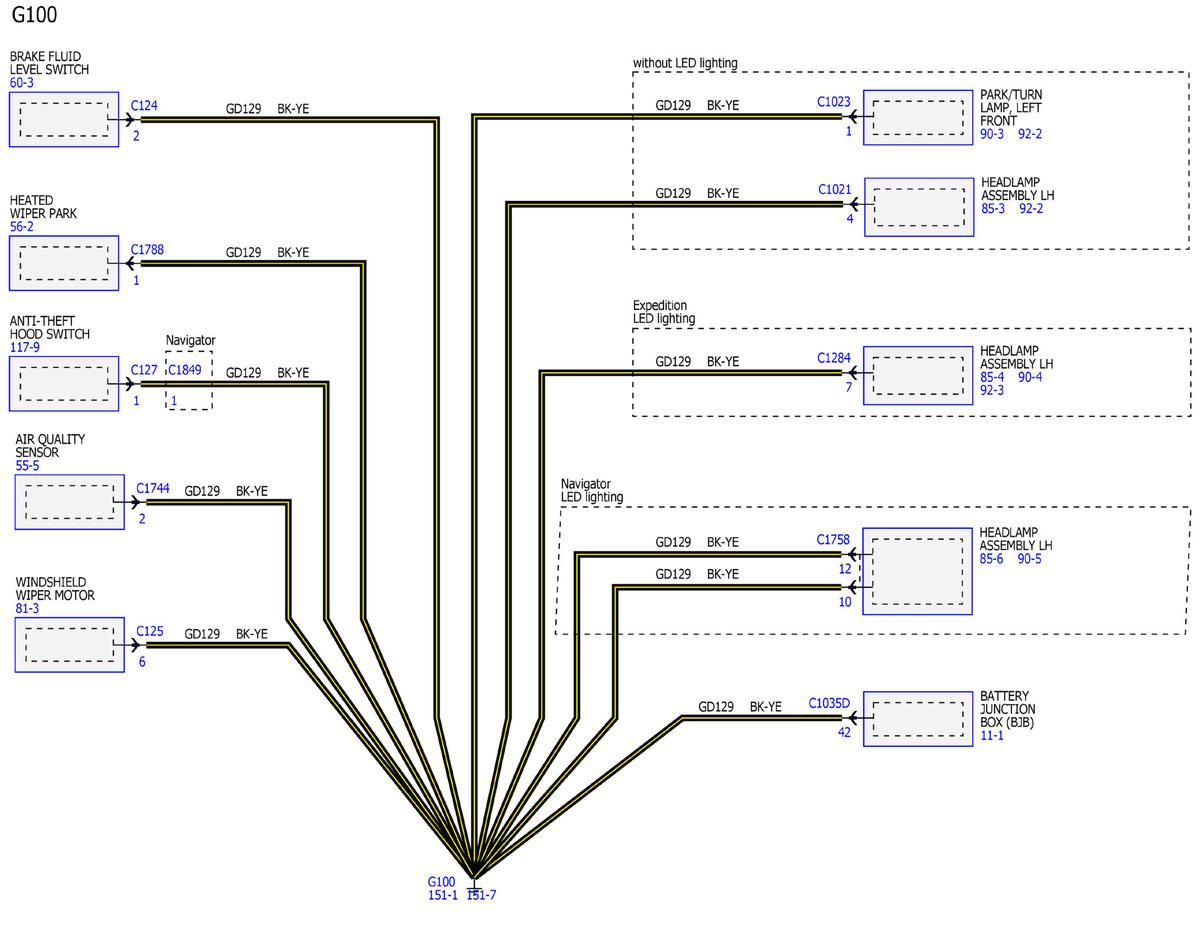

GFDWR13700Courtesy of FORD MOTOR COMPANY

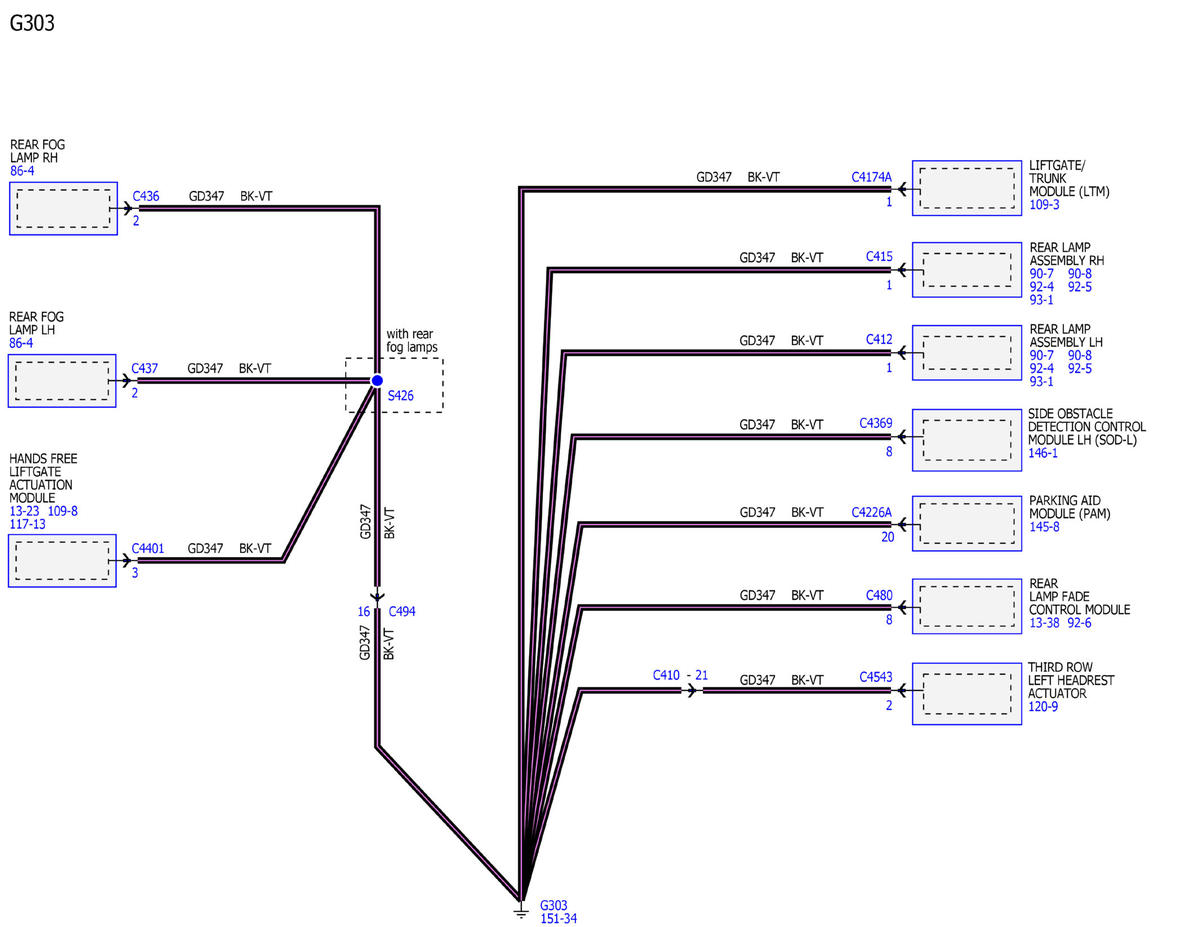

GFDWR13701Courtesy of FORD MOTOR COMPANY

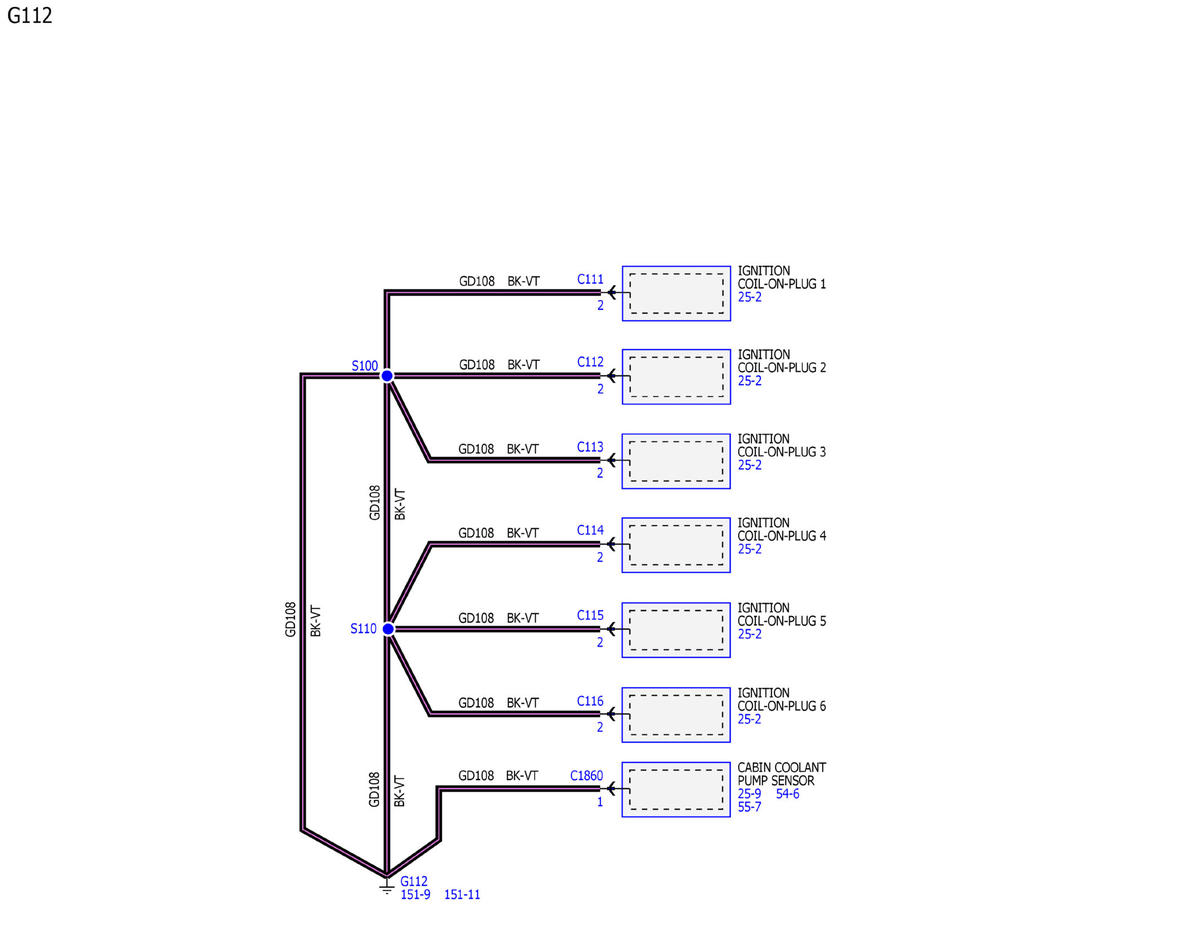

GFDWR13702Courtesy of FORD MOTOR COMPANY

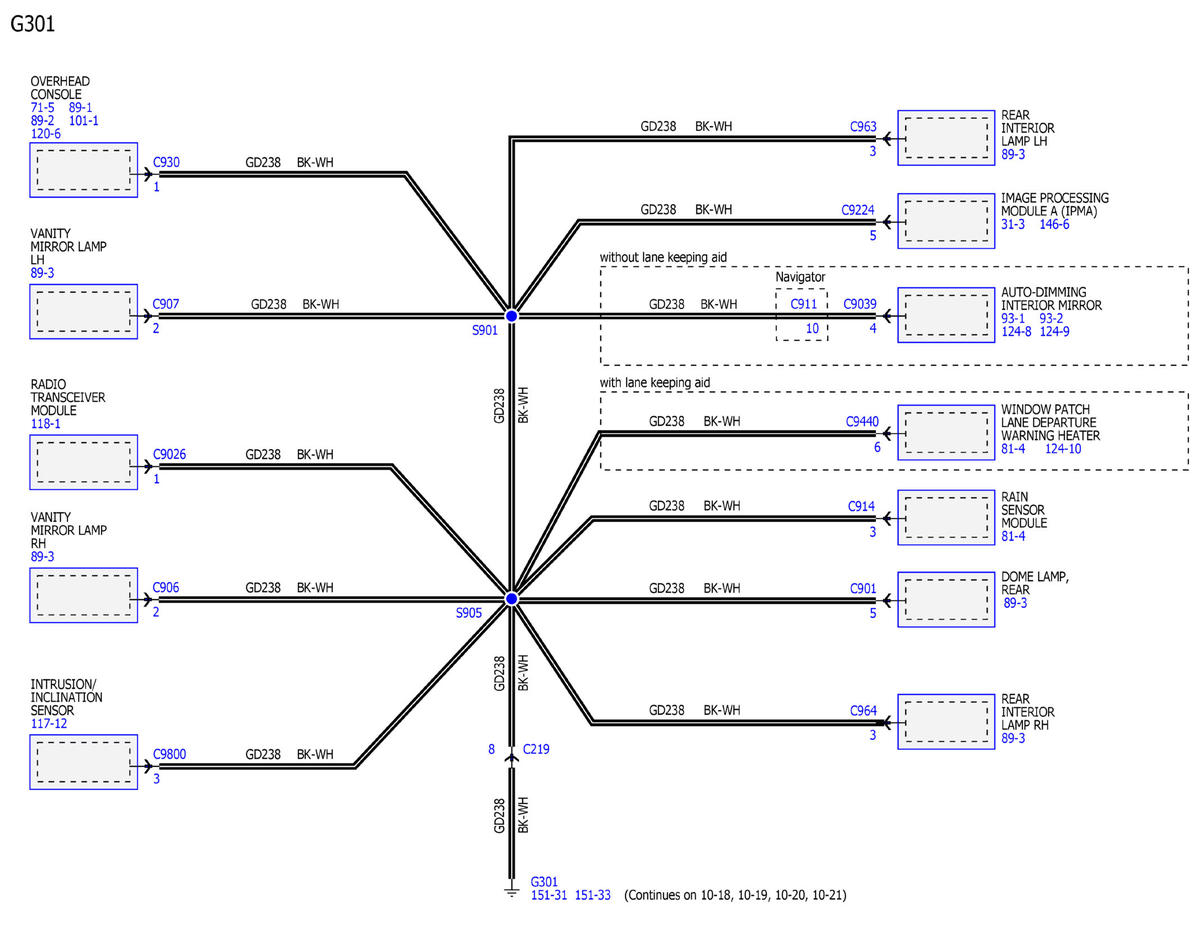

GFDWR13703Courtesy of FORD MOTOR COMPANY

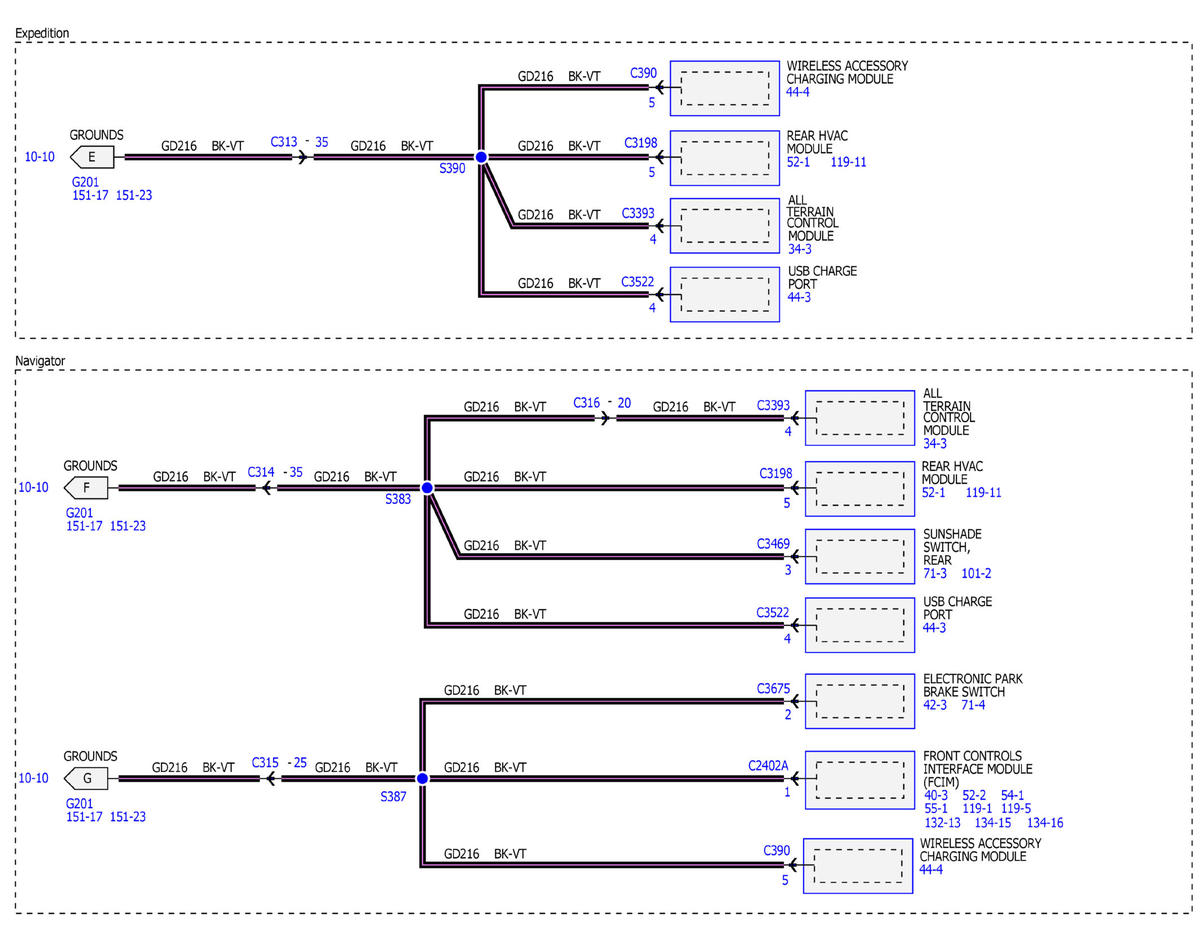

GFDWR13704Courtesy of FORD MOTOR COMPANY

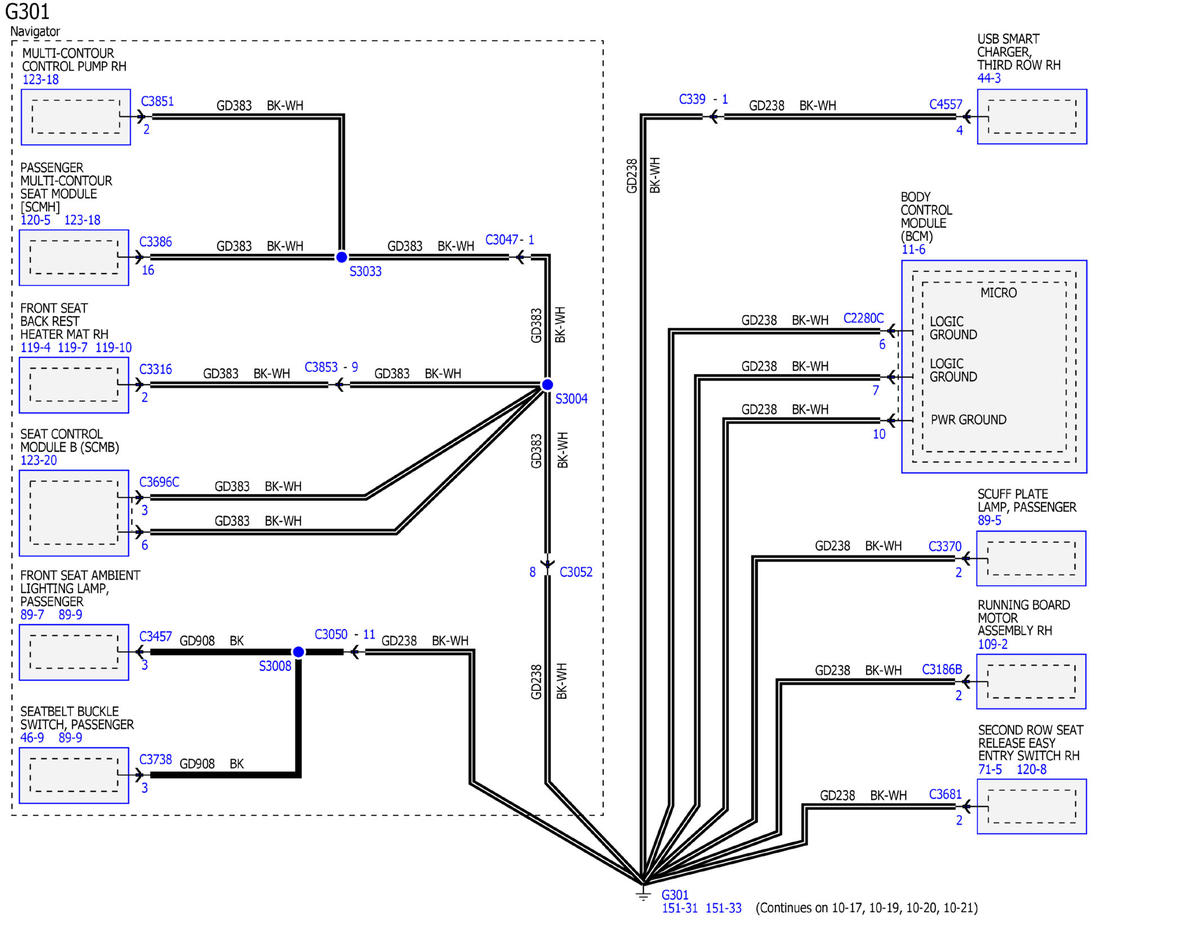

GFDWR13705Courtesy of FORD MOTOR COMPANY

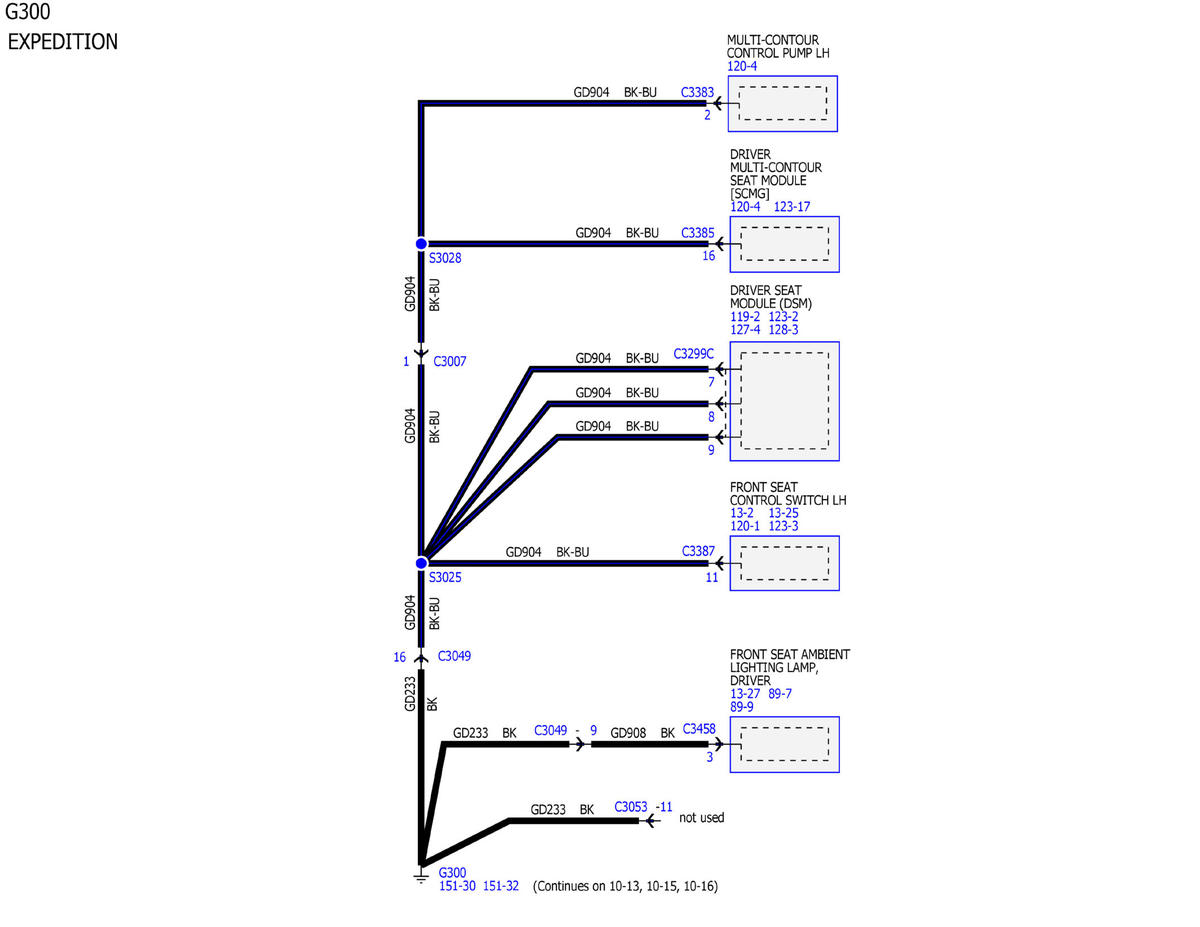

GFDWR13706Courtesy of FORD MOTOR COMPANY

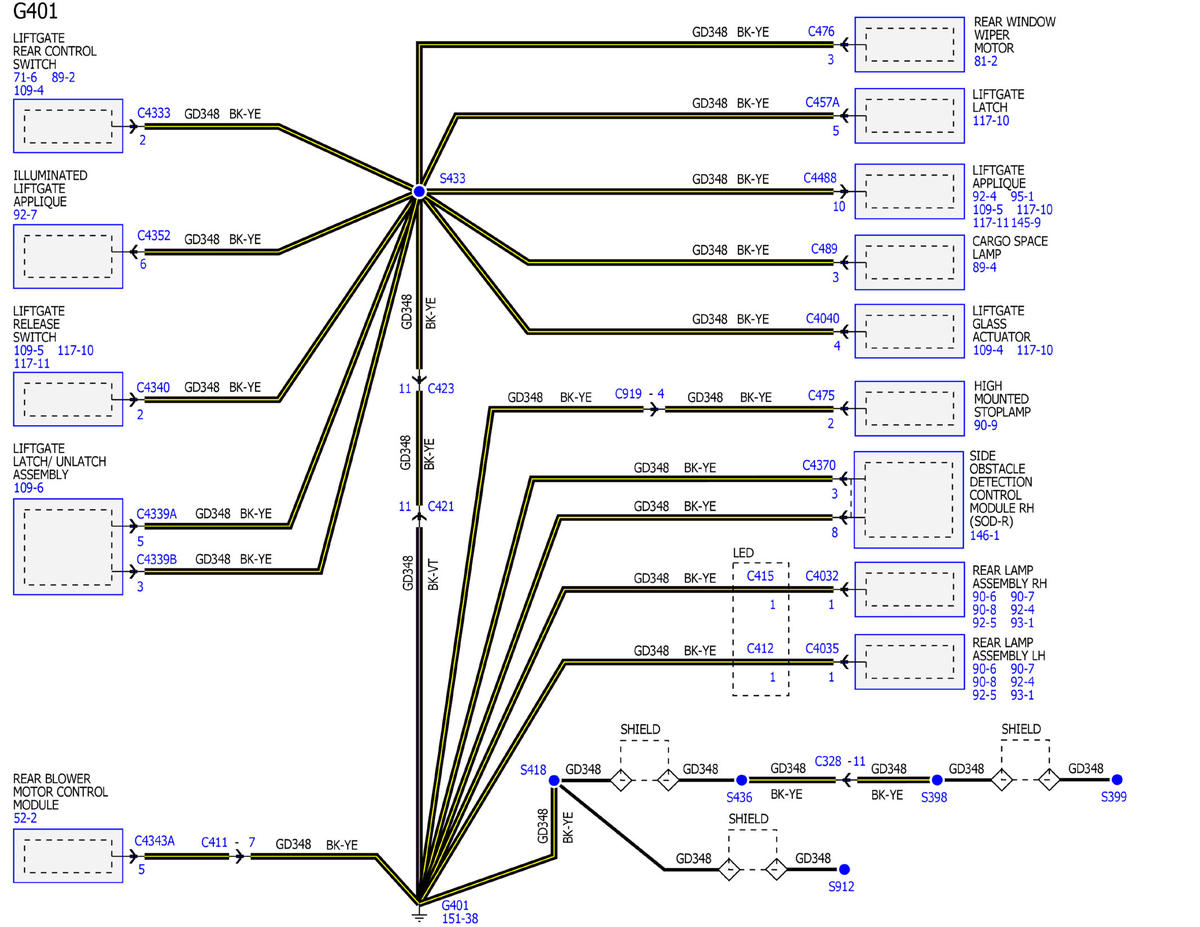

GFDWR13707Courtesy of FORD MOTOR COMPANY

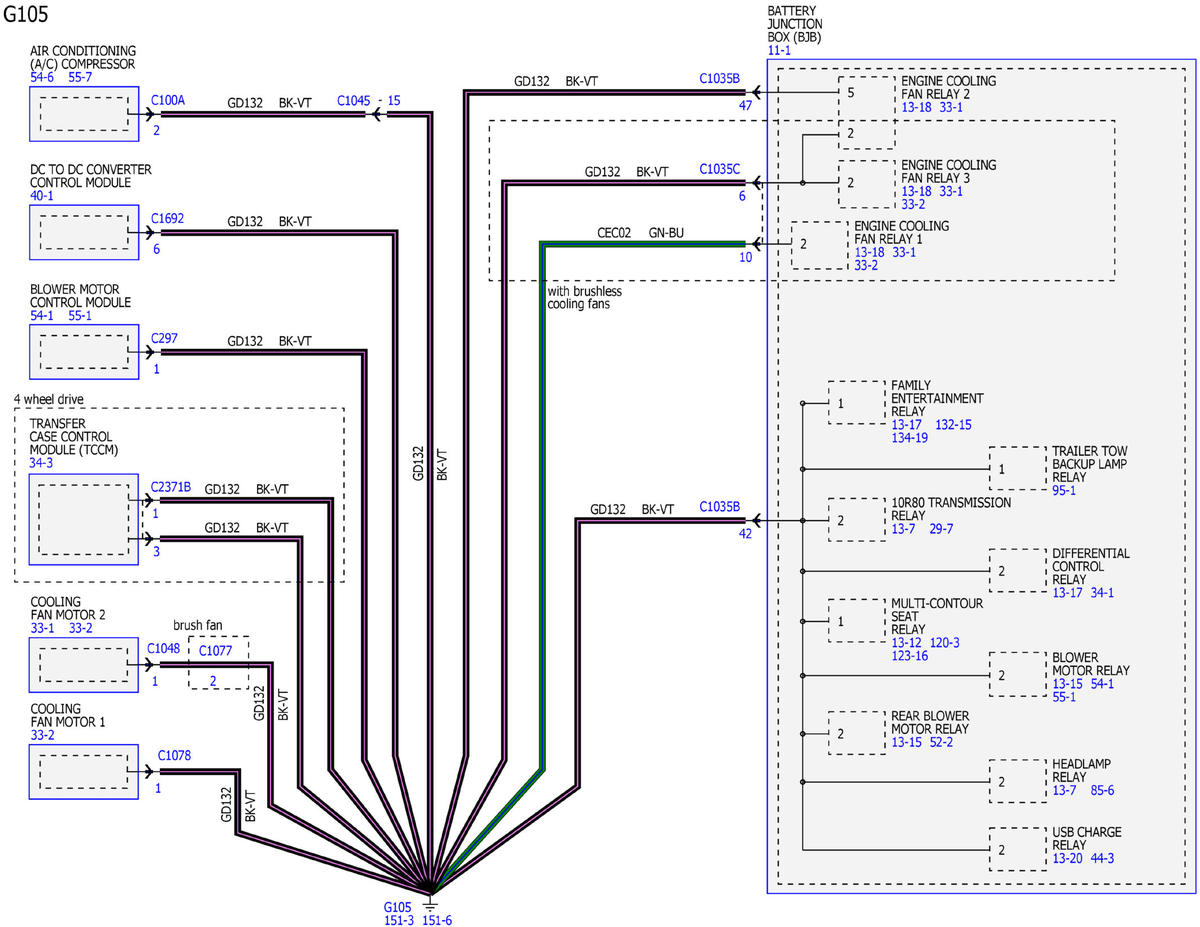

GFDWR13708Courtesy of FORD MOTOR COMPANY

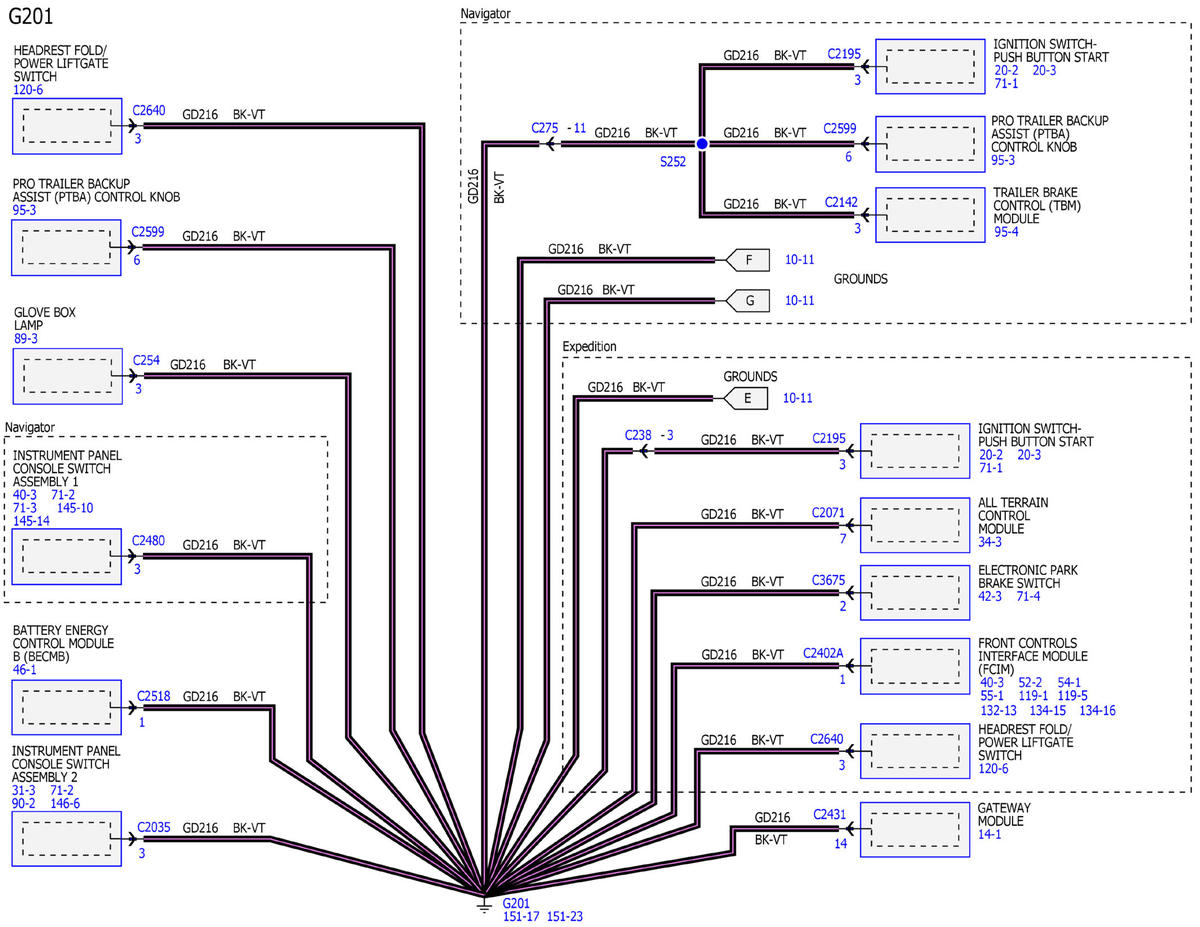

GFDWR13709Courtesy of FORD MOTOR COMPANY
