Cylinder Head: Assembly
-
NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.
Using the Valve Stem Oil Seal Installer, install a new valve stem seal.
- Install the valve.

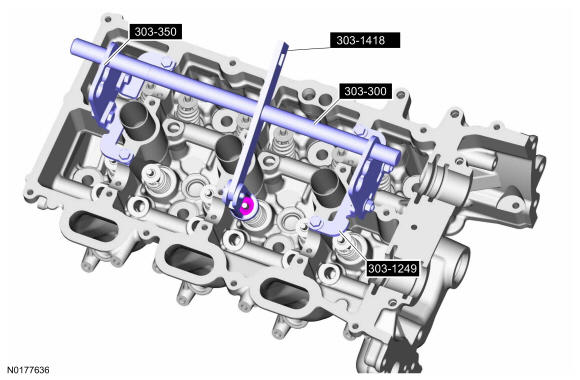

- Using the Valve Spring Compressors, install the valve spring, retainer and key.
- Repeat the above steps for each valve.
- Install the timing chain guide pin and/or timing chain tensioner arm pin and tighten in 2 stages.
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten an additional 60 degrees.
- Install the turbocharger oil supply quick connect fitting.
- Tighten to 16 Nm (142 lb-in).
- If equipped, install a new CHT sensor.
- Tighten to 10 Nm (89 lb-in).
