Roof Panel: Notes
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
General Equipment
| 3 Phase Inverter Spot Welder 254-00002 |
| Compuspot 700F Welder 190-50080 |
| I4 Inverter Spot Welder 254-00014 |
| Inverter Welder with MIG Welder 254-00015 |
Material
| Item | Specification |
| Motorcraft® Metal Bonding AdhesiveTA-1 | -- |
| Motorcraft® Seam SealerTA-2 | -- |

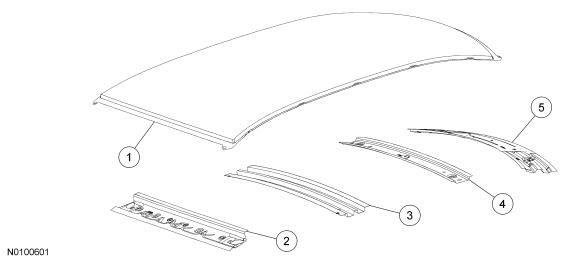

Roof Panel -- Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 50202 | Roof panel -- mild steel |
| 2 | 03408 | Windshield header -- High-Strength Low Alloy(HSLA) 350 steel |
| 3 | 51269A | Roof bow -- HSLA 550 steel |
| 4 | 51269B | Intermediate roof bow -- mild steel |
| 5 | 42220 | Back window frame -- mild steel |
