Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Vehicle without police package shown, vehicle with police package similar.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.
Remove the clockspring. Refer to: Clockspring .
Remove the steering column shrouds. Refer to: Steering Column Shrouds .

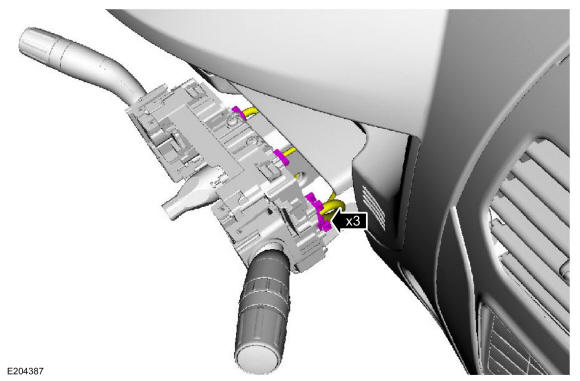

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

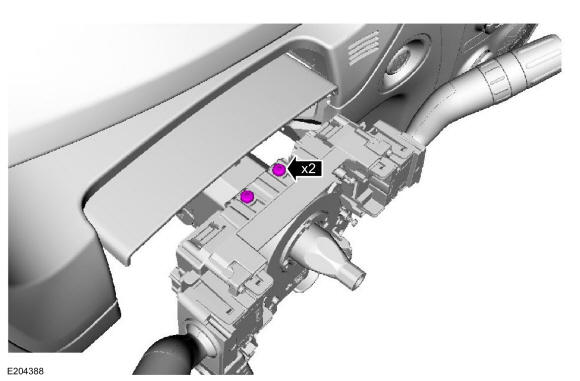

Remove the SCCM screws.

Courtesy of FORD MOTOR COMPANY

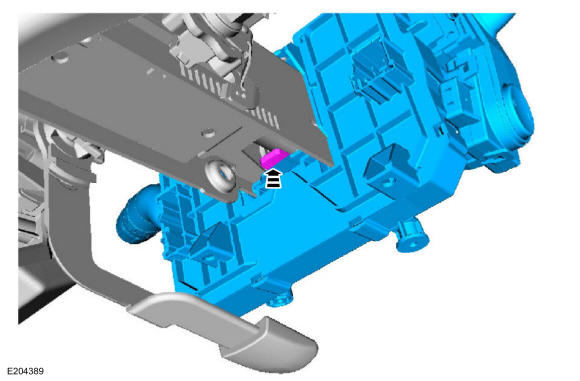

Release the tab and remove the SCCM.

Courtesy of FORD MOTOR COMPANY
