Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the fender splash shield. Refer to: Fender Splash Shield .

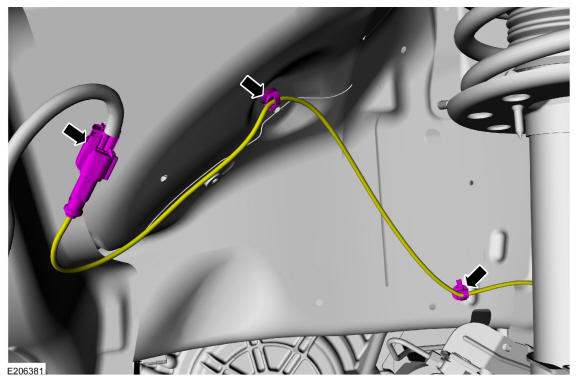

- Disconnect the electrical connector and detach the wiring retainers.
-

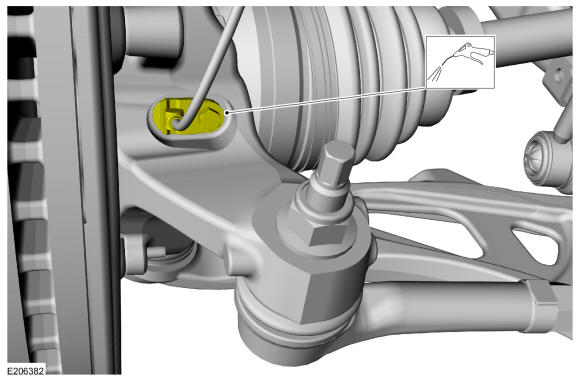

NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.
Using compressed air, clean the sensor housing area.

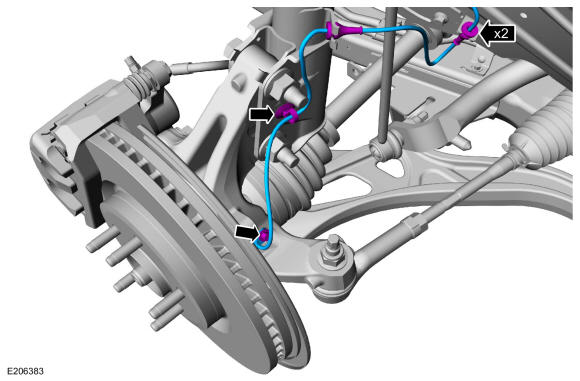

- Detach the wiring retainers, remove the bolt and the front wheel speed sensor.
Torque: 80 lb.in (9 Nm)
