Overhead Console: Removal

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

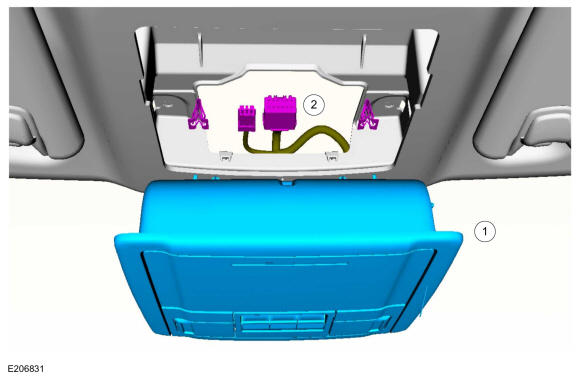

    1. Release the clips and lower the overhead console.
    2. Disconnect the electrical connectors.
GFD336131Courtesy of FORD MOTOR COMPANY
