Heated Second Row Seat Module: Removal
WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Second row single seat shown, second row double seat similar.
NOTE:
Removal steps in this procedure may contain installation details.

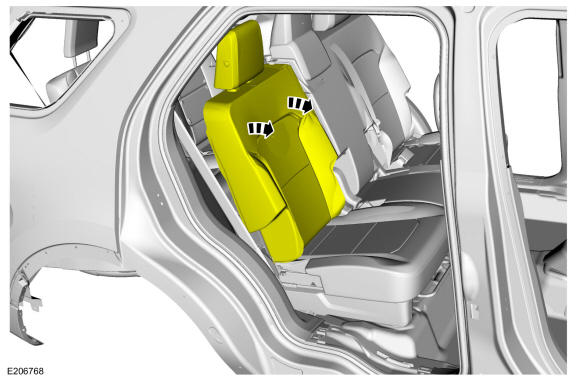

- Place the backrest in the fold flat position.

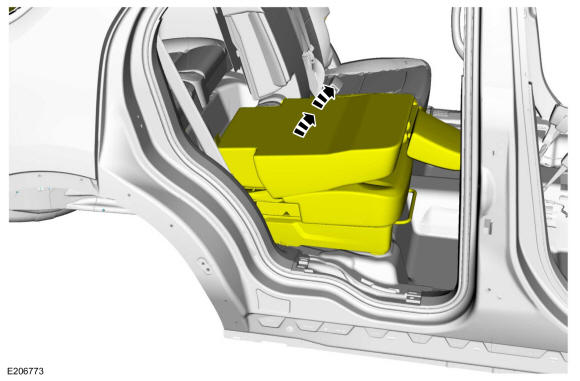

- Place the seat in the easy entry position.

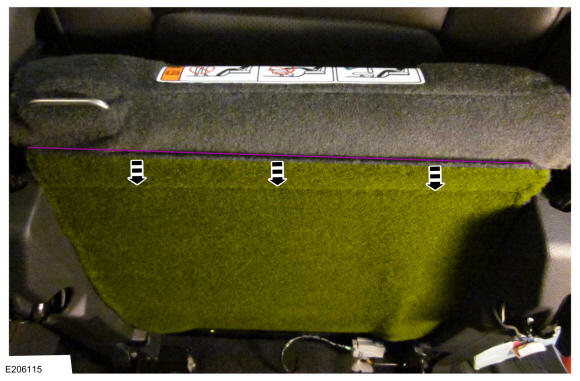

- Release the seat cushion cover J-clip.

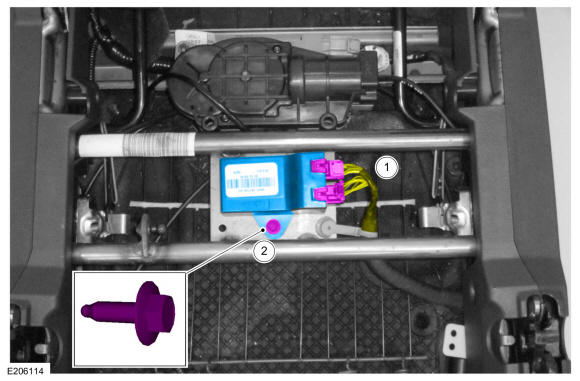

- Remove the heated seat module.
- Disconnect the electrical connectors.
- Remove the fastener.
Torque: 89 lb.in (10 Nm)
