Windshield Washer Fluid Level Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- Siphon the windshield washer fluid out.

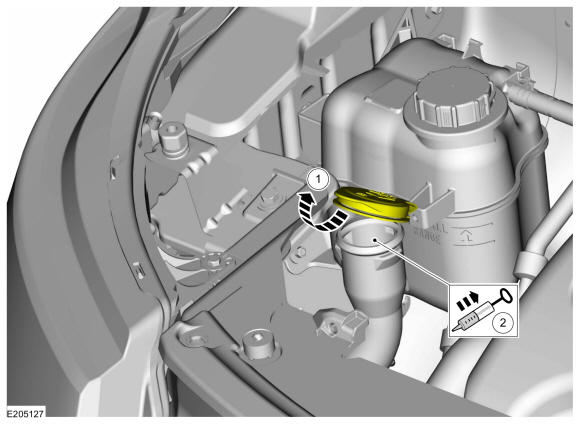

- Open the windshield washer fluid container cap.
- Siphon the windshield washer fluid out. Use the General Equipment: Fluid Suction Gun. Use the General Equipment: Fluid Container
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

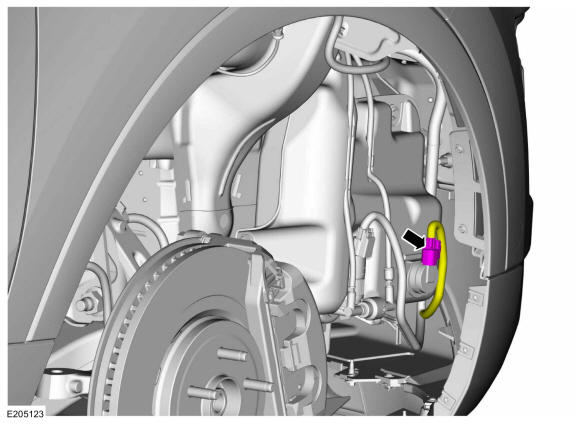

- Disconnect the windshield washer fluid level sensor electrical connector.
-
NOTE: Be prepared to collect escaping fluid.

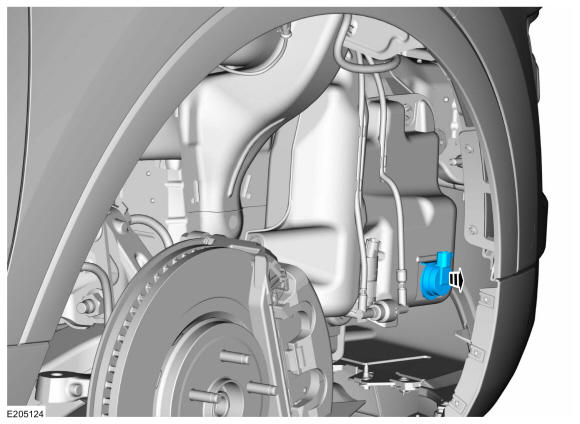

Remove the windshield washer fluid level sensor. Use the General Equipment: Fluid Container
