Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

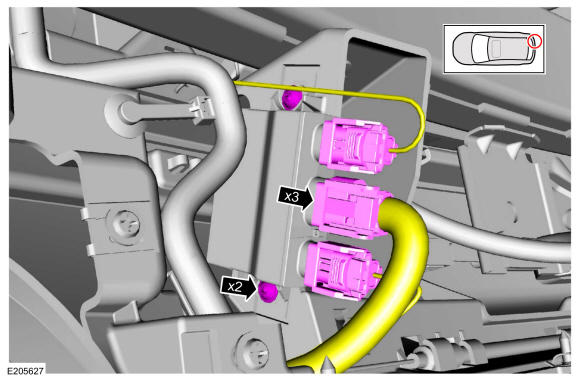

  1. Disconnect the hands-free liftgate actuation module electrical connectors and remove the screws.

    Torque: 19 lb.in (2.2 Nm)

    GFD335383Courtesy of FORD MOTOR COMPANY

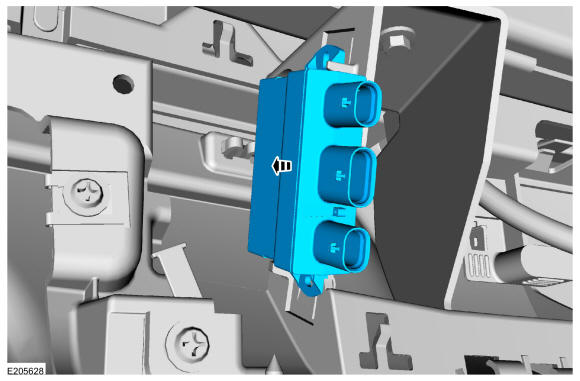

  2. Remove the hands-free liftgate actuation module.
GFD335384Courtesy of FORD MOTOR COMPANY
