Rear Door Alignment
WARNING: This page is about a different car, the 2018 Ford Police Interceptor Utility and 2018 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.

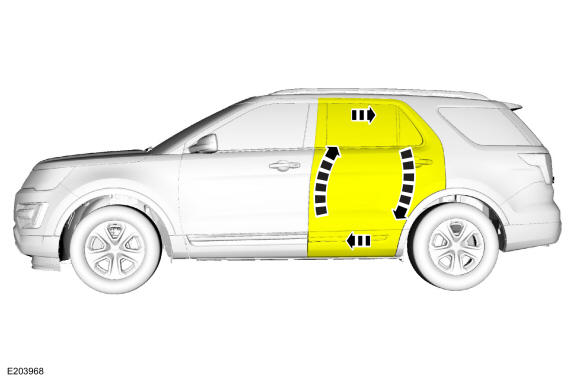

- Inspect the rear door-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments

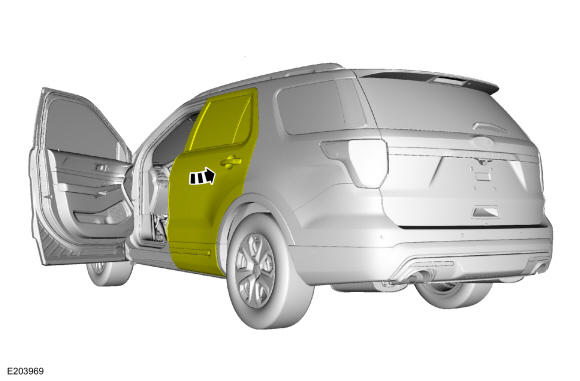

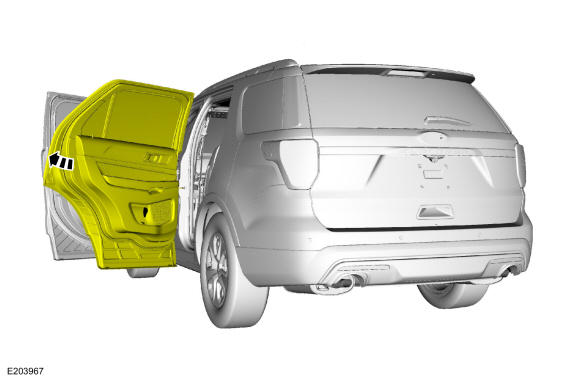

- Open the rear door.

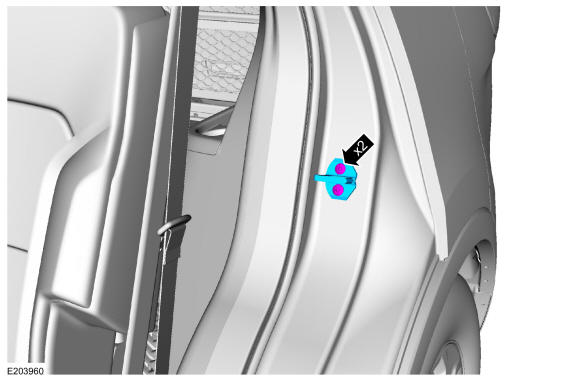

- Remove the bolts and the striker assembly.
Torque: 17 lb.ft (22.5 Nm)
Rear door in and out, up and down alignment

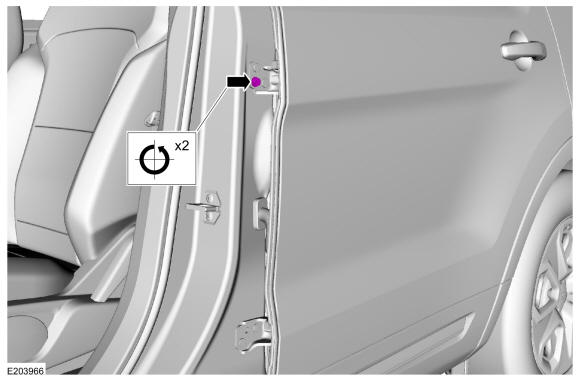

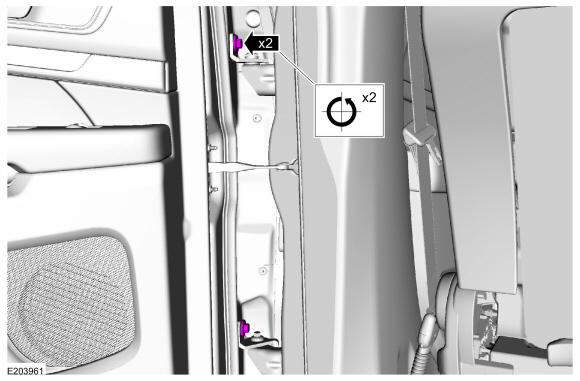

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door to specification. Refer to: Body and Frame
.

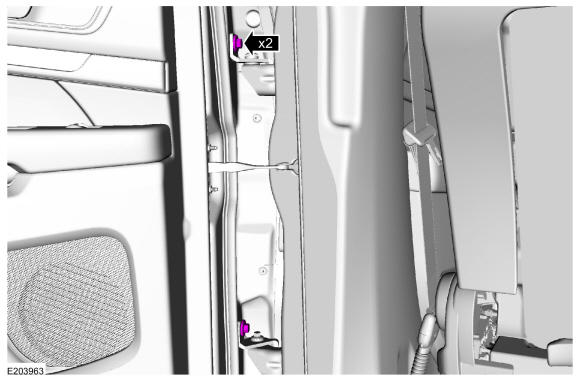

- Tighten the bolts.
Torque: 41 lb.ft (55 Nm)

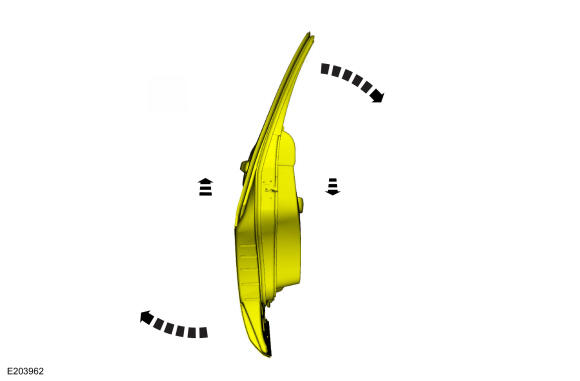

Rear door fore, aft and tilt alignment
- Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
-

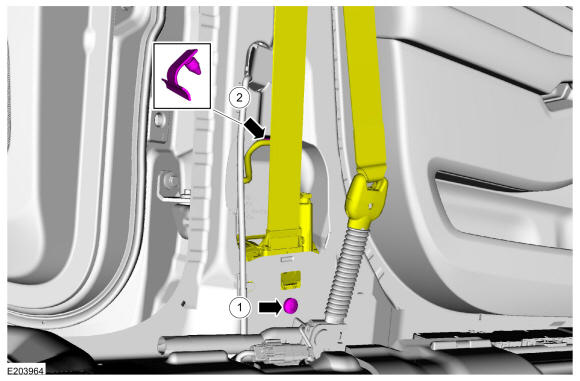

NOTE: This step applies to the LH door only.
Position aside the LH safety belt retractor.
- Remove the screw.
Torque: 30 lb.ft (40 Nm)
- Detach the electrical wiring retainer and position aside the LH safety belt retractor.
- Remove the screw.
-

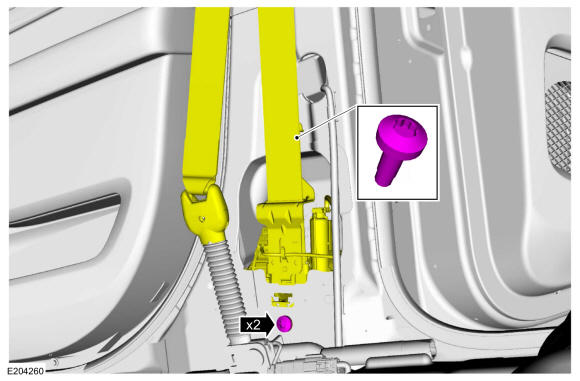

NOTE: This step applies to the RH door only.
Remove the screws and position aside the RH safety belt retractor.
Torque: 30 lb.ft (40 Nm)

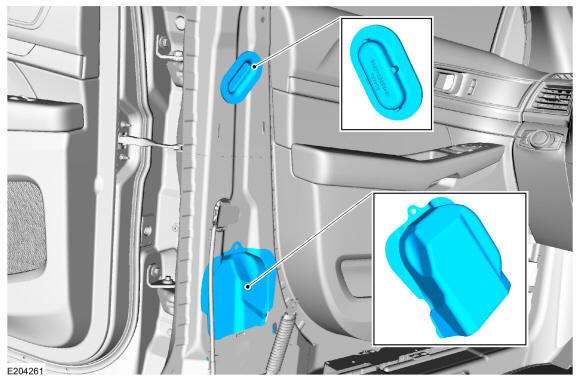

- Remove the body opening foam covers to access the door hinge nuts.

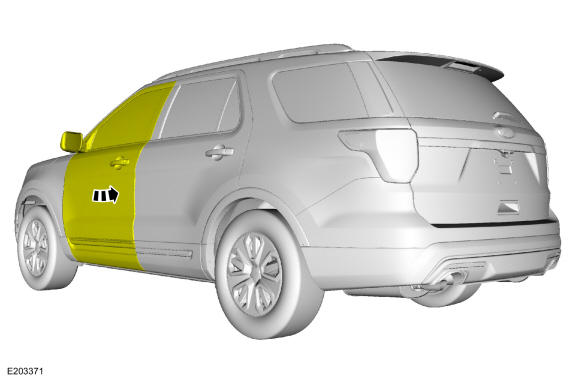

- Open the front door.

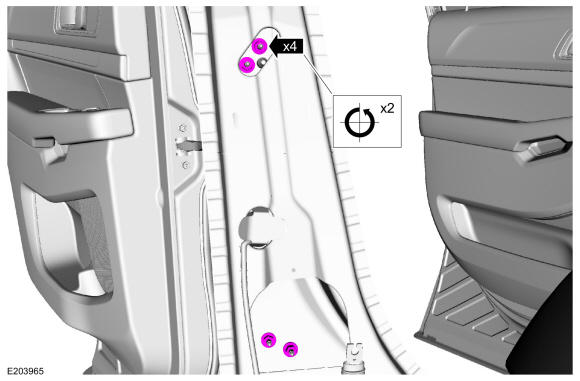

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)

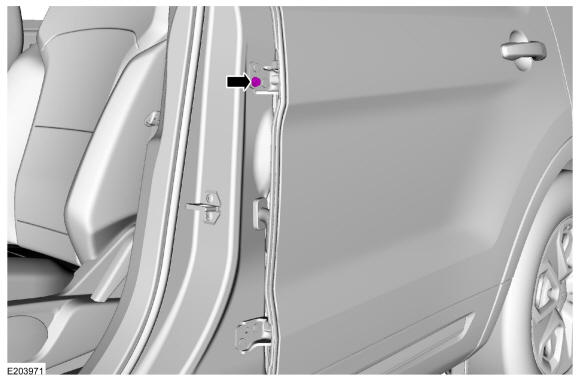

- Loosen the bolt to permit movement of the door. Loosen: : 2 turn(s)

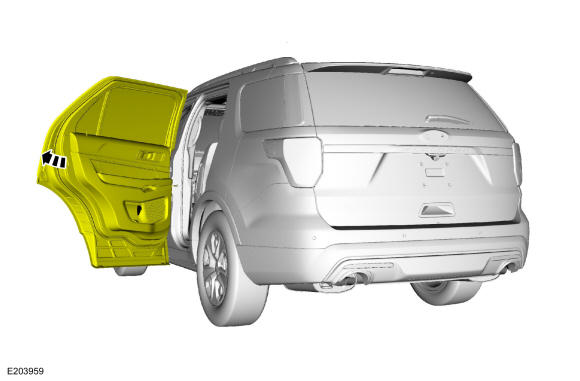

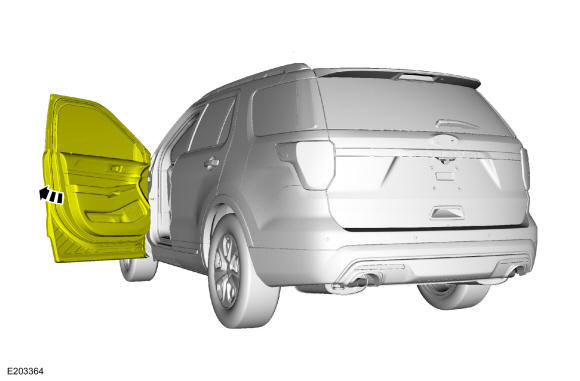

- Carefully close the rear door.
- Carefully close the front door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Carefully open the front door.
- Carefully open the rear door.

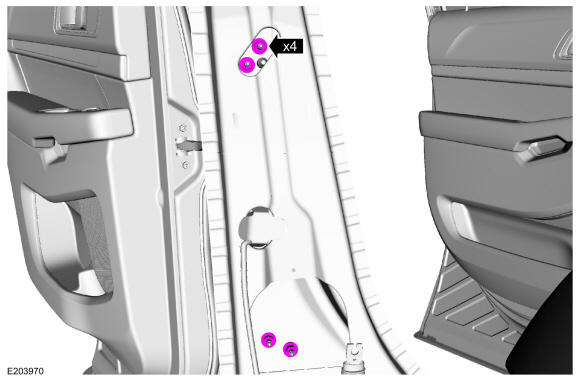

- Tighten the nuts.
Torque: 22 lb.ft (30 Nm)
- Tighten the bolt.
Torque: 89 lb.in (10 Nm)
- Install the foam covers.
-
NOTE: This step applies to the LH door only.
Position the LH safety belt retractor.
- Position the LH safety belt retractor and install the screw.
Torque: 30 lb.ft (40 Nm)
- Install the electrical wiring retainer.
- Position the LH safety belt retractor and install the screw.
-
NOTE: This step applies to the RH door only.
Position the RH safety belt retractor and install the screws.
Torque: 30 lb.ft (40 Nm)
- Install the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
- Repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
- Check the active restraint system for correct operation. Refer to: Seatbelt Systems
.
All alignments
- Install the striker assembly.
Torque: 18 lb.ft (25 Nm)

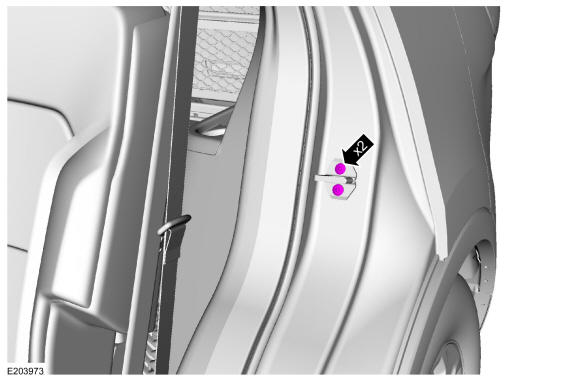

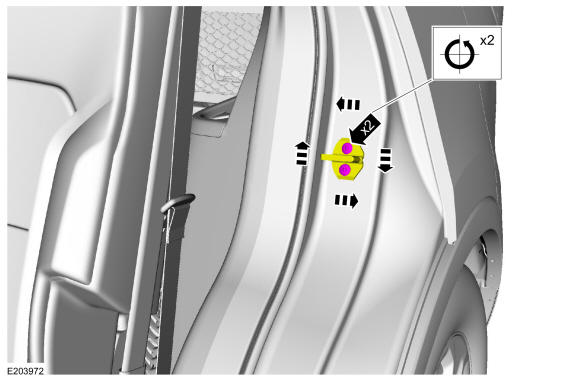

- Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)
- Tighten the bolts.
Torque: 18 lb.ft (25 Nm)

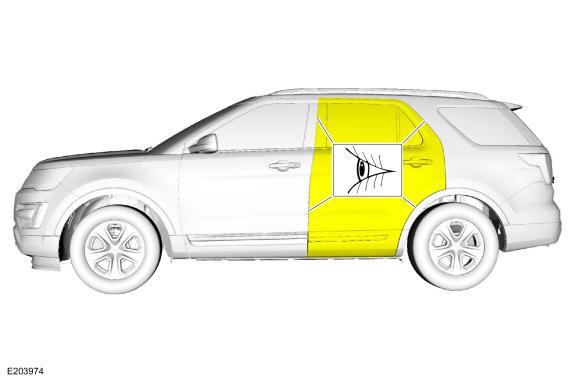

- Inspect the body-to-rear door dimensions. Refer to: Body and Frame .
