Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position the shifter in the S position.
    GFD288043Courtesy of FORD MOTOR COMPANY
  2. Starting from the front corners, carefully pry up the bezel and position it out of the way.
    GFD288033Courtesy of FORD MOTOR COMPANY
  3. Disconnect the electrical connector.
    GFD288034Courtesy of FORD MOTOR COMPANY
  4. Remove the screws and the shifter knob, boot and bezel as an assembly.
    GFD288044Courtesy of FORD MOTOR COMPANY

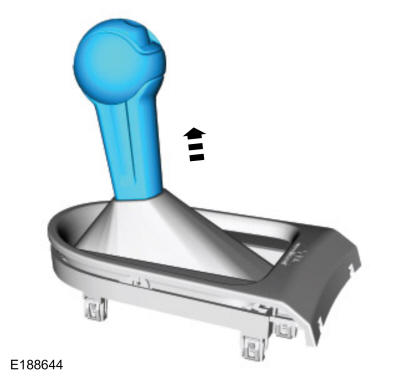

  5. Remove the shifter knob from the boot and bezel.
GFD288046Courtesy of FORD MOTOR COMPANY
