OEM Ground Distribution: Grounds

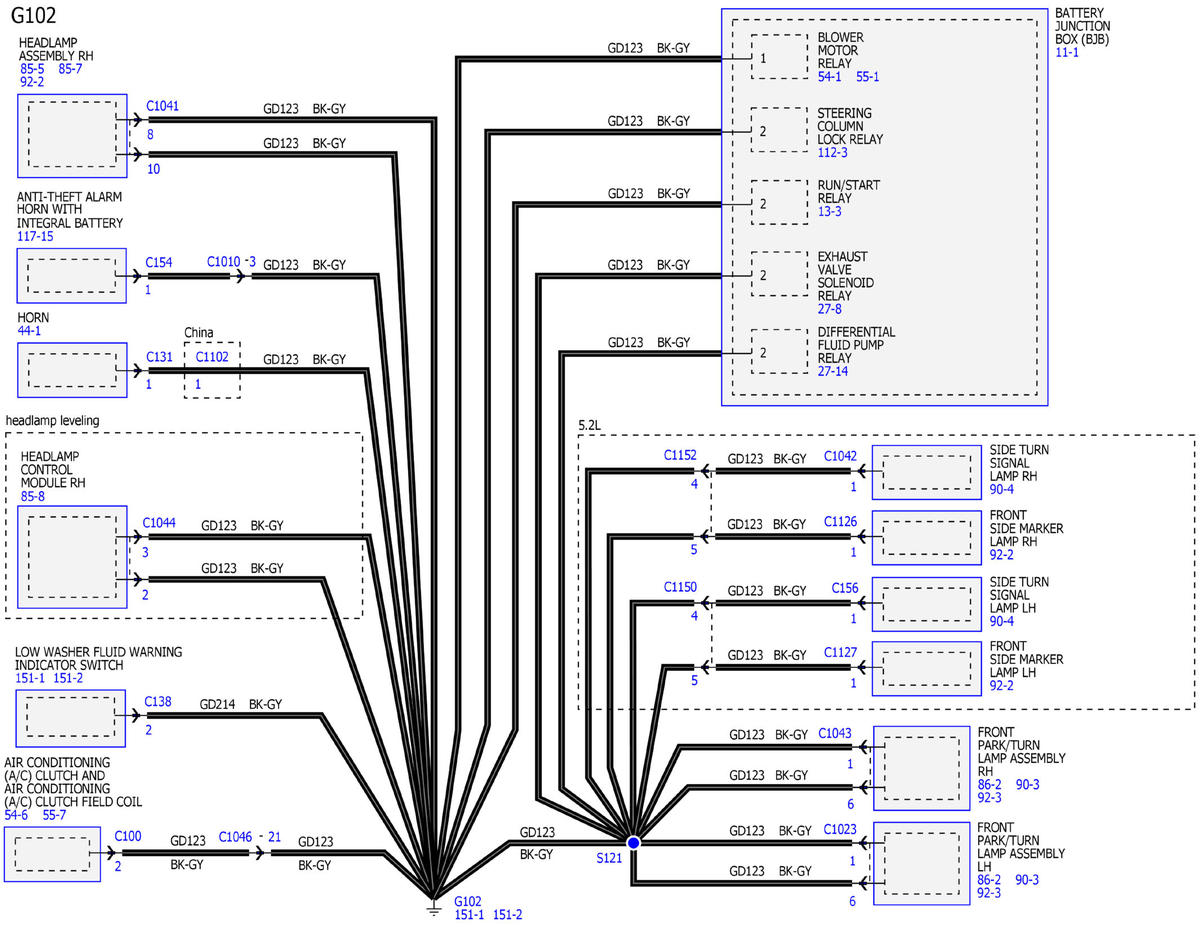

GFDWR10800Courtesy of FORD MOTOR COMPANY

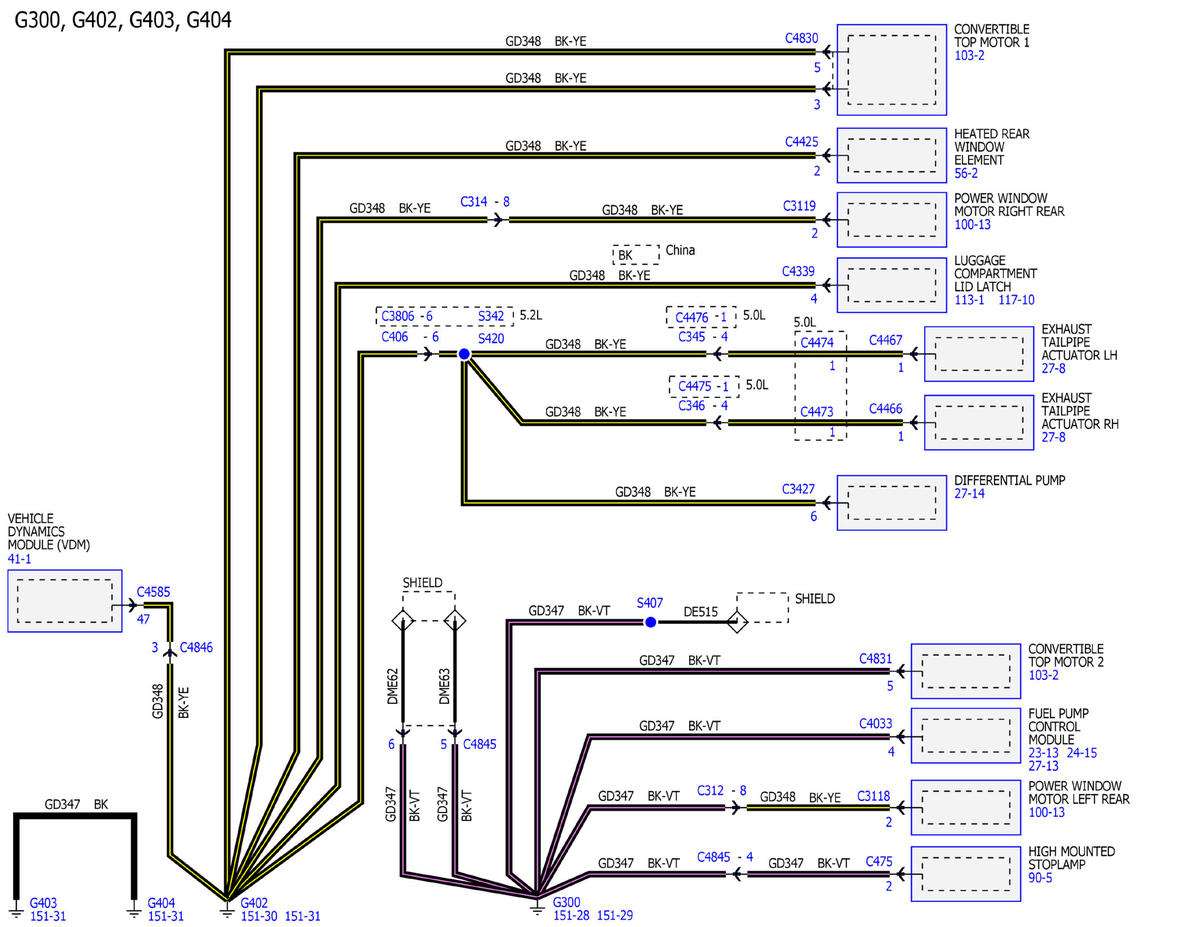

GFDWR10801Courtesy of FORD MOTOR COMPANY

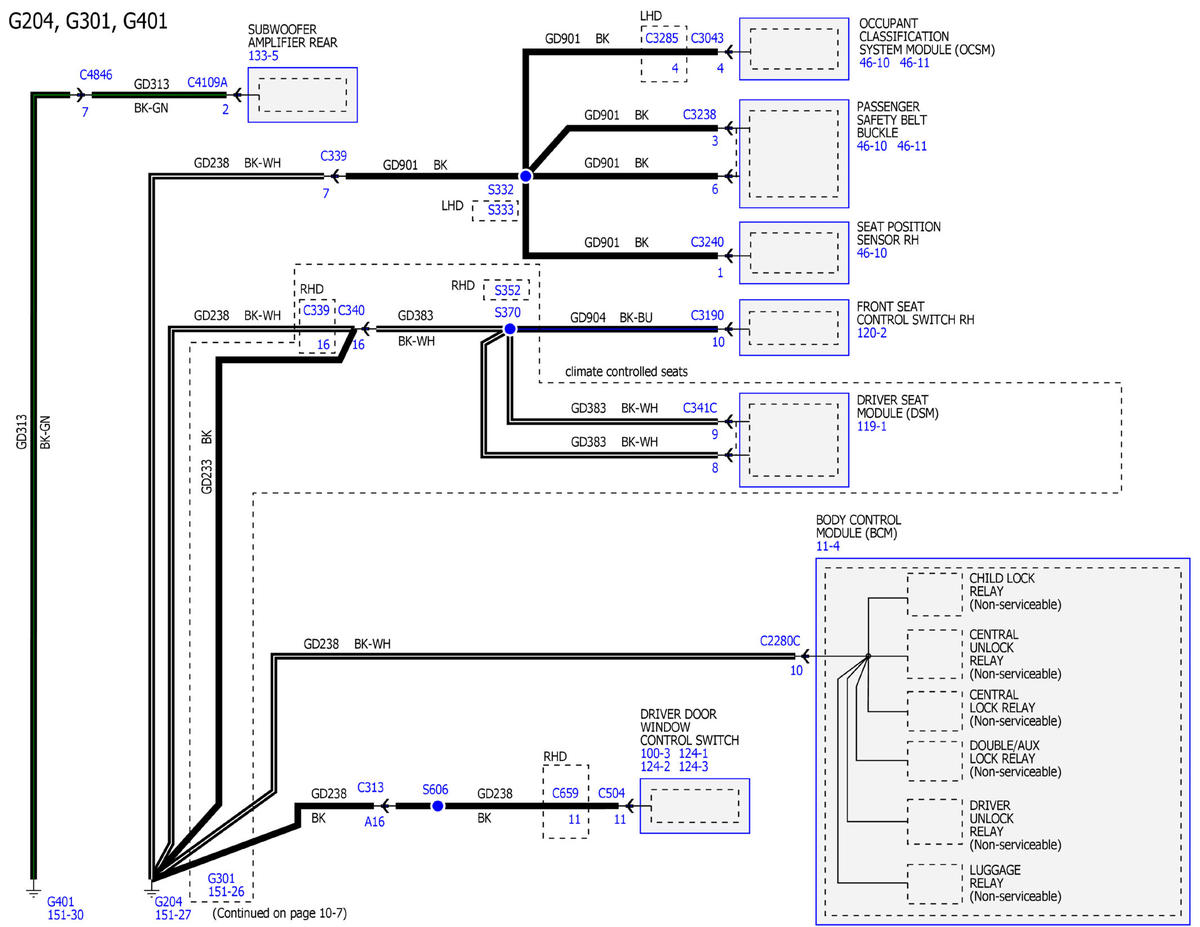

GFDWR10802Courtesy of FORD MOTOR COMPANY

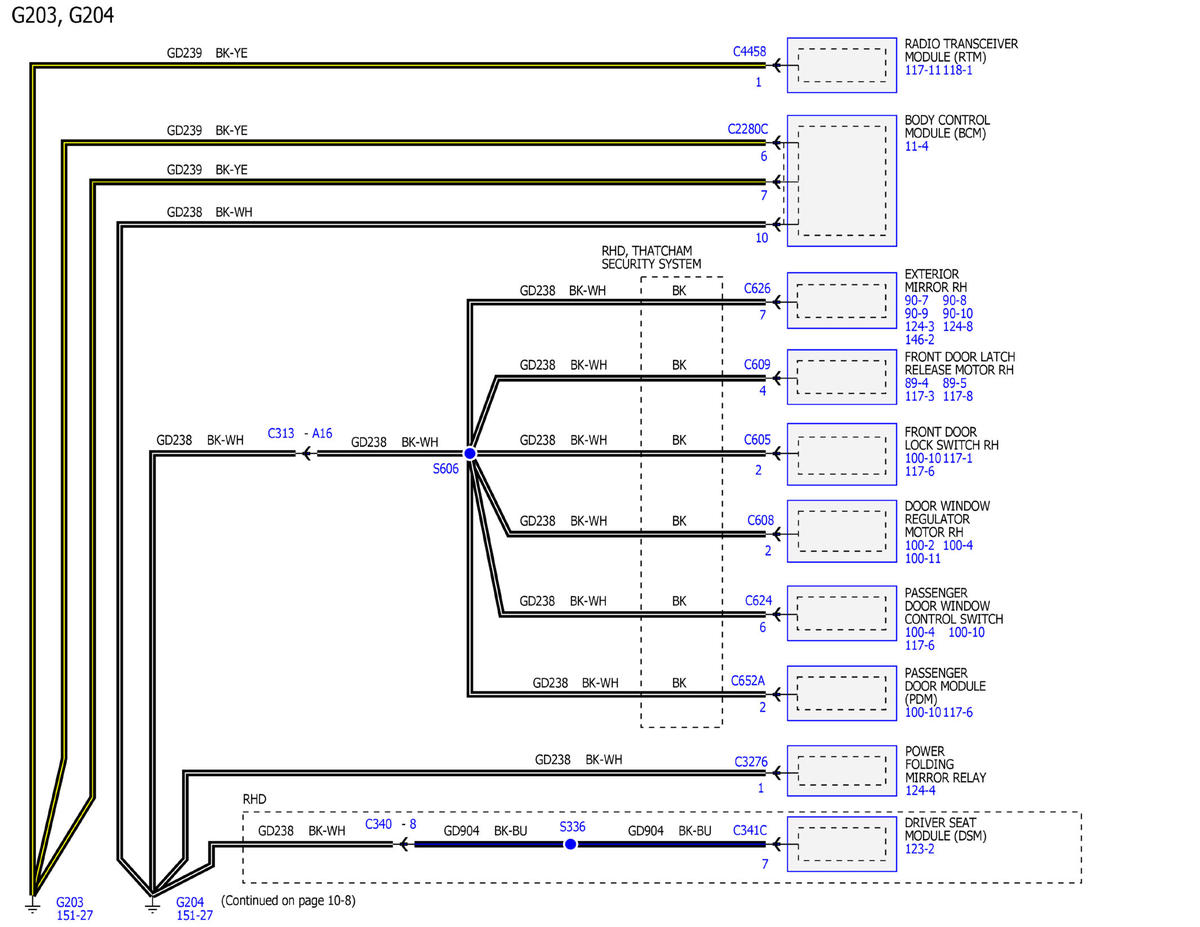

GFDWR10803Courtesy of FORD MOTOR COMPANY

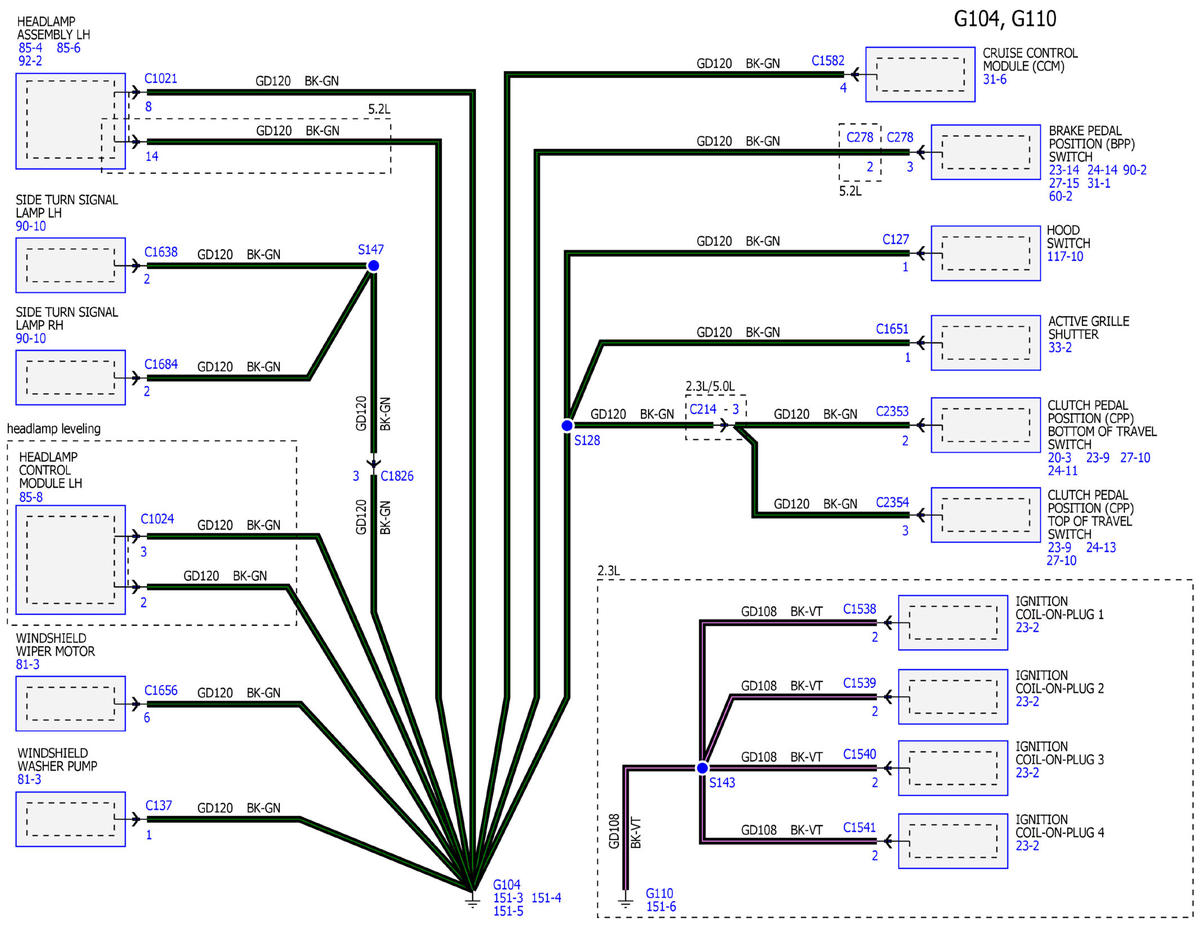

GFDWR10804Courtesy of FORD MOTOR COMPANY

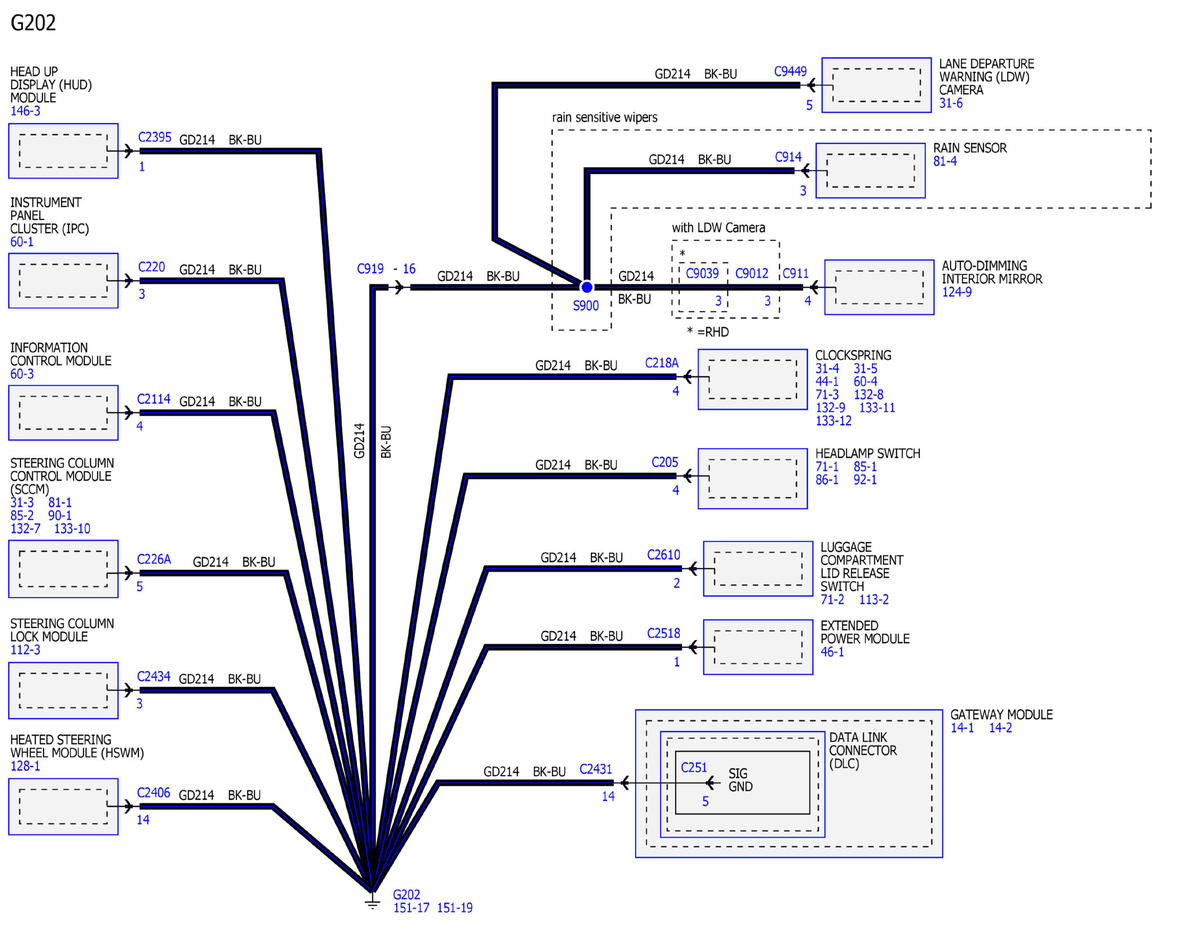

GFDWR10805Courtesy of FORD MOTOR COMPANY

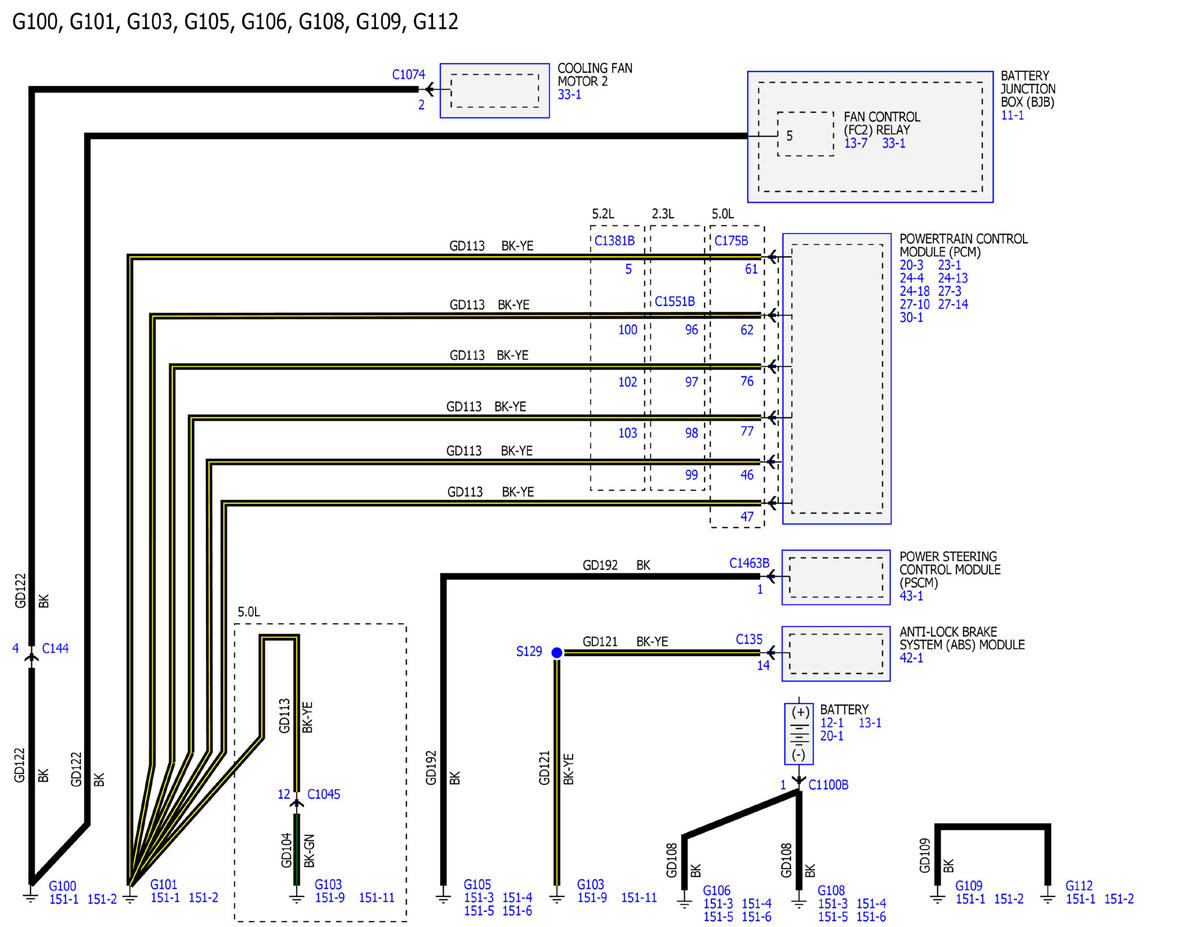

GFDWR10806Courtesy of FORD MOTOR COMPANY

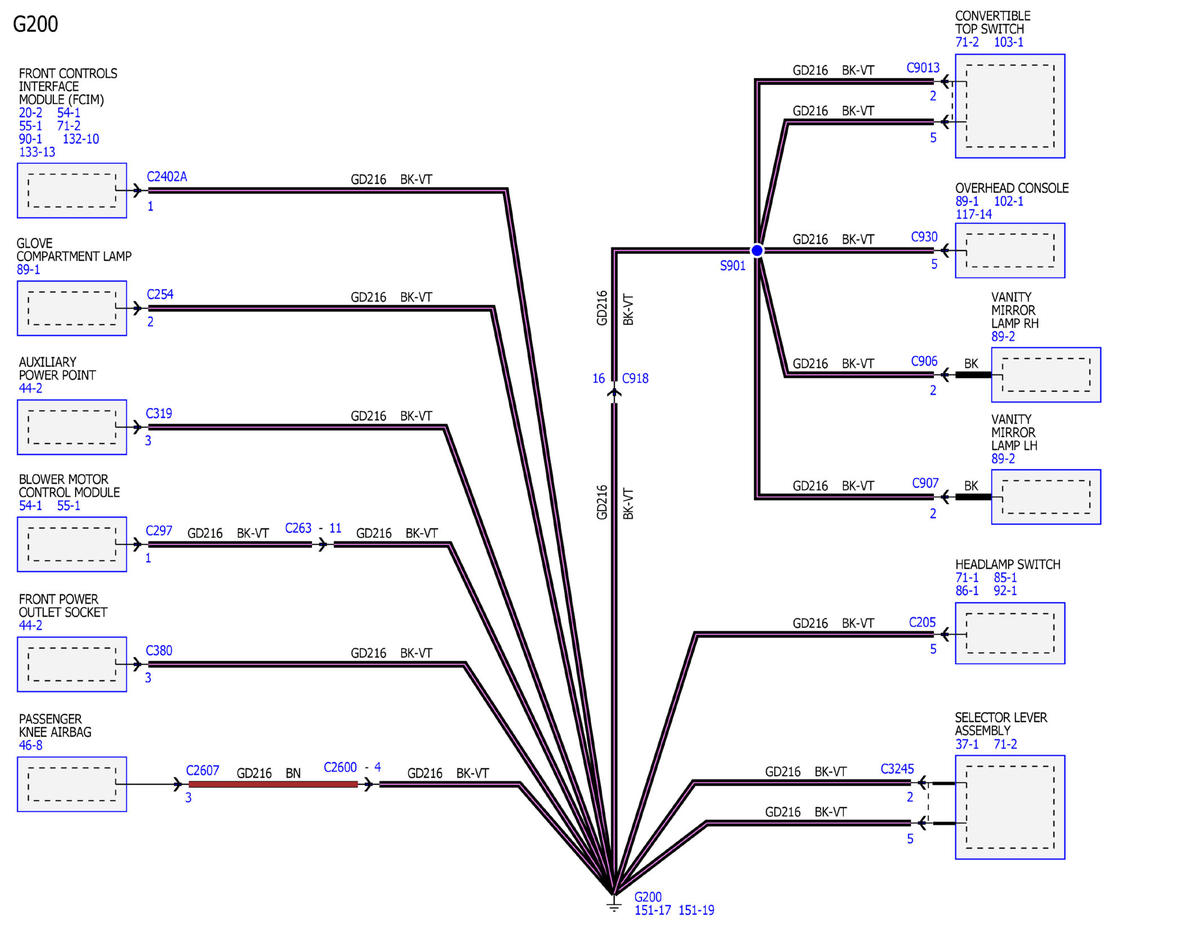

GFDWR10807Courtesy of FORD MOTOR COMPANY

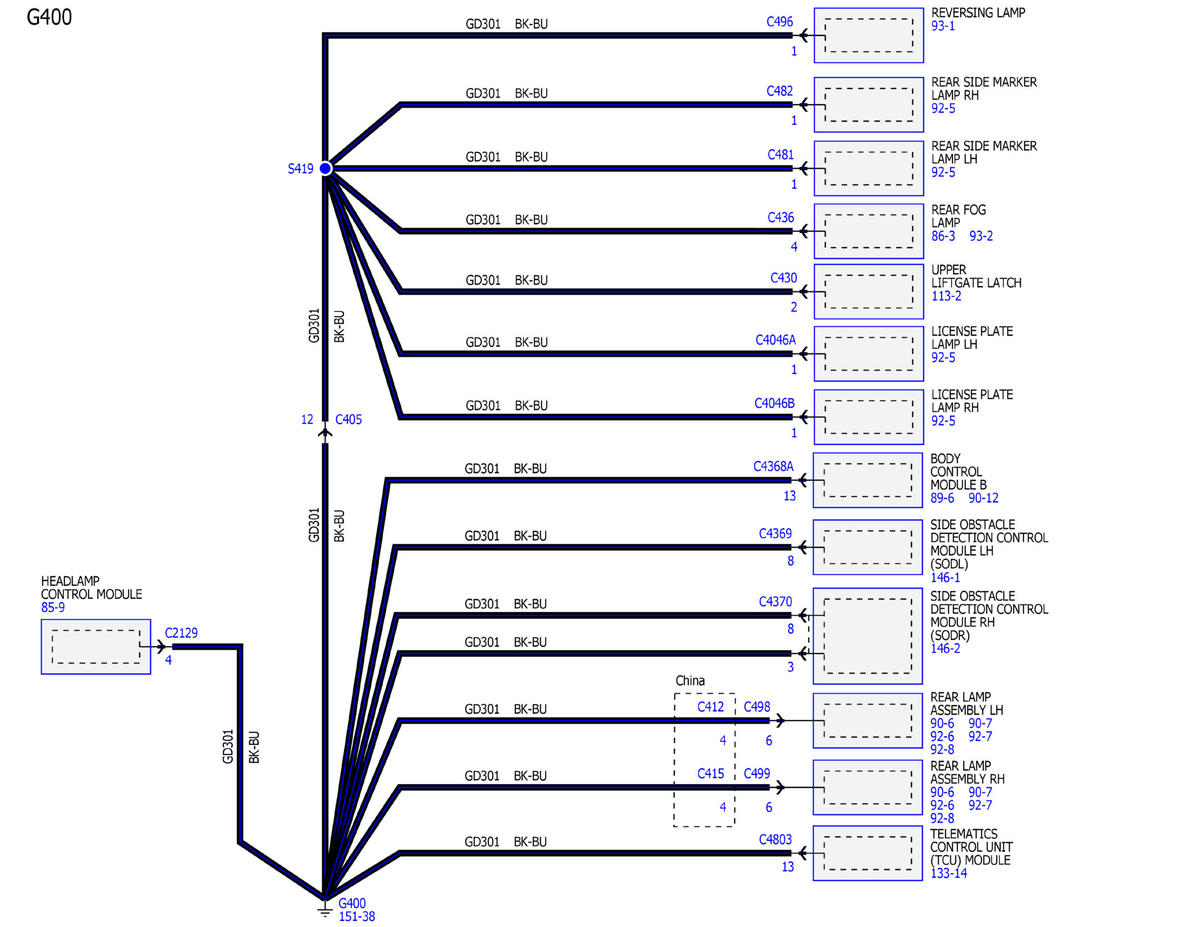

GFDWR10808Courtesy of FORD MOTOR COMPANY

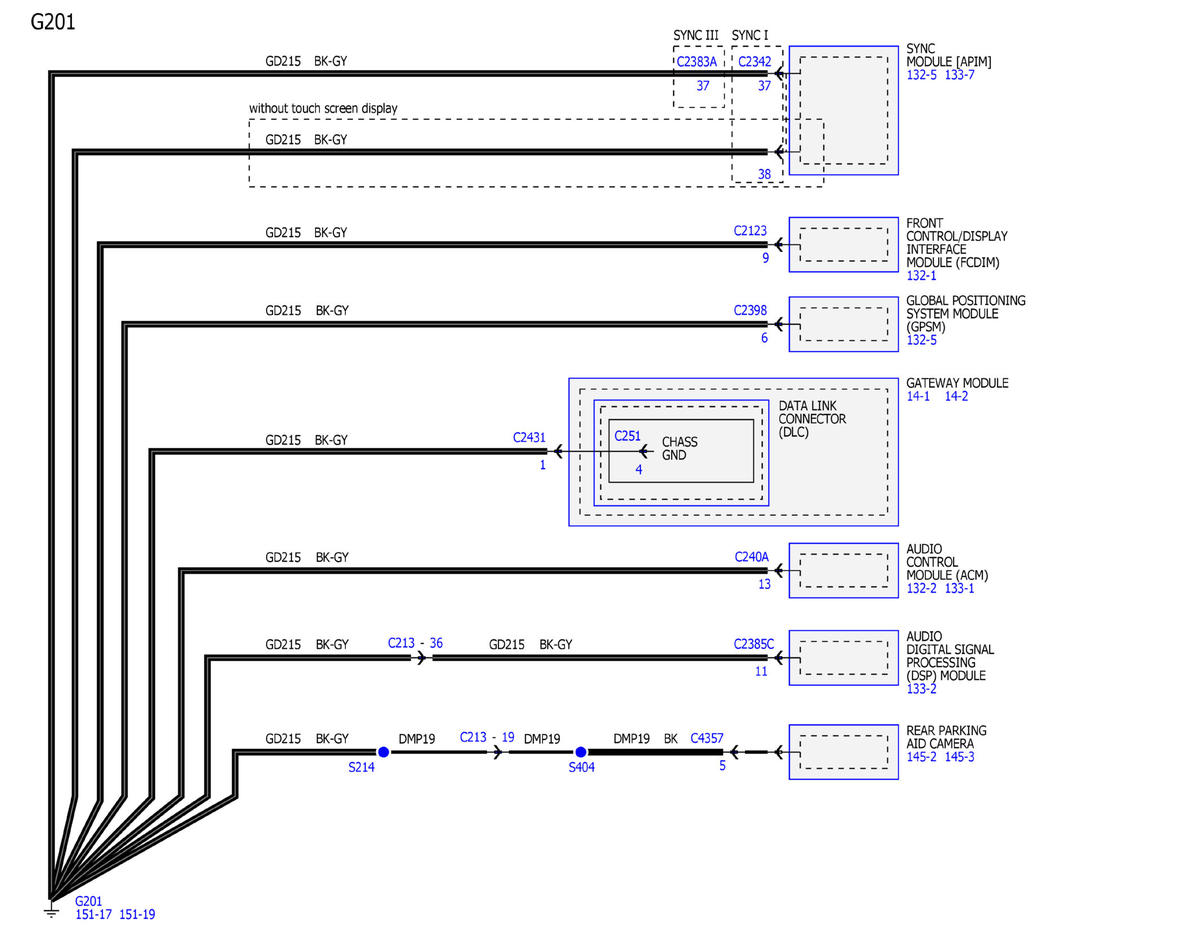

GFDWR10809Courtesy of FORD MOTOR COMPANY

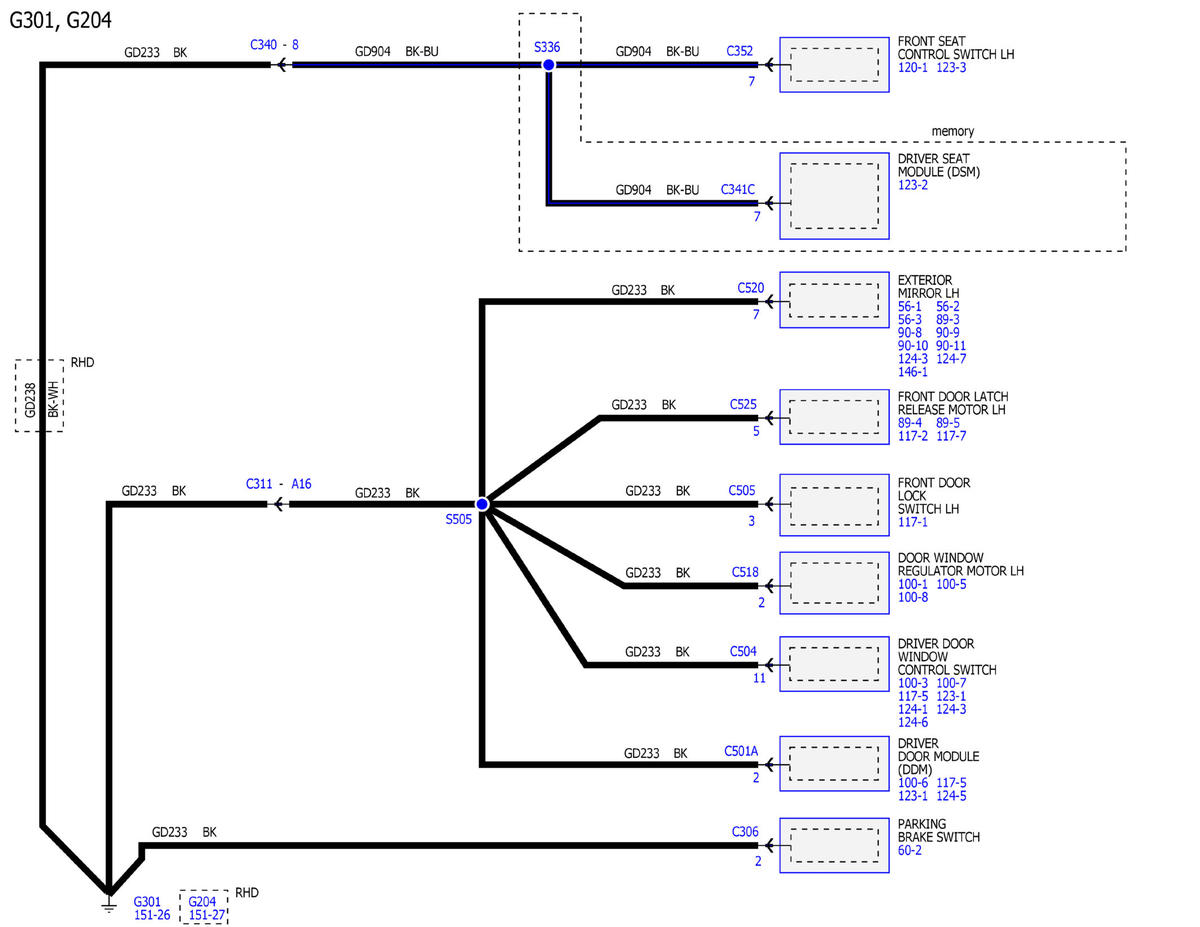

GFDWR10810Courtesy of FORD MOTOR COMPANY
