Connector Repair Procedures

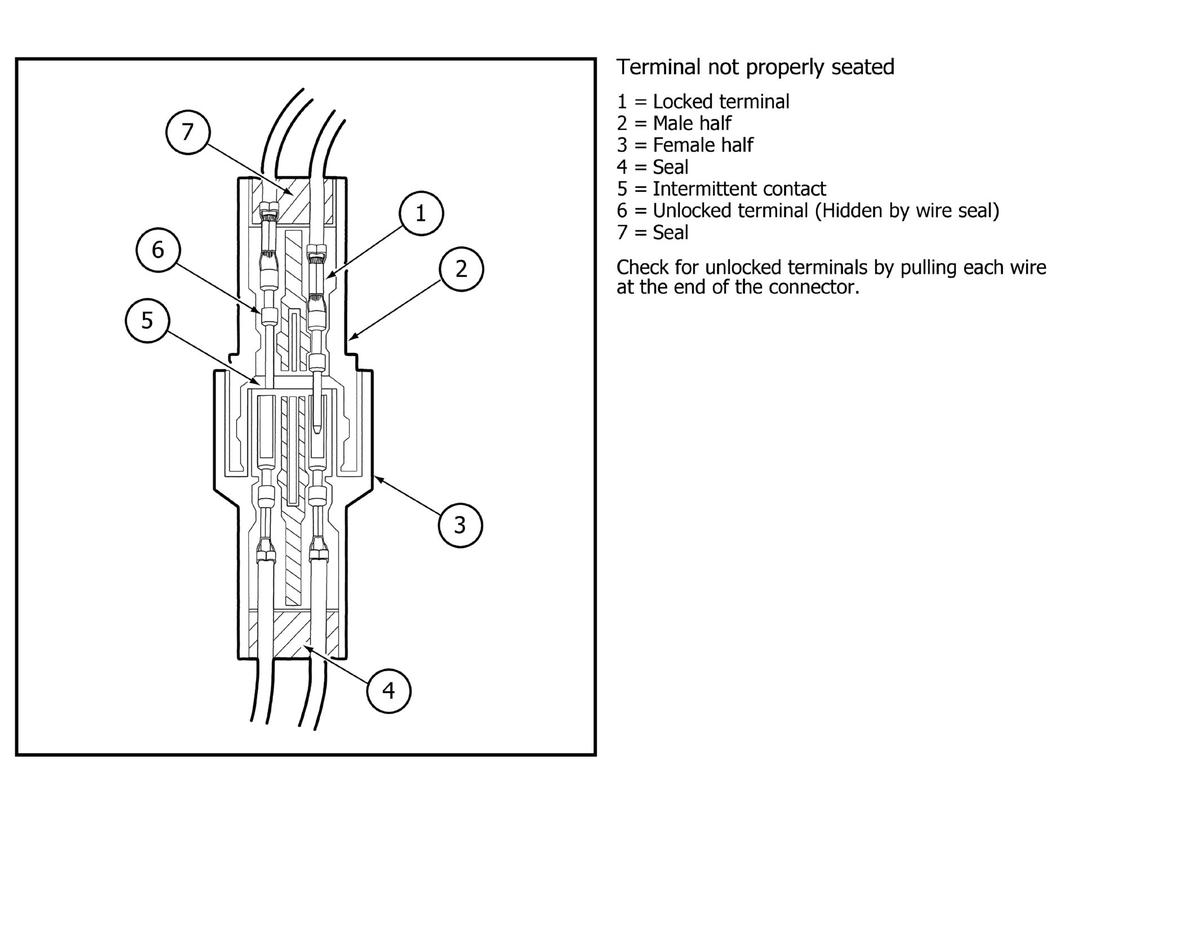

GFDWR10781Courtesy of FORD MOTOR COMPANY

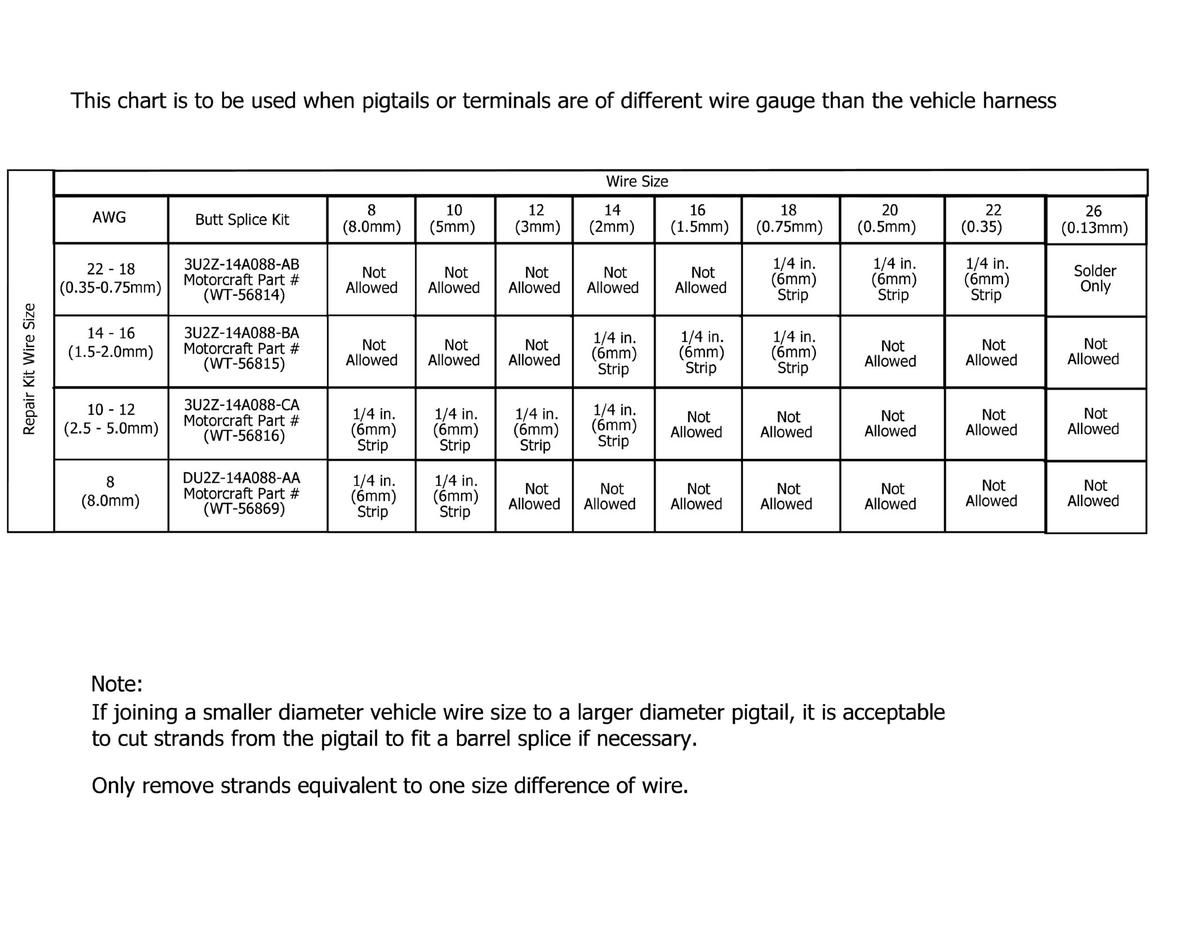

GFDWR10782Courtesy of FORD MOTOR COMPANY

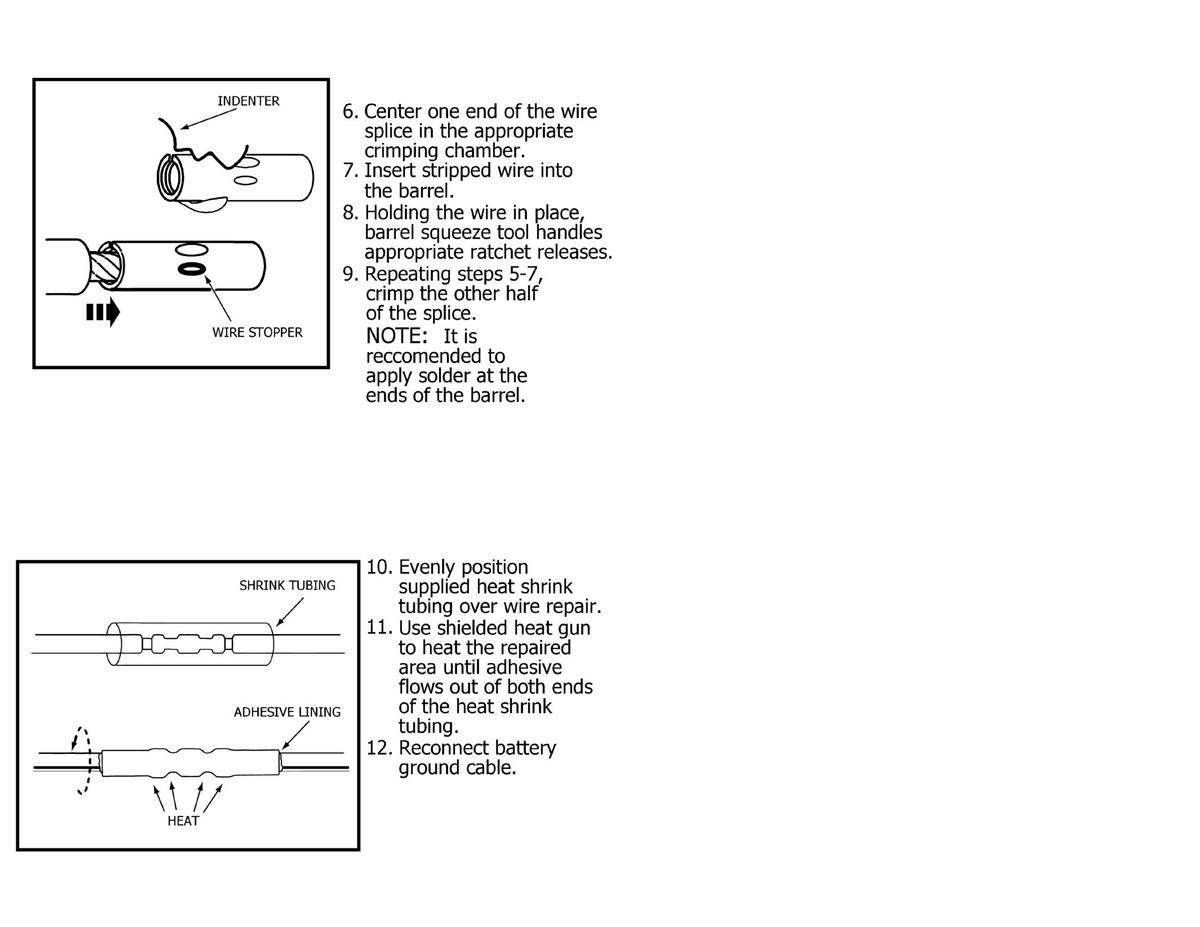

GFDWR10783Courtesy of FORD MOTOR COMPANY

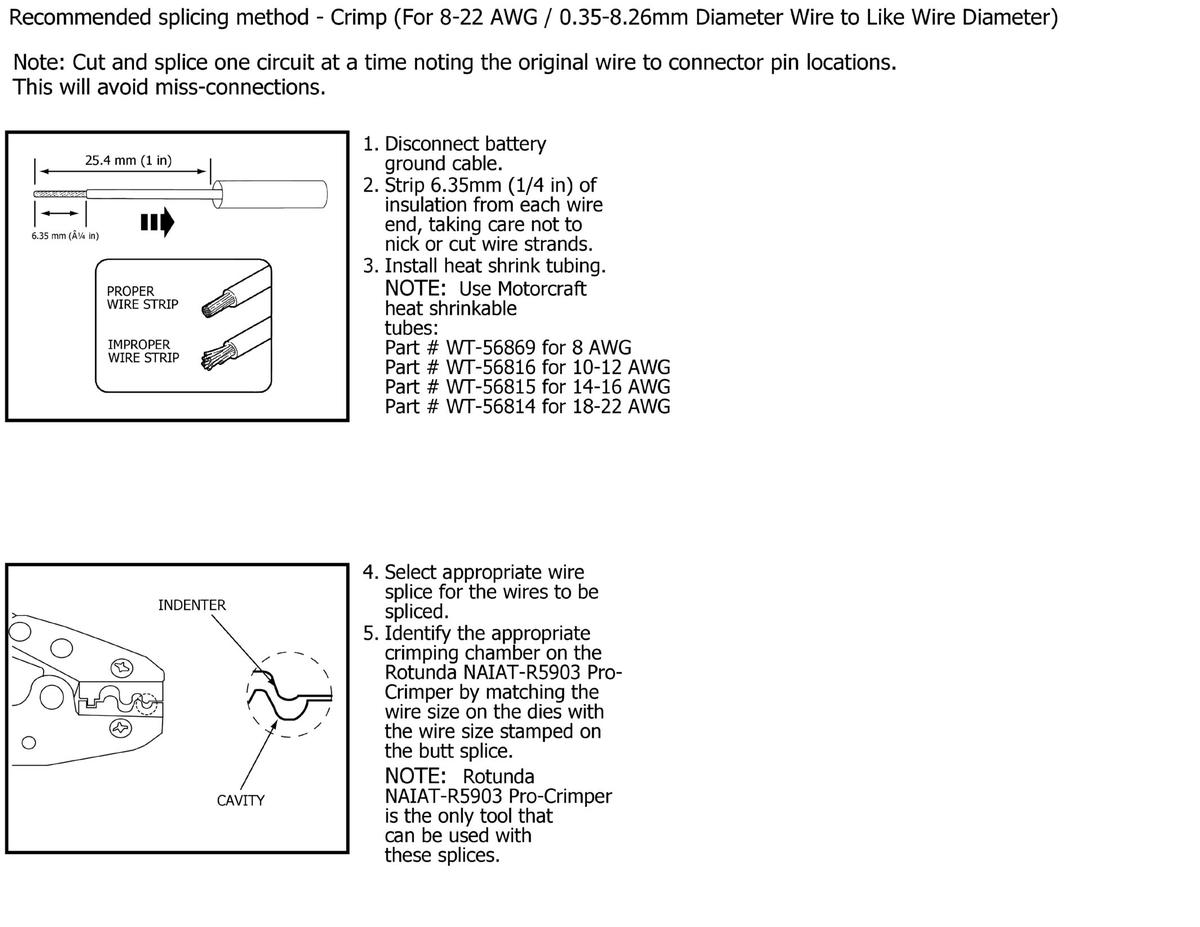

GFDWR10784Courtesy of FORD MOTOR COMPANY

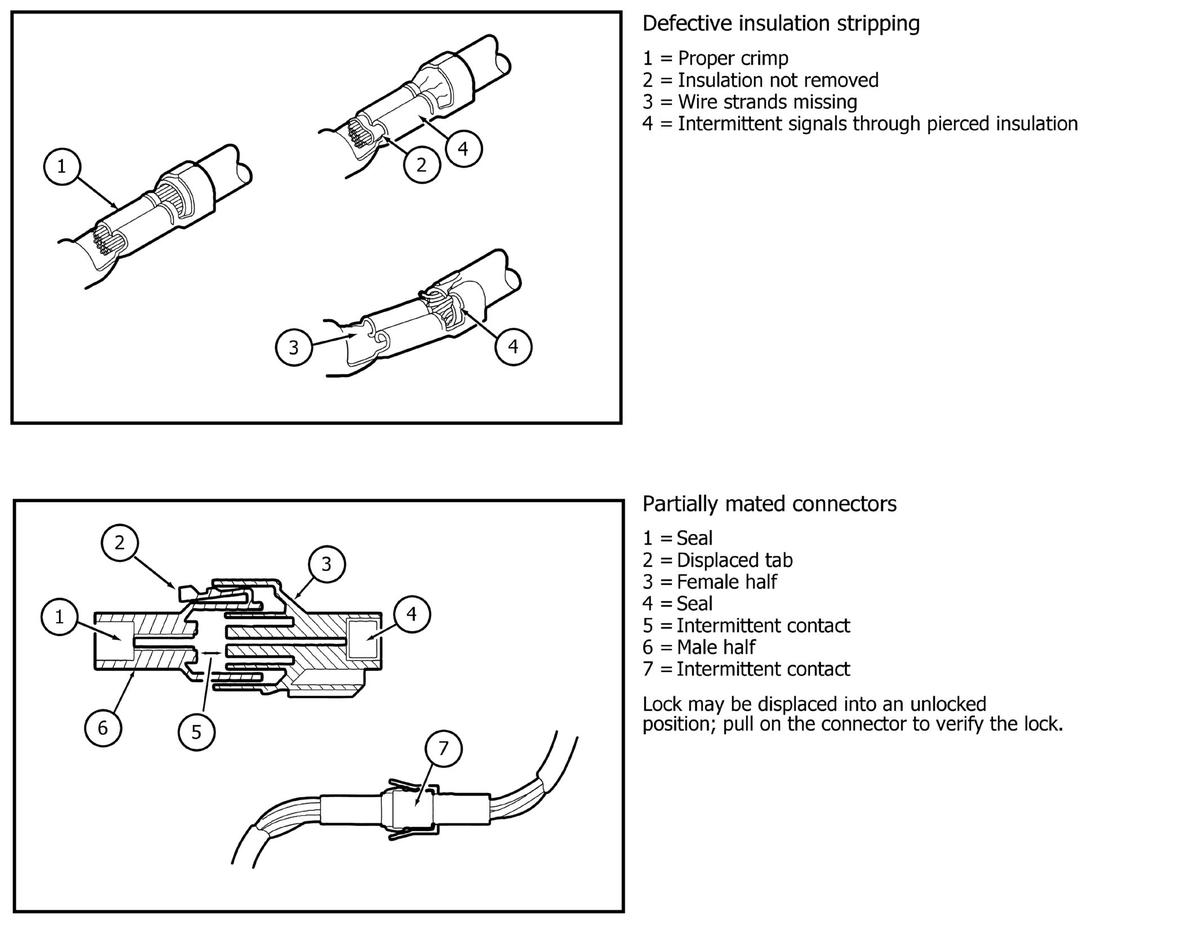

GFDWR10785Courtesy of FORD MOTOR COMPANY

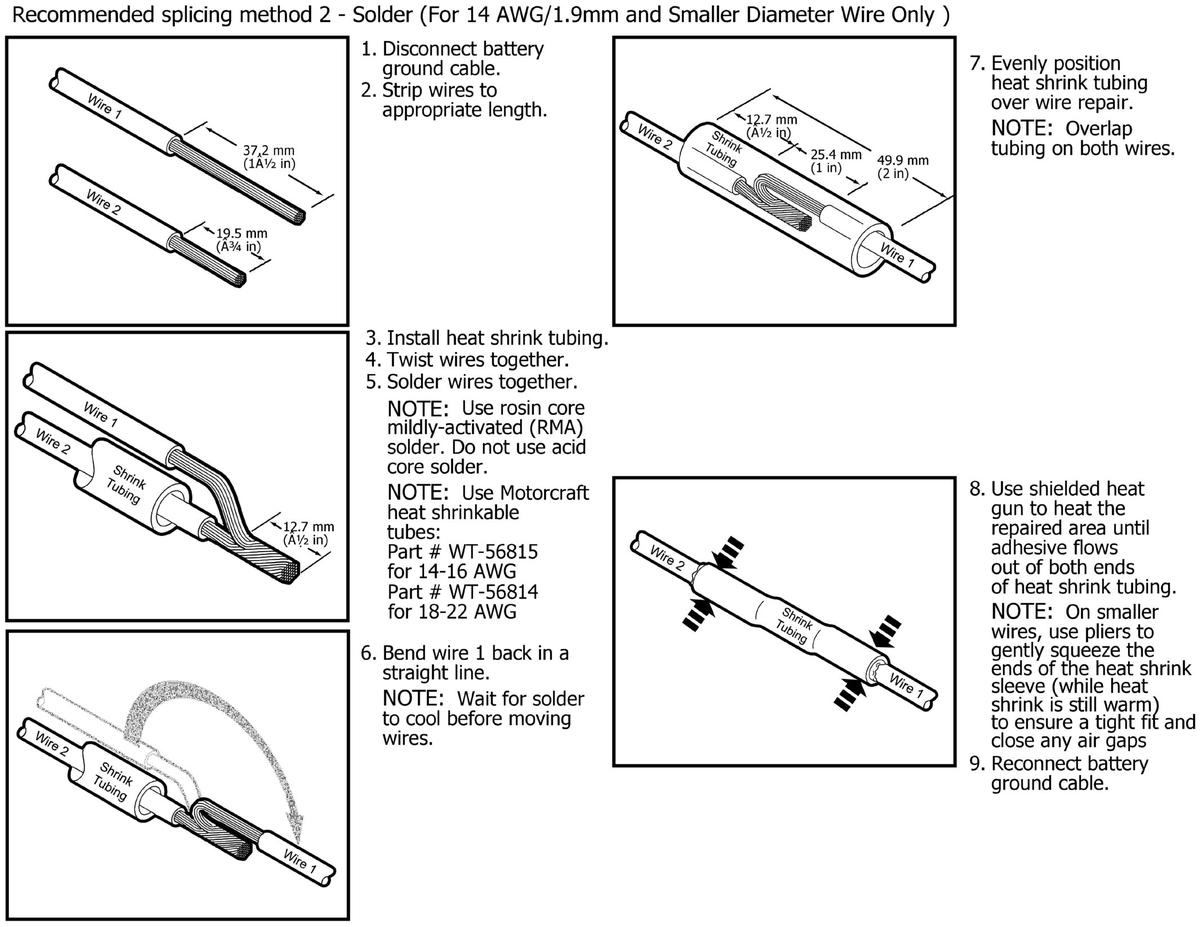

GFDWR10786Courtesy of FORD MOTOR COMPANY

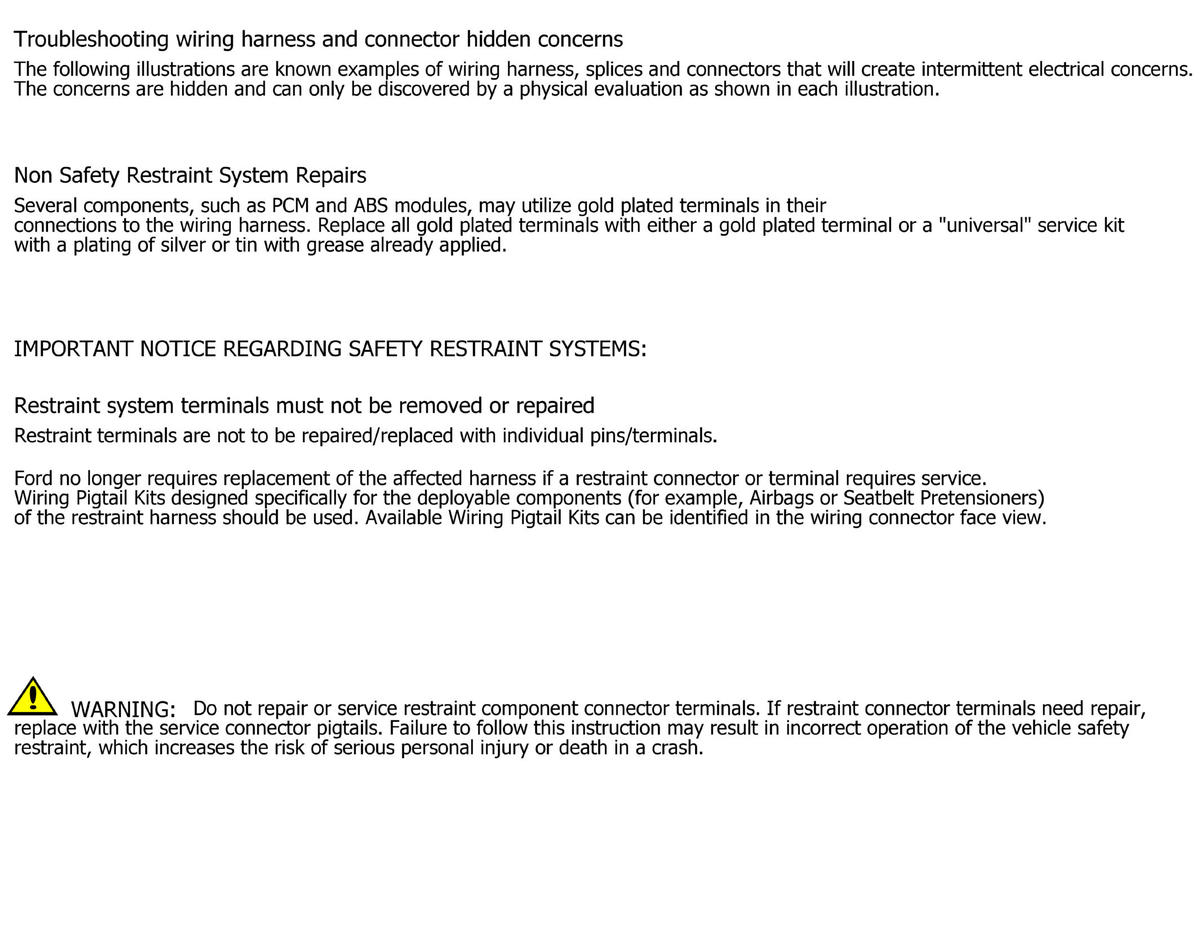

GFDWR10787Courtesy of FORD MOTOR COMPANY

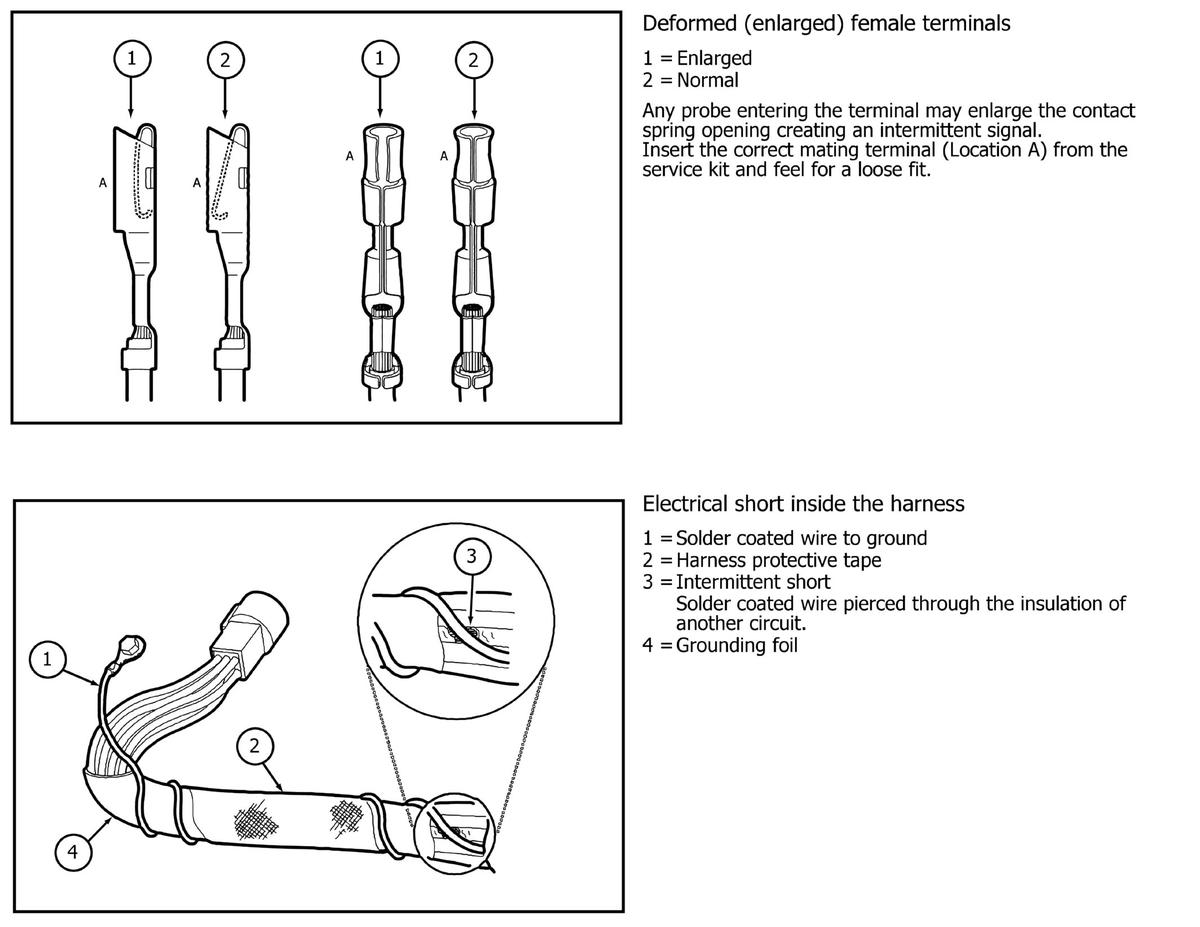

GFDWR10788Courtesy of FORD MOTOR COMPANY

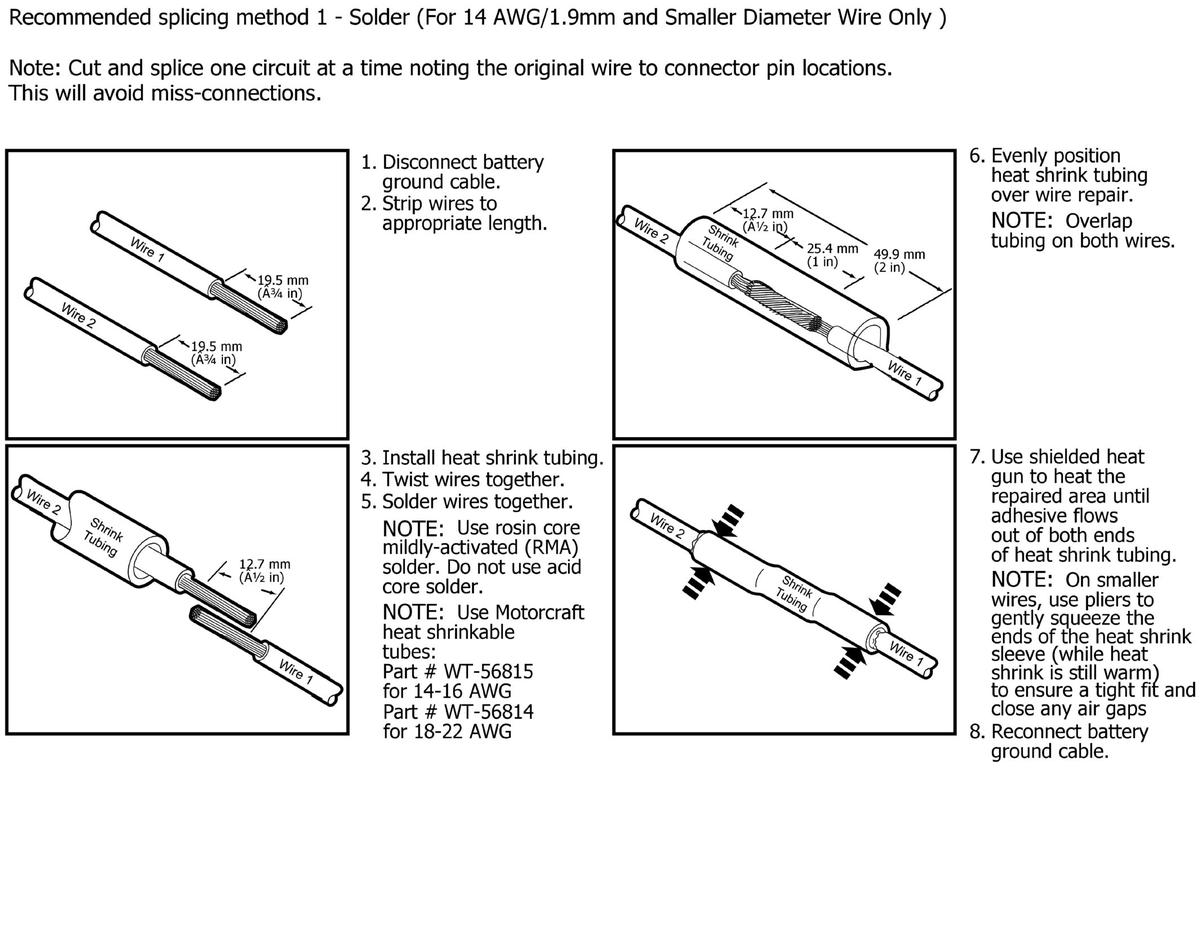

GFDWR10789Courtesy of FORD MOTOR COMPANY
