Component Location Views

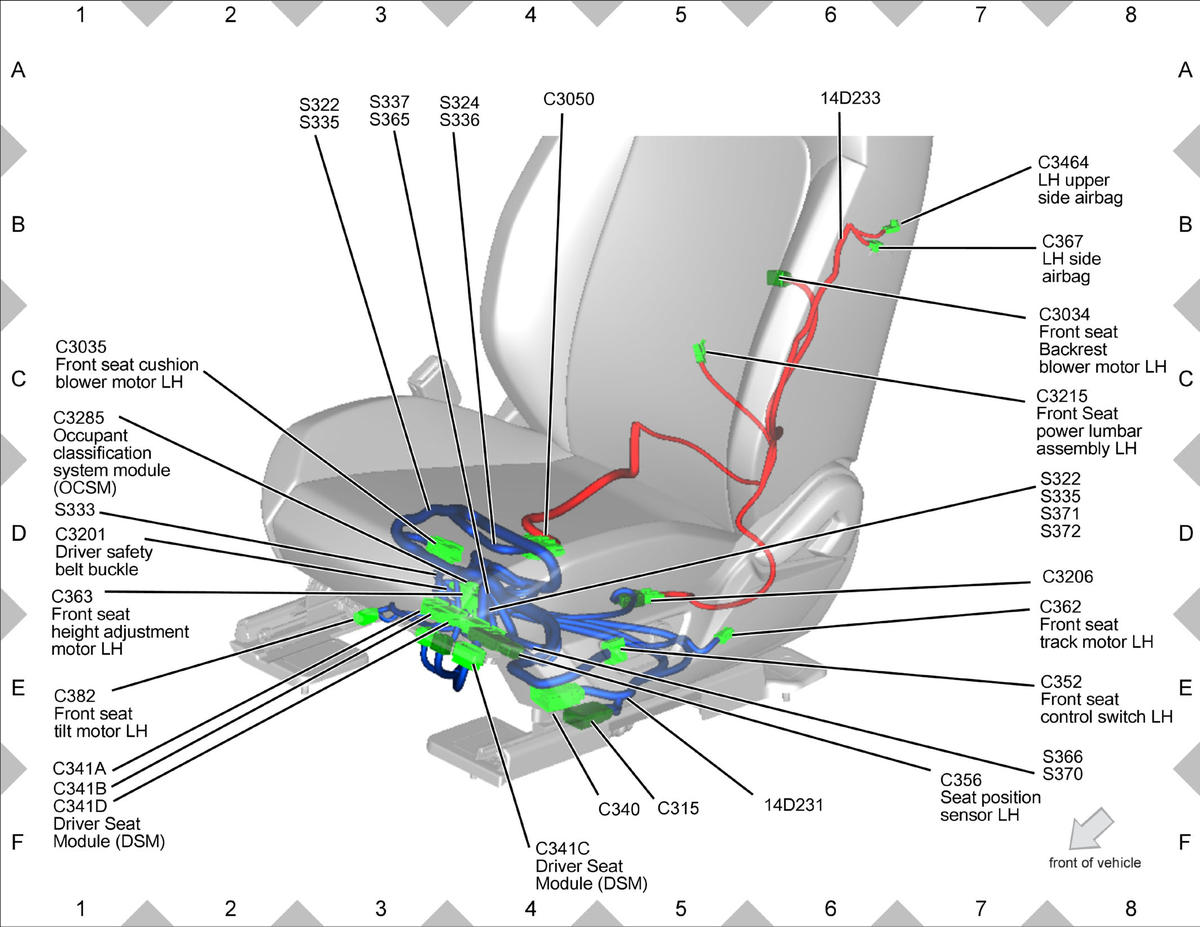

GFDWR10124Courtesy of FORD MOTOR COMPANY

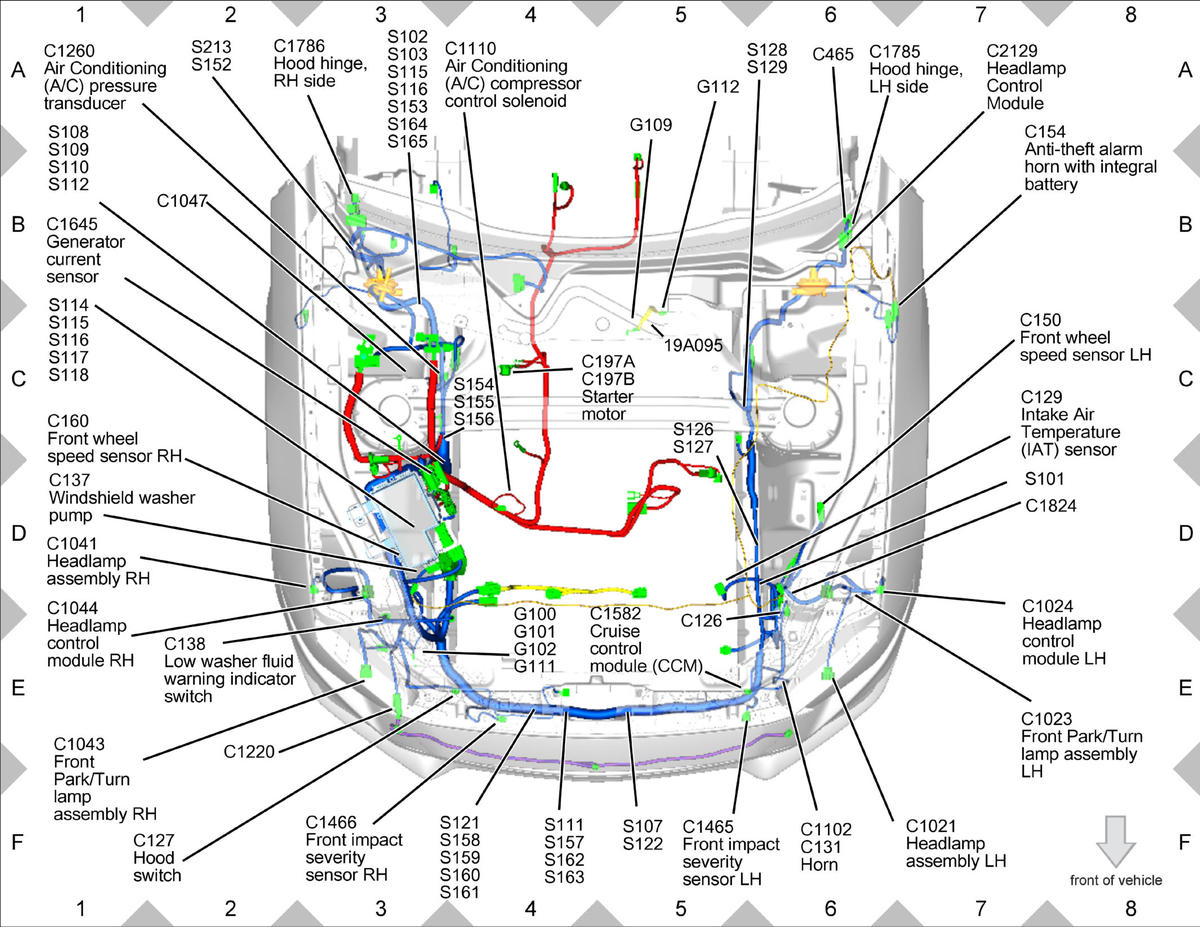

GFDWR10125Courtesy of FORD MOTOR COMPANY

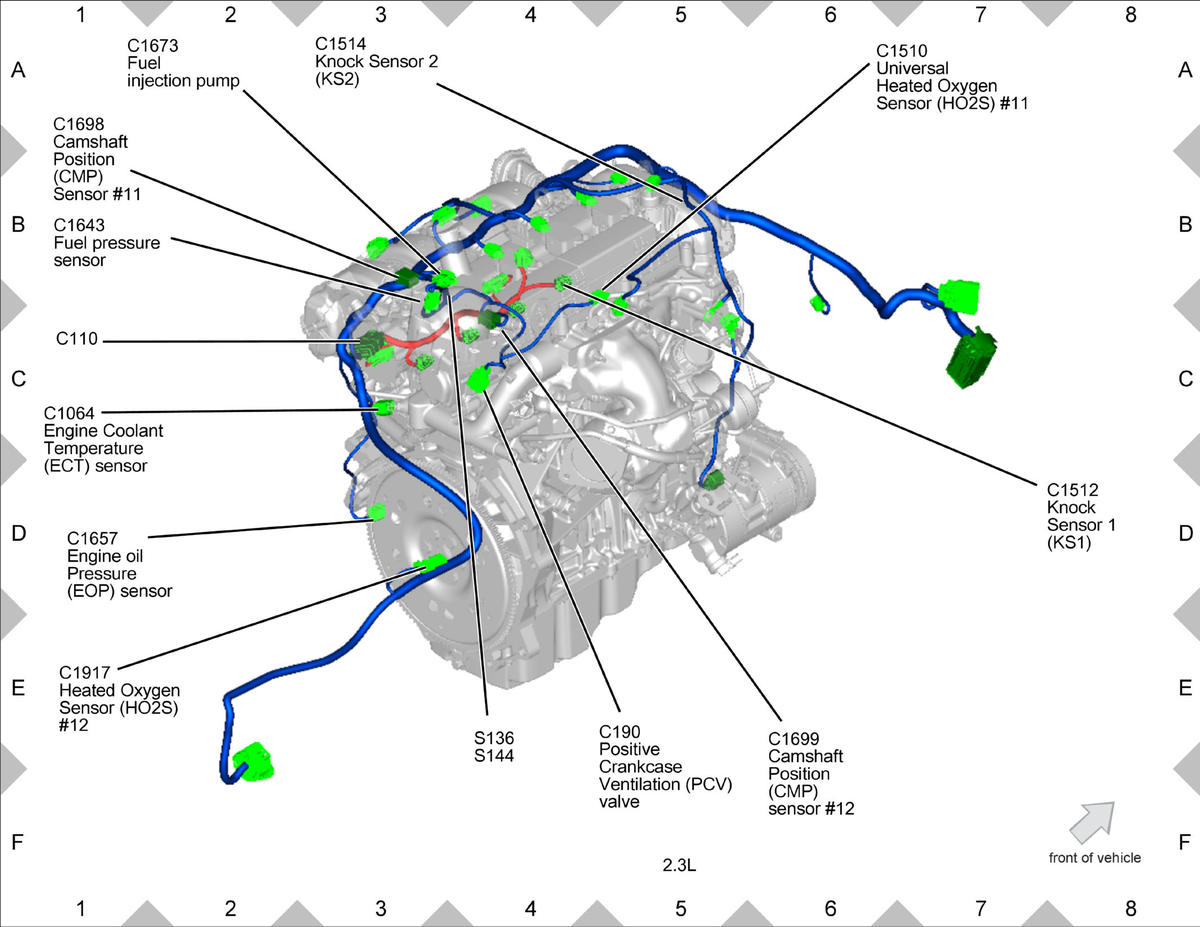

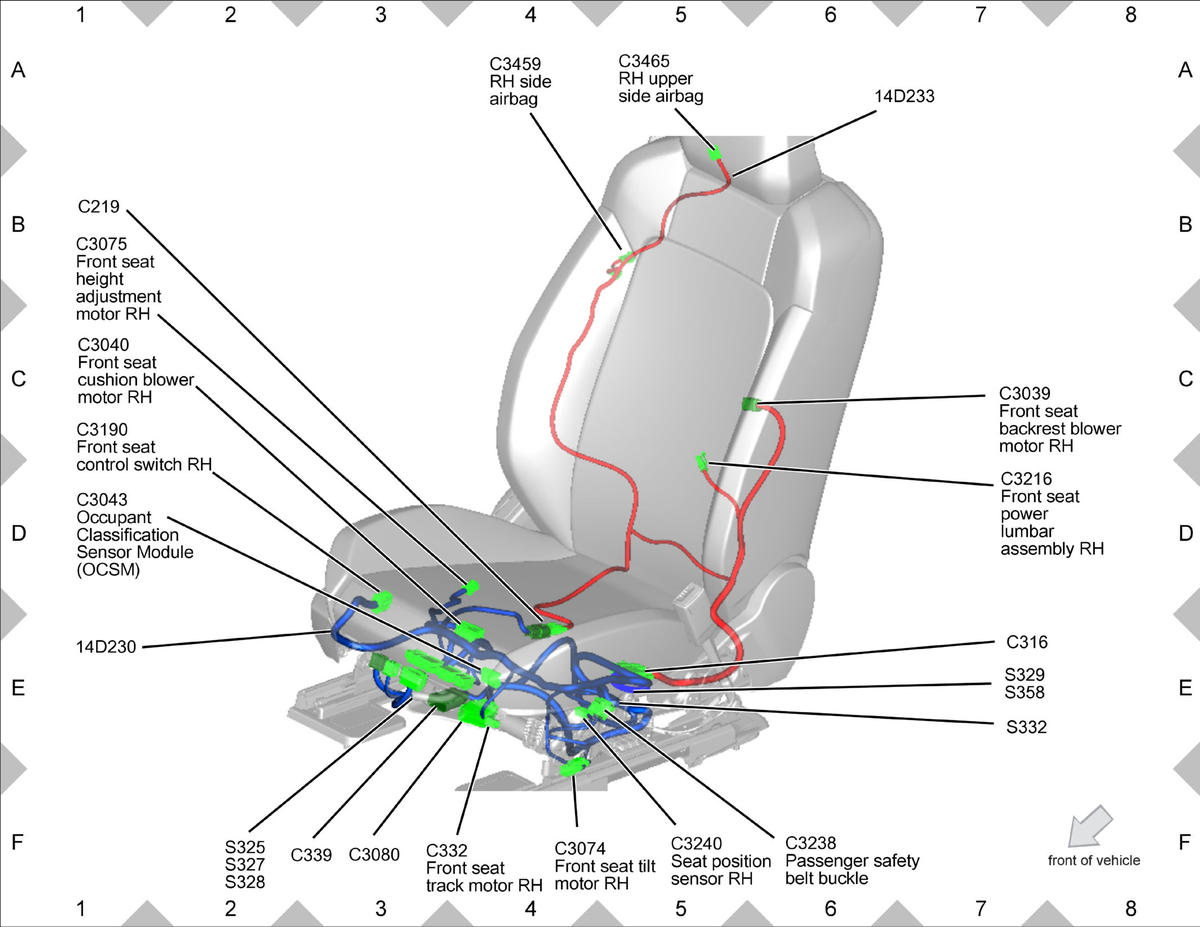

GFDWR10126Courtesy of FORD MOTOR COMPANY

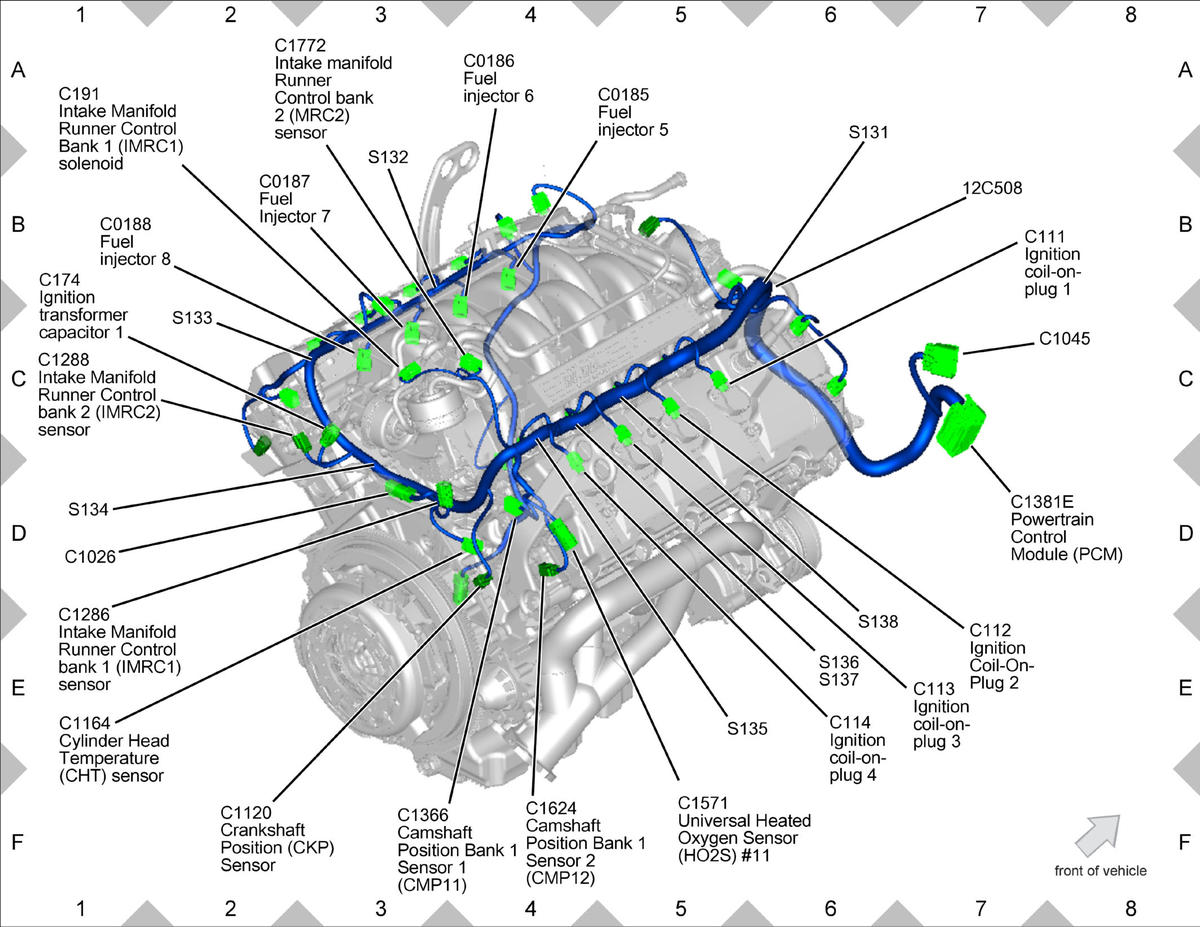

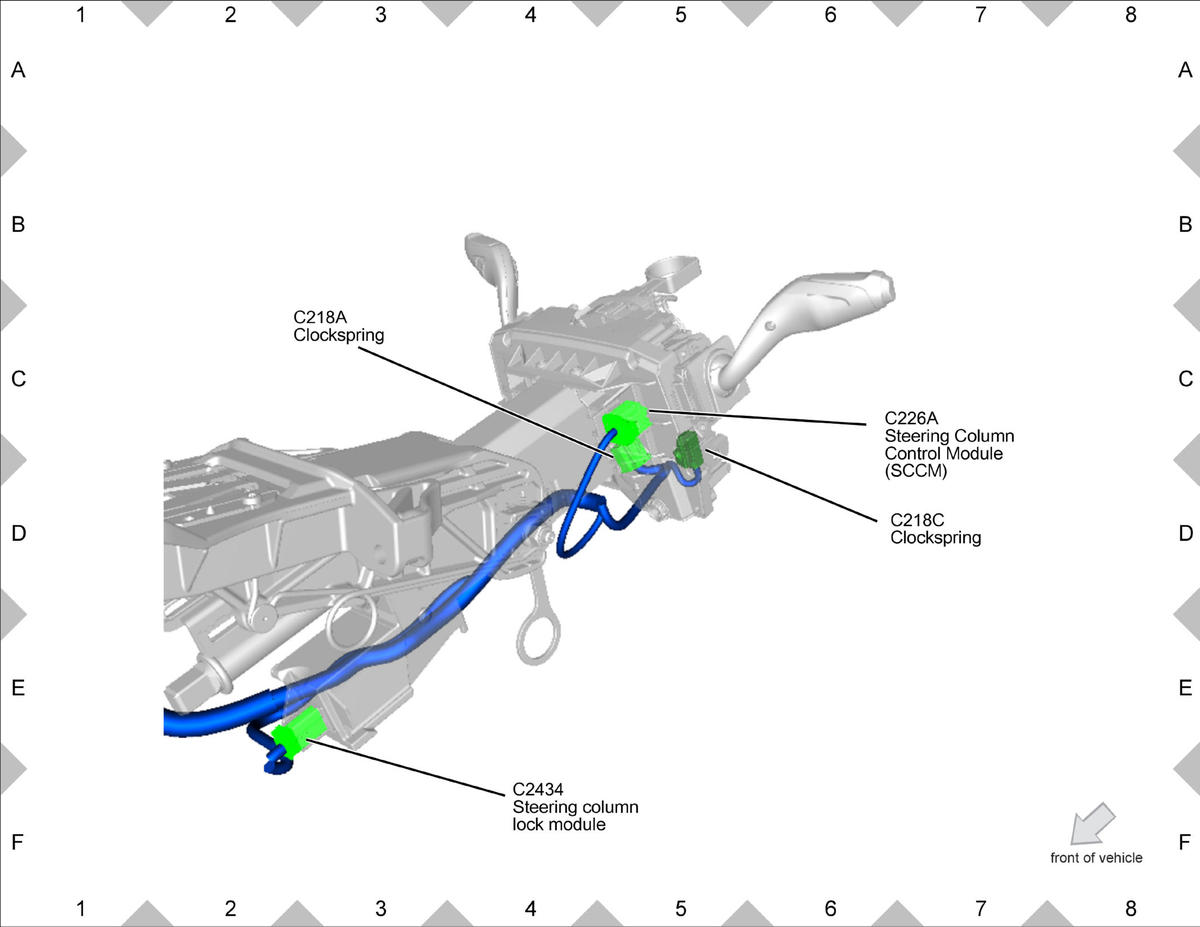

GFDWR10127Courtesy of FORD MOTOR COMPANY

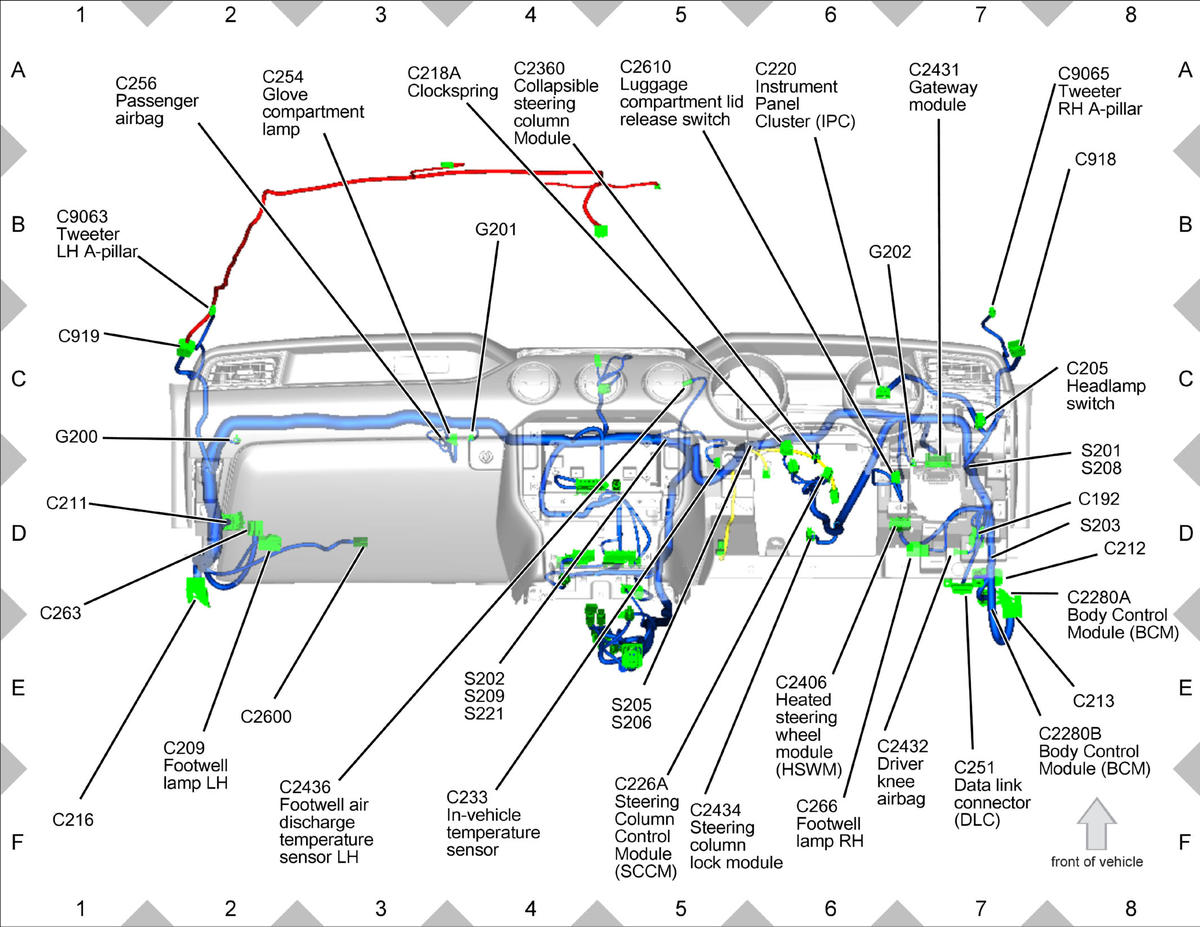

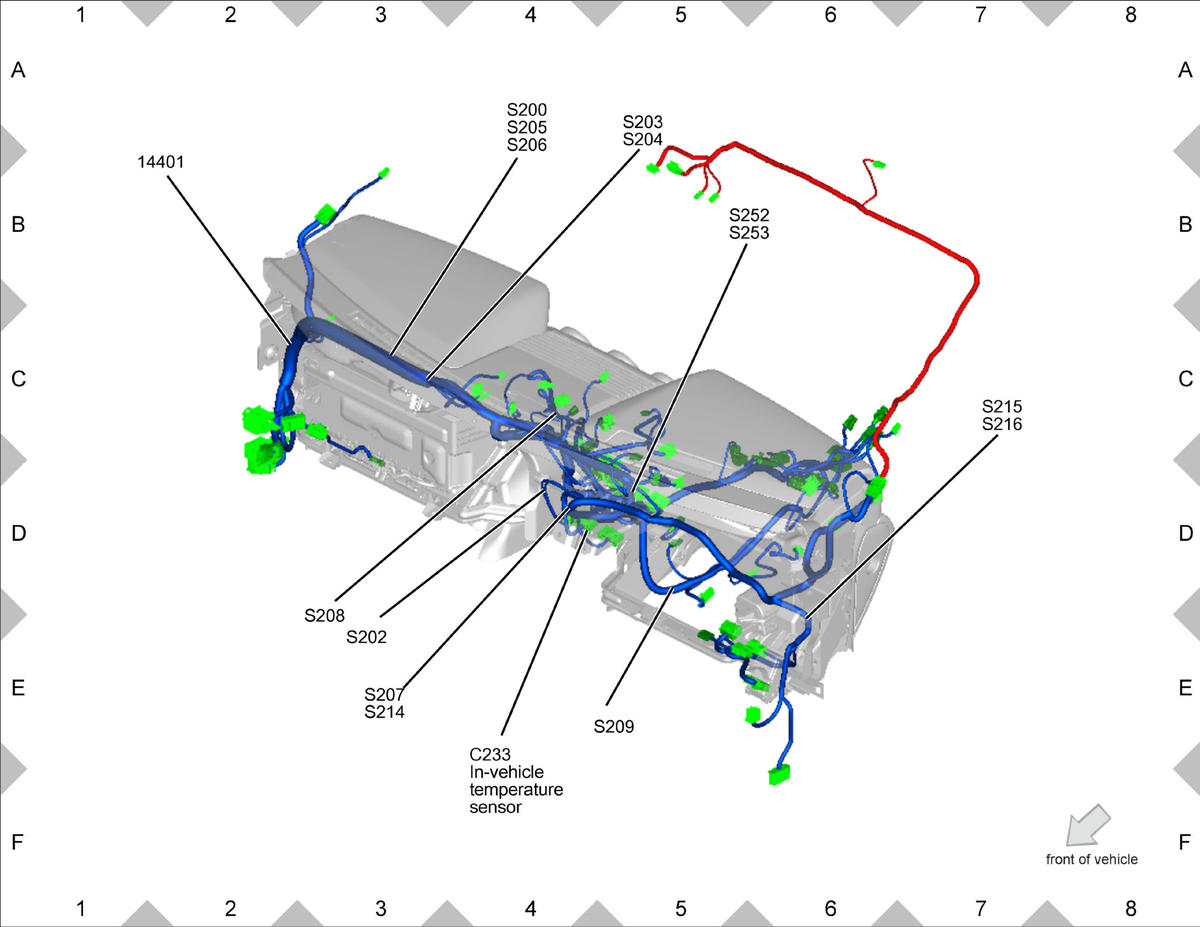

GFDWR10128Courtesy of FORD MOTOR COMPANY

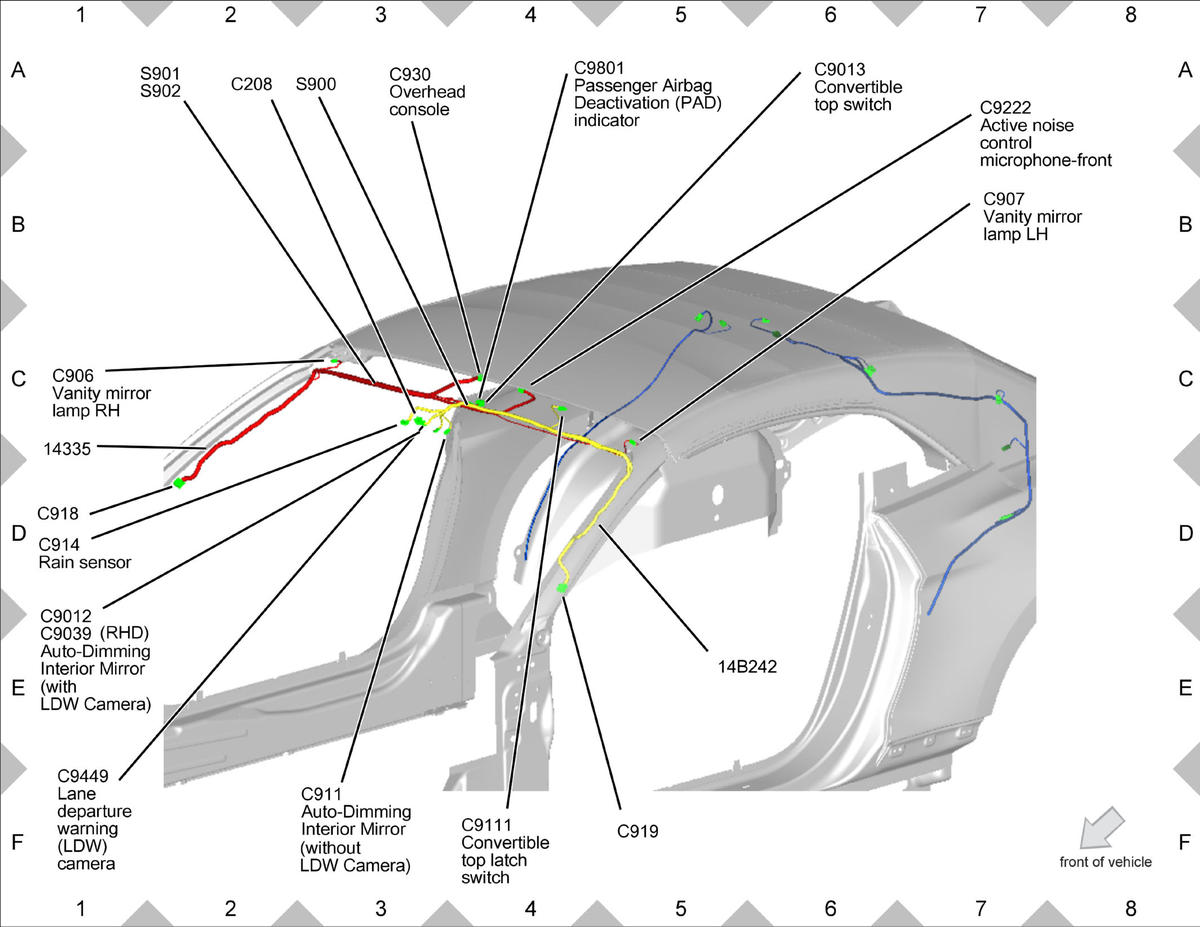

GFDWR10129Courtesy of FORD MOTOR COMPANY

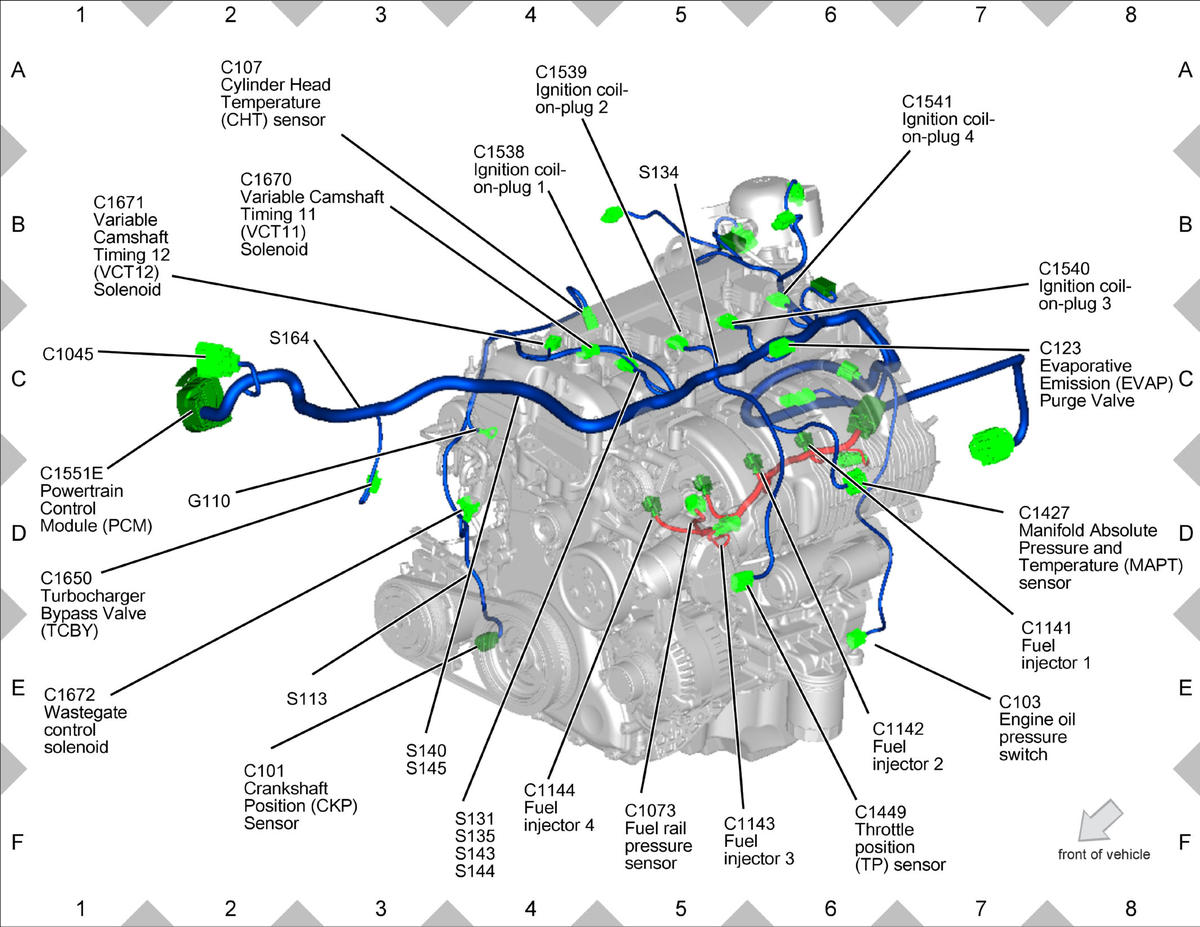

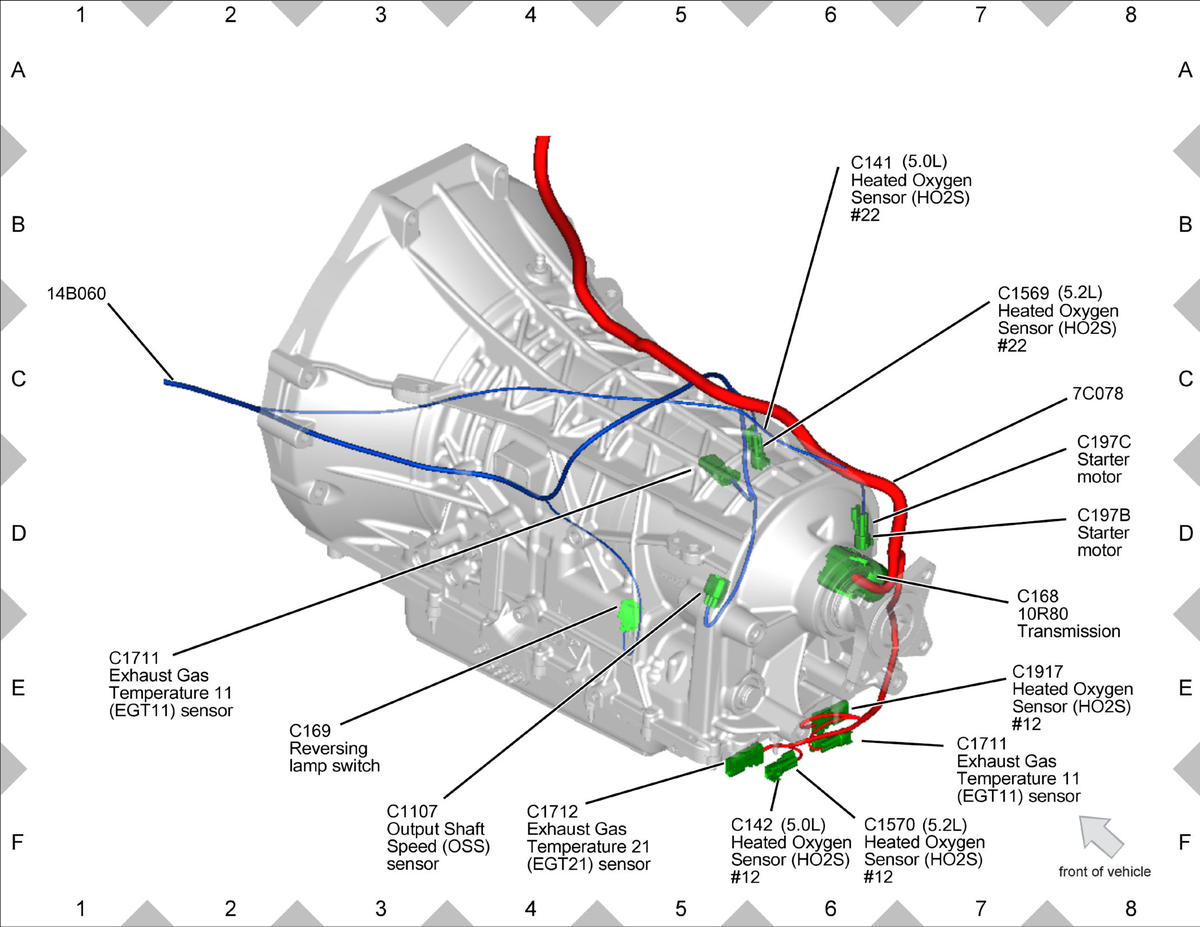

GFDWR10130Courtesy of FORD MOTOR COMPANY

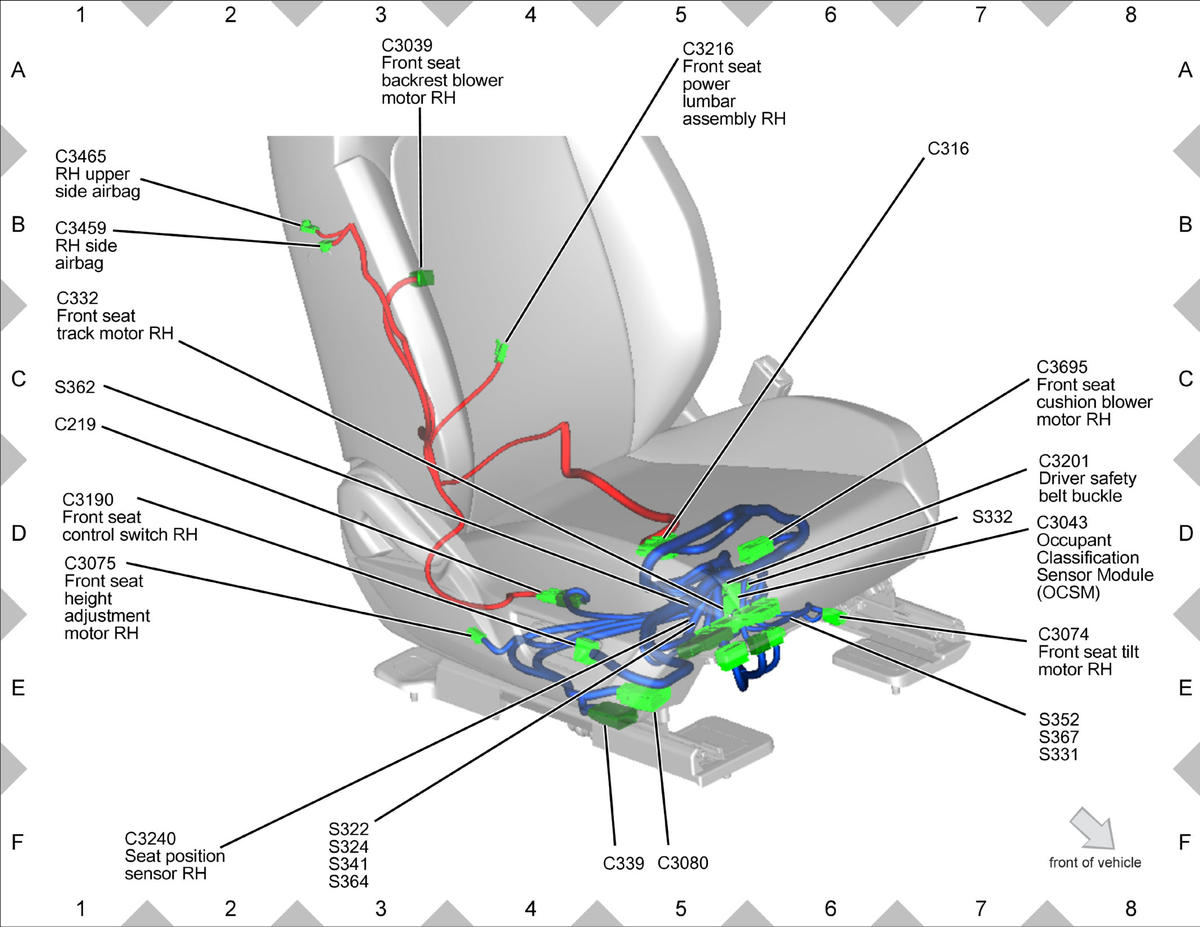

GFDWR10131Courtesy of FORD MOTOR COMPANY
GFDWR10132Courtesy of FORD MOTOR COMPANY

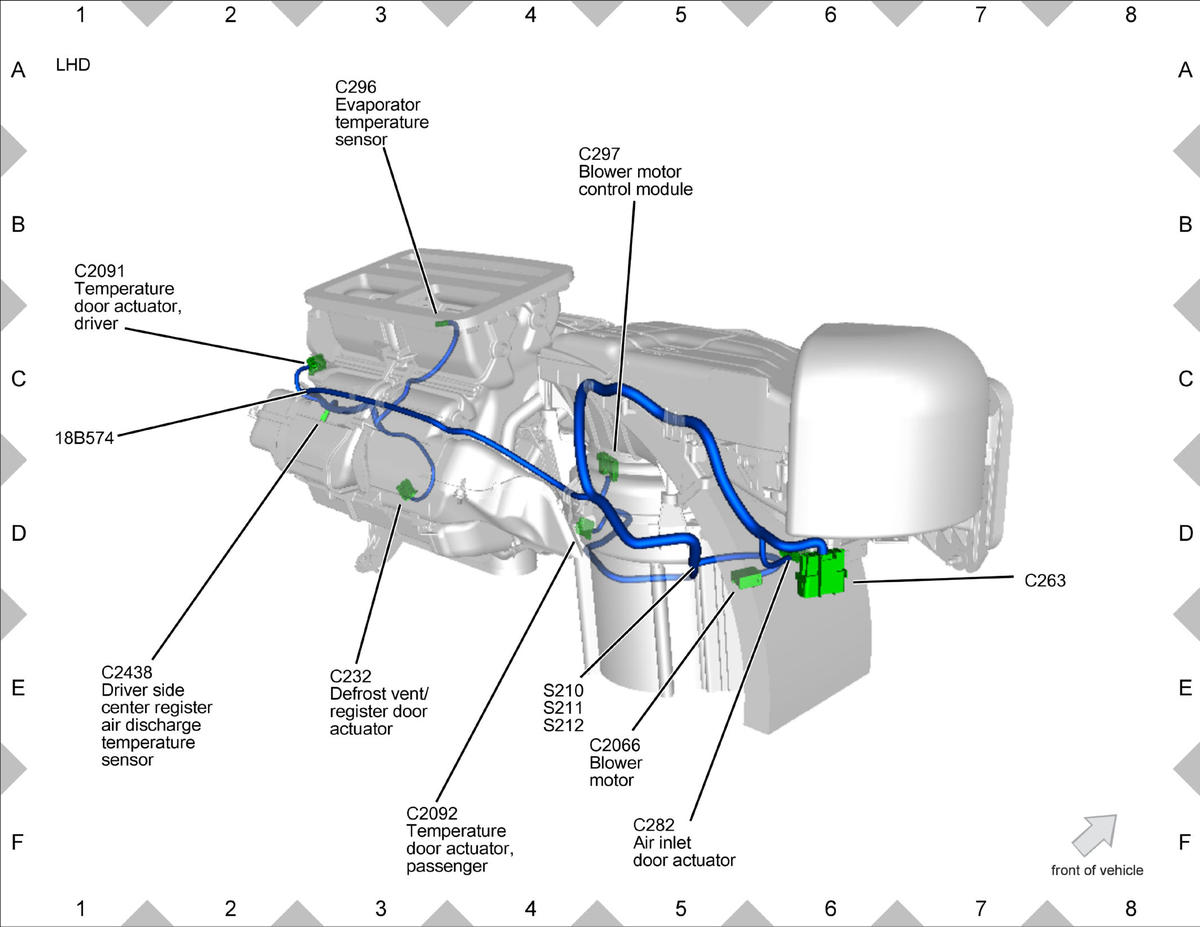

GFDWR10133Courtesy of FORD MOTOR COMPANY
GFDWR10134Courtesy of FORD MOTOR COMPANY
GFDWR10135Courtesy of FORD MOTOR COMPANY
GFDWR10136Courtesy of FORD MOTOR COMPANY

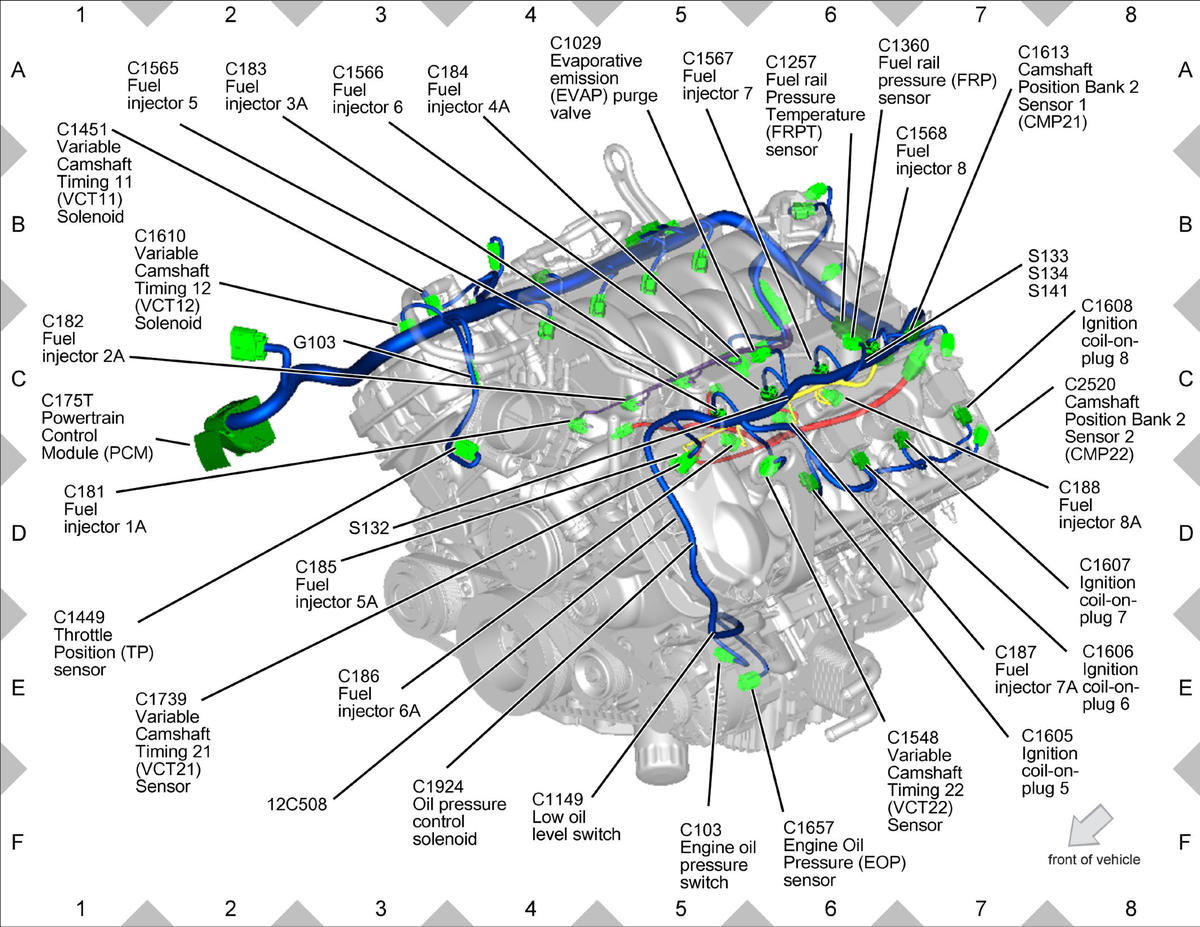

GFDWR10137Courtesy of FORD MOTOR COMPANY
GFDWR10138Courtesy of FORD MOTOR COMPANY
GFDWR10139Courtesy of FORD MOTOR COMPANY

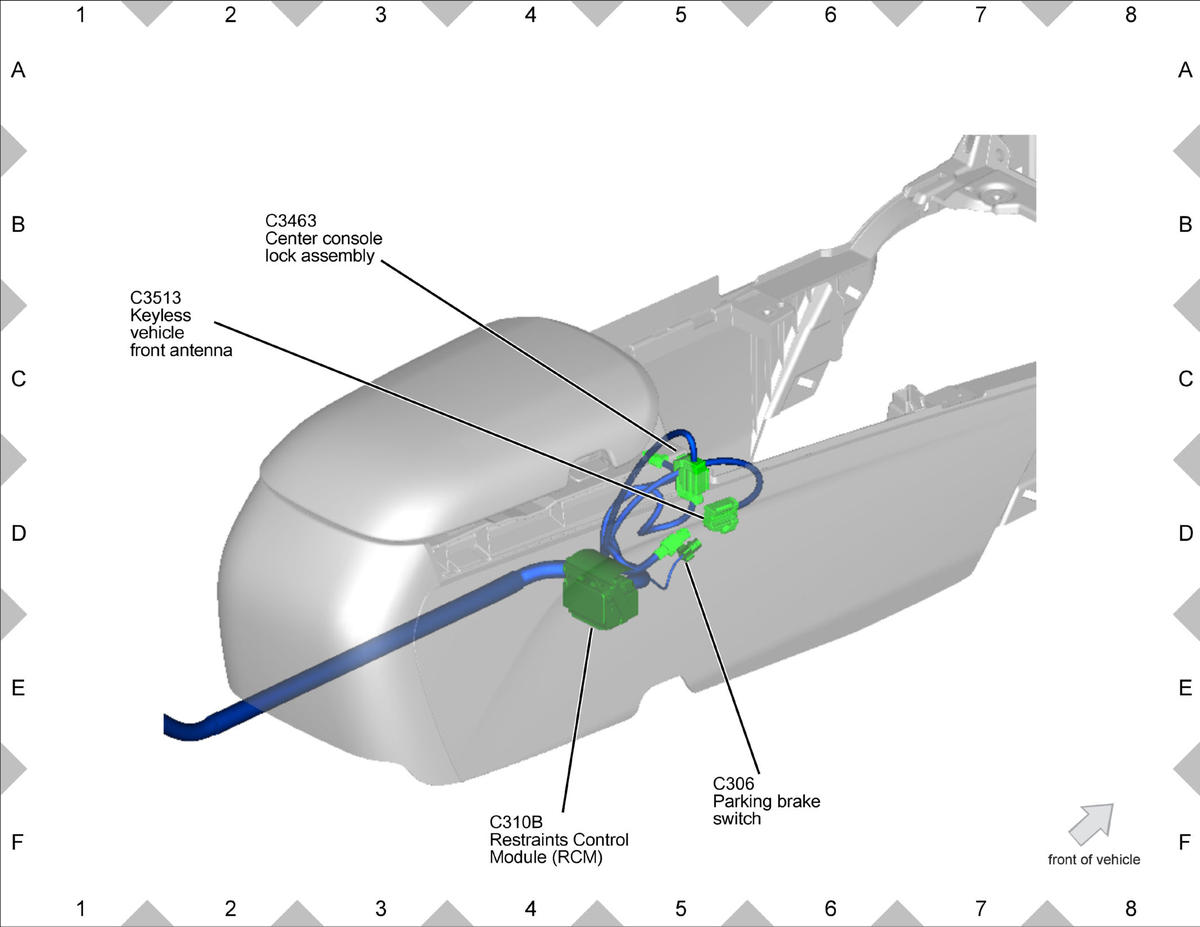

GFDWR10140Courtesy of FORD MOTOR COMPANY

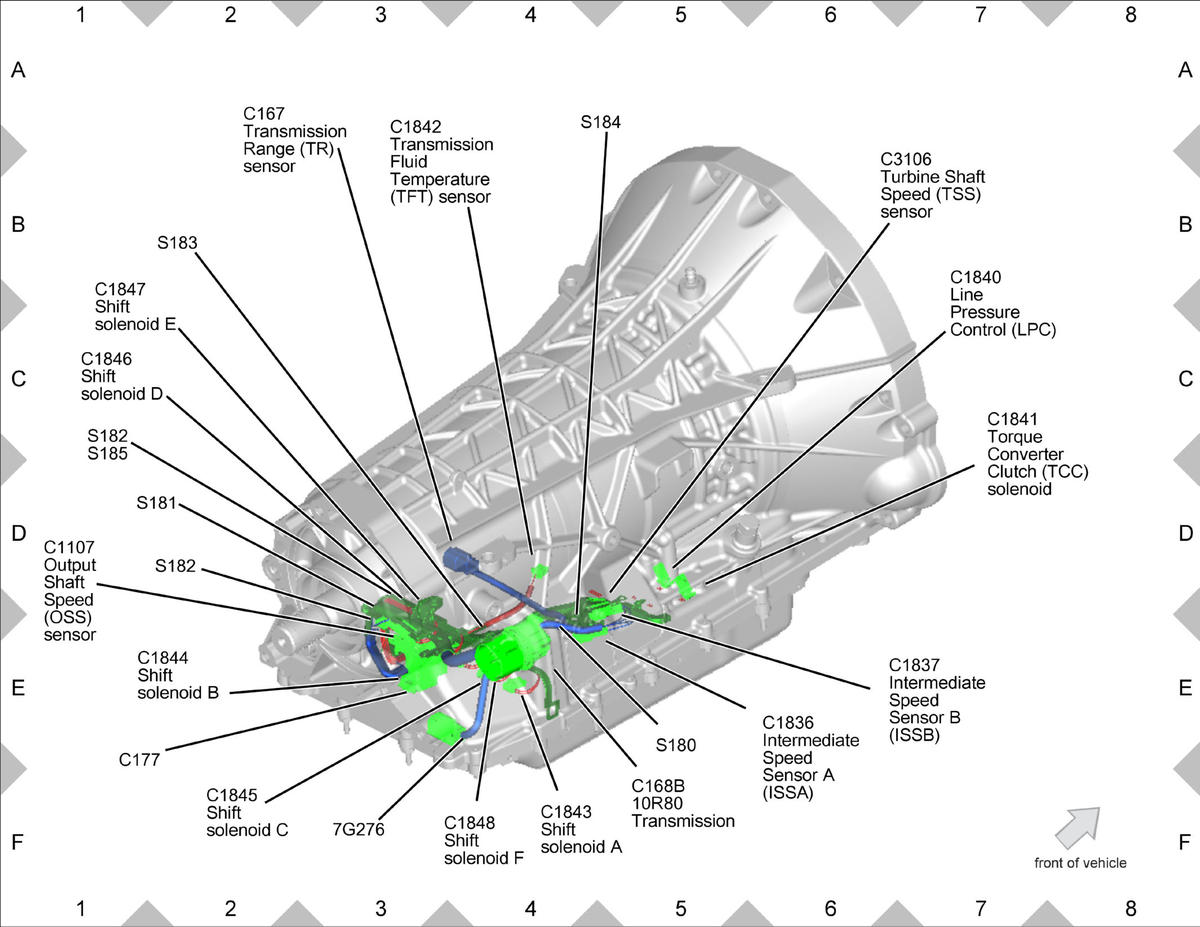

GFDWR10141Courtesy of FORD MOTOR COMPANY

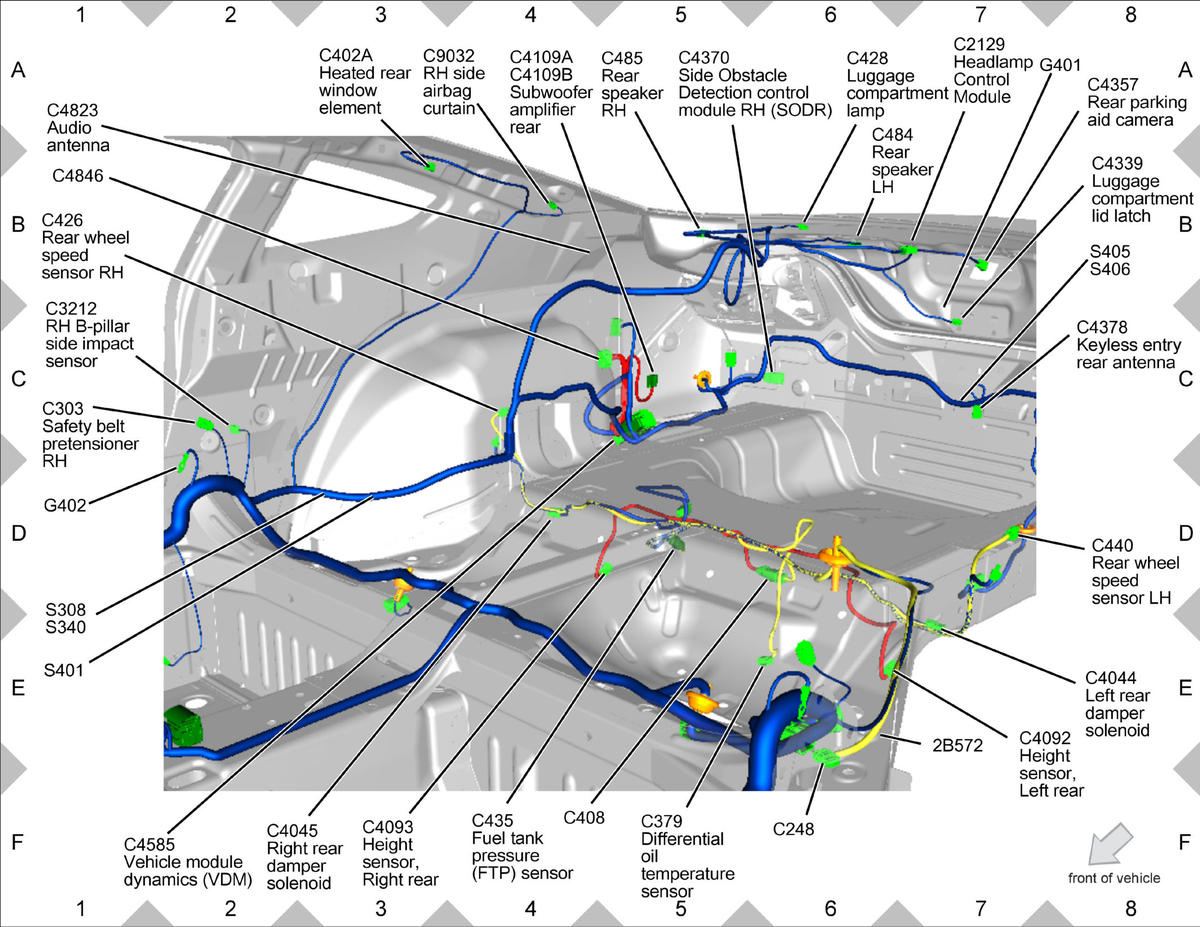

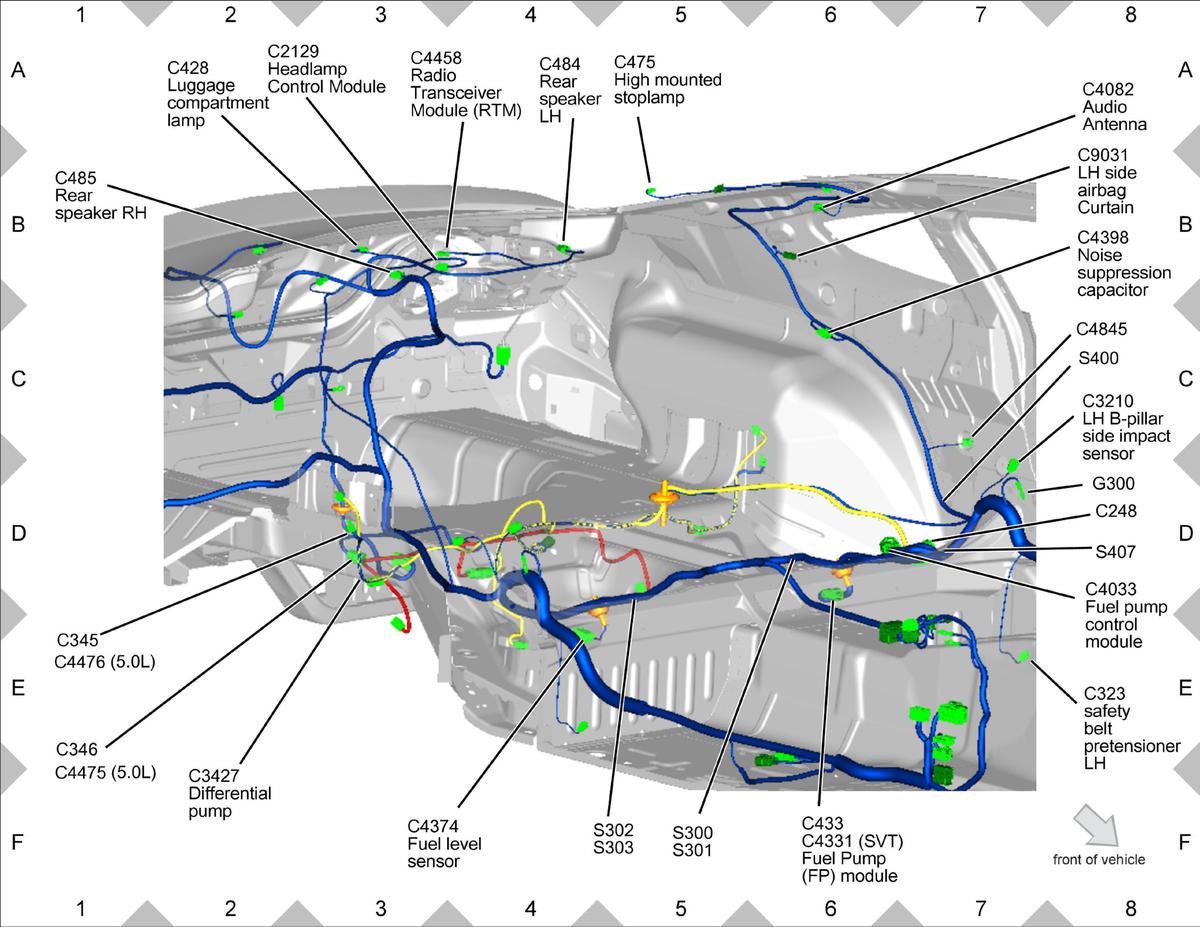

GFDWR10142Courtesy of FORD MOTOR COMPANY

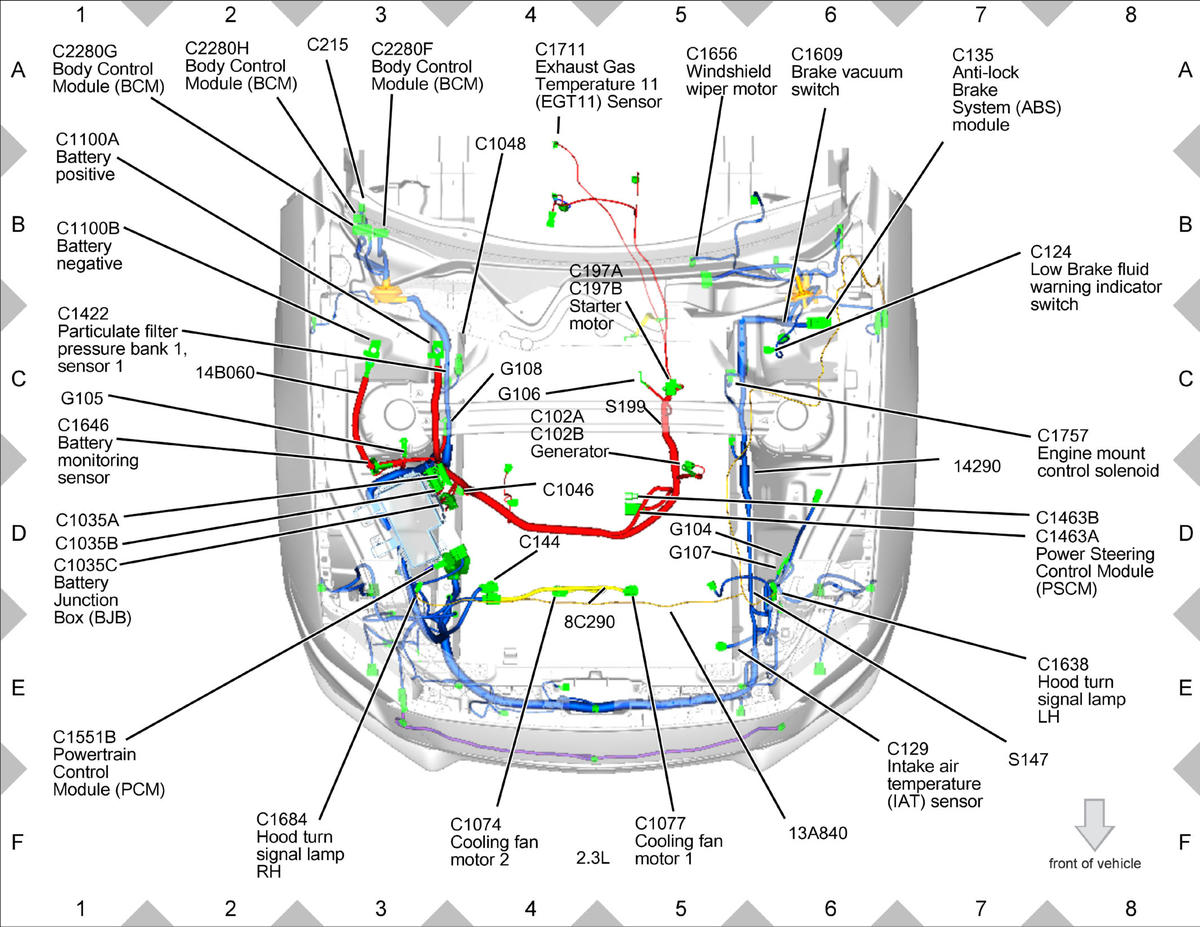

GFDWR10143Courtesy of FORD MOTOR COMPANY

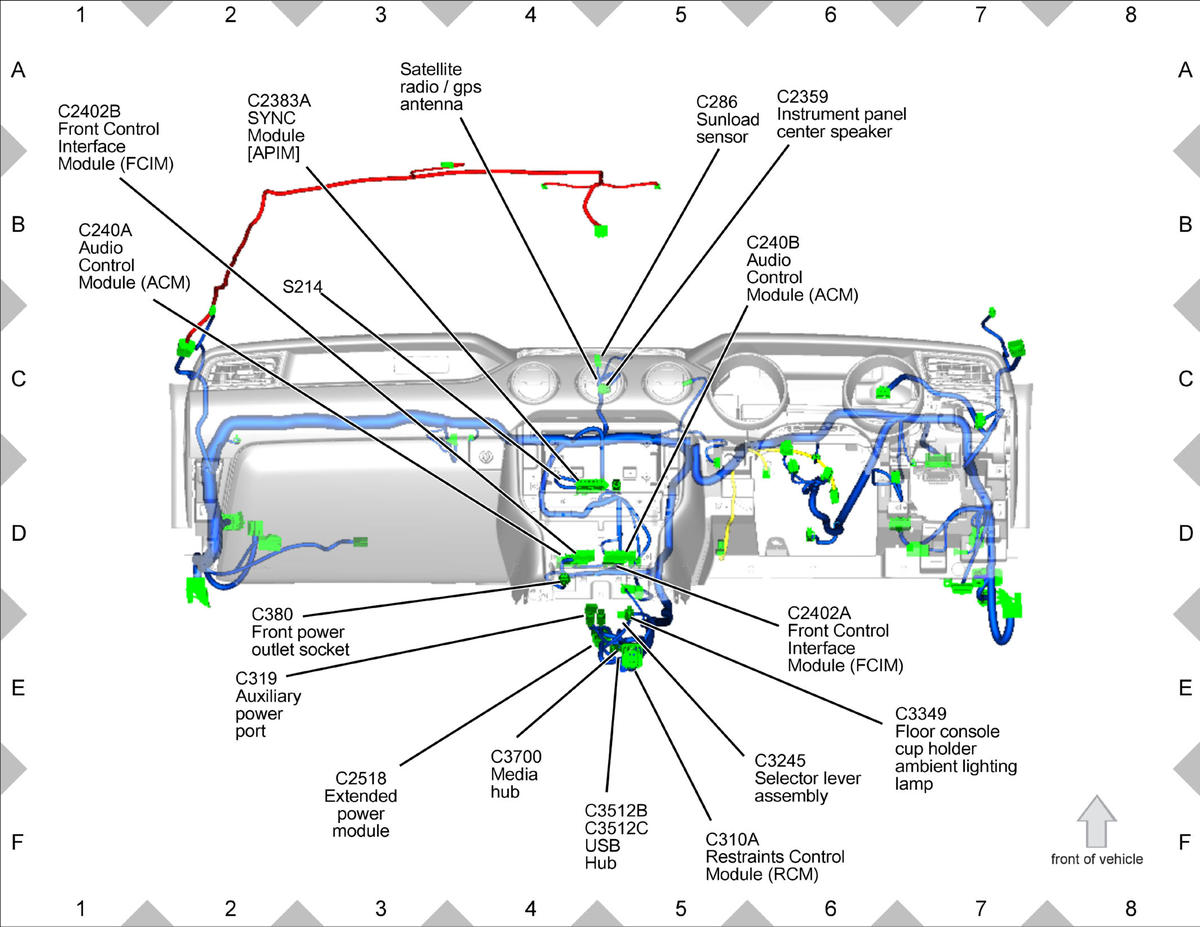

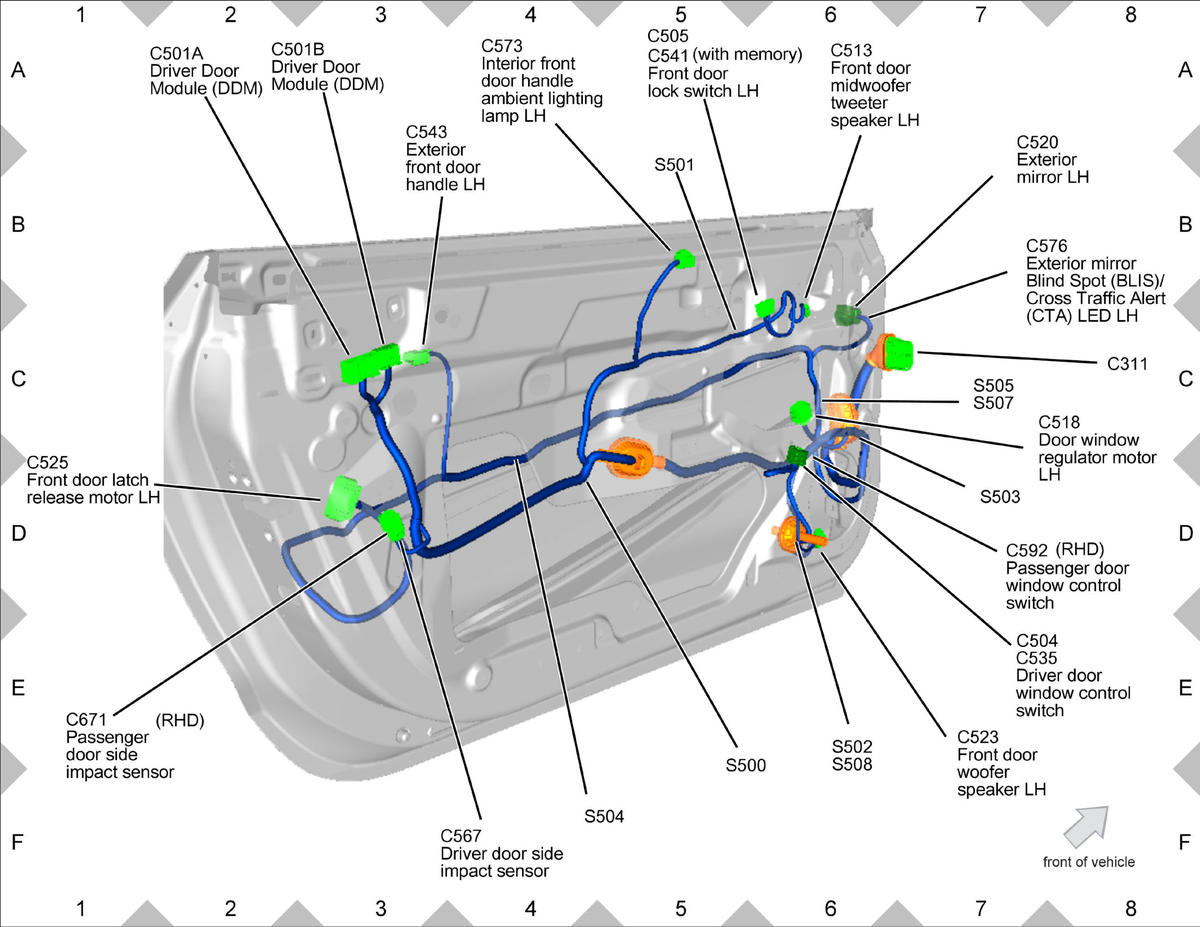

GFDWR10144Courtesy of FORD MOTOR COMPANY

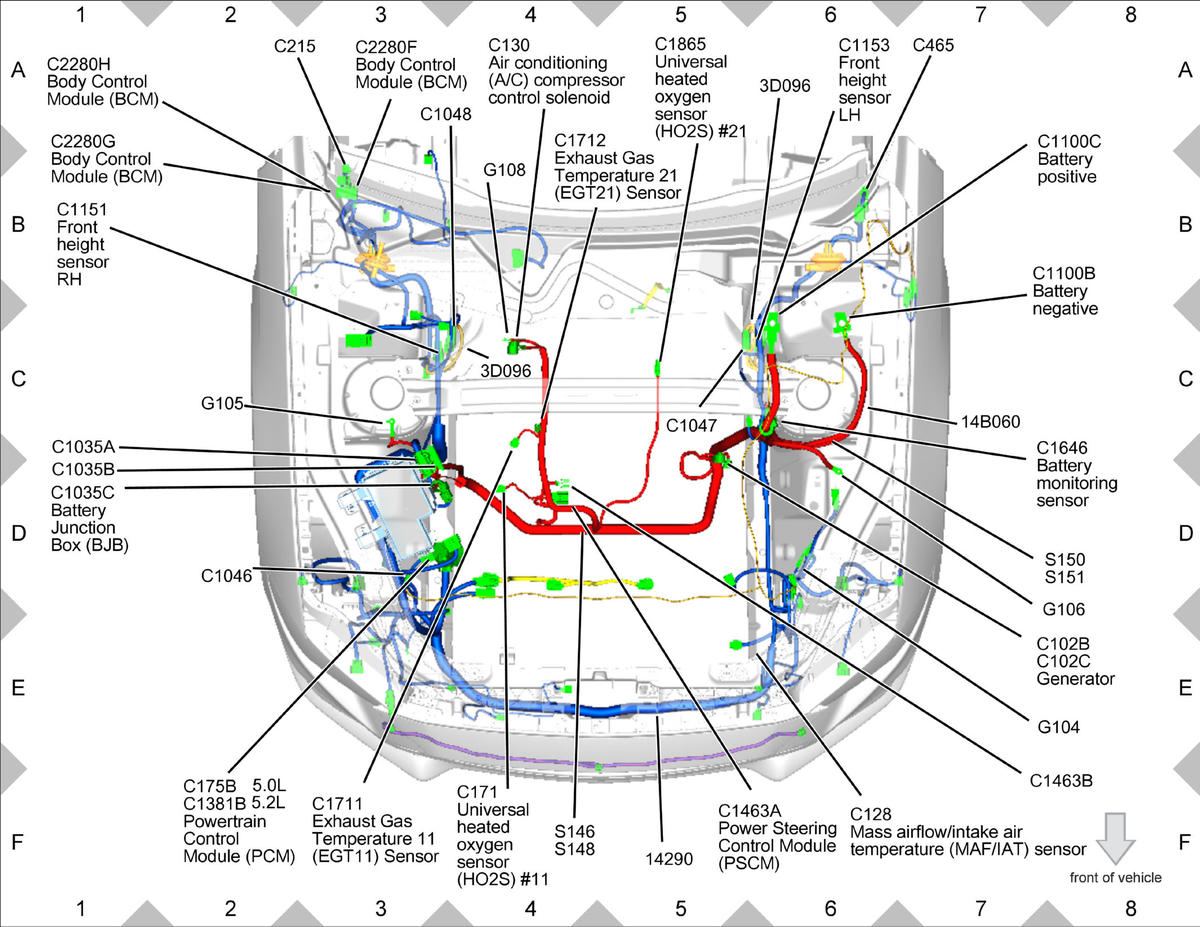

GFDWR10145Courtesy of FORD MOTOR COMPANY

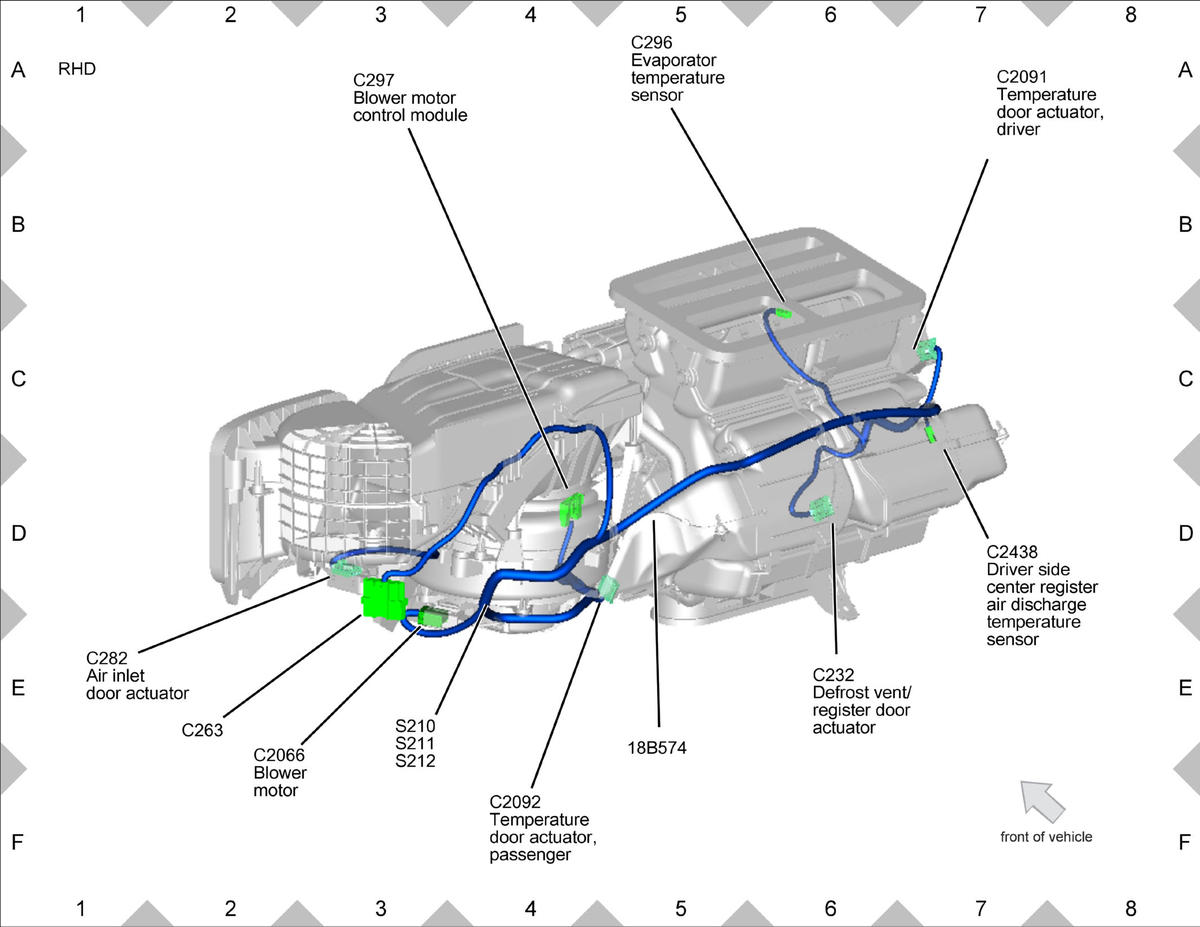

GFDWR10146Courtesy of FORD MOTOR COMPANY

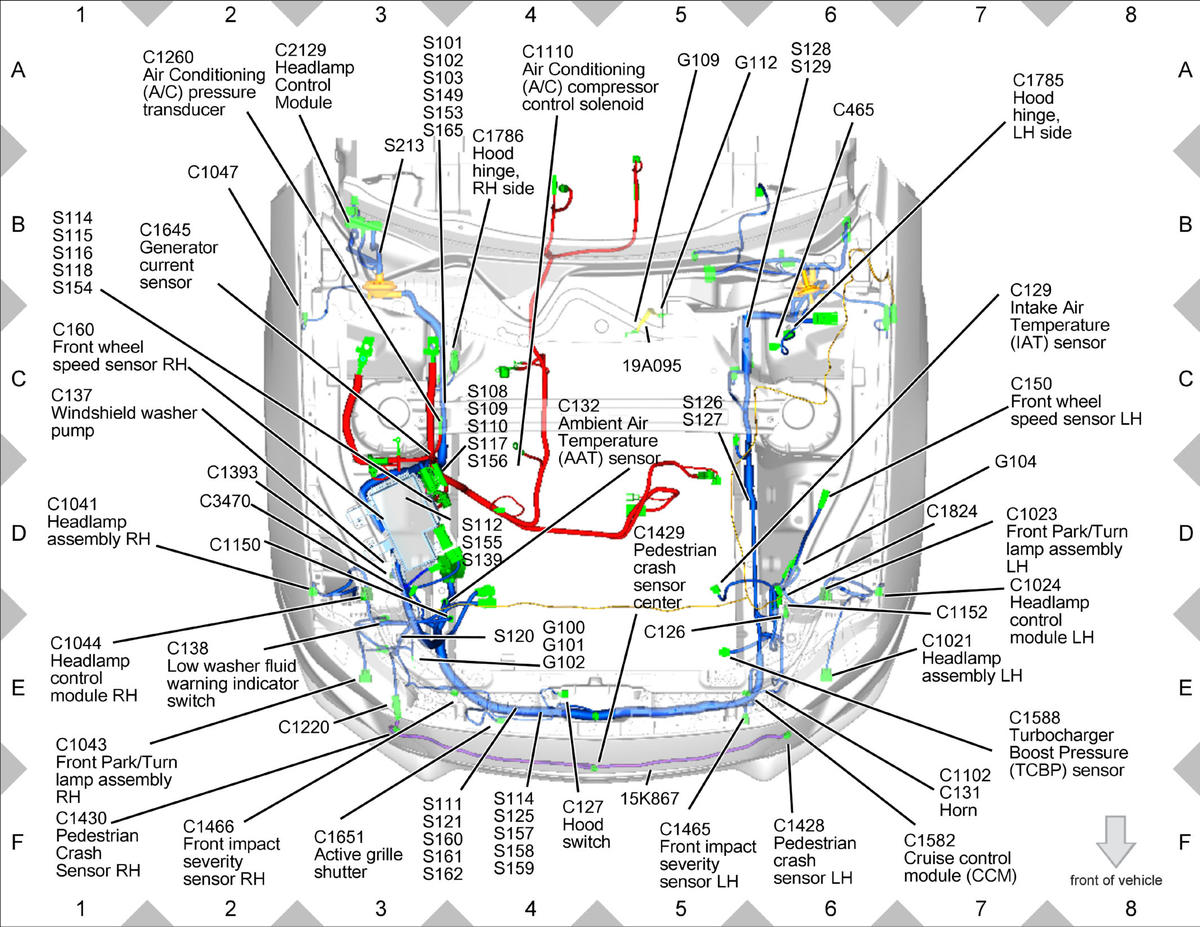

GFDWR10147Courtesy of FORD MOTOR COMPANY

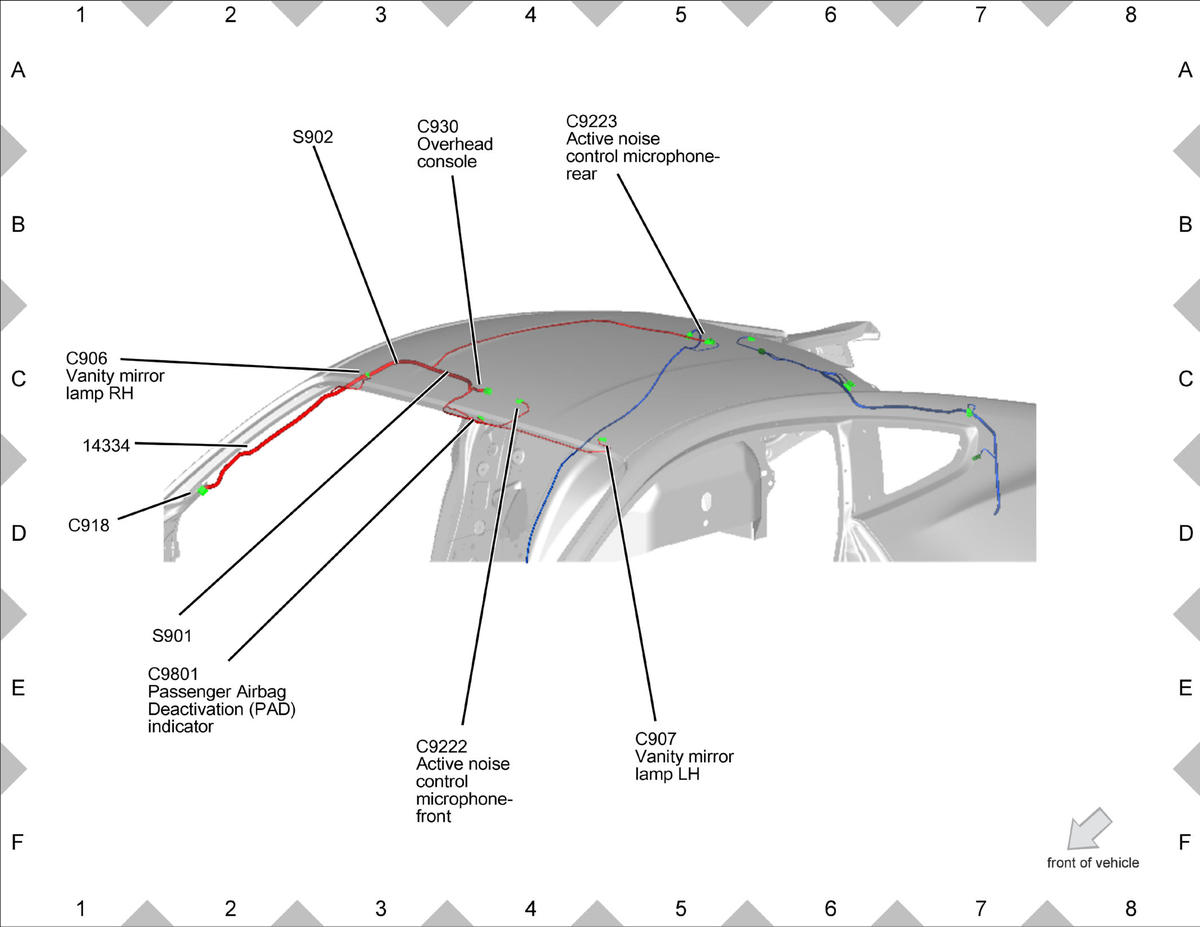

GFDWR10148Courtesy of FORD MOTOR COMPANY

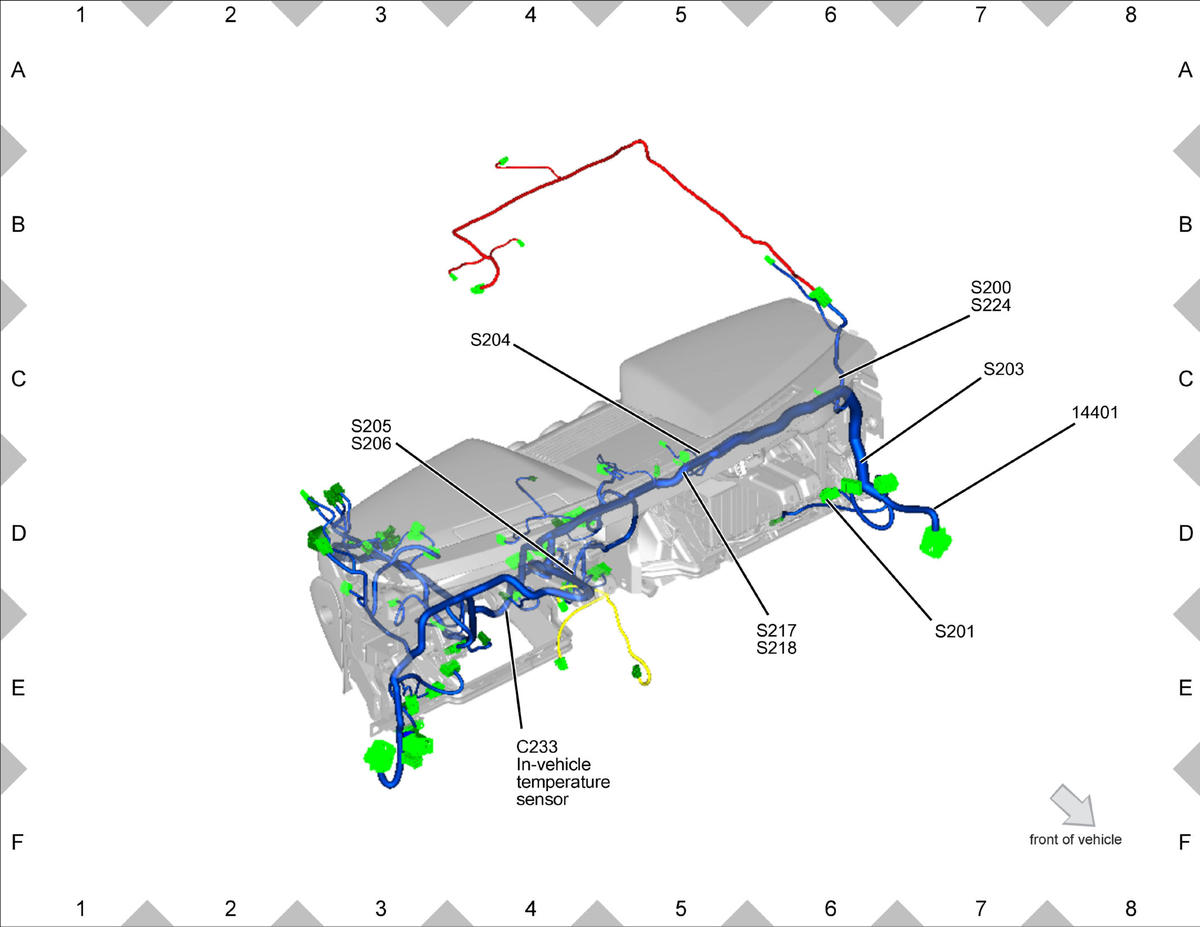

GFDWR10149Courtesy of FORD MOTOR COMPANY

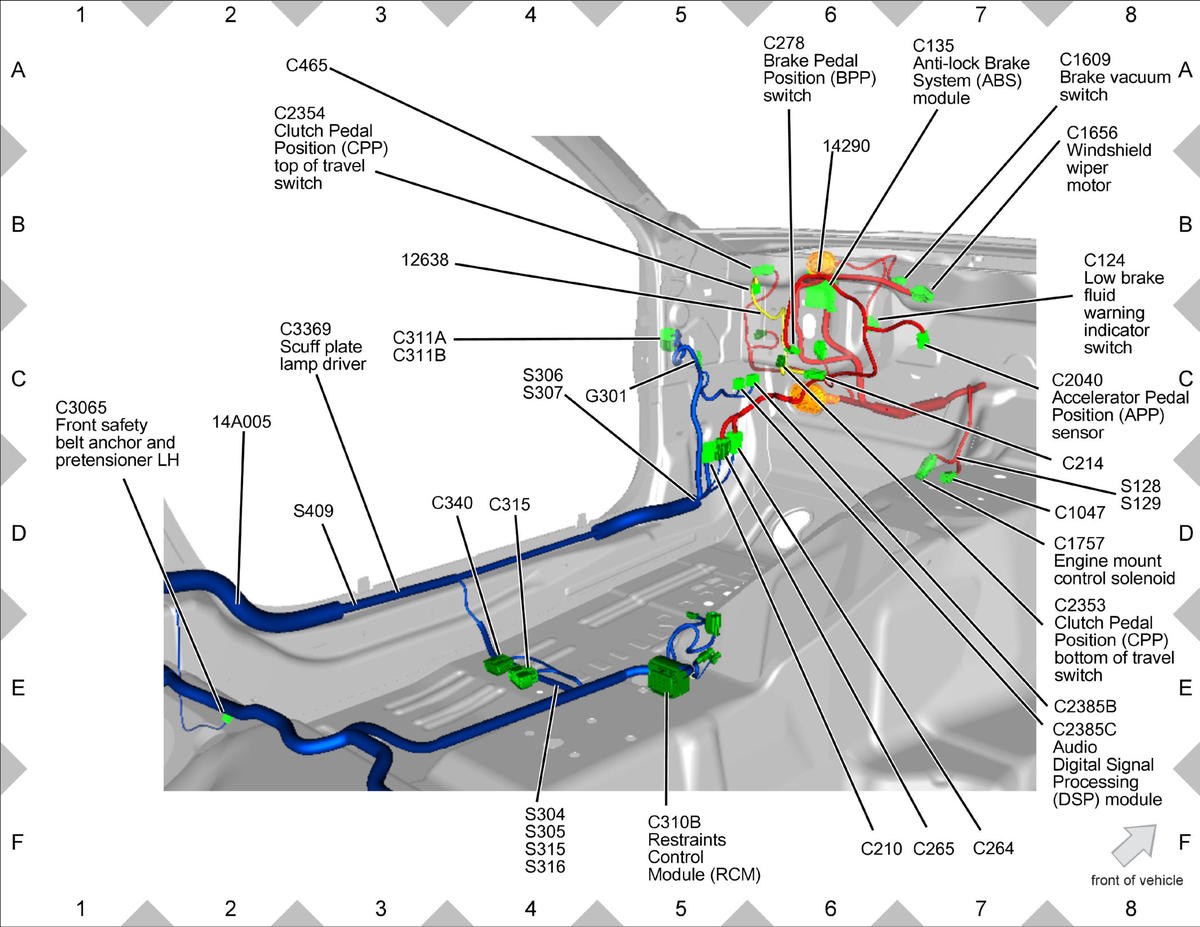

GFDWR10150Courtesy of FORD MOTOR COMPANY

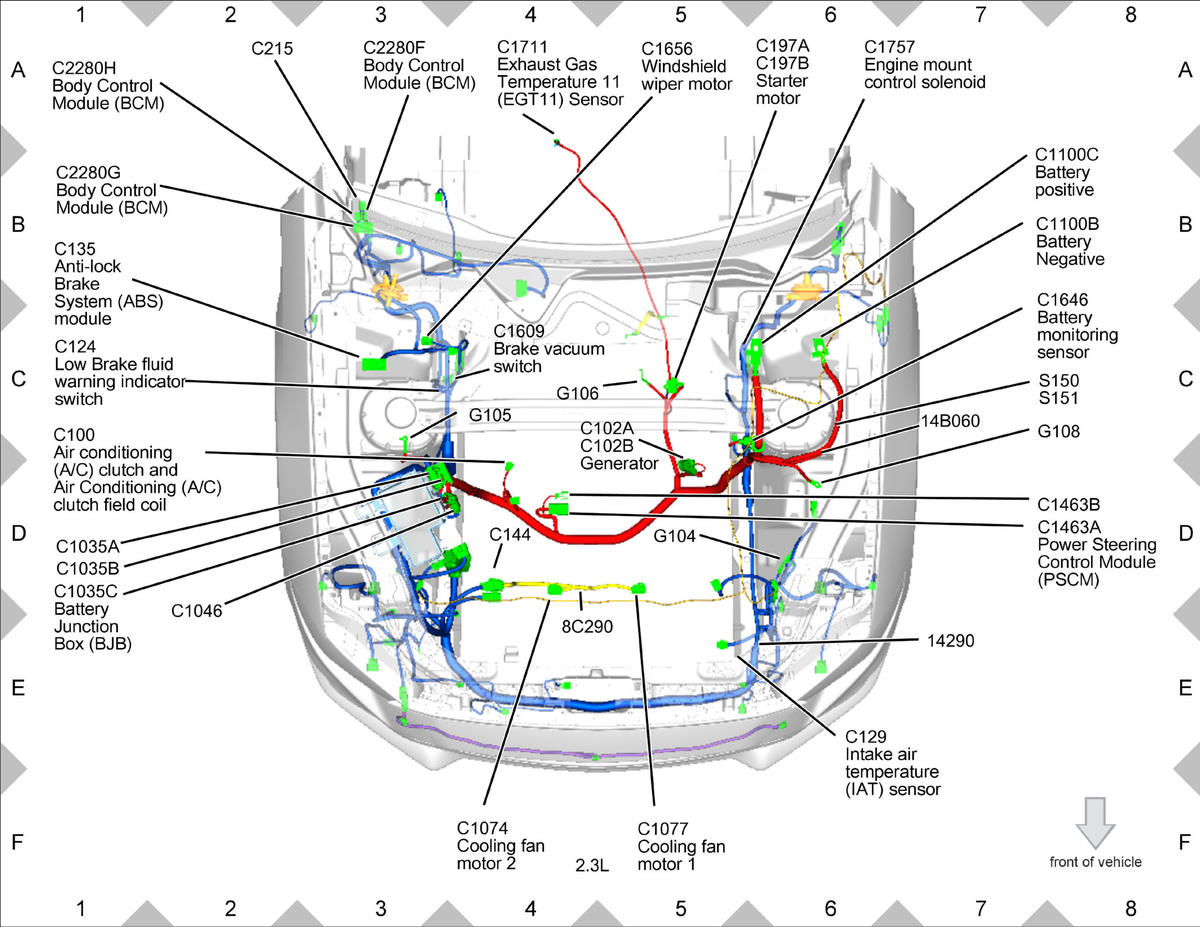

GFDWR10151Courtesy of FORD MOTOR COMPANY
GFDWR10152Courtesy of FORD MOTOR COMPANY

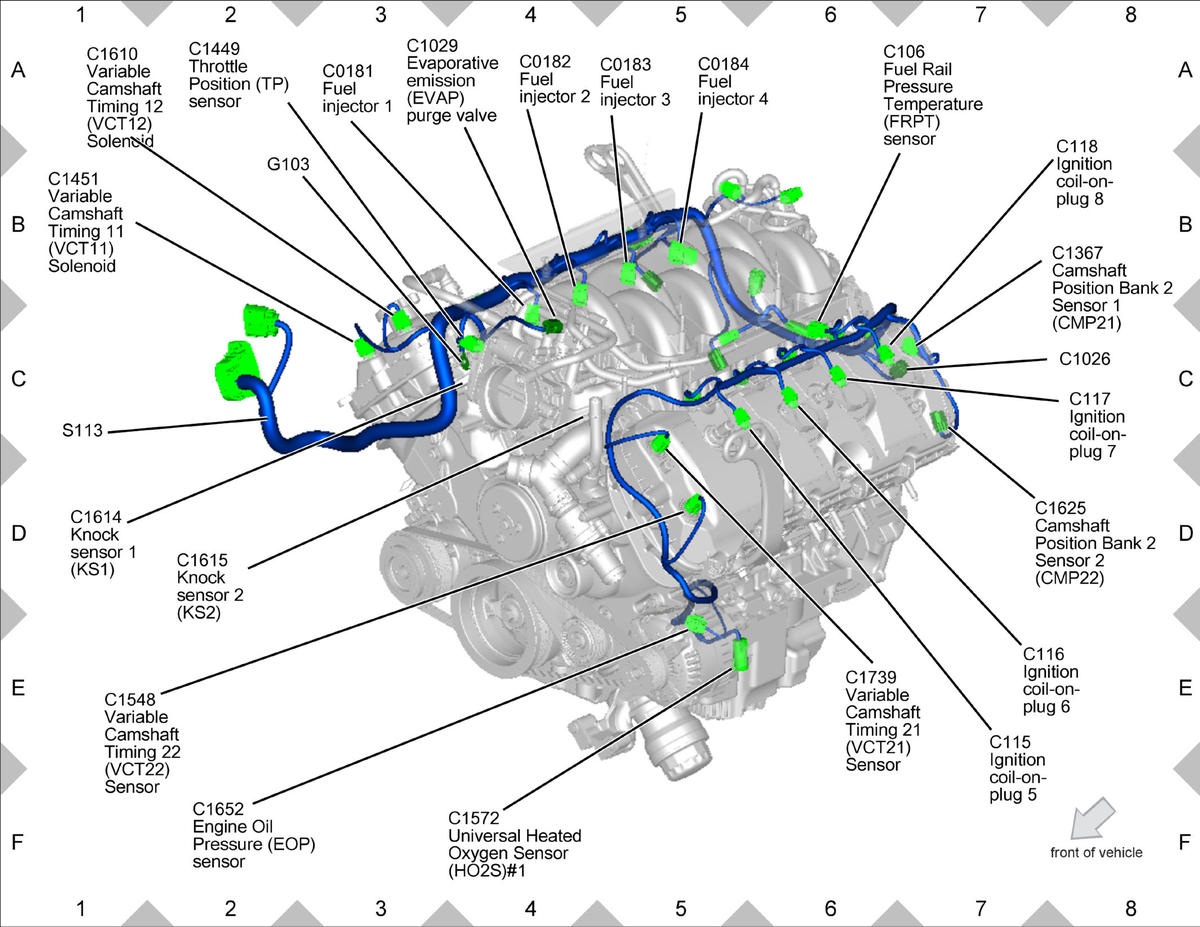

GFDWR10153Courtesy of FORD MOTOR COMPANY
GFDWR10154Courtesy of FORD MOTOR COMPANY

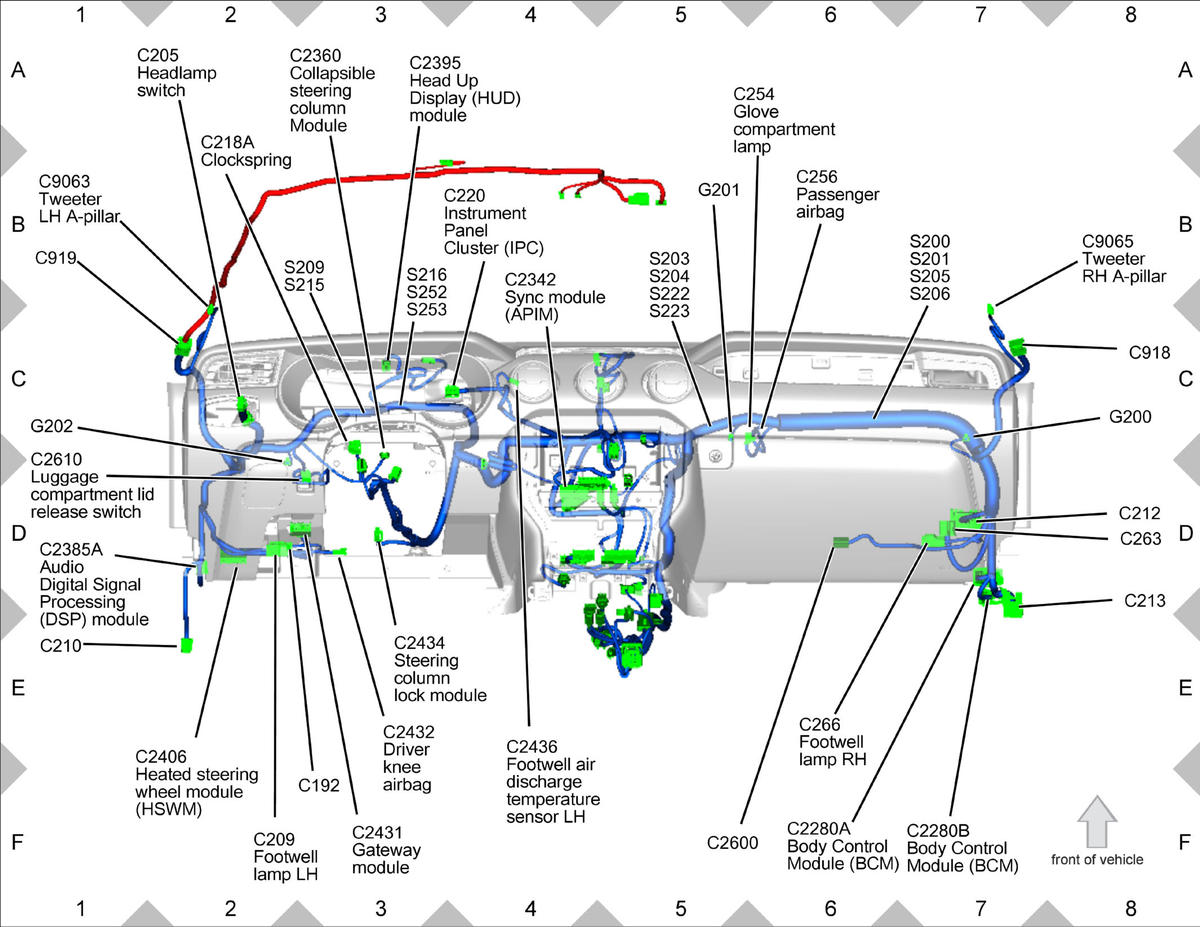

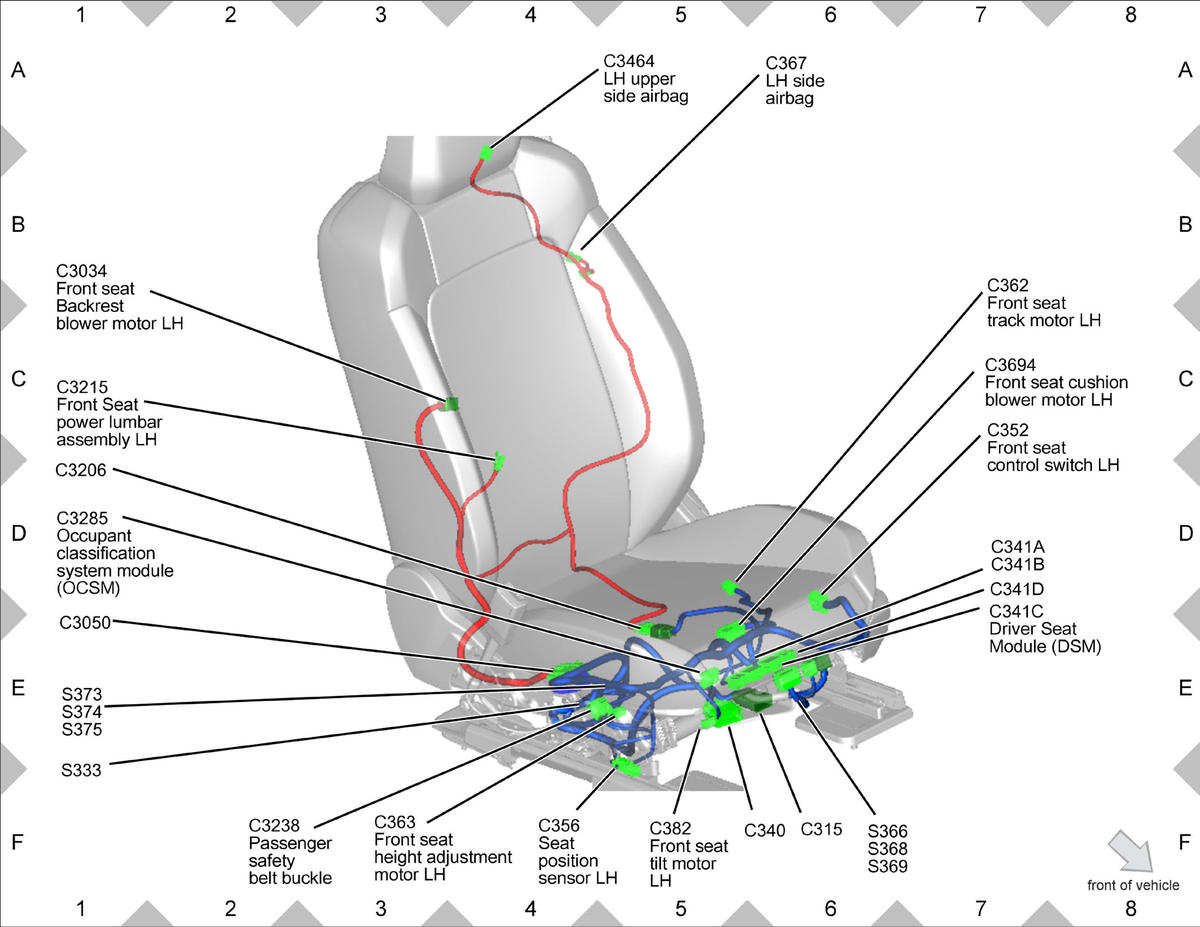

GFDWR10155Courtesy of FORD MOTOR COMPANY

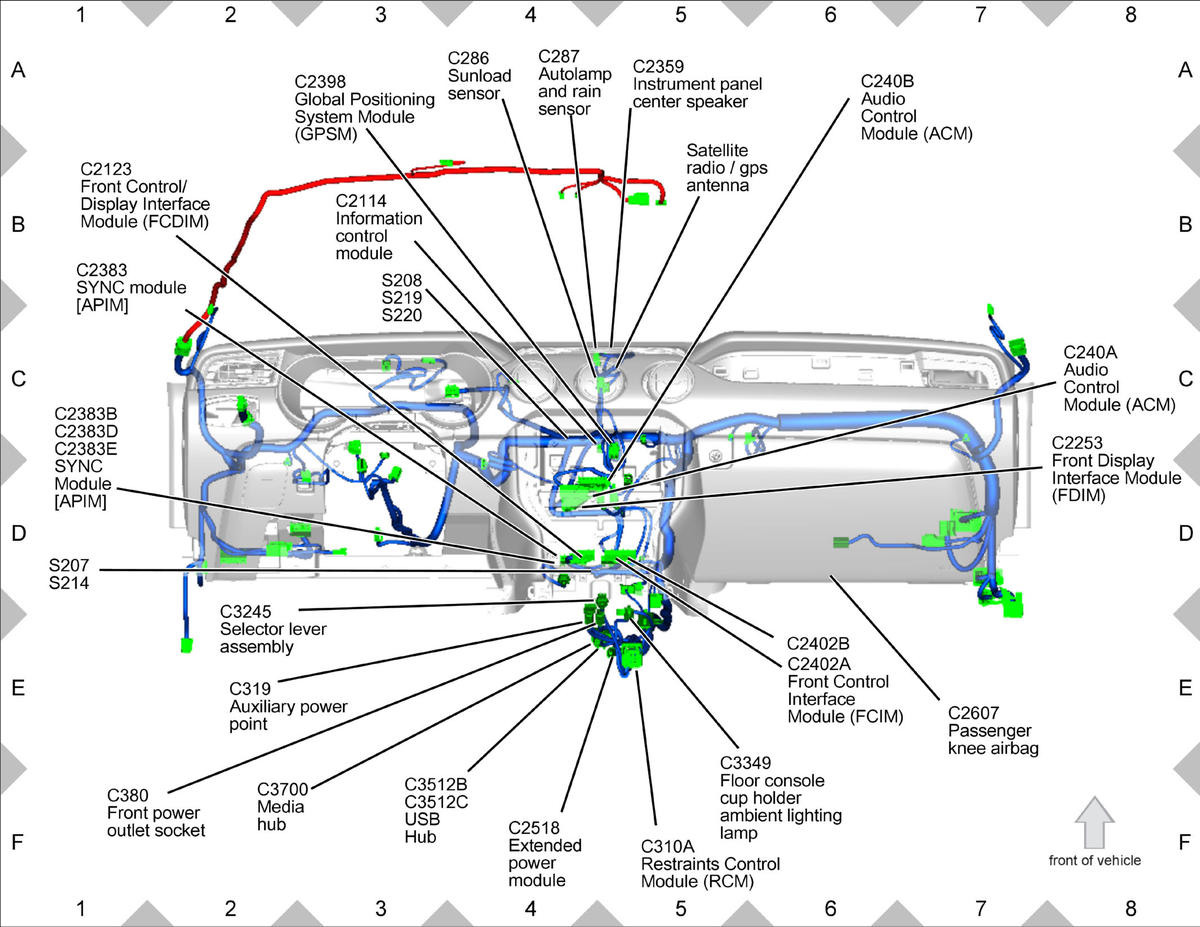

GFDWR10156Courtesy of FORD MOTOR COMPANY

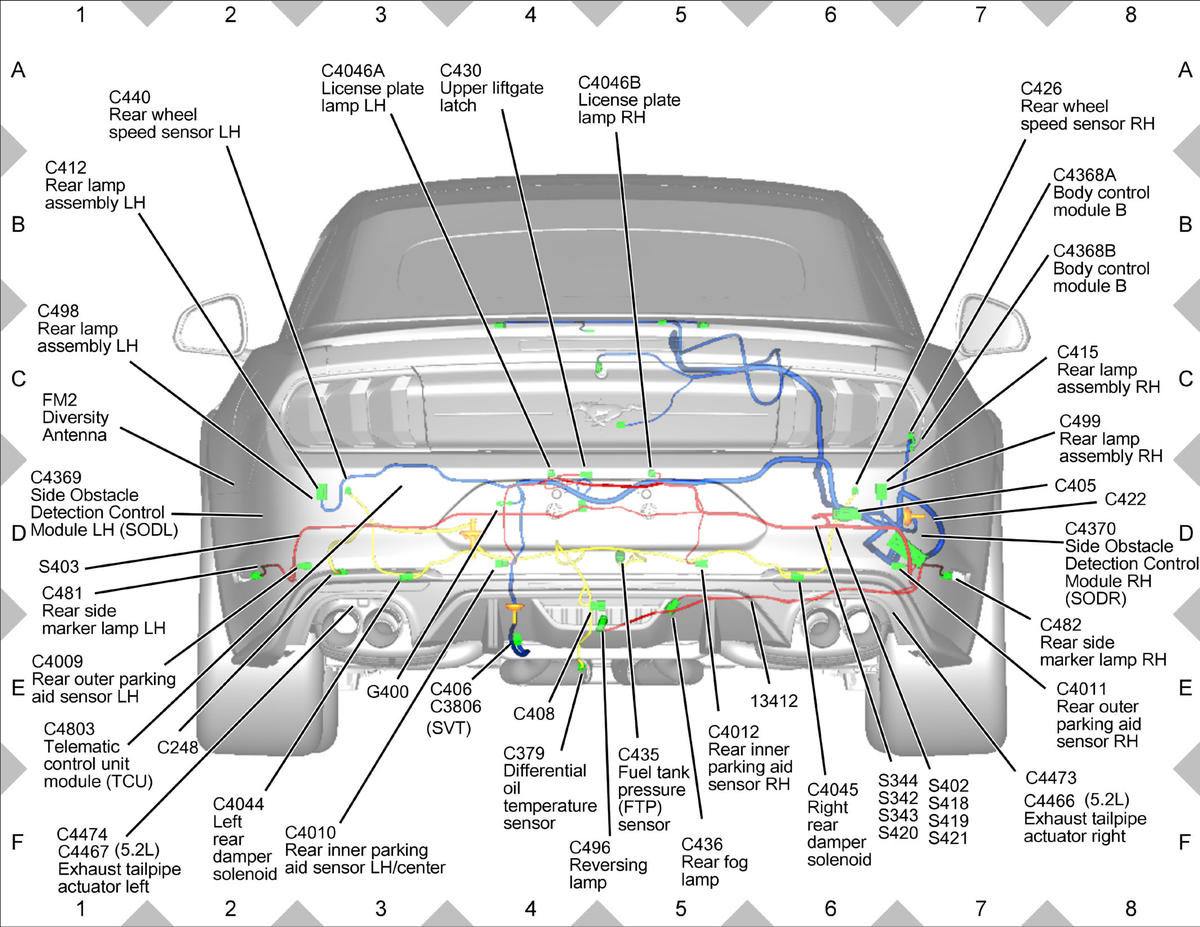

GFDWR10157Courtesy of FORD MOTOR COMPANY

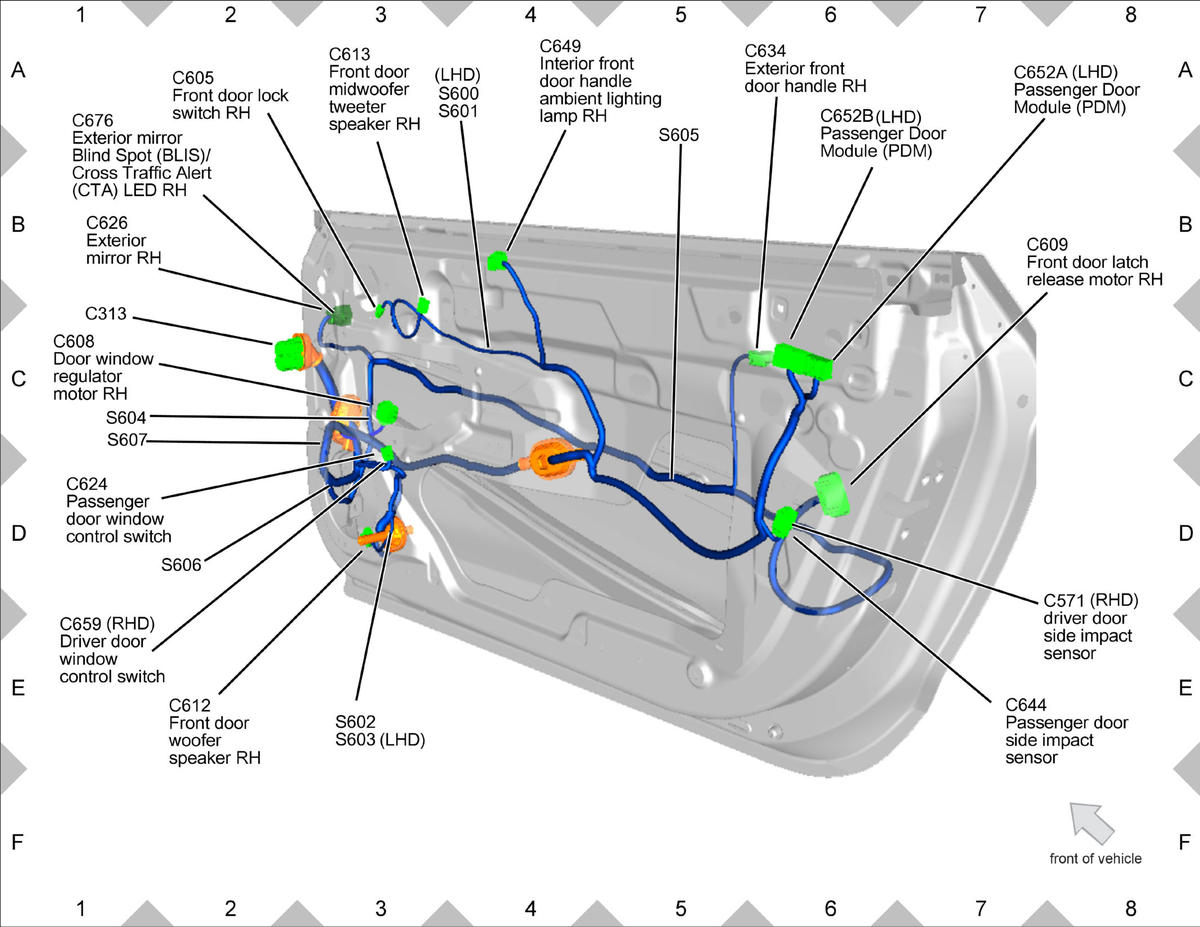

GFDWR10158Courtesy of FORD MOTOR COMPANY

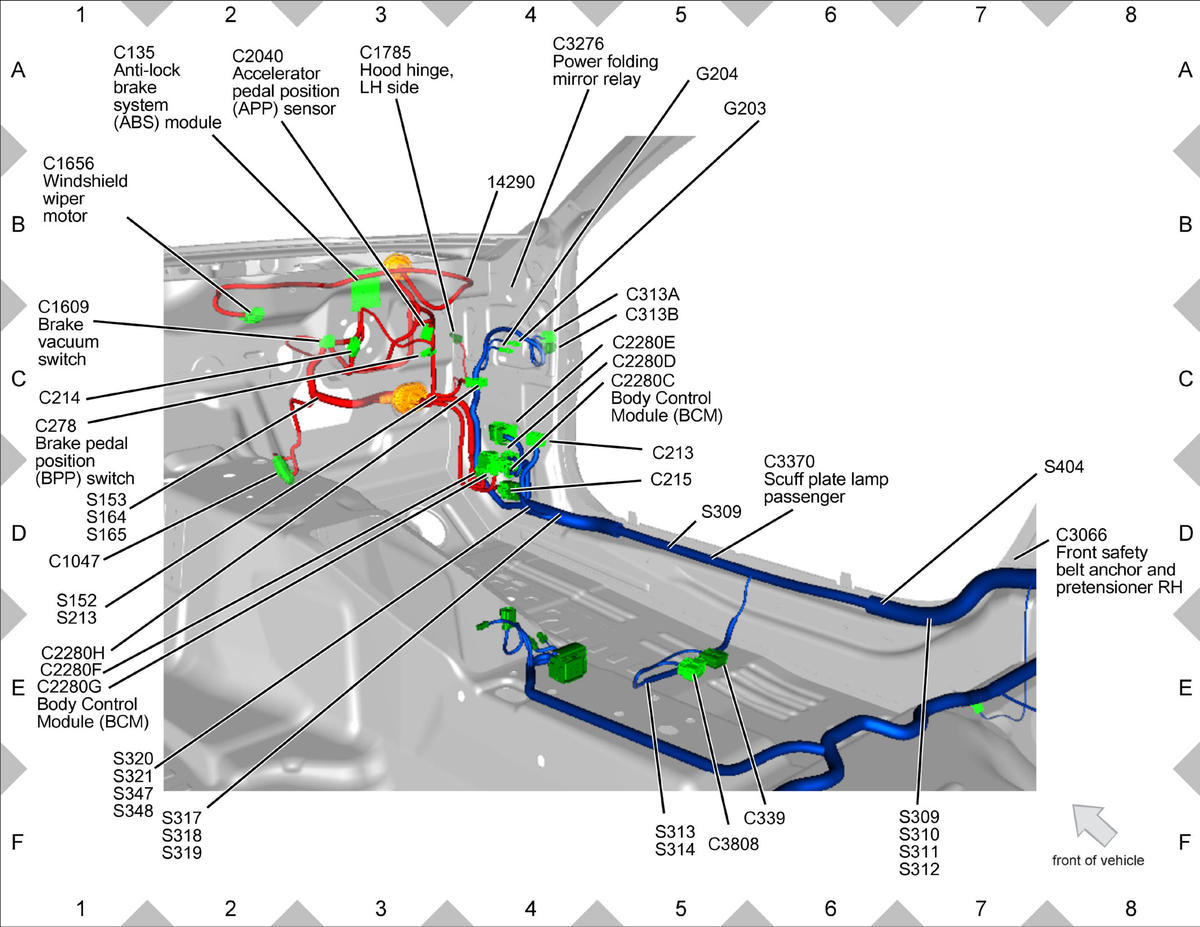

GFDWR10159Courtesy of FORD MOTOR COMPANY

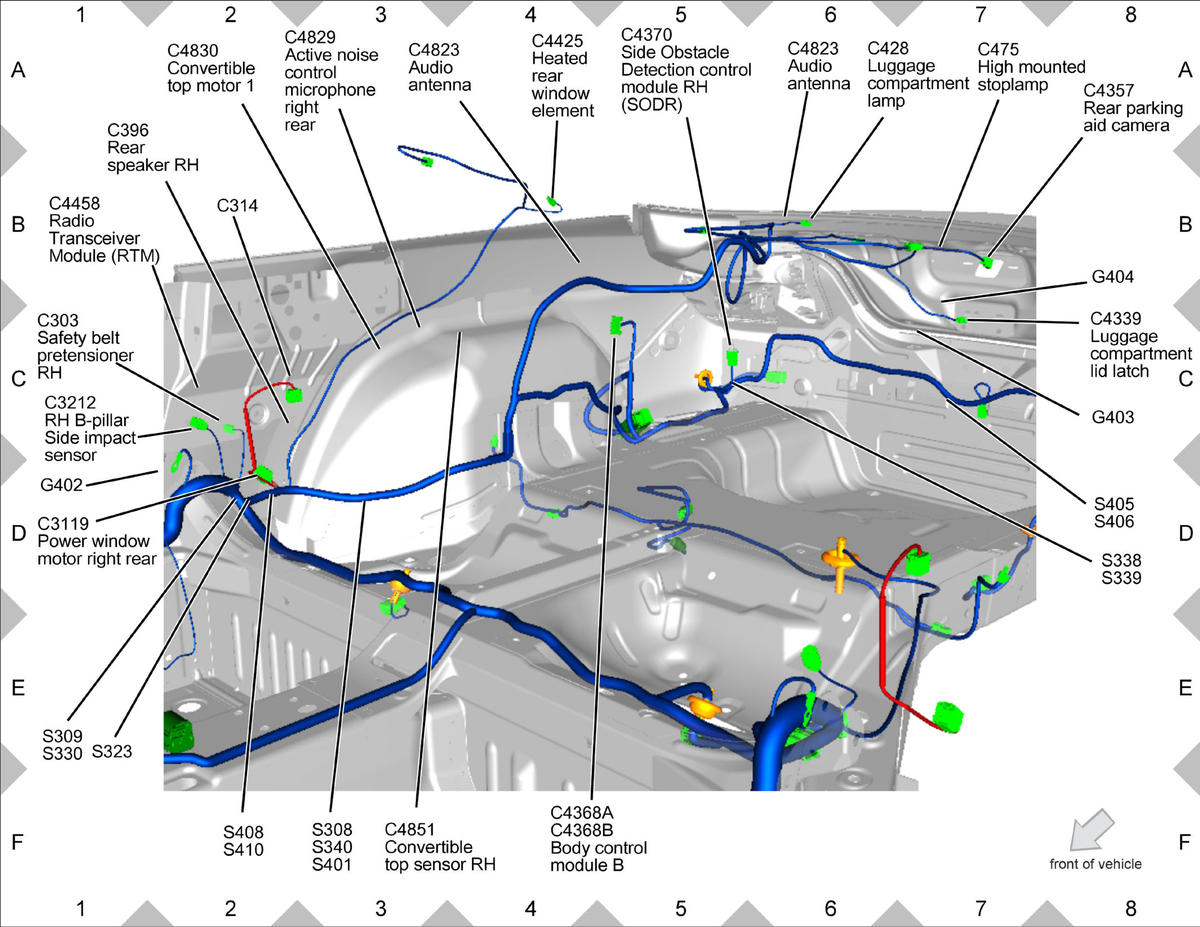

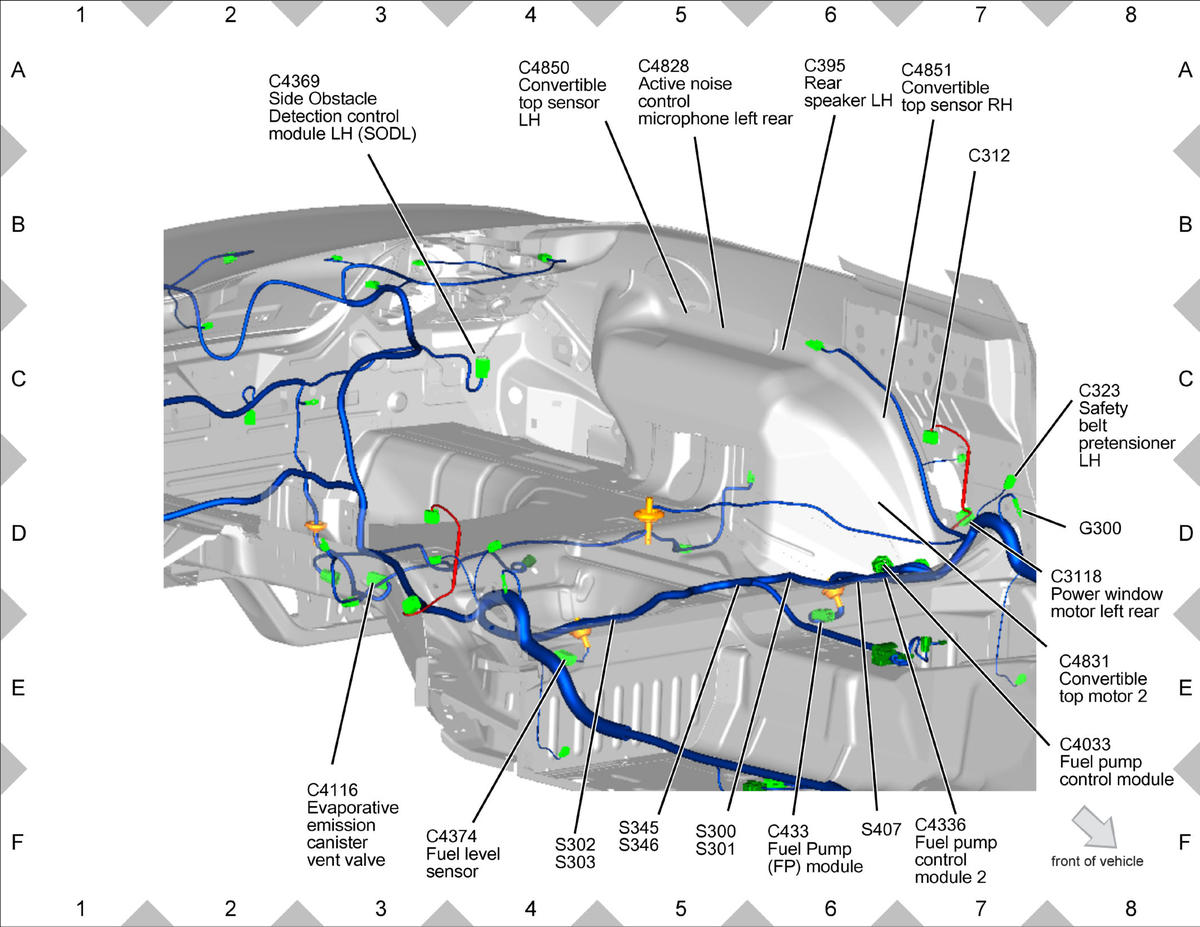

GFDWR10160Courtesy of FORD MOTOR COMPANY

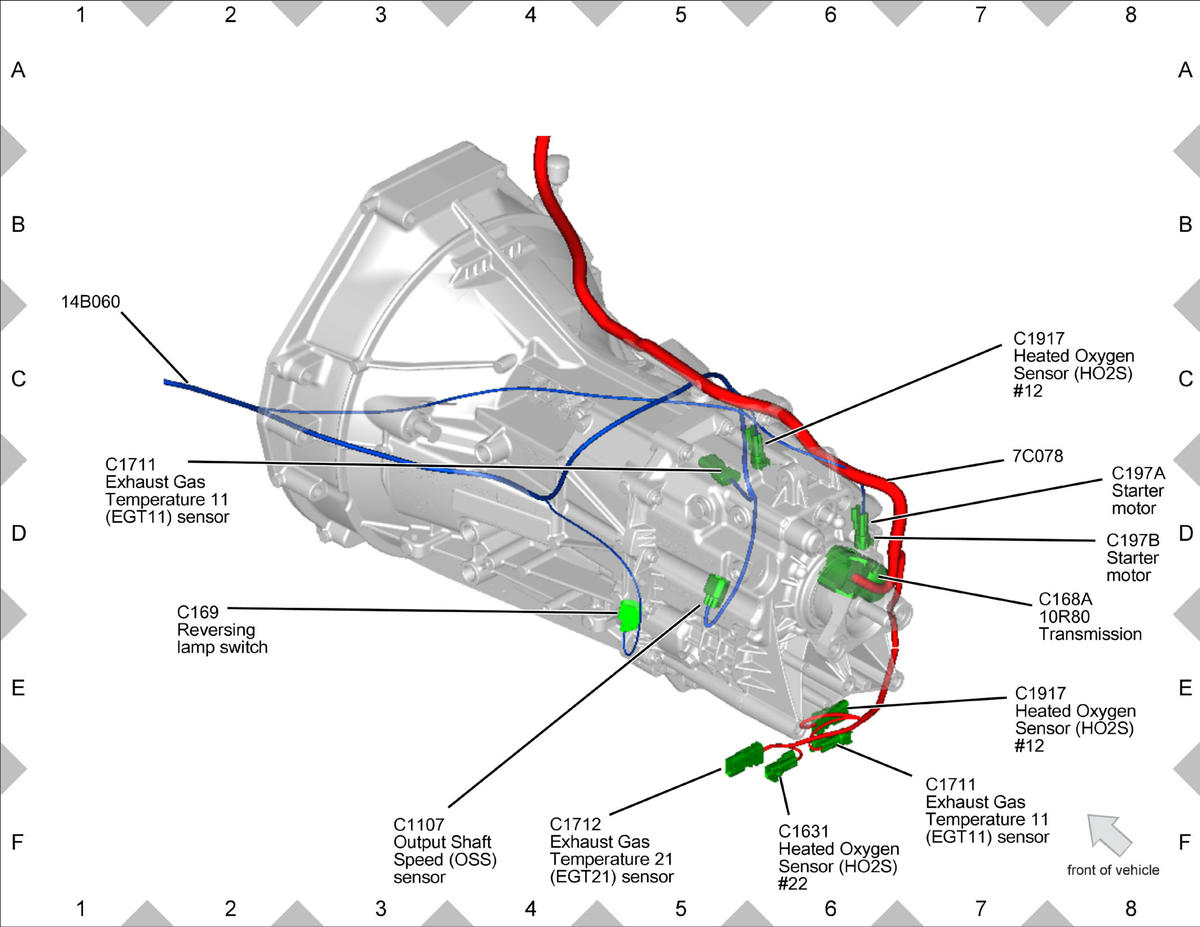

GFDWR10161Courtesy of FORD MOTOR COMPANY

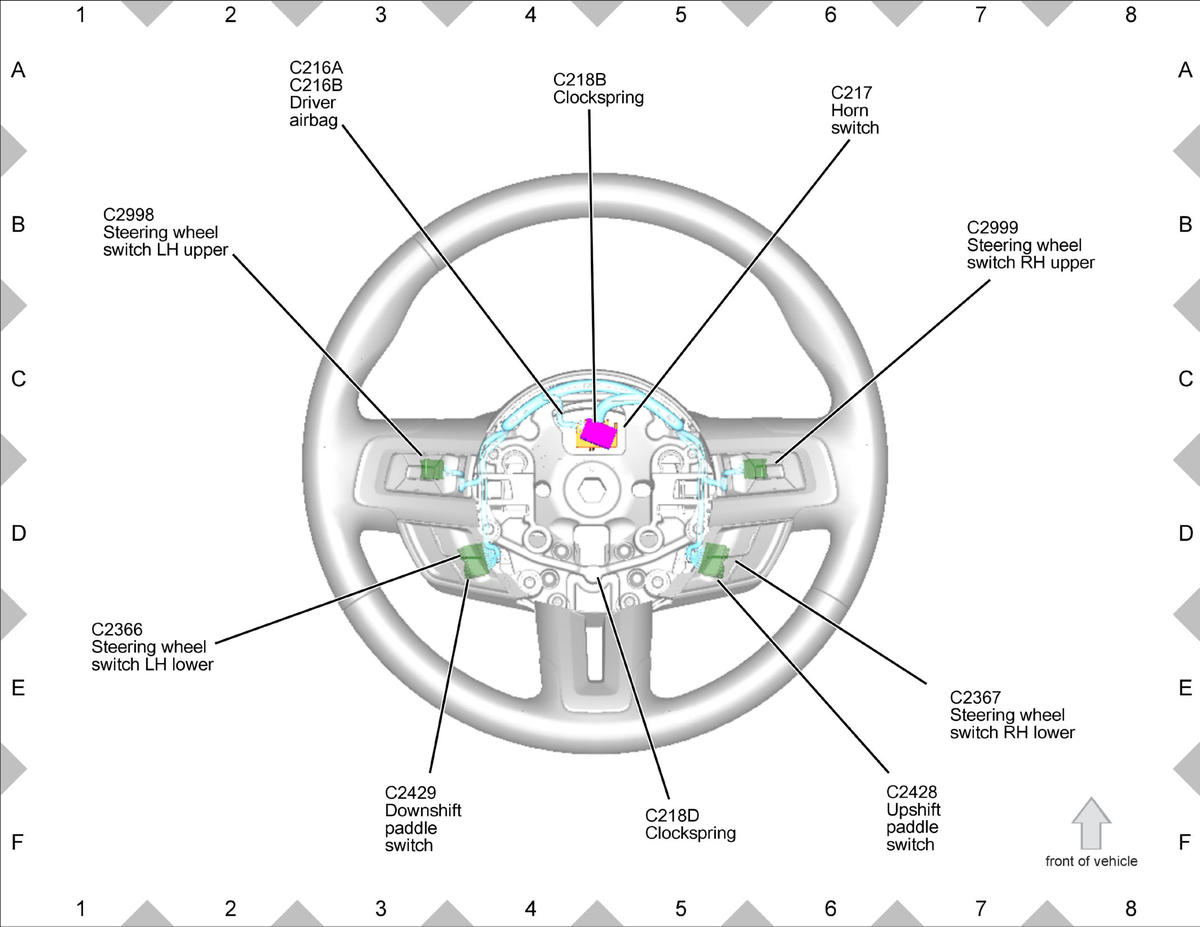

GFDWR10162Courtesy of FORD MOTOR COMPANY

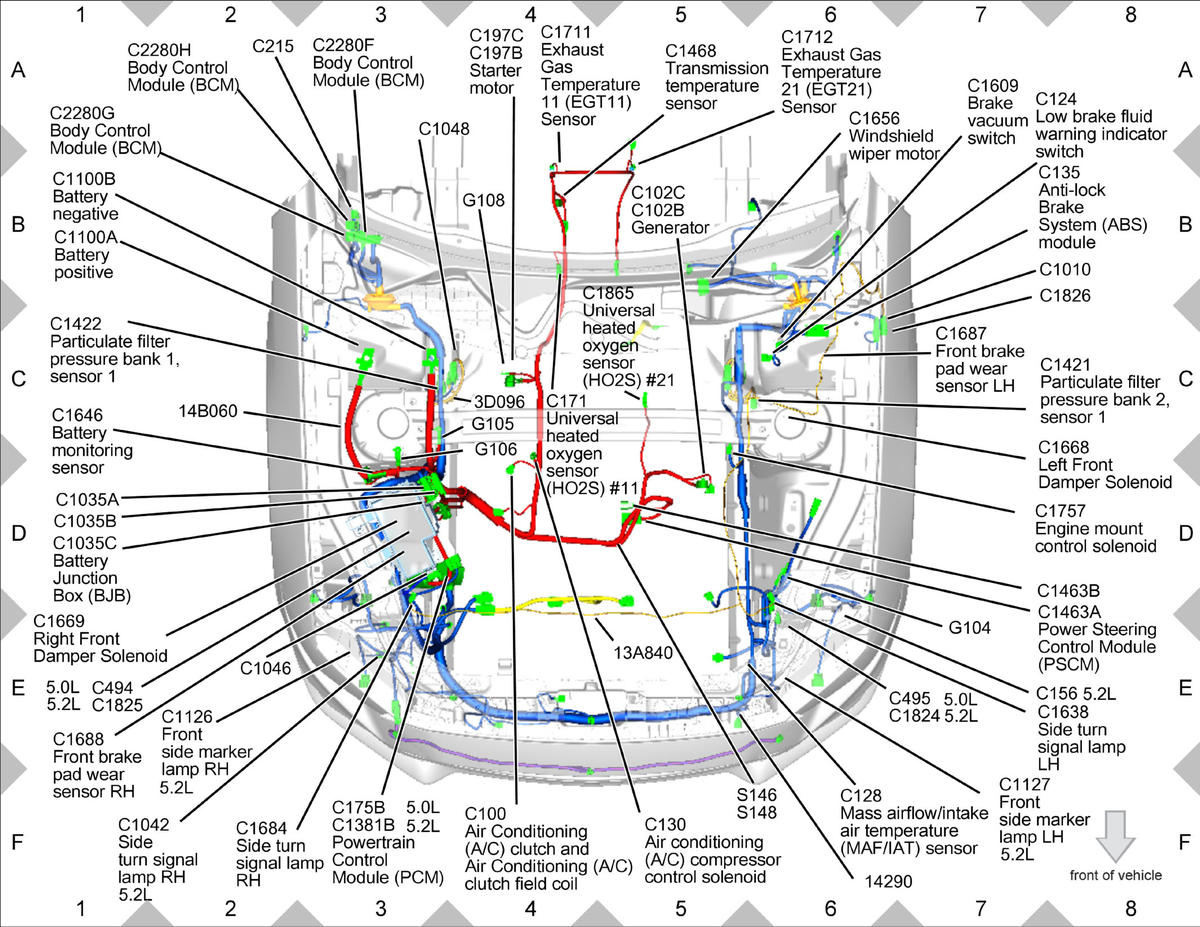

GFDWR10163Courtesy of FORD MOTOR COMPANY

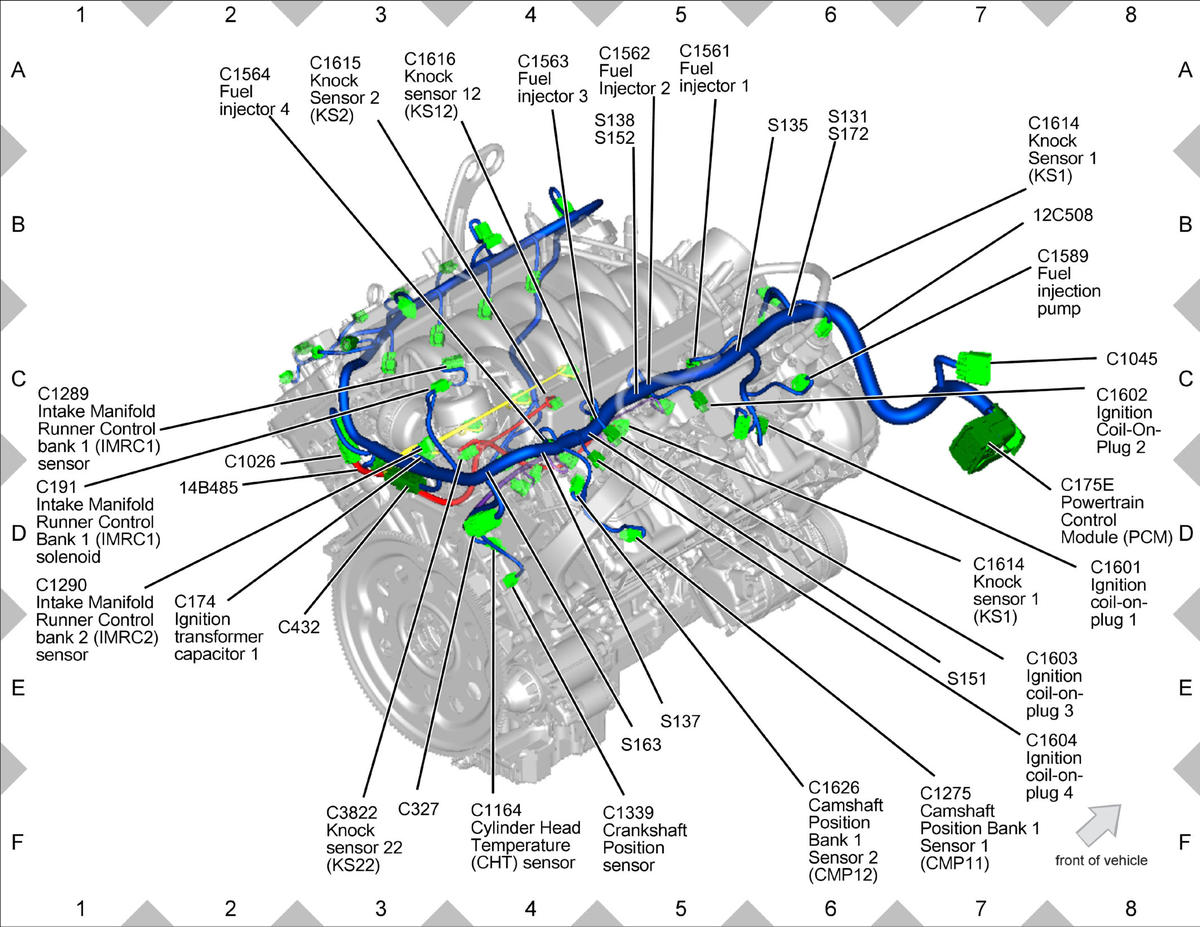

GFDWR10164Courtesy of FORD MOTOR COMPANY
