Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

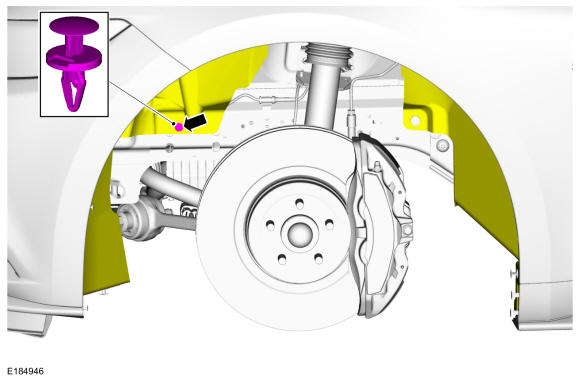

  2. Remove the retainer and position aside the fender splash shield.
    GFD284941Courtesy of FORD MOTOR COMPANY

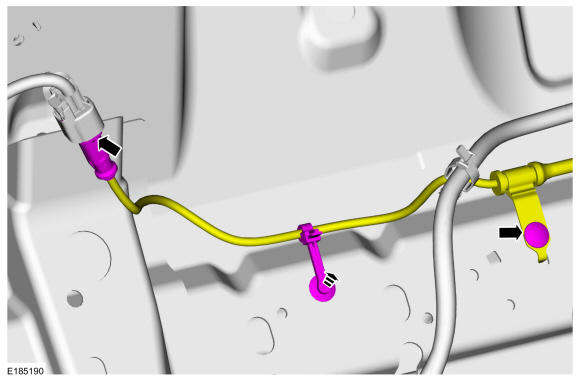

  3. Disconnect the front wheel speed sensor electrical connector and detach the 2 harness retainers.
    GFD284942Courtesy of FORD MOTOR COMPANY

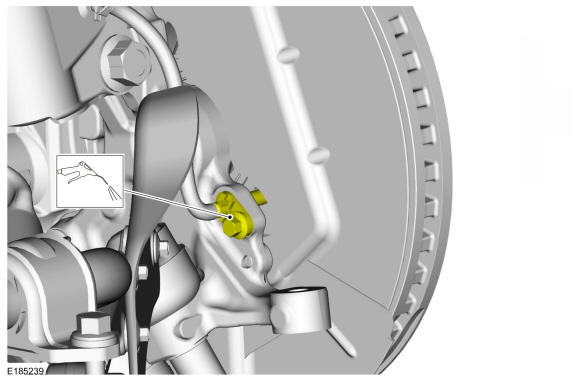

  4. Using compressed air, clean the area surrounding the front wheel speed sensor.
    GFD284943Courtesy of FORD MOTOR COMPANY

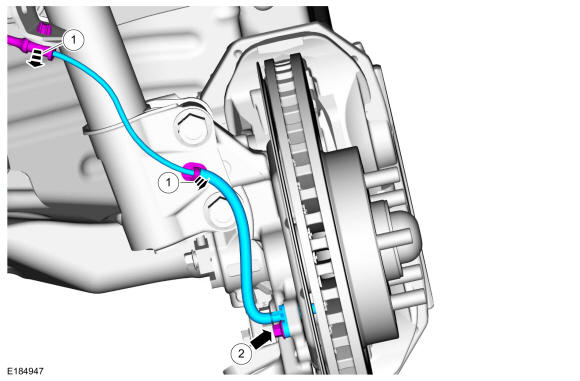

    1. Detach the 2 sensor harness retainers.
    2. Remove the bolt and the front wheel speed sensor.

      Torque: 133 lb.in (15 Nm)

GFD284944Courtesy of FORD MOTOR COMPANY
