Ambient Air Temperature Sensor: Removal

WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Expedition shown Navigator similar.

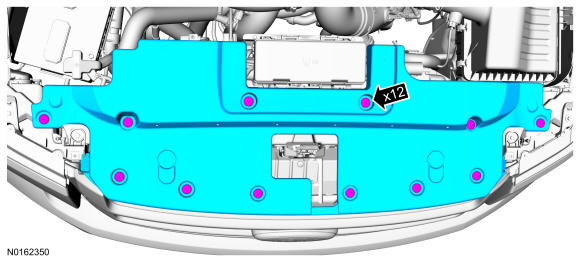

Remove the pin-type retainers and the upper air deflector.

Courtesy of FORD MOTOR COMPANY

2.

Detach and disconnect the ambient temperature sensor electrical connector.

3.

Remove the ambient air temperature sensor.

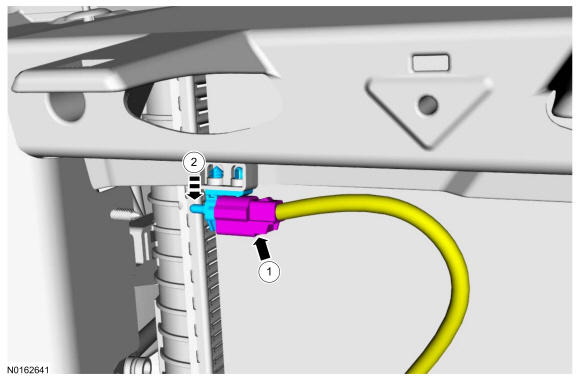

- 1.

  Disconnect the ambient air temperature sensor electrical connector.
- 2.

  Detach and remove the ambient air temperature sensor.

Courtesy of FORD MOTOR COMPANY
