Module Communications Network

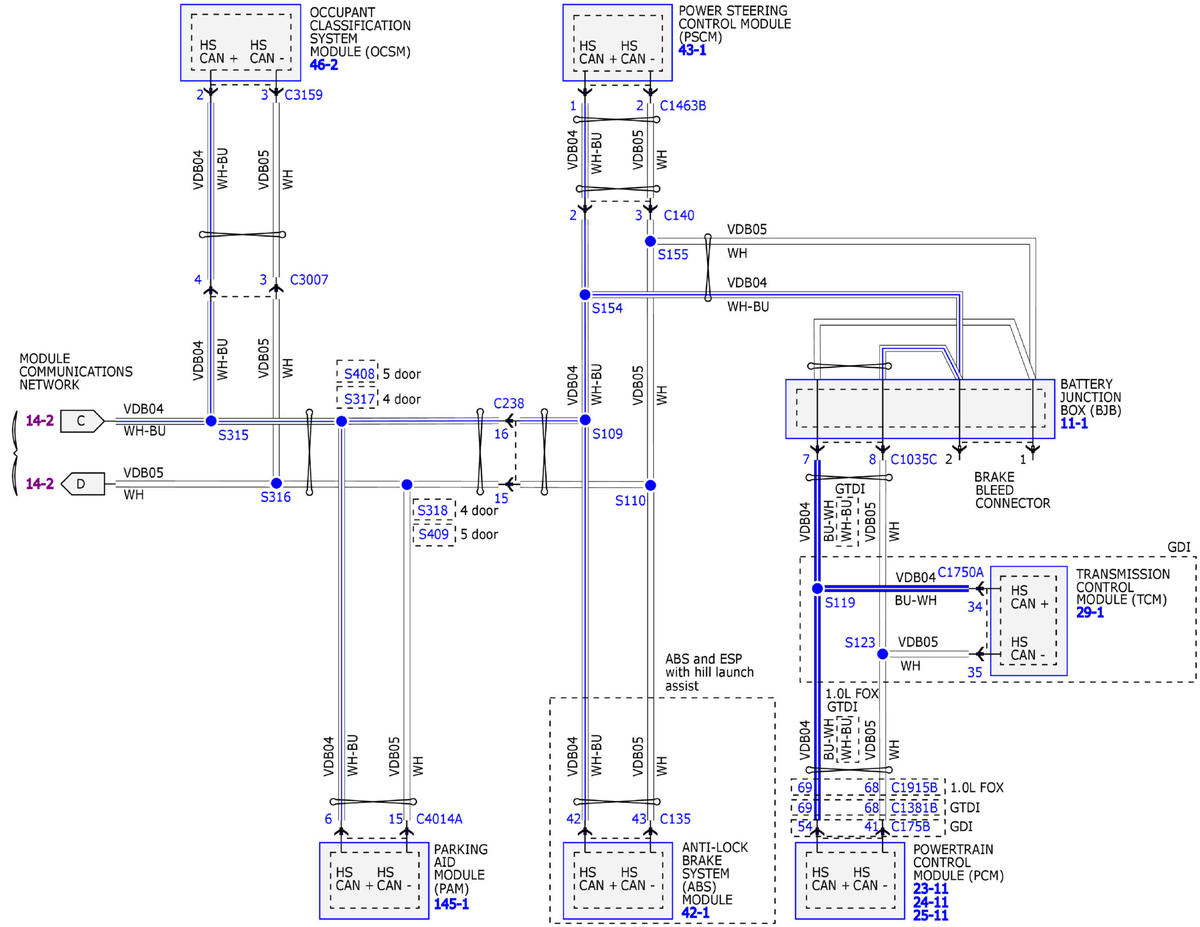

Fig 1: Module Communications Network System Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

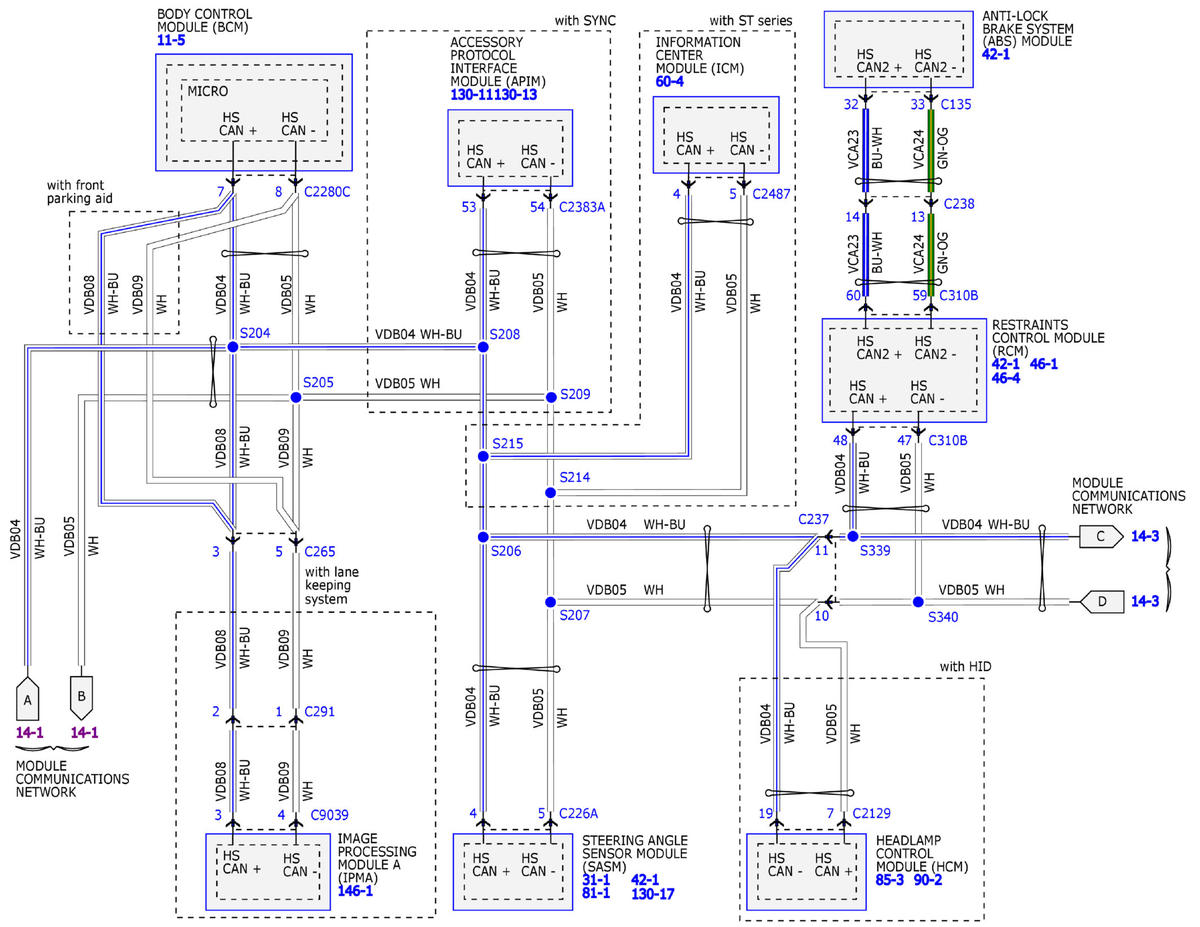

Fig 2: Module Communications Network System Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

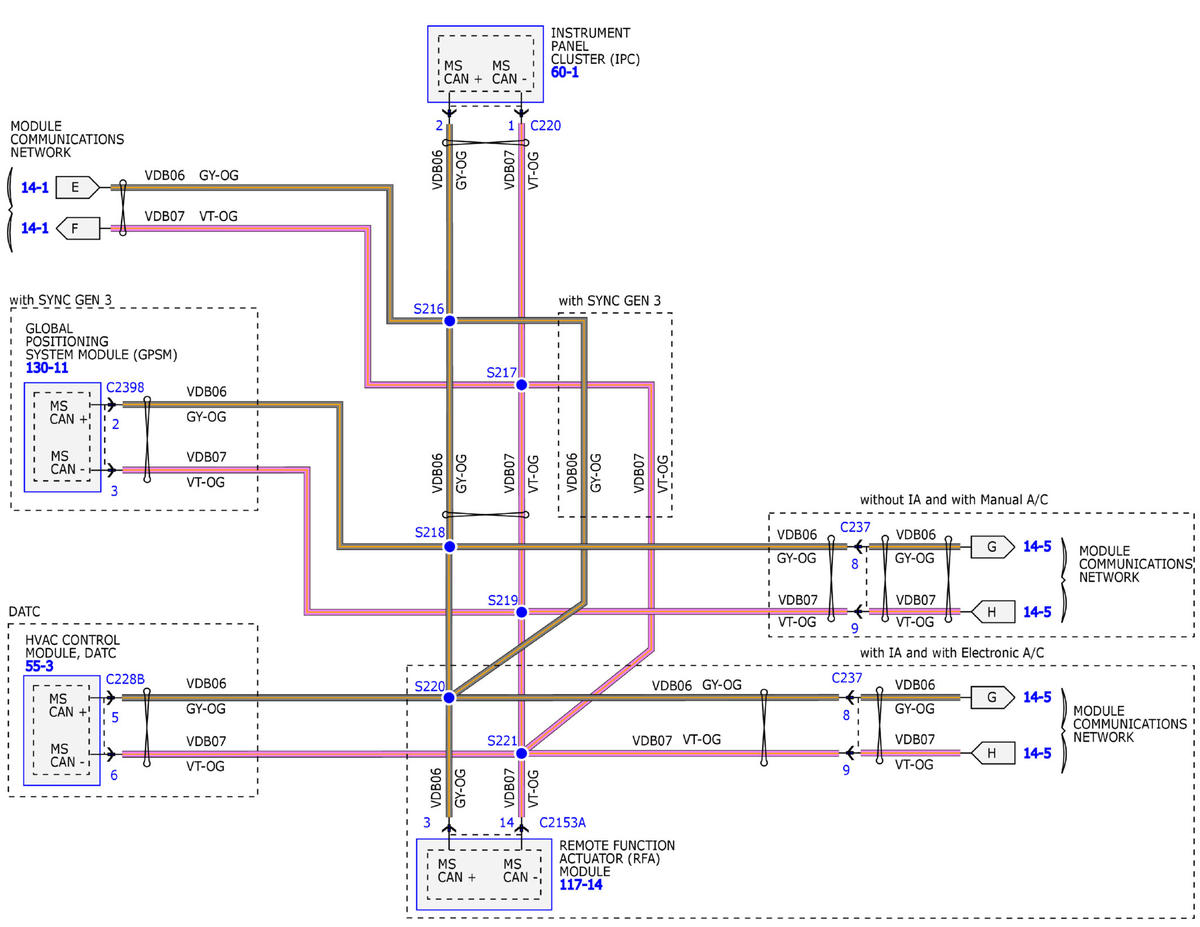

Fig 3: Module Communications Network System Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

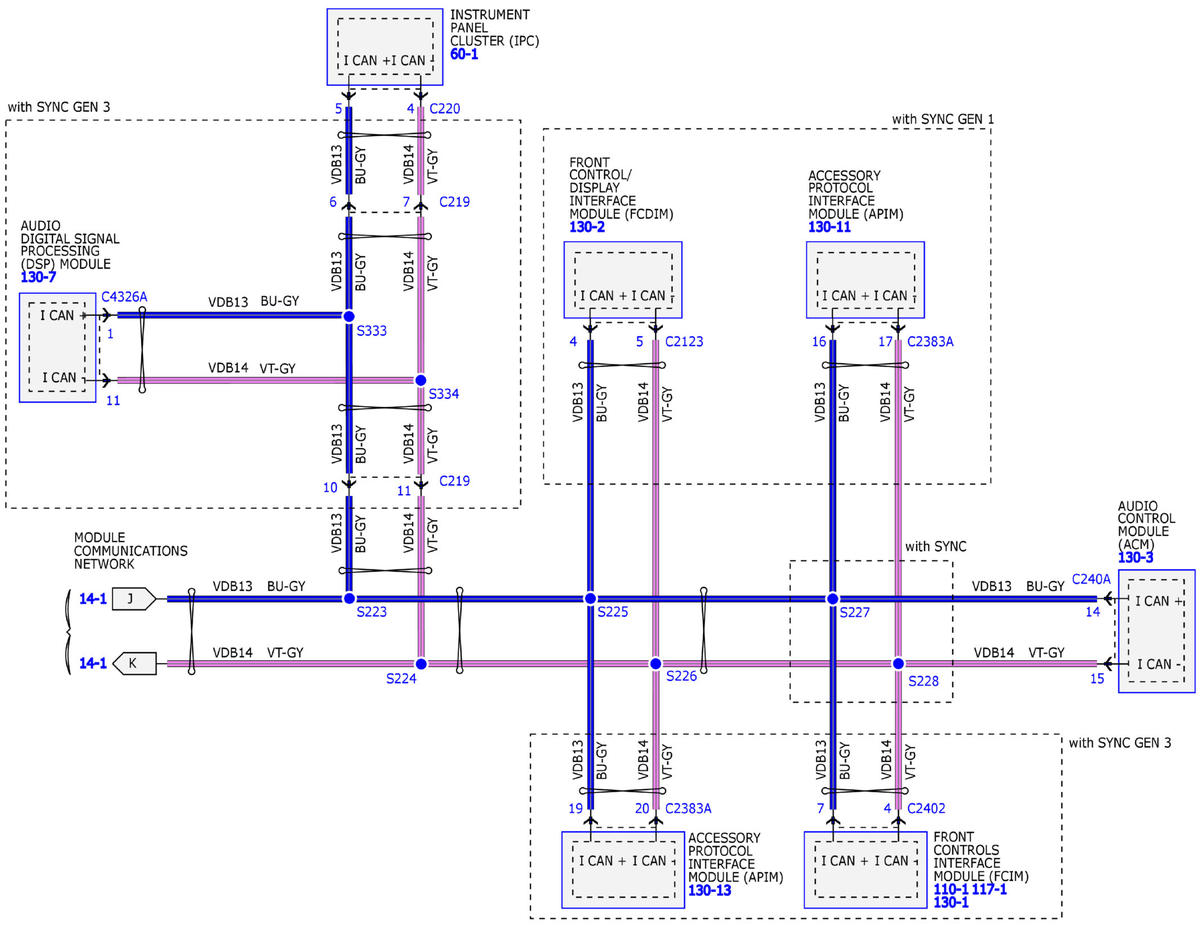

Fig 4: Module Communications Network System Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

Fig 5: Module Communications Network System Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

Fig 6: Module Communications Network System Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
