Rear Door Alignment

WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

Check the body to the rear door dimensions. Refer to: Body and Frame .

Adjustment

NOTE: LH side shown, RH side similar.

NOTE: 5-door shown, 4-door similar.

NOTE: Removal steps in this procedure may contain installation details.

All alignments

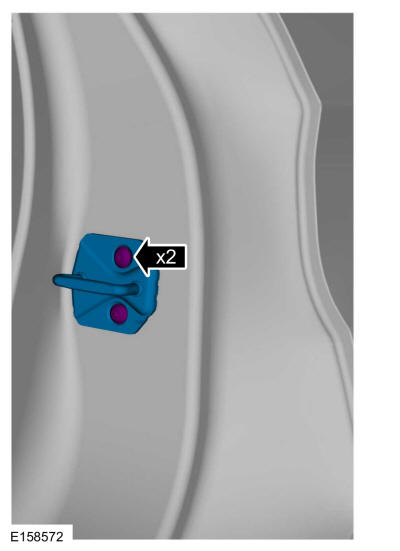

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

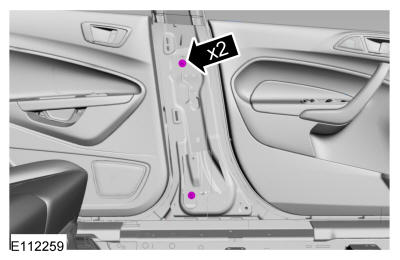

Loosen the bolts to permit movement of the door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

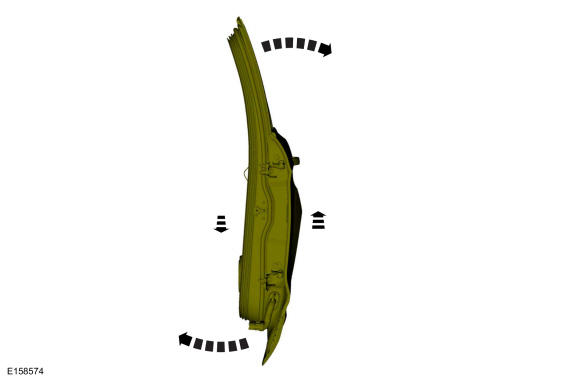

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment
Remove the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .

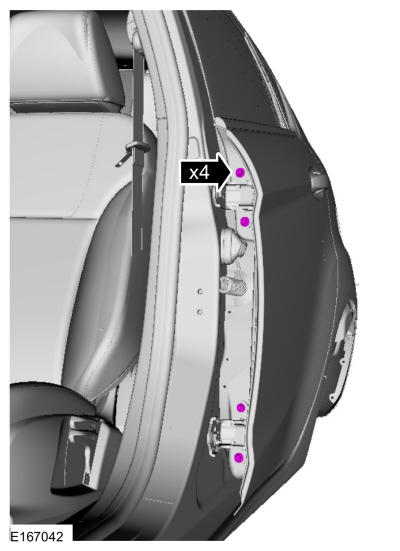

Loosen the nuts to permit movement of the door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

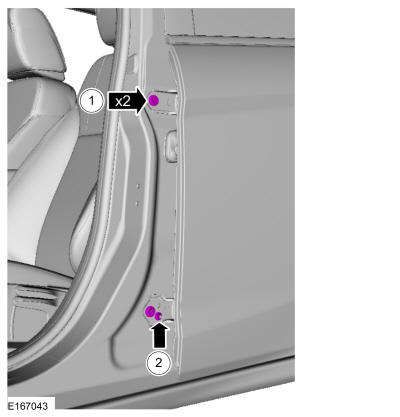

Loosen the bolts and nut to permit movement of the door. Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

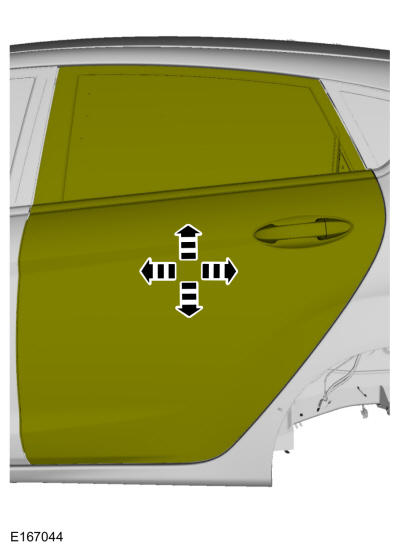

Adjust the door to specification. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY
Tighten the bolts and the nut.
Torque: 1: 18 lb.ft (25 Nm) 2: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the safety belt retractor and pretensioner. Refer to: Seatbelt Retractor and Pretensioner .
All alignments

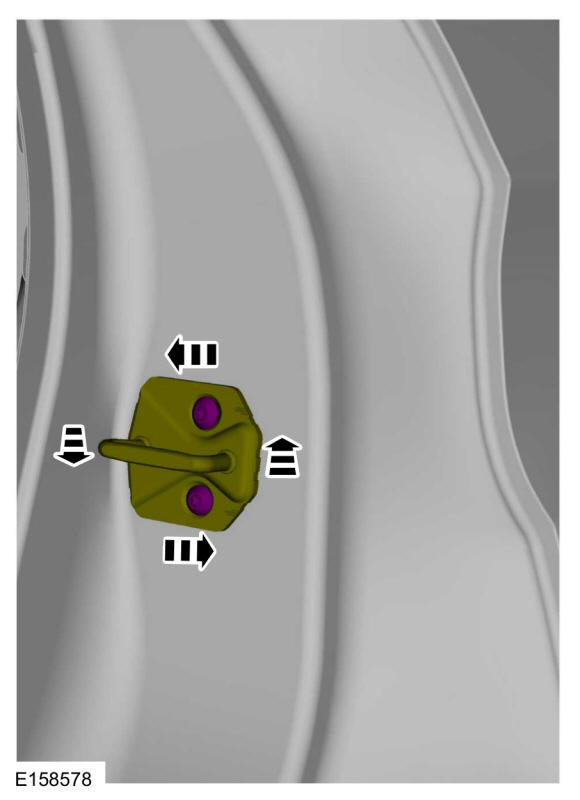

Loosen the bolts to permit movement of the striker assembly.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Check the body to the rear door dimensions. Refer to: Body and Frame .
