Luggage Compartment Lid Alignment
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection

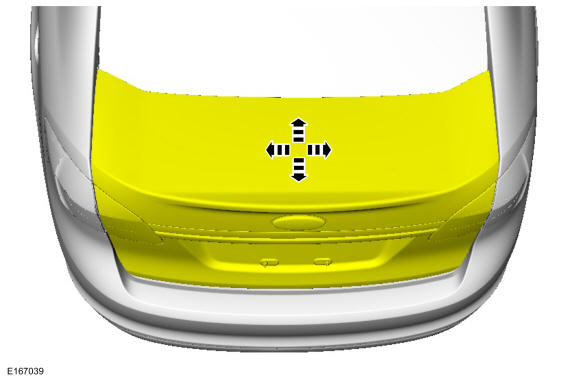

- Check the body to the luggage compartment lid dimensions. Refer to: Body and Frame .
Adjustment

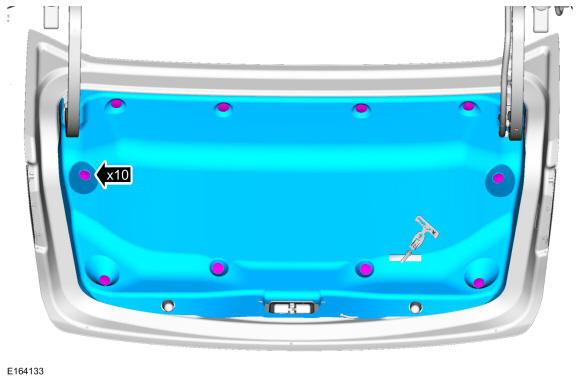

- Remove the pin-type retainers and the luggage compartment lid trim panel.

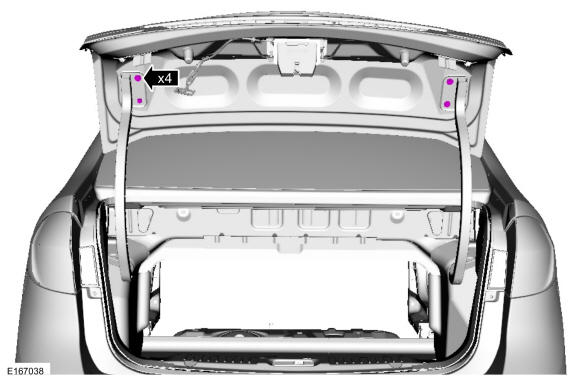

- Loosen the bolts enough to permit movement of the luggage compartment lid. Loosen: 2 turn(s)
- Adjust the luggage compartment lid to specifications. Refer to: Body and Frame
.
- Tighten the bolts.
Torque: 97 lb.in (11 Nm)
- Check the luggage compartment lid to body specifications. Refer to: Body and Frame .
- Install the luggage compartment lid trim panel and the pin-type retainers.
