Roof Opening Panel Frame: Installation
WARNING: This page is about a different car, the 2018 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

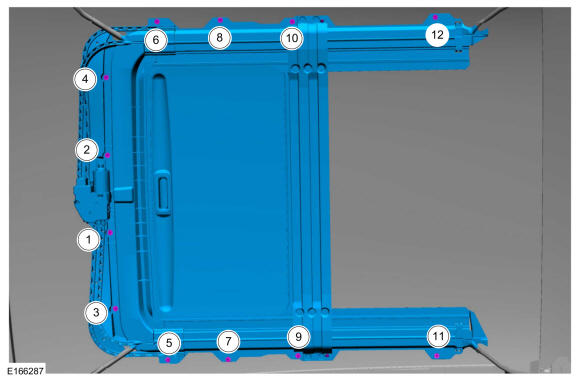

- Tighten the bolts in the sequence shown.
Torque: 80 lb.in (9 Nm)
- Align the roof opening panel. Refer to: Roof Opening Panel Alignment .
